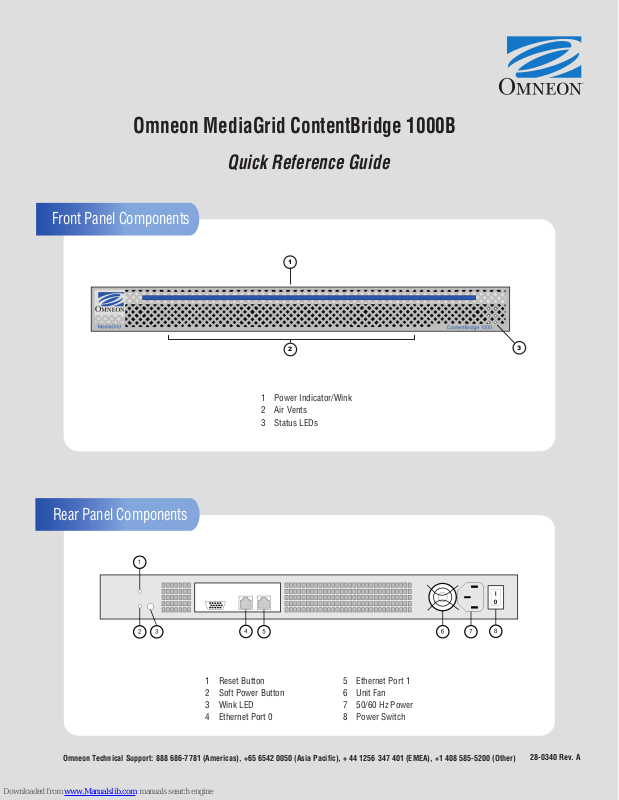

Omneon MediaGrid ContentBridge 1000B
Front Panel Components
Quick Reference Guide
1
Rear Panel Components
2
1 Power Indicator/Wink
2 Air Vents
3 Status LEDs
3
1 Reset Button
2 Soft Power Button
3 Wink LED
4 Ethernet Port 0
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
5 Ethernet Port 1
6 Unit Fan
7 50/60 Hz Power
8 Power Switch
28-0340 Rev. A
Front Panel LEDs
Off
White
Blue
Red
For the indicated Ethernet port
Power off
(Solid) Online
(Blink) Active network port
(Blink) ContentBridge cannot download its configuration
file from ContentDirector
Ethernet link problem
Back Port LEDs
Ethernet Port 0
Unused
Unused
Port 0
Link
indicator
LED LED State NIC State
Port 1
Ethernet Port 1
Unused
Unused
Activity
indicator
Link (Left)
Activity (Right)
Omneon Technical Support: 888 686-7781 (Americas), +65 6542 0050 (Asia Pacific), + 44 1256 347 401 (EMEA), +1 408 585-5200 (Other)
Off
Green (solid)
Amber (solid)
Off
Yellow (solid)
Yellow (blink)
Power off, network cables unplugged
Power off, network cables plugged in; active connection at 100 Mb/s
Power on, network cables pugged in; active connection at 1 Gb/s
Power off, network cables unplugged
Power on, active connection
Power on, network data being sent or received
28-0340 Rev. A
