Omitec 2000209 User Manual

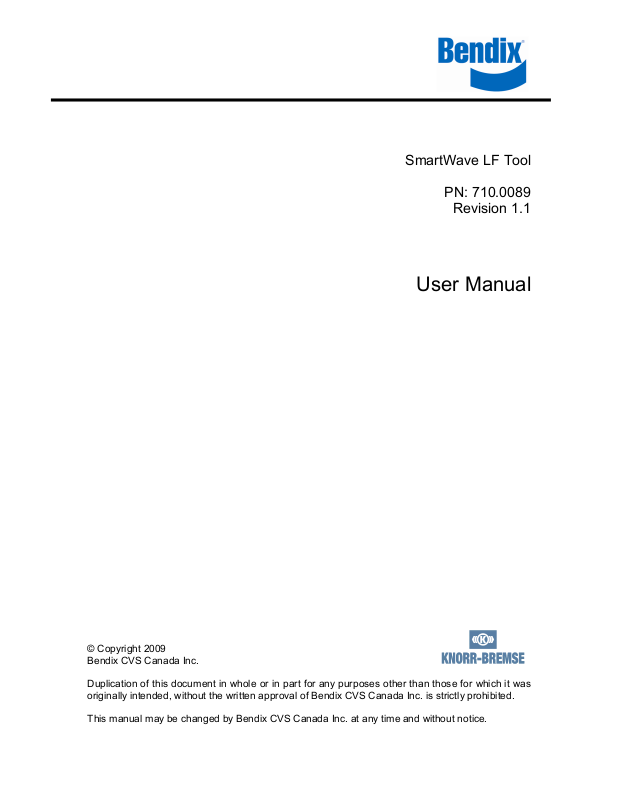

SmartWave LF Tool

PN: 710.0089

Revision 1.1

User Manual

© Copyright 2009
Bendix CVS Canada Inc.

Duplication of this document in whole or in part for any purposes other than those for which it was
originally intended, without the written approval of Bendix CVS Canada Inc. is strictly prohibited.

This manual may be changed by Bendix CVS Canada Inc. at any time and without notice.

TABLE OF CONTENTS

1. I

NTRODUCTION

2. O

3. G

4. U

5. P

5.1. S

6. V

VERVIEW
ETTING STARTED
SING THE SMARTWAVE LF TOOL

ROGRAMMING SENSOR ID NUMBERS

ERIFYING CORRECT INSTALLATION

MARTWAVE

.............................................................................................................................3

...................................................................................................................................3

...........................................................................................................................6

.......................................................................................................................5

................................................................................................5

...........................................................................................6

..............................................................................................7

710.0089 Rev. 1.1 SmartWave LF Tool User Manual

2

1. INTRODUCTION

The SmartWave LF Tool is a handheld device designed to provoke data transmissions from
SmartWave sensors. The tool can be used to assist the installer during:

• New Installations – programming sensor ID numbers & vehicle configuration into the
receiver

• Sensor Replacement - programming new sensor ID numbers into the receiver

• Installation Verification (without moving vehicle)

NOTE: The SmartWave LF Tool is compatible with SmartWave low and high pressure
commercial sensors ONLY.

2. OVERVIEW

Transmission End

Learn LED

Initiate LED

Low Battery LED

On/Off & Mode
Select Button

Initiate/Learn Button

Battery Cover

710.0089 Rev. 1.1 SmartWave LF Tool User Manual

3
