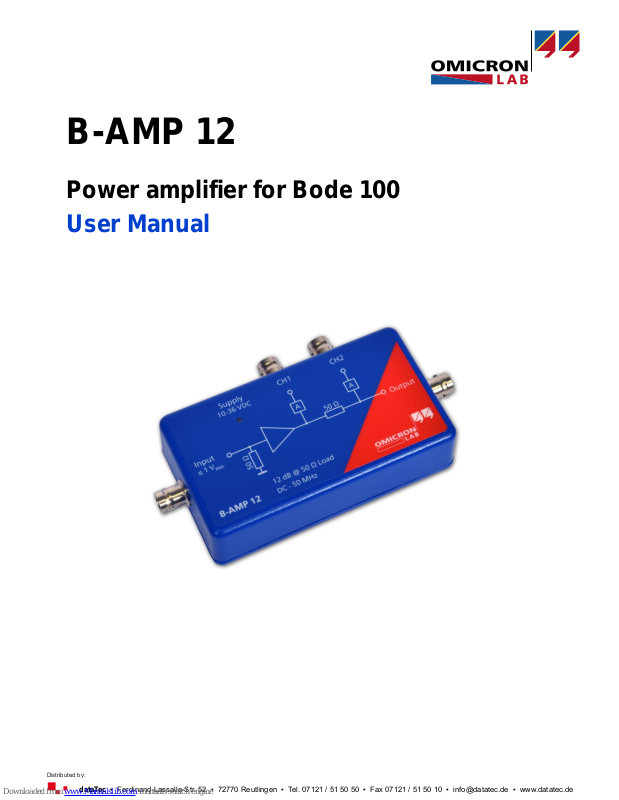

Omicron Lab B-AMP 12 User Manual

B-AMP 12

Power amplifier for Bode 100

User Manual

Distributed by:

dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ [e-mail] ▪ www.datatec.de

2 OMICRON Lab

B-AMP 12 User Manual

Version: ENU11880501— Year: 2017
© OMICRON Lab, OMICRON electronics. All rights reserved.
This manual is a publication of OMICRON electronics.
All rights including translation reserved. Reproduction of any kind, e.g., photocopying, microfilming,

optical character recognition and/or storage in electronic data processing systems, requires the explicit
consent of OMICRON electronics. Reprinting, wholly or in part, is not permitted.

The product information, specifications, and technical data embodied in this manual represent the
technical status at the time of writing and are subject to change without prior notice.

Windows is a registered trademark of Microsoft Corporation. OMICRON Lab and Smart Measurement
Solutions are registered trademarks of OMICRON electronics.

OMICRON Lab 3

Compliance statements and recycling

1 Compliance statements and recycling

1.1 Declaration of conformity (EU)

The B-AMP 12 adhere to the guidelines of the council of the European Community for meeting the
requirements of the member states regarding the low voltage directive (LVD), the electromagnetic
compatibility (EMC) directive and the RoHS directive.

1.2 Information for disposal and recycling

This test set (including all accessories) is not intended for household use. After use the
test set cannot be disposed of as household waste!

For customers in EU countries (incl. European Economic Area):

OMICRON test sets are subject to the EU Waste Electrical and Electronic Equipment
Directive (WEEE directive). As part of our legal obligations under this legislation,
OMICRON offers to take back the OMICRON test set and ensure that it is disposed of by
an authorized recycling facility.

For customers outside the European Economic Area:

Please contact the competent authorities for the relevant environmental regulations in your
country and dispose the OMICRON test set only in accordance with your local legal
requirements.

4 OMICRON Lab

B-AMP 12 User Manual

2 Safety

2.1 Disclaimer

If the equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired. Opening the B-AMP 12 invalidates all warranty claims.

2.2 Designated use

B-AMP 12 has been designed to amplify voltages smaller or equal to 1 Vrms in the frequency range
from DC – 50 MHz. B-AMP 12 has been especially designed for the use in laboratory and
manufacturing environments.

Safety symbols used

In this manual, the following symbol indicates safety instructions for avoiding hazards.

WARNING

Death or serve injury can occur if the appropriate safety instructions are not observed.

CAUTION

Minor or moderate injury may occur if the appropriate safety instructions are not
observed.

NOTICE

Equipment damage or loss of data possible.

OMICRON Lab 5

Safety

2.3 Safety instructions

Before operating the B-AMP 12, read the safety instructions in this document carefully. If you do not
understand some safety rules, contact OMICRON Lab before proceeding.

Before operating always make sure that neither the B-AMP 12 nor its accessories are damaged.
Test setups that include the B-AMP 12 must comply with the internal safety instructions and all

additional safety relevant documents.

For your safety

The B-AMP 12 may only be operated by trained personnel. Any maloperation can result in damage to
property or persons.

Rules for use

► B-AMP 12 is a SELV device (Safety Extra Low Voltage in accordance to IEC 60950), also known

as protection class III equipment.

► Do not apply hazardous voltage levels >50 VDC or >25 VAC to any input or output of

B-AMP 12.

► Be aware that no indication on the B-AMP 12 shows that the output is active. This could be

especially critical if additional amplifiers are connected to the B-AMP 12.

► Testing with the B-AMP 12 shall only be carried out by authorized and qualified personnel. Before

starting to work, clearly establish the responsibilities of all personnel involved.

► Do not operate the B-AMP 12 when explosive gas or vapours are present.

2.4 Cleaning

To clean the B-AMP 12, use a cloth dampened with isopropanol alcohol. Prior to cleaning, always ensure
that all connections to the B-AMP 12 and DUT are disconnected.

6 OMICRON Lab

B-AMP 12 User Manual

3 Device Overview

Delivery includes:

B-AMP 12 amplifier

Wall adapter (power supply)

Figure 3-1: B-AMP 12 connector description

Channel 1 output-connector
BNC plug to measure the

internal voltage (attenuated)

Power supply connector
Supply the B-AMP 12 with

10 V DC to 36 V DC

Channel 2 output-connector
BNC plug to measure the

output voltage (attenuated)

Input connector
BNC plug to connect the signal that shall be

amplified ( ≤ 13 dBm)

Output connector
BNC plug delivering the amplified output

signal ( ≤ 25 dBm)

OMICRON Lab 7

Application Information

4 Application Information

The B-AMP 12 can be used to amplify a signal ≤ 13 dBm (or 1 Vrms at 50 Ω) in the frequency range
from DC to 50 MHz.

The amplification factor of B-AMP 12 is 12 dB (or factor 4). Output impedance and input impedance of
B-AMP 12 are 50 Ω.

Typical applications:

1. Gain measurements
B-AMP 12 can be used to increase the signal level during a gain measurement or an
S21 transmission measurement.

2. Impedance measurements
B-AMP 12 can be used to measure impedance with higher AC signal levels.

Figure 4-1 shows a typical setup where B-AMP 12 is used to amplify the output signal of the Bode 100
vector network analyzer to measure S21 of a 2-port DUT using up to 25 dBm signal level.

Figure 4-2 shows a typical setup using the B-AMP 12 to measure impedance of a one-port DUT with up
to 25 dBm AC signal level. Note: This setup requires Open, Short and Load calibration at the DUT port.

Figure 4-1: Typical transmission/gain measurement setup

Figure 4-2: Typical impedance measurement setup

More details and information about measurements using the B-AMP 12 can be found in our application
note section at: https://www.omicron-lab.com/

NOTICE

► Make sure that the DUT can withstand the 25 dBm output level of B-AMP 12
► Be aware that B-AMP 12 does not indicate if the output is active or not

8 OMICRON Lab

B-AMP 12 User Manual

5 Technical data

Table 5-1 Specifications

General characteristic

Rating

Frequency range

DC – 50 MHz

Gain (1 Hz – 50 MHz)

12 dB ±0.25 dB into 50 Ω

Signal connector type

BNC

Input Characteristic

Rating

Maximum input signal

≤ 1 V

RMS

(≙ 13 dBm / 2.83 VPP)

Input impedance

50 Ω

Input return loss

> 30 dB

Damage level

10 VPP

Output Characteristic

Rating

Maximum output amplitude

25 dBm (≙ 11.3 VPP) into 50 Ω

Output impedance

50 Ω

Output return loss

> 30 dB

Output DC offset

< 10 mV (input and output terminated with 50 Ω)

Damage reverse power

1 W

Input to CH1 attenuation

14.5 dB typ. (output terminated with 50 Ω)

Input to CH2 attenuation

20.8 dB typ. (output terminated with 50 Ω)

Output to CH2 voltage gain

-33 dB (≙ x0.022) into 50 Ω

Table 5-2 DC power requirements

Characteristic

Rating

Supply voltage range

10 – 36 VDC

Power consumption

at 12 V: < 440mA typ.
at 24 V: < 220mA typ.

Power connector / socket

Coaxial power socket (2.5 mm / 5.5 mm)
Inner connector positive polarity (+)

OMICRON Lab 9

Technical data

Table 5-3 Environmental conditions

Characteristic

Rating

Operating temperature

5 °C … +40 °C / 41 °F … +104 °F

Storage temperature

-35 °C … +60 °C / -31 °F … +140 °F

Relative humidity

20 % … 80 %, non-condensing

Table 5-4 Mechanical data

Characteristic

Rating

Dimensions (with connectors)

138 mm x 75 mm x 32 mm

5.43 inch x 2.95 inch x 1.26 inch

Weight

0.21 kg / 0.46 lbs

Figure 5-1 B-AMP 12 frequency response

10 OMICRON Lab

B-AMP 12 User Manual

6 Technical support

When you are working with our products we want to provide you with the greatest possible benefits. If
you need any support, we are here to assist you!

Technical Support - Get Support

www.omicron-lab.com/support
[e-mail]

At our technical support hotline, you can reach well-educated technicians for all your questions.
Competent and free of charge.

Make use of our technical support hotlines:

Americas: [phone] or +1 800-OMICRON
Asia-Pacific: [phone]
Europe / Middle East / Africa: [phone]

Additionally, you can find the OMICRON Lab Service Center or Sales Partner closest to you at

www.omicron-lab.com → Contact.
