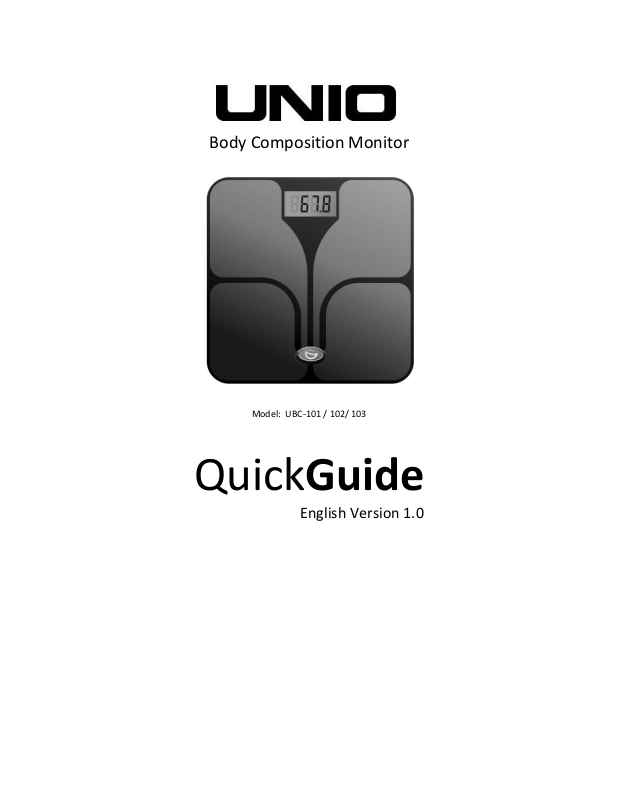

Body Composition Monitor
Model: UBC-101 / 102/ 103
QuickGuide
English Version 1.0
Thank you for choosing UNIO Body Composition Monitor!
INTRODUCTION
UNIO Body Composition Monitor is a digital monitor intended for use in measuring weight and
body fat mass in generally healthy adults 18 years of age or older. It is intended for use in the
home/domestic setting only.
IMPORTANT NOTICE
Please read manual carefully before you use it.
This product is not suitable for people wearing a pacemaker or any other internal
medical device.
This product is not a medical device and should not be used to diagnose or treat any
medical conditions.
Do not use the scale on wet floor, with wet feet or wet glass to avoid slipping or falling.
It’s better to place the scale on flat and solid ground when measuring. If have to place on
carpet, put the carpet feet on.
When first used or moved, the scale will automatically validate and the second
measurement will be accurate and stable.
PREPARATON FOR INSTALLATION
1 Install batteries 2 Choose unit
3 Download and install 4 Register and login
iOS/Android MediX BC App
5 Setup family members 6 Turn on Bluetooth
INSTALLATION
1 Open the MediX BC App 2 Stand with bare feet and
measuring
3 Choose family member 4 Save or delete measuring result
5 Check record history 6 Check record history
via line graph via table
CARE AND MAINTAINENCE
Replacing battery
The device uses FOUR AAA alkaline batteries. If the low battery symbol (LO) appears on the
device LCD display, replace all four AAA alkaline batteries at once.
1. Remove the battery cover at the lower end.
2. Install or replace 4 AAA alkaline batteries and make sure that the + (positive) and –
(negative) polarities match the polarities indicated on the battery compartment.
3. Put the battery cover back in place.
If the device will not be used for a long period of time, it is advised to remove the alkaline
batteries.
Cleaning your scale
Important! Never use any detergents to clean your scale. You may irreversibly damage the
coating which protects the electrodes used to measure your body fat mass.
DESCRIPTIONS
SPECIFICATIONS
Model: UBC-101 /102 /103
Power source: LR03 (AAA) x 4
Weight display units: kg, lb
Maximum weight capacity: 180 kg/ 396 lb
Graduation: 0.1 kg/ 0.2 lb
Connectivity: Bluetooth 4.0/2.1
Weight of equipment: 2.1kg/ 4.6 lbs
Dimensions: 328 x 328x 27 mm (39mm with carpet feet)
Operating Conditions: 0-40°C, ≤90% relative humidity without condensation
Storage and transport conditions: -20 to 60°C. 10 to 95% relative humidity
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following
two
conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired
operation.
15.105 Information to the
user.
(b) For a Class B digital device or peripheral, the instructions furnished the user shall
include the following or similar statement, placed in a prominent location in the text
of the
manual:
Note: This equipment has been tested and found to comply with the limits for a
Class B
designed to provide
residential installation. This equipment generates,
frequency energy and, if not installed and used in accordance with
digital device,
pursuant to part 15 of the FCC Rules. These limits are
reasonable
protection against harmful interference in a
uses
and can radiate radio
the
instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does
cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of
Reorient
Increase
Connect
receiver
Consult
or relocate the receiving
the separation between the equipment and
the equipment into an outlet on a circuit different from that to which the
is
connected.
the dealer or an experienced radio/TV technician for
the
following
antenna.
measures:
receiver.
help.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
End users must follow the specific operating instructions for satisfying RF exposure
compliance. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction
