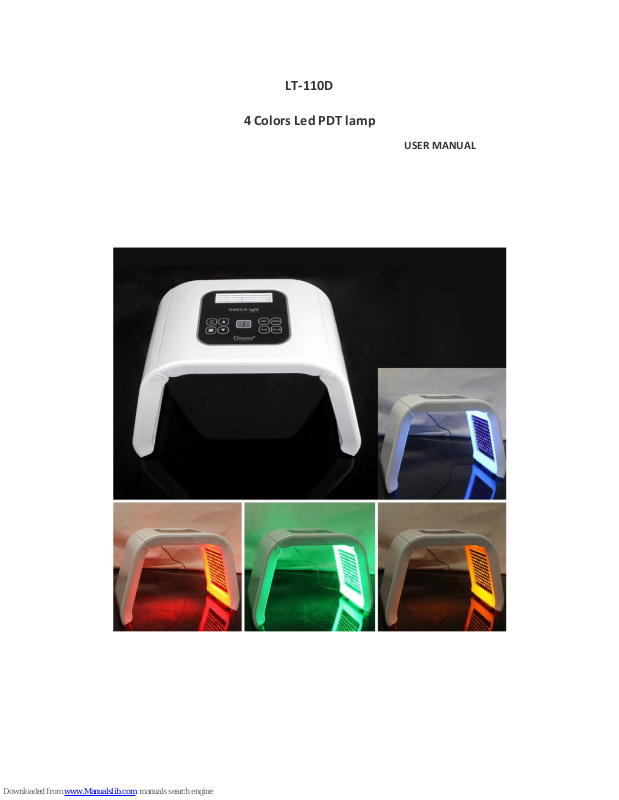

Page 1
LT-110D
4 Colors Led PDT lamp
USER MANUAL
Page 2
Warning
Dear user:
Thanks for choosing Mychway company’s product, in order to fully make use of the
products, we sincerely suggest follow:
◆Please read the instruction in detail and keep it well for further reading and
consulting.
◆Please follow the instruction to fit and operate the machine correctly.
◆Please do not remove and change any accessories of the machine.
◆
It forbids others others to open and remove the mainframe except the authorized
people in the company.
◆
It forbids others to change and maintain the machine except the professional
people.
◆Please contact us if there is any troule during operation.

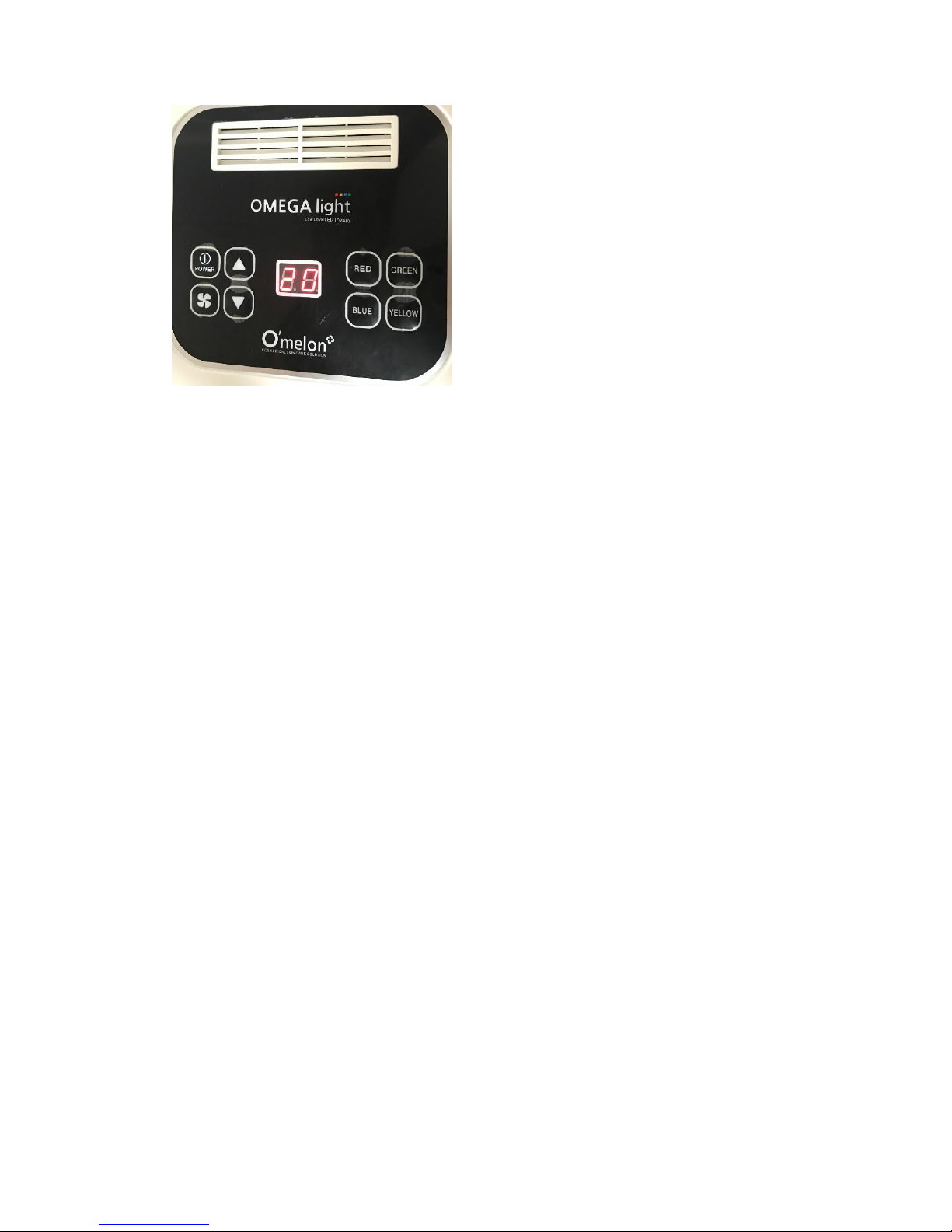

Machine Interface
Page 3
Generaly Introduction
WHAT CAN THIS LED DO FOR U?
Skin LED light has shown to be effective for the treatment of several aspects of the
skin aging.The treatment of several aspects of the skin aging,multiple studies have
demonstrated improvement of fine wrinkles,mottled hyperpigmentation ,tactile
tactile roughness and sallowness,these results are supported by both collagen
production and increase proliferation
What Can this LED do for u?
- Kill bacteria that cause spots and pimples
- Great alternative to oral medications
- Prevent breakouts
- Minimize scarring
THE EFFECT OF OUR SKIN LED
a. Kill bacteria that cause spots and pimples
b. Great alternative to oral medications
c. Prevent breakouts
d. Minimize scarring
e. Led face mask is very effective for kinds of skin care treatments.
Advantage
Page 4
a.Easy to operate with full touch screen (3 programs included).
b. Maximum Power Control Program -15 minutes.
c. Smart design to place the handles on the case.
d. Non invasive treatment and totally safe.
e. Frequency adjustable on the screen to re-adjust the handle.
f. Electro stimulation treatment Included.
FOUR COLORS :
1,Red
2,Yellow
3,Green
4,Blue
SPECIFICATIONS :
Technology: PDT led lights skin care
Wavelength: Red-620nm,yellow-590nm,green-520nm,blue-465nm
Output mode:M1 M2 M3 M4
Bright intensity:1~9 level
Time selection:1-90min
Input voltage:100-240VAC,50/60Hz
Power per light: 0.01mw
LED quantities:960pcs ,each color 240pcs
Lifetime: 25000 hours
Net / Gross weight:4KG/7KG
Brightness: Red3000-4000mcd,yellow3500-4500mcd,green7000-8000mcd,blue45005500mcd
Package size: 60*40*46cm3
4 COLORS
Red Light
The most penetrating power, promoting recycling and increase the oxygen content
in the blood, activating cells, enhancing energy efficiency, promoting collagen
proliferation, improving wrinkles, effective treatment of aging, skin relaxation,
relieve pain and products deep absorption.
2.Blue Light
Bacteria killing,skin cleaning,cell activation,injury recovery,promoting protein-ossein
composition.
Page 5
3.Yellow light
Improving cell's oxygen alternation function,promoting
mirco circulation, decomposing pigment, promoting lymph posion discharge, curing
skin roughness, red spots and deficient circulations.
4.Green light
Effective reduction of melanin cell,decreased pigment formation,adjustment of skin
gland function, adjustment of skin gland function, reduction of grease
gland excitation.
Operate

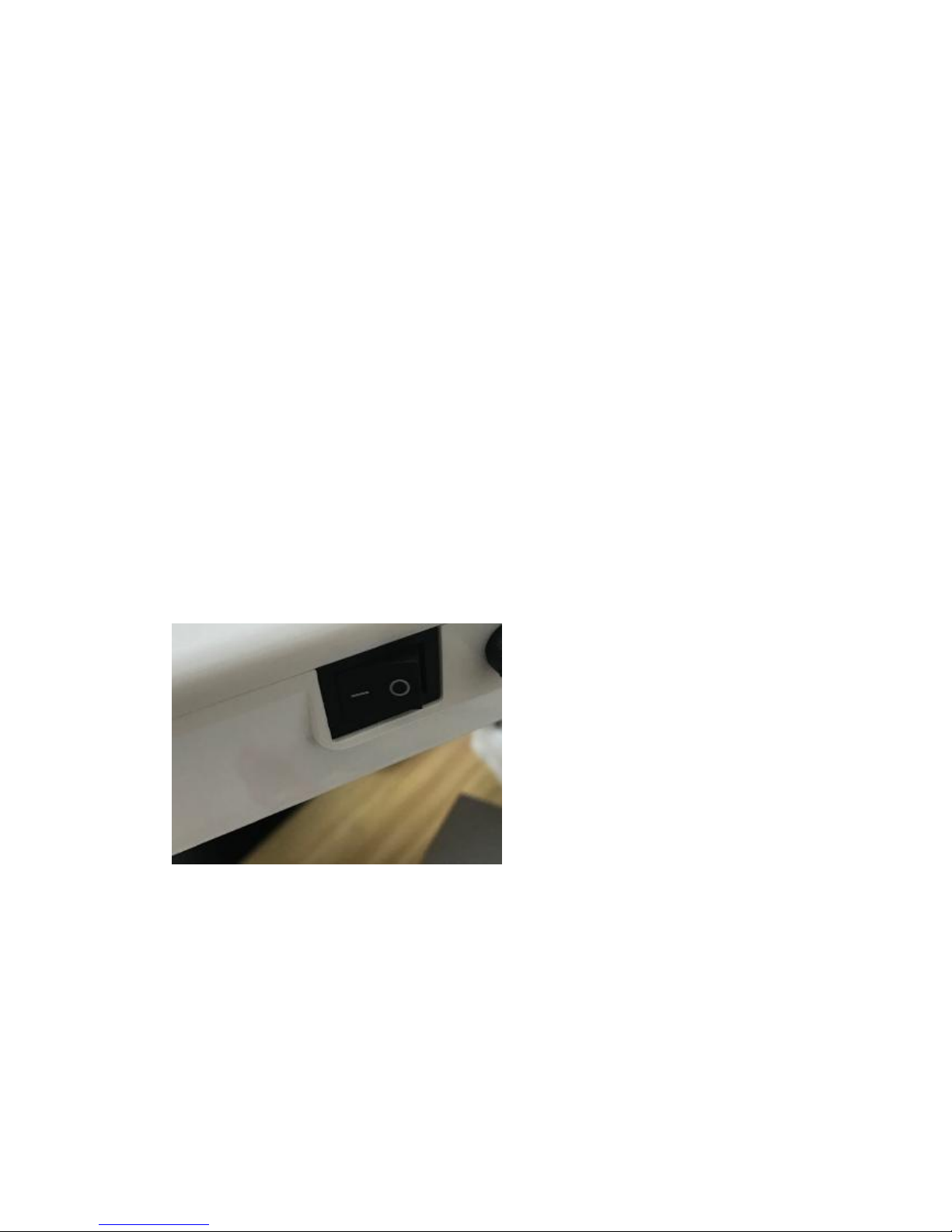

1. Connect the power adpter, and press the power bottom
2. And then press the power bottom on the surface of the machine. Then you will
see the the screen show time number. （ check below picture）
Page 6
3. Choose color treatment.
Red: press red botton to choose the function of red light.
Function:
A. Stimulates us and always appears when the circulation is in full swing. Red, the
warmest color, symbolizes life and fills us with strength and energy.
B. Vitalize
C. Improve circulation
D. Facilitate the flow of blood
Green: press green botton to choose the function of green light.
Function:
A. Stands for natural vigour and is the most calming color, symbolizing hope and
satisfaction. Green is synonymous with spiritual balance and harmony.
B. Balance
C. Normalize sebaceous glands
D. Reduce black heads and sores
Blue: press blue botton to choose the function of blue light.
Function:
A. Has a calming effect and helps us sleep better. Blue is the coldest, purest and
deepest color and represents reserve and introversion.
B. Calm
C. Increase synthesizing of protein and collagen
Page 7
D. Useful to sensitive, oily skin and pimples.
E. Help to Slimming
Yellow: press yellow botton to choose the function of yellow light.
Red + blue： Press RED then press blue.
This mix light will combine with function of red and blue.

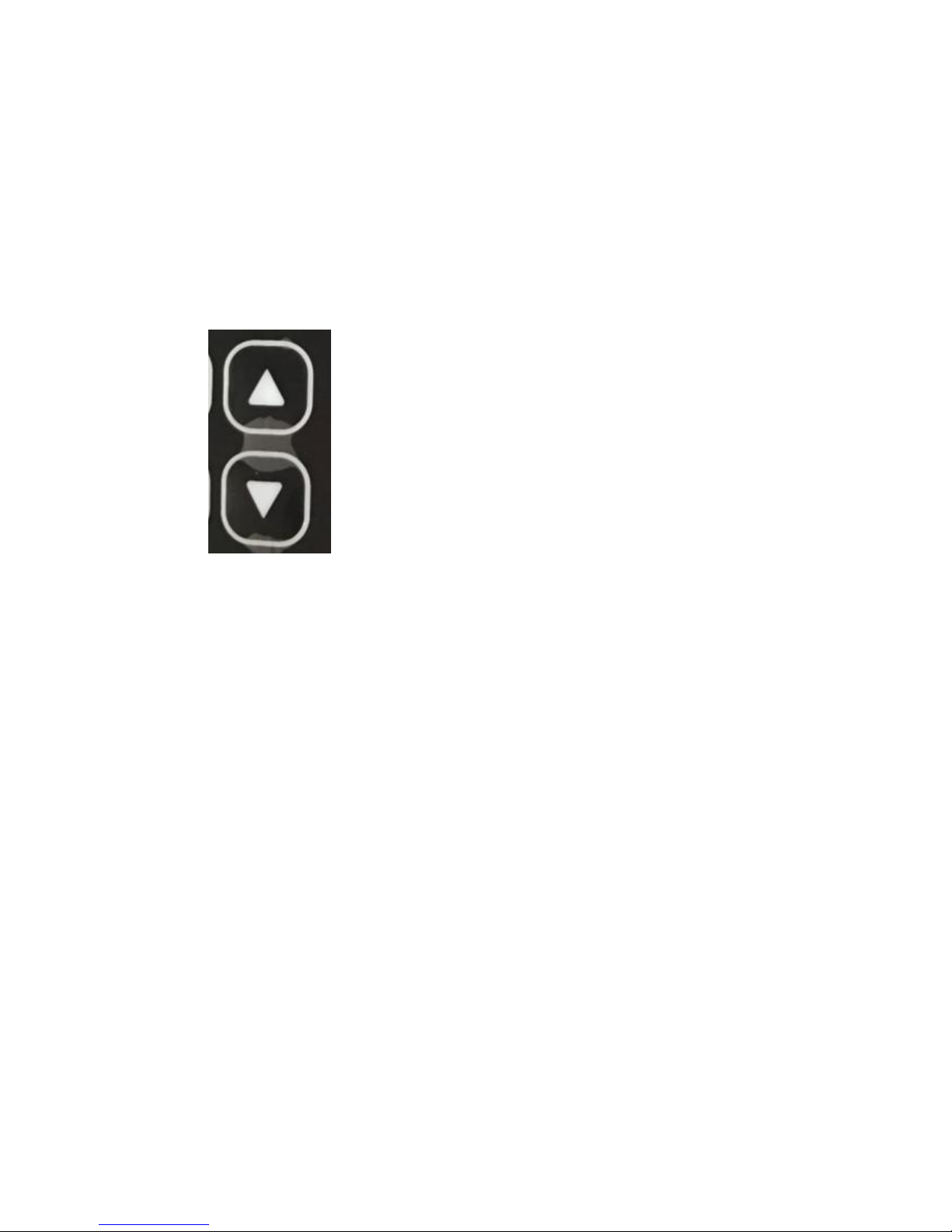

4. Setting time:
Click to setting time as your requirement, usually we will suggest
each color treat 15-25mins.
