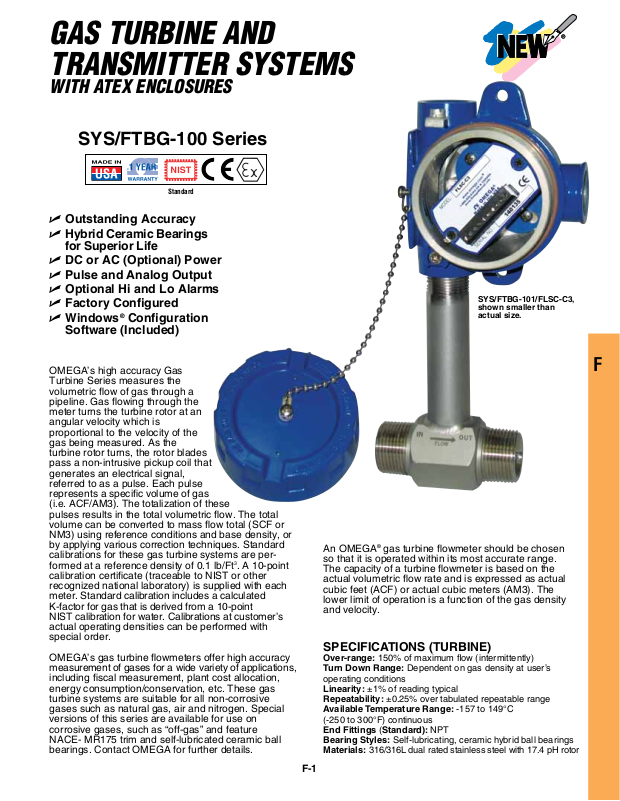

Omega Products SYS-FTBG-103-FLSC-C3 User Manual

GAS TURBINE AND TRANSMITTER SYSTEMS
WITH ATEX ENCLOSURES
SYS/FTBG-100 Series
Standard
U Outstanding Accuracy U Hybrid Ceramic Bearings
for Superior Life
U DC or AC (Optional) Power U Pulse and Analog Output U Optional Hi and Lo Alarms U Factory Configured U Windows
Software (Included)
®
Configuration
SYS/FTBG-101/FLSC-C3, shown smaller than actual size.
OMEGA’s high accuracy Gas Turbine Series measures the volumetric flow of gas through a pipeline. Gas flowing through the meter turns the turbine rotor at an angular velocity which is proportional to the velocity of the gas being measured. As the turbine rotor turns, the rotor blades pass a non-intrusive pickup coil that generates an electrical signal, referred to as a pulse. Each pulse represents a specific volume of gas (i.e. ACF/AM3). The totalization of these pulses results in the total volumetric flow. The total volume can be converted to mass flow total (SCF or NM3) using reference conditions and base density, or by applying various correction techniques. Standard calibrations for these gas turbine systems are per­formed at a reference density of 0.1 lb/Ft calibration certificate (traceable to NIST or other recognized national laboratory) is supplied with each meter. Standard calibration includes a calculated K-factor for gas that is derived from a 10-point NIST calibration for water. Calibrations at customer’s actual operating densities can be performed with special order.
OMEGA’s gas turbine flowmeters offer high accuracy measurement of gases for a wide variety of applications, including fiscal measurement, plant cost allocation, energy consumption/conservation, etc. These gas turbine systems are suitable for all non-corrosive gases such as natural gas, air and nitrogen. Special versions of this series are available for use on corrosive gases, such as “off-gas” and feature NACE- MR175 trim and self-lubricated ceramic ball bearings. Contact OMEGA for further details.
3
. A 10-point
®
An OMEGA so that it is operated within its most accurate range. The capacity of a turbine flowmeter is based on the actual volumetric flow rate and is expressed as actual cubic feet (ACF) or actual cubic meters (AM3). The lower limit of operation is a function of the gas density and velocity.
gas turbine flowmeter should be chosen
SPECIFICATIONS (TURBINE)
Over-range: 150% of maximum flow (intermittently) Turn Down Range: Dependent on gas density at user’s
operating conditions
Linearity: ±1% of reading typical Repeatability: ±0.25% over tabulated repeatable range Available Temperature Range: -157 to 149°C
(-250 to 300°F) continuous
End Fittings (Standard): NPT Bearing Styles: Self-lubricating, ceramic hybrid ball bearings Materials: 316/316L dual rated stainless steel with 17.4 pH rotor
F
F-1
FLSC-C3, shown
smaller than actual size.
Specifications (Signal Conditioner)
Input Signal Type: MCP pickup Input Frequency Range: 0.2 Hz to 4 KHz Signal Level: 10 mV rms to 30 Vdc Power Supply: 13 to 30 Vdc standard,
100 to 240 Vac (-AC) (optional), reverse polarity protection Analog Output: 4 to 20 mA, 1 to 5V, 24 mA overflow condition (dip switch selectable) Load Resistance: Maximum 650 Ω @ 24 Vdc
Accuracy: ±0.02% of full scale Temperature Drift: 40 ppm/°C Pulse Output: 0 to 5V Recommended Minimum Load Resistance: 50 KΩ Pulse Scaling: Divide by 1,10,100 per flow unit of measure Hi/Lo Alarm (Optional): Relay (2A, 30 Vdc),
0 to 5V, open collector (0.5A, 30V) Communications: RS232 port for configuration and diagnostics
Linearization: Up to 20 points Operating Temperature: -40 to 85°C (-40 to 185°F) Humidity: 0 to 90% non-condensing Enclosure: Extruded aluminum explosion-proof ATEX
3
Port:
-14 NPT
4
Regulatory: CE compliant
To Order Visit omega.com/sys_ftbg-100 for Pricing and Details
Nat Gas 2 to 3 psi Air 35 to 40 psi
@ 0.05lb/FT3 @ 0.25lb/FT Pressure Pressure
Meter Blade Range Drop Range Drop Maximum Model Number Description Size NPT Angle ACFM (PSID) ACFM (PSID) Pressure
SYS/FTBG-101/FLSC-C3 Gas turbine ¹⁄₄ ¹⁄₂ 30° 0.3 to 1.6 0.1 0.13 to 1.6 0.5
SYS/FTBG-102/FLSC-C3 Gas turbine ¹⁄₄ ¹⁄₂ 15° 0.65 to 3.5 0.02 0.35 to 3.5 0.1 SYS/FTBG-103/FLSC-C3 Gas turbine ³⁄₈ ¹⁄₂ 30° 0.6 to 2.3 0.1 0.27 to 2.3 0.5 SYS/FTBG-104/FLSC-C3 Gas turbine ³⁄₈ ¹⁄₂ 15° 1.3 to 5 0.02 0.6 to 5 0.1 SYS/FTBG-105/FLSC-C3 Gas turbine ⁵⁄₈ ³⁄₄ 30° 1 to 4.4 0.1 0.45 to 4.4 0.5 SYS/FTBG-106/FLSC-C3 Gas turbine ⁵⁄₈ ³⁄₄ 15° 2.17 to 9.5 0.025 1 to 10 0.125 SYS/FTBG-107/FLSC-C3 Gas turbine ³⁄₄ ³⁄₄ 30° 1.2 to 9.2 0.1 0.54 to 9.2 0.5 SYS/FTBG-108/FLSC-C3 Gas turbine ³⁄₄ ³⁄₄ 15° 2.6 to 20 0.02 1.2 to 20 0.1 SYS/FTBG-109/FLSC-C3 Gas turbine 1 1 30° 1.6 to 20 0.2 0.72 to 20 1 SYS/FTBG-110/FLSC-C3 Gas turbine 1 1 15° 3.5 to 43 0.04 1.6 to 43 0.2 SYS/FTBG-111/FLSC-C3 Gas turbine 1¹⁄₂ 1¹⁄₂ 30° 3.5 to 55.5 0.15 1.6 to 55.6 0.75 SYS/FTBG-112/FLSC-C3 Gas turbine 1¹⁄₂ 1¹⁄₂ 15° 7.6 to 120 0.035 3.5 to 120 0.175 SYS/FTBG-113/FLSC-C3 Gas turbine 2 2 30° 7 to 93 0.3 3.1 to 93 1.5 SYS/FTBG-114/FLSC-C3 Gas turbine 2 2 15° 15 to 200 0.0625 7 to 200 0.3125 SYS/FTBG-115/FLSC-C3 Gas turbine 3 3 30° 15 to 363 0.4 6.7 to 363 2 SYS/FTBG-116/FLSC-C3 Gas turbine 3 3 15° 35 to 600 0.1 15 to 600 0.5
Systems come complete with turbine, signal conditioner and operator’s manual. For units with 100 to 240 Vac power add “-VAC” to model number, for additional cost, not available with alarm option. For units with optional high/low alarm relay add “-AL” to the model number, for additional cost.
Signal Conditioners/Accessories
Model Number Range Description
FLSC-C3 4 to 20 mA CE Replacement signal conditioner FLSC-C3-AL 4 to 20 mA and alarm CE Replacement signal conditioner OM-CONV-USB USB to RS232 converter FLSC-C-CABLE 9-pin D connector to transmitter Molex
Replacement signal conditioners require the purchase of FLSC-C-CABLE to enable them to be programmed in the field. Required software available free at omega.com/ftp.
Ordering Example: SYS/FTBG-107/FLSC-C3, 3⁄4" gas turbine with 4 to 20 mA signal conditioner.
only for gas turbine system
with alarm only for gas turbine system
