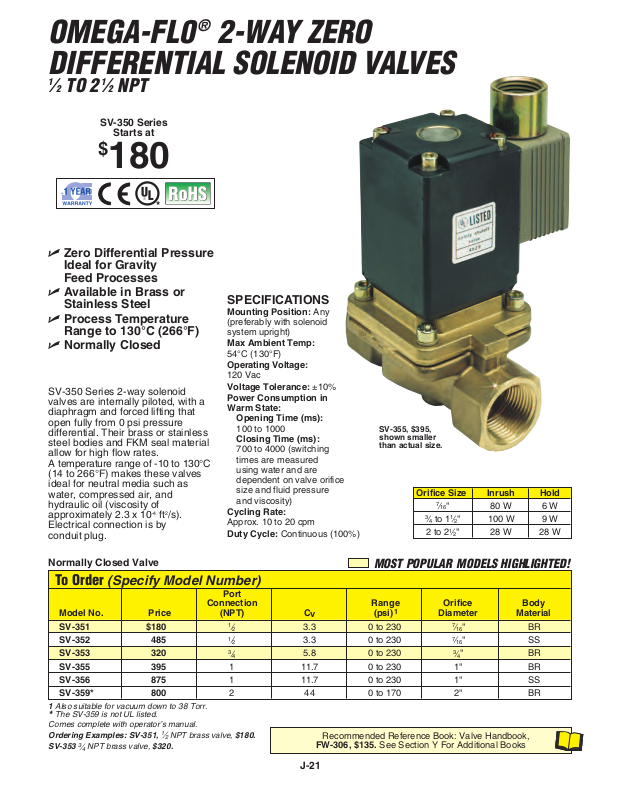

Page 1
®
OMEGA-FL0
2-WAY ZERO
DIFFERENTIAL SOLENOID VALVES
1
⁄2 TO 21⁄2 NPT
SV-350 Series
Starts at
$
180
*
⻬ Zero Differential Pressure
Ideal for Gravity
Feed Processes
⻬ Available in Brass or
Stainless Steel
⻬ Process Temperature
Range to 130°C (266°F)
⻬ Normally Closed
SV-350 Series 2-way solenoid
valves are internally piloted, with a
diaphragm and forced lifting that
open fully from 0 psi pressure
differential. Their brass or stainless
steel bodies and FKM seal material
allow for high flow rates.
A temperature range of -10 to 130°C
(14 to 266°F) makes these valves
ideal for neutral media such as
water, compressed air, and
hydraulic oil (viscosity of
approximately 2.3 x 10-4ft2/s).
Electrical connection is by
conduit plug.
SPECIFICATIONS
Mounting Position: Any
(preferably with solenoid
system upright)
Max Ambient Temp:
54°C (130°F)
Operating Voltage:
120 Vac
Voltage Tolerance: ±10%
Power Consumption in
Warm State:
Opening Time (ms):
100 to 1000
Closing Time (ms):
700 to 4000 (switching
times are measured
using water and are
dependent on valve orifice
size and fluid pressure
and viscosity)
Cycling Rate:
Approx. 10 to 20 cpm
Duty Cycle: Continuous (100%)
SV-355, $395,
shown smaller
than actual size.
Orifice Size Inrush Hold
3
⁄4to 11⁄2" 100 W 9 W
2 to 21⁄2" 28 W 28 W
7
⁄16" 80 W 6 W
Normally Closed Valve
MOST POPULAR MODELS HIGHLIGHTED!
To Order (Specify Model Number)
Port
Model No. Price (NPT) C
SV-351 $180
SV-352 485
SV-353 320
SV-355 395 1 11.7 0 to 230 1" BR
SV-356 875 1 11.7 0 to 230 1" SS
SV-359* 800 2 44 0 to 170 2" BR
1 Also suitable for vacuum down to 38 Torr.
The SV-359 is not UL listed.
*
Comes complete with operator’s manual.
Ordering Examples: SV-351,
3
SV-353
NPT brass valve, $320.
⁄
4
1
NPT brass valve, $180.
⁄
2
Connection Range Orifice Body
1
⁄
2
1
⁄
2
3
⁄
4
v
3.3 0 to 230
3.3 0 to 230
5.8 0 to 230
Recommended Reference Book: Valve Handbook,
FW-306, $135. See Section Y For Additional Books
J-21
(psi)
1
Diameter Material
7
" BR
⁄
16
7
" SS
⁄
16
3
" BR
⁄
4
