Omega Products STS-2X User Manual
A
A-88
*
Specify Type J, K, T, or E Thermocouple type † Specify “E” for 0.00385 or “A” for 0.00392 curve
**
Other lengths are available, consult Sales Department
Ordering Example: FTP-K-2-SMP-M, Type K, flow through probe with 1⁄4" stainless steel
fitting and SMPW write-on connector, $120.
Dual RTD Probe
with NPT Fitting

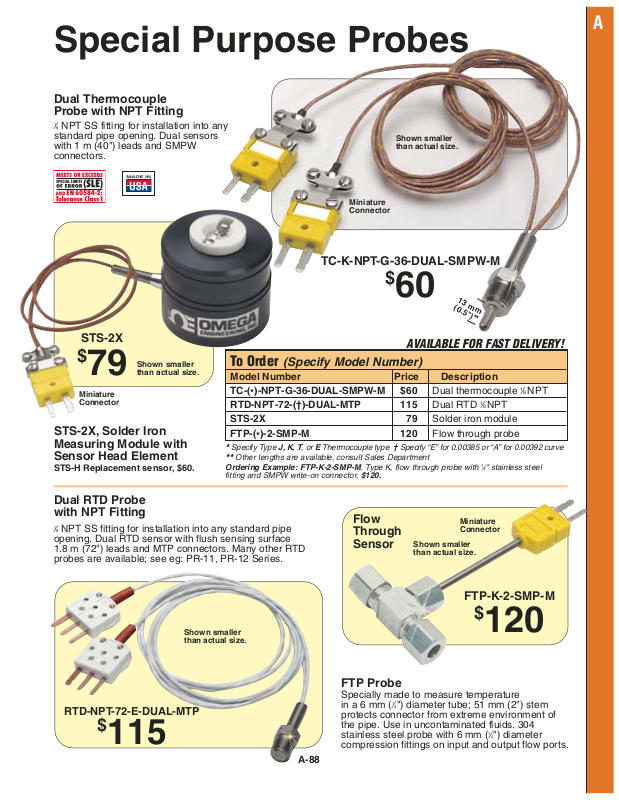

Special Purpose Probes
1
⁄8 NPT SS fitting for installation into any
standard pipe opening. Dual sensors
with 1 m (40") leads and SMPW
connectors.
1
⁄8 NPT SS fitting for installation into any standard pipe
opening. Dual RTD sensor with flush sensing surface
1.8 m (72") leads and MTP connectors. Many other RTD
probes are available; see eg: PR-11, PR-12 Series.
TC-K-NPT-G-36-DUAL-SMPW-M
$
60
RTD-NPT-72-E-DUAL-MTP
$
115
FTP Probe
Specially made to measure temperature
in a 6 mm (1⁄4") diameter tube; 51 mm (2") stem
protects connector from extreme environment of
the pipe. Use in uncontaminated fluids. 304
stainless steel probe with 6 mm (1⁄4") diameter
compression fittings on input and output flow ports.
Dual Thermocouple
Probe with NPT Fitting
STS-2X, Solder Iron
Measuring Module with
Sensor Head Element
STS-H Replacement sensor, $60.
To Order
(Specify Model Number)
Model Number Price Description
TC-(*)-NPT-G-36-DUAL-SMPW-M $60 Dual thermocouple 1⁄8 NPT
RTD-NPT-72-(†)-DUAL-MTP 115 Dual RTD 1⁄8 NPT
STS-2X 79 Solder iron module
FTP-(*)-2-SMP-M 120 Flow through probe
13 mm
(0.5")**
Miniature
Connector
FTP-K-2-SMP-M
$
120
Flow
Through
Sensor
Miniature
Connector
STS-2X
$
79
Miniature
Connector
Shown smaller
than actual size.
Shown smaller
than actual size.
Shown smaller
than actual size.
Shown smaller
than actual size.
AVAILABLE FOR FAST DELIVERY!
