H-107
4-Channel Solid State Input/Output
Modules
AC/DC Sensing/Control
Specifications
AC/DC INPUT QUAD MODULES
INPUT
Model SSS-QI120-C SSS-QI240-C SSS-QID32-C
Nominal Input Voltage 120 Vrms/Vdc 240 Vrms/Vdc 24 Vrms/48 Vdc
Max Input Voltage 140 Vrms/Vdc 280 Vrms/Vdc 60 Vrms/Vdc
Min Input Voltage 90 Vrms/Vdc 180 Vrms/Vdc 10 Vrms/Vdc
Max Input Current
10 mA rms 8 mA rms 30 mA rmsn
(@ max input voltage)
Drop out Current 2.5 mA rms 1.5 mA rms 1.0 mA rms
Available Off-State Input 3.0 mA rms 2.0 mA rms 1.0 mA rms
Allowable Off-State Voltage 50 Vrms/Vdc 120 Vrms/Vdc 2 Vrms/Vdc
SSS Series
$
50
Basic Unit
4 Channels in
One Module
4000 Vrms Isolation
AC/DC Input and Output
Modules Available
High Speed Input Module
Available
Designed to minimize space
requirements, the SSS-Q series
4-channel solid state switches
replace 4 individual SSS modules.
Providing a connection between
data acquisition systems and the
real world, these modules can
sense or control ac/dc power lines.
Input modules sense the presence
of an ac/dc voltage, and send an
input signal to the acquisition system.
Output modules accept an output
signal from the system, and will
switch ac/dc power lines on or off.
Each module contains four channels
of input or outputs. Up to 6 modules
may be mounted on a 6000-DEXB-C
backplane for a twenty-four channel
system.

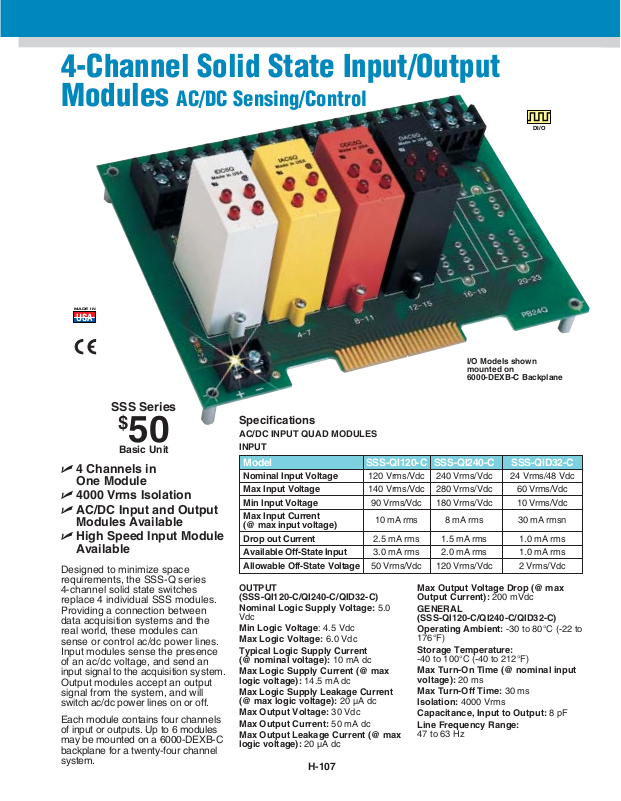

I/O Models shown
mounted on
6000-DEXB-C Backplane
OUTPUT
(SSS-QI120-C/QI240-C/QID32-C)
Nominal Logic Supply Voltage: 5.0
Vdc
Min Logic Voltage: 4.5 Vdc
Max Logic Voltage: 6.0 Vdc
Typical Logic Supply Current
(@ nominal voltage): 10 mA dc
Max Logic Supply Current (@ max
logic voltage): 14.5 mA dc
Max Logic Supply Leakage Current
(@ max logic voltage): 20 µA dc
Max Output Voltage: 30 Vdc
Max Output Current: 50 mA dc
Max Output Leakage Current (@ max
logic voltage): 20 µA dc
Max Output Voltage Drop (@ max
Output Current): 200 mVdc
GENERAL
(SSS-QI120-C/QI240-C/QID32-C)
Operating Ambient: -30 to 80°C (-22 to
176°F)
Storage Temperature:
-40 to 100°C (-40 to 212°F)
Max Turn-On Time (@ nominal input
voltage): 20 ms
Max Turn-Off Time: 30 ms
Isolation: 4000 Vrms
Capacitance, Input to Output: 8 pF
Line Frequency Range:
47 to 63 Hz
USA
MADE IN
DI/O
DC INPUT QUAD MODULE –
SSS-QIDF16-C
INPUT
Max Input Voltage: 32 Vdc
Min Input Voltage: 3.3 Vdc
Input Resistance: 1 kΩ
Max Input Current (@ max input
voltage): 32 mA dc
Drop out Current: 1.0 mA dc
Available Off-State Input: 1.0mAdc
Allowable Off-State Voltage: 2.0 Vdc
OUTPUT
Nominal Logic Supply Voltage: 5.0 Vdc
Min Logic Voltage: 4.5 Vdc
Max Logic Voltage: 6.0 Vdc
Typical Logic Supply Current
(@ nominal voltage): 10 mA dc
Max Logic Supply Current (@ max
logic voltage): 14.5 mA dc
Max Logic Supply Leakage Current (@
max logic voltage): 20 µA dc
Max Output Voltage: 30 Vdc
Max Output Current: 50 mA dc
Max Output Leakage Current (@ max
logic voltage): 20 µA dc
Max Output Voltage Drop (@ max
Output Current): 200 mVdc
GENERAL
Operating Ambient: -30 to 80°C (-22 to
176°F)
Storage Temperature:
-40 to 100°C (-40 to 212°F)
Max Turn-On Time (@ nominal input
voltage): 300 µs
Max Turn-Off Time: 600 µs
Isolation: 4000 Vrms
Capacitance, Input to Output: 8 pF
DC OUTPUT QUAD MODULE –
SSS-QOD60-C
INPUT
Nominal Input voltage: 5 Vdc
Min Input voltage: 4.0 Vdc
Max Input Voltage: 6.0 Vdc
Drop out Voltage: 1.0 Vdc
Max Input Current: 15 mA dc
Typical Input Current: 10 mA dc
Nominal Input Resistance: 240 Ω
OUTPUT
Max Line Voltage: 60 Vdc
Min Line Voltage: 3.0 Vdc
Max Off-State Voltage: 60 Vdc
Max Off-State Leakage: 1.0 mA dc
Max On-State Current: 3.0 A dc; derate
40 mA/°C above 20°C; when operating in
I/O racks that share a common fuse
between two channels, max on-state
current must
not exceed
a total of
3.75 A rms
@ 20°C
ambient for
both
channels
Min OnState
Current:
10 mA dc
Max 1
Second
Surge: 5Adc
Peak On-State Voltage:
1.5 Vdc @ 25°C
Max Turn-On Time: 50 µs
Max Turn-Off Time: 100 µs
GENERAL
Operating Ambient: -30 to 80°C (-22 to
176°F)
Storage Temperature:
-40 to 100°C (-40 to 212°F)
Isolation: 4000 Vrms
Capacitance, Input to Output: 8 pF
AC OUTPUT QUAD MODULE –
SSS-QOA240-C
INPUT
Nominal Input voltage: 5 Vdc
Min Input voltage: 4.0 Vdc
Max Input Voltage: 6.0 Vdc
Drop out Voltage: 1.0 Vdc
Max Input Current: 15 mA dc
Typical Input Current: 10 mA dc
Nominal Input Resistance: 240 Ω
OUTPUT
Nominal Line Voltage: 240 Vrms
Max Line Voltage: 280 Vrms
Min Line Voltage: 24 Vrms
Max Peak Off-State Voltage: 600 Vpeak
Max Off-State Leakage:
4.5 mA rms
Static Off-State (dv/dt): 200 V/µs
Max
On-State
Current: 3.0 A rms;
derate 40 mA/°C above
20°C; when operating in I/O racks
that share a common fuse between two
channels, max on-state current must not
exceed a total of 3.75 A rms @ 20°C
ambient for both channels
Min On-State Current: 50 mA rms
Max 1 Cycle Surge: 100 Apeak
Peak On-State Voltage: 1.6 Vpeak
GENERAL
Operating Ambient: -30 to 80°C
(-22 to 176°F)
Storage Temperature:
-40 to 100°C (-40 to 212°F)
Response Time: 0.5 cycle
Isolation: 4000 Vrms
Capacitance, Input to Output: 8 pF
Line Frequency Range: 47 to 63 Hz
H
Ordering Example: four SSS-QI120-C 90 to 140 Vac/dc input modules, two SSS-QOA240-C
24 to 280 Vac output modules, and 6000-DEXB backplane, 4(50) + 2(50) + 144 = $444.
To Order (Specify Model Number)
Model Number Price Description
SSS-QI120-C $50 90 to 140 Vac/dc Input
SSS-QI240-C 50 180 to 280 Vac/dc Input
SSS-QIDF16-C 65 3.3 to 32 Vdc Fast Switching Input
SSS-QID32-C 50 10 to 60 Vac/dc Input
SSS-QOA240-C 50 24 to 280 Vac Output
SSS-QOD60-C 50 3 to 60 Vdc Output
6000-DEXB 144 Backplane for up to 6 modules
