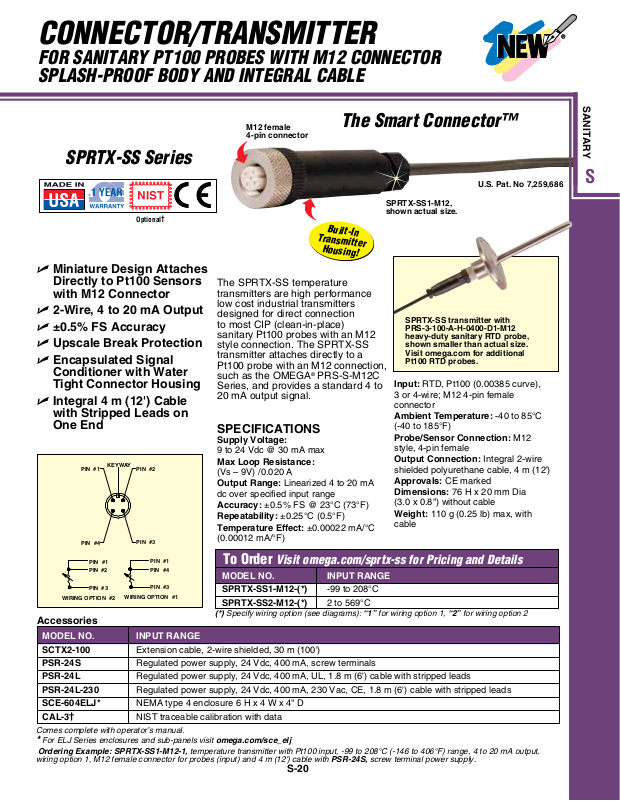

CONNECTOR/TRANSMITTER

FOR SANITARY PT100 PROBES WITH M12 CONNECTOR
SPLASH-PROOF BODY AND INTEGRAL CABLE

SANITARY

M12 female
4-pin connector

The Smart Connector™

SPRTX-SS Series

U.S. Pat. No 7,259,686

SPRTX-SS1-M12,

†

Optional

Built-In

Transmitter

Housing!

U Miniature Design Attaches

Directly to Pt100 Sensors
with M12 Connector

U 2-Wire, 4 to 20 mA Output
U ±0.5% FS Accuracy
U Upscale Break Protection
U Encapsulated Signal

Conditioner with Water
Tight Connector Housing

U Integral 4 m (12') Cable

The SPRTX-SS temperature
transmitters are high performance
low cost industrial transmitters
designed for direct connection
to most CIP (clean-in-place)
sanitary Pt100 probes with an M12
style connection. The SPRTX-SS
transmitter attaches directly to a
Pt100 probe with an M12 connection,
such as the OMEGA® PRS-S-M12C
Series, and provides a standard 4 to
20 mA output signal.

with Stripped Leads on
One End

KEYWAY

PIN #1

PIN #4

PIN #1

PIN #2

PIN #3

WIRING OPTION #2

Accessories

MODEL NO. INPUT RANGE

SCTX2-100 Extension cable, 2-wire shielded, 30 m (100')
PSR-24S Regulated power supply, 24 Vdc, 400 mA, screw terminals
PSR-24L Regulated power supply, 24 Vdc, 400 mA, UL, 1.8 m (6') cable with stripped leads
PSR-24L-230 Regulated power supply, 24 Vdc, 400 mA, 230 Vac, CE, 1.8 m (6') cable with stripped leads
SCE-604ELJ* NEMA type 4 enclosure 6 H x 4 W x 4" D
CAL-3† NIST traceable calibration with data

Comes complete with operator’s manual.

* For ELJ Series enclosures and sub-panels visit omega.com/sce_elj

Ordering Example: SPRTX-SS1-M12-1, temperature transmitter with Pt100 input, -99 to 208°C (-146 to 406°F) range, 4 to 20 mA output,
wiring option 1, M12 female connector for probes (input) and 4 m (12') cable with PSR-24S, screw terminal power supply.

PIN #2

PIN #3

PIN #1

PIN #4

PIN #3

WIRING OPTION #1

SPECIFICATIONS

Supply Voltage:

9 to 24 Vdc @ 30 mA max
Max Loop Resistance:

(Vs – 9V) /0.020 A
Output Range: Linearized 4 to 20 mA

dc over specified input range

Accuracy: ±0.5% FS @ 23°C (73°F)
Repeatability: ±0.25°C (0.5°F)
Temperature Effect: ±0.00022 mA/°C

(0.00012 mA/°F)

To Order

MODEL NO. INPUT RANGE

SPRTX-SS1-M12-(*) -99 to 208°C
SPRTX-SS2-M12-(*) 2 to 569°C

(*) Specify wiring option (see diagrams): “1” for wiring option 1, “2” for wiring option 2

Visit omega.com/sprtx-ss for Pricing and Details

S-20

shown actual size.

SPRTX-SS transmitter with
PRS-3-100-A-H-0400-D1-M12
heavy-duty sanitary RTD probe,
shown smaller than actual size.
Visit omega.com for additional
Pt100 RTD probes.

Input: RTD, Pt100 (0.00385 curve),

3 or 4-wire; M12 4-pin female
connector

Ambient Temperature: -40 to 85°C
(-40 to 185°F)

Probe/Sensor Connection: M12
style, 4-pin female

Output Connection: Integral 2-wire
shielded polyurethane cable, 4 m (12')

Approvals: CE marked
Dimensions: 76 H x 20 mm Dia

(3.0 x 0.8") without cable
Weight: 110 g (0.25 lb) max, with

cable
