Omega Products SCE-1436B User Manual

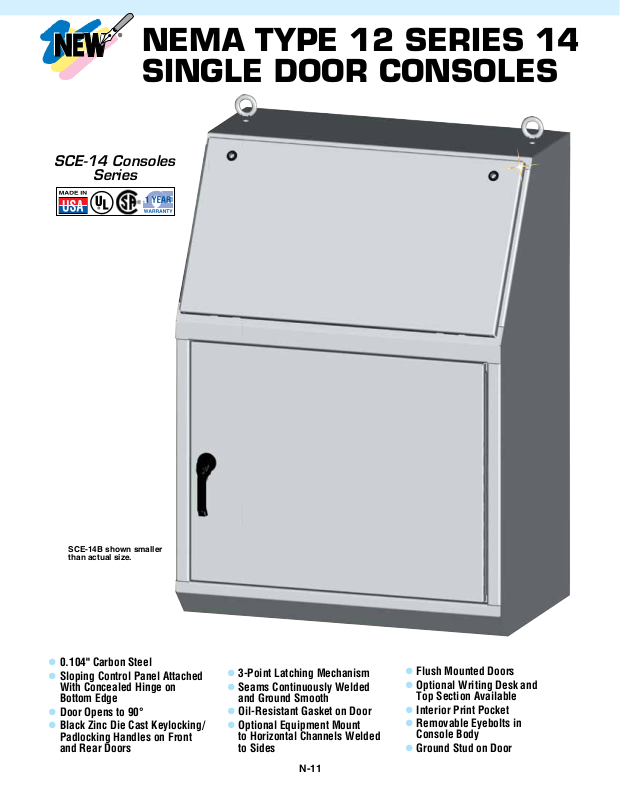

NEMA typE 12 sEriEs 14
siNglE door coNsolEs
SCE-14 Consoles
Series
SCE-14B shown smaller
than actual size.
l 0.104" Carbon Steel
l Sloping Control Panel Attached
With Concealed Hinge on
Bottom Edge
l Door Opens to 90°
l Black Zinc Die Cast Keylocking/
Padlocking Handles on Front
and Rear Doors
l 3-Point Latching Mechanism
l Seams Continuously Welded
and Ground Smooth
l Oil-Resistant Gasket on Door
l Optional Equipment Mount
to Horizontal Channels Welded
to Sides
N-11
l Flush Mounted Doors
l Optional Writing Desk and
Top Section Available
l Interior Print Pocket
l Removable Eyebolts in
Console Body
l Ground Stud on Door
B
Available
Door Space
577.9
(22.75)
B - 203.2
(8.00)
38.1
(1.50)
57.2
(2.25)
B - 114.3 (4.50)
Opening
622.3 (24.50)
Opening
139.7
(5.50)
A
120.7
(4.75)
38.1
(1.50)
Available
Door Space
1111.3
(43.75)
B - 218.9
(8.62)
38.1
(1.50)
171.4
(6.75)
1155.7 (45.50)
Opening
B - 114.3 (4.50)
Opening
57.2
(2.25)
38.1
(1.50)
57.2
(2.25)
View A-A
B - 25.4 (1.00)
Slope Door
View B-B
47.6
(1.88)
490.7 (19.32)
Slope Door
437 (17.21)
Opening
B - 69.8 (2.75)
Opening
34.9
(1.38)
38.1
(1.50)
B - 101.6
(4.00)
366.8
(14.44)
Available
Door Space
Quarter Turn
Latches
C
158.7
(6.25)
127 (5.00)
Padlocking
Handle with
Key-Lock
812.8
(32.00)
514.4
(20.25)
178 (7.00)
Padlocking
Handle with
Key-Lock
Adjustable
Sub-Panel
Mounting
150.0°
B
514.4
(20.25)
B
A
317.5
(12.50)
To Order Visit omega.com/sce_14doors-1 for Pricing and Details
HEIGHT WIDTH DEPTH
MODEL NO. DESCRIPTION (A) (inch) (B) (inch) (C) (inch)
TYPE 12 SERIES 14 SINGLE DOOR CONSOLES—24" WIDE
SCE-14B Console body 50.00 24.00 23.00
SCE-14T Console top 16.00 24.00 12.50
SCE-14P1 Swing-out sub-panel 22.00 18.12 —
SCE-14P2 Half sub-panel 22.00 17.00 —
SCE-14P3 Full sub-panel 42.25 17.00 —
SCE-14R Set of 2 rack angles 29.00 — —
SCE-14W Writing desk 24.00 10.00 —
TYPE 12 SERIES 14 SINGLE DOOR CONSOLES—36" WIDE
SCE-1436B Console body 50.00 36.00 23.00
SCE-1436T Console top 16.00 36.00 12.50
SCE-1436P1 Swing-out sub-panel 22.00 30.12 —
SCE-1436P2 Half sub-panel 22.00 29.00 —
SCE-1436P3 Full sub-panel 42.25 29.00 —
SCE-1436W Writing desk 36.00 10.00 —
Ordering Examples: SCE-14B Type 12 series 14 console enclosure.
SCE-1436B, Type 12, single-door console body, 50 H x 36 W x 23" D, SCE-1436P1,
swing-out sub-panel.
Application
Designed for electronic controls and
instruments. Equipment can be mounted
on the sloping control panel door. Interior
components mount to stationary panels.
Heavy duty construction provides protection
from dirt, oil, dust, and water.
Finish
White powder coated inside and ANSI-61
recoatable gray finish outside over
phosphatized surfaces. Optional top sections
are ANSI-61 recoatable gray finish inside
and outside. Optional panels are powder
coated white.
Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55
Dimensions: mm (inch)
N-12
