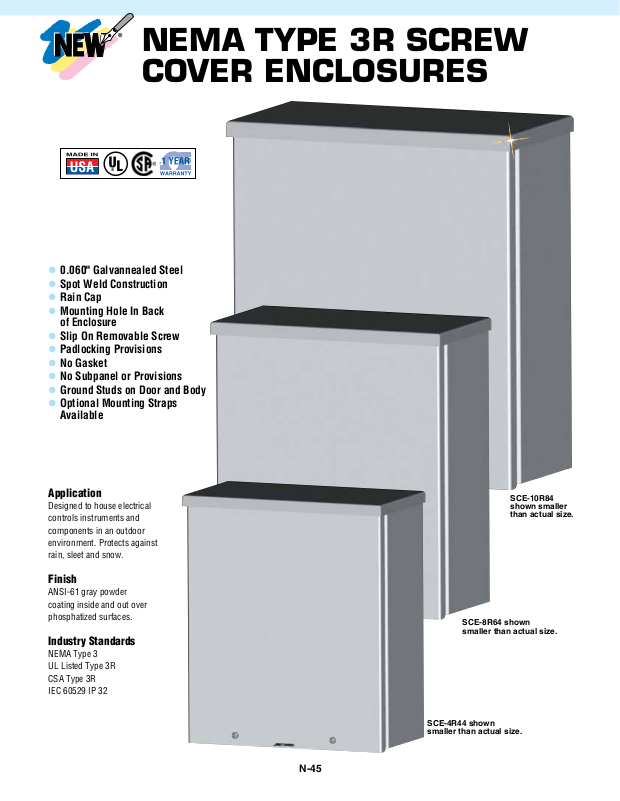

NEMA TYPE 3R SCREW
COVER ENCLOSURES
l 0.060" Galvannealed Steel
l Spot Weld Construction
l Rain Cap
l Mounting Hole In Back
of Enclosure
l Slip On Removable Screw
l Padlocking Provisions
l No Gasket
l No Subpanel or Provisions
l Ground Studs on Door and Body
l Optional Mounting Straps
Available
Application
Designed to house electrical
controls instruments and
components in an outdoor
environment. Protects against
rain, sleet and snow.
Finish
ANSI-61 gray powder
coating inside and out over
phosphatized surfaces.
Industry Standards
NEMA Type 3
UL Listed Type 3R
CSA Type 3R
IEC 60529 IP 32
SCE-10R84
shown smaller
than actual size.
SCE-8R64 shown
smaller than actual size.
SCE-4R44 shown
smaller than actual size.
N-45
A - 38.1 (1.5)
OPENING
B + 4.8 (.19)
B - 12.7 (.50)
OPENING
TOP
A - 50.8
(2)
AVAILABLE
DOOR SPACE
B - 25.4
(1)
11.1
(.44)
6.4
(.25)
A - 1.5 (.06)
DOOR
C + 9.1 (.36)
TOP
A
22.4
(.88)
B - 3.3 (.13)
DOOR
31.8
(1.25)
PROVISIONS
FOR
PADLOCK
C - 1.5 (.06)
EQUIP. SPACE
B
31.8
C
(1.25)
31.8
(1.25)
VIEW A-A
Dimensions: mm (inch)
ΓΈ = diameter
A
A
7.1 (.28)
MOUNTING
HOLES
4 PLACES
To Order Visit omega.com/sce_3rscrew for Pricing and Details
HEIGHT (inch) WIDTH (inch) DEPTH (inch)
MODEL NO. DESCRIPTION (A) (B) (C)
SCE-4R44 Type 3R screw cover 4.00 4.00 4.00
SCE-6R64 Type 3R screw cover 6.00 6.00 4.00
SCE-6R66 Type 3R screw cover 6.00 6.00 6.00
SCE-8R64 Type 3R screw cover 8.00 6.00 4.00
SCE-8R66 Type 3R screw cover 8.00 6.00 6.00
SCE-10R84 Type 3R screw cover 10.00 8.00 4.00
SCE-10R86 Type 3R screw cover 10.00 8.00 6.00
SCE-10R104 Type 3R screw cover 10.00 10.00 4.00
SCE-10R106 Type 3R screw cover 10.00 10.00 6.00
SCE-12R104 Type 3R screw cover 12.00 10.00 4.00
SCE-12R106 Type 3R screw cover 12.00 10.00 6.00
SCE-12R124 Type 3R screw cover 12.00 12.00 4.00
SCE-12R126 Type 3R screw cover 12.00 12.00 6.00
Ordering Example: SCE-4R44, Type 3R screw cover enclosure.
N-46
