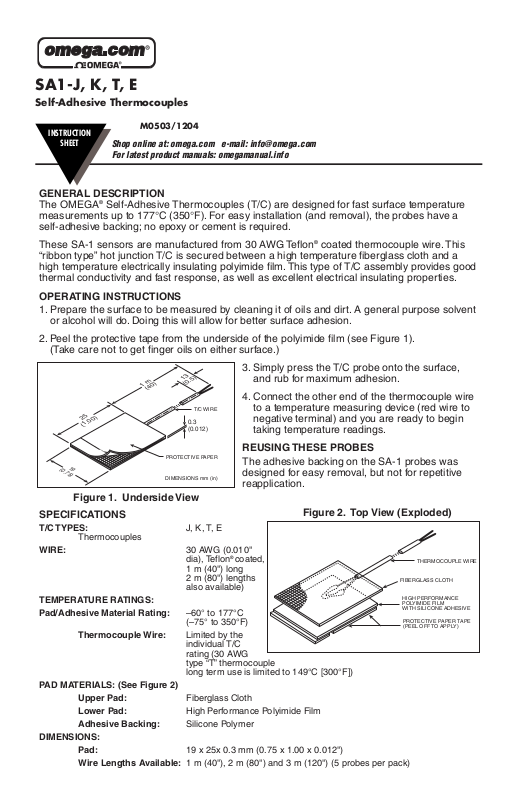

Omega Products SA1-E Installation Manual

GENERAL DESCRIPTION

The OMEGA®Self-Adhesive Thermocouples (T/C) are designed for fast surface temperature
measurements up to 177°C (350°F). For easy installation (and removal), the probes have a
self-adhesive backing; no epoxy or cement is required.

These SA-1 sensors are manufactured from 30 AWG Teflon®coated thermocouple wire. This
“ribbon type” hot junction T/C is secured between a high temperature fiberglass cloth and a
high temperature electrically insulating polyimide film. This type of T/C assembly provides good
thermal conductivity and fast response, as well as excellent electrical insulating properties.

OPERATING INSTRUCTIONS

1. Prepare the surface to be measured by cleaning it of oils and dirt. A general purpose solvent
or alcohol will do. Doing this will allow for better surface adhesion.

2. Peel the protective tape from the underside of the polyimide film (see Figure 1).
(Take care not to get finger oils on either surface.)

3. Simply press the T/C probe onto the surface,
and rub for maximum adhesion.

4. Connect the other end of the thermocouple wire
to a temperature measuring device (red wire to
negative terminal) and you are ready to begin
taking temperature readings.

REUSING THESE PROBES

The adhesive backing on the SA-1 probes was
designed for easy removal, but not for repetitive
reapplication.

SPECIFICATIONS

T/C TYPES: J, K, T, E

Thermocouples

WIRE: 30 AWG (0.010"

dia), Teflon

®

coated,
1 m (40") long
2 m (80") lengths
also available)

TEMPERATURE RATINGS:
Pad/Adhesive Material Rating: –60° to 177°C

(–75° to 350°F)

Thermocouple Wire: Limited by the

individual T/C
rating (30 AWG
type “T” thermocouple
long term use is limited to 149°C [300°F])

PAD MATERIALS: (See Figure 2)

Upper Pad: Fiberglass Cloth
Lower Pad: High Performance Polyimide Film
Adhesive Backing: Silicone Polymer

DIMENSIONS:

Pad: 19 x 25x 0.3 mm (0.75 x 1.00 x 0.012")
Wire Lengths Available: 1 m (40"), 2 m (80") and 3 m (120") (5 probes per pack)

25
(1.00)

1 m

(40)

13

(0.5)

0.3
(0.012)

19

(0.75)

T/C WIRE

PROTECTIVE PAPER

DIMENSIONS mm (in)

THERMOCOUPLE WIRE

FIBERGLASS CLOTH

HIGH PERFORMANCE
POLYIMIDE FILM
WITH SILICONE ADHESIVE

PROTECTIVE PAPER TAPE
(PEEL OFF TO APPLY)

Figure 2. Top View (Exploded)

Figure 1. Underside View

SA1-J, K, T, E

Self-Adhesive Thermocouples

INSTRUCTION

SHEET

M0503/1204

Shop online at: omega.com e-mail: [e-mail]
For latest product manuals: omegamanual.info
