Foreword

Notes

Thank you for purchasing the MobileCorder RD-MV100/RD-MV200.
This Communication Interface User’s Manual contains information about the
communication functions such as the Ethernet/serial interface. To ensure correct use,
please read this manual thoroughly before operation.
Keep this manual in a safe place for quick reference in the event a question arises.
The following four manuals, including this one, are provided as manuals for the RD­MV100/RD-MV200.

Manual Name Manual No. Description

RD-MV100 User’s Manual M-3641 Explains all functions and procedures of

the RD-MV100 excluding the
communication functions.

RD-MV200 User’s Manual M-3642 Explains all functions and procedures of

the RD-MV200 excluding the
communication functions.

RD-MV100/RD-MV200 M-3643 This manual. Explains the
Communication communication functions of the Ethernet/
Interface serial interface.

RD-MV100/RD-MV200 M-3644 Describes the functions and operating
DAQSTANDARD Software procedures of DAQSTANDARD Software

• This manual describes the communication function of the RD-MV100/RD-MV200
with the style number “S3.”

• The contents of this manual are subject to change without prior notice as a result of
continuing improvements to the instrument’s performance and functions. The figures
given in this manual may differ from the actual screen.

• Every effort has been made in the preparation of this manual to ensure the accuracy
of its contents. However, should you have any questions or find any errors, please
contact Omega

• Copying or reproducing all or any part of the contents of this manual without
Omega’s permission is strictly prohibited.

Trademarks

Revisions

Disk No. RE25

2nd Edition: September 2000(YK)

All Rights Reserved, Copyright © Omega

• Modbus is a registered trademark of AEG Schneider Automation Incorporated.

• Adobe and Acrobat are trademarks of Adobe Systems incorporated.

• Other company and product names are trademarks or registered trademarks of their
respective holders.

• First edition: March 2000

• Second edition: September 2000

i

How to Use this Manual

Structure of the Manual

The structure of this User’s Manual is as follows.

Chapter 1 Overview of the Communication Functions

Describes the relationship between the communication functions and the interface and
provides an outline of the communication functions.

Chapter 2 Using the Ethernet Interface

Describes the specifications and setup procedures of Ethernet.

Chapter 3 Using the Serial Interface (Option)

Describes the functions, specifications, and setup procedures of the serial interface (option).
Two types of serial interfaces, RS-232 and RS-422-A/485 are available.

Chapter 4 Using the Modbus Protocol

Describes the functions, specifications, and setup procedures of the Modbus protocol. The
Modbus protocol can be used through the serial interface.

Chapter 5 Commands

Describes each command that can be used.

Chapter 6 Response

Describes the data format of the panel setup information and measured/computed data that
are output from this instrument.

Chapter 7 Status Report

Describes the status information.

Appendix

Provides an ASCII character code table, the flow of operation when outputting data from RD­MV, and a list of error messages.

Index

Provides an index.

Conventions Used in this Manual

Unit

• k Denotes 1000. Example: 5 kg, 100 kHz

• K Denotes 1024. Example: 720 KB (Storage capacity of floppy disks)

Symbols

The following symbols are used in this manual.

WARNING

CAUTION

Note

ii

Affixed to the instrument. Indicates danger to personnel or
instrument and the operator must refer to the User’s Manual.
The symbol is used in the User’s Manual to indicate the
reference.

Describes precautions that should be observed to prevent injury
or death to the user.

Describes precautions that should be observed to prevent minor
or moderate injury, or damage to the instrument.

Provides important information for the proper operation of the
instrument.

How to Use this Manual

Displayed characters

Alphanumeric characters enclosed with [ ] refer to characters or setting values that are
displayed on the screen.

Symbols used on pages describing operating procedures

On pages that describe the operating procedures in Chapter 2 through 4, the following
symbols are used to distinguish the procedures from their explanations.

Explanation

Procedure

This section describes the setting parameters and the limitations

regarding the procedures.

Follow the steps indicated with numbers. The procedures are

given with the premise that the user is carrying out the steps for

the time. Depending on the operation, not all steps need to be

taken.

iii

Names and Uses of Parts

Front Panel

RD-MV100

STOP

Soft keys

Press these keys to
select the menu
displayed on the
screen.

RD-MV200

LCD monitor

ESC key

Press this key to return to the previous
screen or cancel the new settings.

Arrow keys

Press these keys to move between
the setup items displayed on the
screen.

MEDIA

FUNC ESC

ENTER

MENUSTART

DISP/ENTER key

Press this key when confirming the

DISP/

setting or when closing the entry box.

MENU and FUNC key

After pressing the MENU key, pressing the FUNC key for
approximately 3 s displays the setup menu that is used to
enter the communication configuration menu.

ESC key

Press this key to return to the
previous screen or cancel the

LCD monitor

new settings.

Arrow keys

Press these keys to move
between the setup items
displayed on the screen.
displayed on the screen.

POWER

1

ABC

3

GHI

2

DEF

4

JKL

5

MNO

7

STU

8

VWX

FUSE
250V/T1.25A

0

USER

FUNC ESC MEDIA

6

PQR

START

9

YZ

STOP

MENU

Character/number input key

Press these keys to enter characters or
numbers for parameters such as the IP
address, domain name, and server name.

DISP/

ENTER

DISP/ENTER key

Press this key when confirming
the setting or when closing the
entry box.

MENU and FUNC key

After pressing the MENU key, pressing the FUNC
key for approximately 3 s displays the setup
menu that is used to enter the communication
configuration menu.

Soft keys

Press these keys to select the menu displayed on the screen.

iv

Rear Panel

Names and Uses of Parts

RD-MV100

Ethernet interface connector

A connector used for Ethernet communications. Comes
standard with the instrument.

RS-232 interface connector

A serial communication connector provided on models
with the suffix code /C2.

RS-422-A/485 interface terminal

Serial communication terminals
provided on models with the suffix
code /C3.

RD-MV200

Ethernet interface connector

A connector used for Ethernet communications. Comes
standard with the instrument.

RS-232 interface connector

A serial communication connector provided on
models with the optional code /C2.

RS-422-A/485 interface terminal

Serial communication terminals
provided on models with the
optional code /C3.

v

Names and Uses of Parts

Flow of Operation using the Operation Keys

This section will describe the basic flow of operation when changing the settings of the
RD-MV using the front panel keys.
Settings related to communications are configured in the basic setting mode. The
procedure used to enter the basic setting mode is described in the procedure for each
item. Basic setting mode cannot be entered while data acquisition is in progress or while
computation using the computation function (/M1 option) is in progress.

1. Press the arrow keys to move the cursor onto the desired parameter.

2. For parameters whose selections are shown at the bottom of the screen, press
the soft key under the desired selection. For parameters that need characters to
be entered in the entry box, press the [Input] soft key to display the entry box,
enter the characters, and press the DISP/ENTER key.

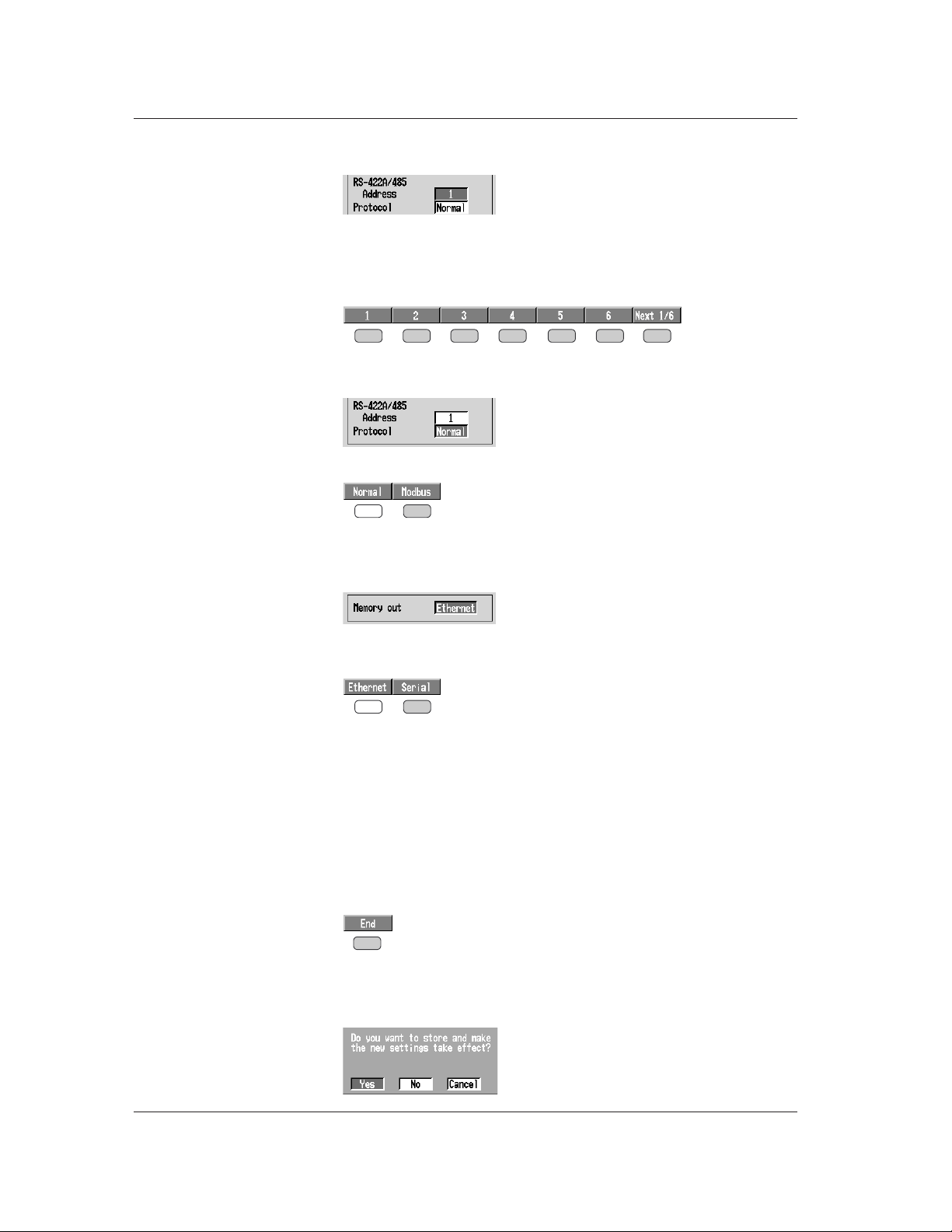

The parameter box containing
the cursor is blue.

Parameter selections
(Selection example for [DNS On/Off]
Press either the [On] or [Off] soft key.)

Parameter entry box
(Example of the entry box
for the IP address)

• The boxes containing parameters that have not been changed are displayed in
white.

• The boxes containing parameters that have been changed are displayed in
yellow.

The boxes containing parameters
that have been changed are
displayed in yellow.

The boxes containing parameters
that have not been changed are
displayed in white.

3. Set other parameters as well according to steps 1 and 2.

4. The operation is different when you are confirming or canceling the new
changes (parameter boxes in yellow). See below.

• When confirming the new changes

Press the DISP/ENTER key. The new changes are confirmed and the yellow
parameter boxes change to white. The cursor returns to the parameter at the
upper left portion of the screen (the first parameter on the screen). However,
if the new change is not valid, then the parameter box turns red.

Parameters for which the new
changes that are not valid are
displayed in red.

vi

Names and Uses of Parts

• When canceling the new changes
Press the ESC key. A window appears for you to confirm the cancellation.
Selecting “YES” and pressing the DISP/ENTER key cancels the new settings
and the screen returns to the previous screen.
Selecting “No” and pressing the DISP/ENTER key does not cancel the new
settings and the screen returns to the original screen.

5. To activate the new settings in the basic setting mode, the settings must be
stored. Pressing the [End] soft key in the basic setting menu* displays a dialog
box that asks you whether or not the new settings are to be stored.
To store the settings, select [Yes]. To not store the settings, select [No]. To
return to the basic setting menu, select [Cancel] by pressing the arrow key, and
press the [DISP/ENTER] key.

* The basic setting menu is the menu that is displayed when the ESC key is pressed

several times after the basic setting parameters are changed.

vii

Contents

Forward ........................................................................................................................................... i

How to Use this Manual .................................................................................................................. ii

Names and Uses of Parts .............................................................................................................. iv

Chapter 1 Overview of the Communication Functions

1.1 The Relationship between the Communication Functions and the Ethernet/

Serial Interface .................................................................................................................. 1-1

1.2 Explanation of the Functions ............................................................................................. 1-2

Chapter 2 Using the Ethernet Interface

2.1 Ethernet Interface Specifications ...................................................................................... 2-1

2.2 Connecting the Ethernet Interface .................................................................................... 2-2

2.3 Configuring the Ethernet Interface .................................................................................... 2-3

2.4 Checking the Connection Status of the Ethernet Interface ............................................... 2-9

2.5 Setting the FTP Client (Automatic Transfer of Display/Event/Report Data Files) ........... 2-10

2.6 Performing the FTP Test ................................................................................................. 2-16

2.7 Setting the Login/Timeout for Ethernet Communications ................................................ 2-17

2.8 Displaying the Log Screen of the Error, Communication, and FTP................................. 2-22

Chapter 3 Using the Serial Interface (Option)

3.1 Serial Interface (Option) Specifications ............................................................................. 3-1

3.2 RS-232 Interface Connector Pin Arrangement and Signal Names, the Connection

Procedure, and Handshaking ............................................................................................ 3-2

3.3 RS-422-A/485 Interface Pin Arrangement and Signal Names and the Connection

Procedure .......................................................................................................................... 3-5

3.4 The Bit Structure of One Character and the Operation of the Receive Buffer .................. 3-9

3.5 Configuring the Serial Interface ....................................................................................... 3-10

Chapter 4 Using the Modbus Protocol

4.1 Modbus Protocol Specifications ........................................................................................ 4-1

4.2 Register Assignments ....................................................................................................... 4-2

4.3 Modbus Error Response ................................................................................................... 4-3

4.4 Setting the Configuration that is Used When the Modbus Protocol is Used ..................... 4-4

Chapter 5 Commands

5.1 Command Syntax .............................................................................................................. 5-1

5.2 A List of Commands .......................................................................................................... 5-3

5.3 Input Range Parameter ..................................................................................................... 5-7

5.4 Setting Commands (Setting) ............................................................................................. 5-9

5.5 Setting Commands (Control) ........................................................................................... 5-17

5.6 Basic Setting Commands ................................................................................................ 5-20

5.7 Output Commands (Control) ........................................................................................... 5-27

5.8 Output Commands (Setup, measured, and computed data output) ............................... 5-27

5.9 Output Commands (RS-422-A/485 Dedicated Commands) ........................................... 5-30

5.10 Maintenance/Test Commands (Available when using the maintenance/test server function

via Ethernet communications) ......................................................................................... 5-31

5.11 Instrument Information Output Commands (Available when using the instrument

information server function via Ethernet communications) ............................................. 5-32

viii

Contents

Chapter 6 Response

6.1 Response Syntax .............................................................................................................. 6-1

6.2 Output Format of ASCII Data ............................................................................................ 6-6

6.3 Output Format of BINARY Data ...................................................................................... 6-17

6.4 Output Format of Instrument Information ........................................................................ 6-22

Chapter 7 Status Report

7.1 Status Information and Filter ............................................................................................. 7-1

7.2 The Bit Structure of the Status Information ....................................................................... 7-2

Appendix

Appendix 1 ASCII Character Codes .....................................................................................App-1

Appendix 2 Output Flow of Internal Memory Data ................................................................App-2

Appendix 3 Output Flow of the File or the File List in the External Storage Medium............App-4

Appendix 4 Output Flow of FIFO Data..................................................................................App-6

Appendix 5 A List of Error Messages....................................................................................App-8

Index

1

2

3

4

5

6

7

App

Index

ix

Chapter 1 Overview of the Communication Functions

1.1 The Relationship between the Communication
Functions and the Ethernet/Serial Interface

The Ethernet interface comes as standard equipment with the instrument. The serial
interface (RS-232, RS-422-A/485) is available as an option.

In order to use the various communication functions of the RD-MV, the Ethernet or
serial communications must be configured beforehand.

The following figure illustrates the relationship between the communication functions of
the RD-MV and the Ethernet/serial interface. To use the communication functions of
the RD-MV over the Ethernet/serial interface, protocols* that exist between the function
and the interface must be followed.

* A protocol is a set of rules that govern the communication between two computers over a line

or network.

The communication functions of the MV

Application

Upper protocol

Lower protocol

Interface

Modbus
server

Modbus
protocol

Serial interface
(RS-232, RS-422-A/485)

Setting/Measurement
server

Proprietary protocol
for the RD-MV

Serial
communication
control

Maintenance/
Test server

Login
(User authorization/
grant access rights)

FTP
server

FTP client

FTP

TCP

IP

Ethernet interface
(10BASE-T)

Instrument
information
server

UDP

1

Overview of the Communication Functions

PC

Connect the RD-MV and
the PC via the serial cable

FTP (File Transfer Protocol)
TCP (Transmission Control Protocol)
UDP (User Datagram Protocol)
IP (Internet Protocol)

Connect the RD-MV and
the PC via the Ethernet cable

1-1

1.2 Explanation of the Functions

Describes an outline of the communication functions of the RD-MV.

Modbus server

• By using the Modbus protocol, measured/computed data written to the RD-MV’s
input register can be read by the PC and communication input data can be written/
read from the RD-MV’s hold register.

• For the Modbus function codes that are supported by the RD-MV, see section 4.1.

• This function can be used only when communicating via the serial interface (option).

• For the settings required to use the functions, see section 4.4.

Setting/Measurement server

• This function can be used to set almost all of the settings that can be configured using
the front panel keys. However, the power switch cannot be turned ON/OFF. The user
name/password for communications, user name/password for key login, and the
destination of the FTP client function cannot be configured.

• The following types of data can be output.

• Measured/computed data.

• Data in the internal memory or files in the external storage medium.

• Setup information and the status byte.

• A log of operation errors and communications
The measured/computed data can be output in binary or ASCII format to a PC. For
other types of data, ASCII format is used. For the data output format, see chapter 6.
The communication commands that can be used through this function are setting
commands (see sections 5.4 and 5.5), basic setting commands (see sections 5.6),
and output commands (see sections 5.7 to 5.9).

• This function can be used when communicating via the Ethernet or the serial
(optional) interface.

• For the configuration when using Ethernet communications, see sections 2.3 and 2.7.
For the configuration when using serial communications, see section 3.5.

Maintenance/Test server

FTP server

1-2

• Connection information, network information, and other information regarding
Ethernet communications can be output.

• The communication commands that can be used through this function are
maintenance/test commands (see section 5.10).

• This function can be used only when communicating via the Ethernet interface.

• For the configuration required to use this function, see sections 2.3 and 2.7.

• You can use a PC to access the RD-MV via FTP. You can retrieve directories and
files from the external storage medium of the RD-MV, delete files, and check the free
space on the storage medium.

• This function can be used only when communicating via the Ethernet interface.

• For the configuration required to use this function, see sections 2.3 and 2.7.

1.2 Explanation of the Functions

FTP client

PC

Data on the storage medium

FTP server

RD-MV

RD-MV

Automatic file transfer

• The display data file, event data file, and report data file, that are created in the
internal memory of the RD-MV, can be automatically transferred to a remote FTP
server. The result of the transfer is recorded in the FTP log. The FTP log can be
displayed on the RD-MV’s screen (see paragraph “Displaying error/
communications/FTP logs” described later) or output to a PC using commands.

FTP client

Data file to be

transferred

RD-MVRD-MV

Destination (FTP server)

information

Transfer log

(FTP log)

1

Overview of the Communication Functions

Up to two file transfer destinations (FTP servers) can be specified (primary and
secondary). If the primary server is down, the file is automatically transferred to the
secondary server.

• This function can be used only when communicating via the Ethernet interface.

• For the configuration required to use this function, see sections 2.3 and 2.5.

FTP test

• The file transfer can be checked by transferring a test file from the RD-MV to a
remote FTP server.

• The result of the FTP test can be confirmed on the FTP log screen or the
communication log output.

• This function can be used only when communicating via the Ethernet interface.

• For the configuration required to use this function, see section 2.6.

Instrument information server

• The serial number and model of the RD-MV connected to Ethernet can be output.

• The communication commands that can be used through this function are instrument
information output commands (see section 5.11).

• This function can be used only when communicating via the Ethernet interface.

• For the configuration required to use this function, see section 2.3.

FTP server

Measured/computed data

Primary

Secondary

1-3

1.2 Explanation of the Functions

Login

• This function can be used only when communicating via the Ethernet interface and
when using the setting/measurement server, maintenance/test server, and the FTP
server functions.

• For the configuration required to use this function, see sections 2.3 and 2.7.

User authorization

This function allows only registered users to access the RD-MV in order to prevent
invalid access from the network.

Granting access authority

This function provides access authority (user level) to operate the RD-MV for the
registered users. For example, this prevents user B (user level) from changing the
measurement conditions that were set by user A (administrator level).

• Up to seven names can be registered. You will also specify the access authority
(see below) when registering the name.

• There are limitations on the number of simultaneous connections or
simultaneous uses of the RD-MV from the PC (see section 2.1).

• There are two user levels on the RD-MV, user and administrator.

• One administrator and six users can be registered.

• Administrator
An administrator has the authority to use all setting/measurement server
functions, maintenance/test server functions, and FTP server functions.

• User
A user has limited authority to use the setting/measurement server functions,
maintenance/test server functions, and FTP server functions. For the limitation
of commands, see section 5.2.

• Limitations on the use of the setting/measurement server
The user cannot change settings that would change the RD-MV’s
operation. Measurement and setup data can be output.

• Limitations on the use of the maintenance/test server
The user cannot disconnect a connection between another PC and the RD­MV. The connection between the PC that the user is operating and the
RD-MV can be disconnected.

• Limitations on the use of the FTP server
Files cannot be saved to the RD-MV’s external storage medium. Files can
be retrieved from the server.

1-4

Communication timeout

This function drops the connection if no data transfer is detected between the PC and
the RD-MV over a predetermined period of time. This applies to data transfer at the
application level only (see section 1.1). For example, this prevents a PC from being
connected to the RD-MV indefinitely which would prohibit other users from making
new connections.

1.2 Explanation of the Functions

Other functions

Confirming the connection status of the Ethernet interface

• The connection status of the Ethernet interface can be confirmed on the rear panel
and on the screen of the RD-MV.

• For the display position and the meaning of the indicator, see section 2.4.

Keepalive (Extended function of TCP)

• This function forcibly drops the connection if there are no responses to the test
packets that are sent periodically at the TCP level.

• For the configuration required to use this function, see sections 2.3 and 2.7.

Displaying error/communications/FTP logs

• The operation log can be displayed on the following log screens.

• Error log screen: Operation errors

• Communication log screen: Communication input/output

• FTP log screen: A log of file transfers that were executed using the FTP client

function

• For the configuration required to use this function, see section 2.8.

1

Overview of the Communication Functions

1-5

Chapter 2 Using the Ethernet Interface

2.1 Ethernet Interface Specifications

Basic Specifications

Electrical and mechanical specifications Conforms to IEEE 802.3

Transmission medium type 10BASE-T

Protocol TCP, IP, UDP, ICMP, ARP

(Ethernet frames conform to the DIX specifications.)

The maximum number of connections and the number of simultaneous uses

The following table indicates the number of simultaneous uses (number of users that
can use the function simultaneously), the maximum number of connections, and the
port number for each function.

Function Maximum Number Number of Port Number*

Setting/ 3 1 2*
measurement
server

Maintenance/ 1 1 1*
test server

FTP server 1 1 1*

Instrument – – – 34264/udp
information
server

*1 Port numbers are fixed.
*2 There are user limitations. For details, see “Granting Access Authority” in section 1.2.

of Connections Simultaneous Uses (Fixed)

Administrator User

2

2

2

2

Using the Ethernet Interface

1

34260/tcp

34261/tcp

21/tcp

2-1

2.2 Connecting the Ethernet Interface

When connecting only the RD-MV and a PC

Connect the RD-MV and the PC via a HUB as in the following figure.

Ethernet
interface connector

RD-MV

Ethernet
interface connector

RD-MV

When connecting to a preexisting network

The following figure illustrates an example in which the RD-MV and a PC are connected
to the network. When connecting the RD-MV or the PC to a preexisting network, the
transfer rate, connector type, etc. must be matched. For details, consult your system or
network administrator.

10BASE-T straight cable

(Multiple devices can be
connected by using a hub.)

HUB

PC

Ethernet cable

10BASE-T straight cable

Network

2-2

10BASE-T straight cable

(Adapters that support

Ethernet
interface connector

RD-MV

the 10BASE-T (hubs and
routers, for example)

PC

Ethernet cable

Note

• Depending on the reliability of the network or the volume of network traffic, all the transferred

data may not be retrieved by the PC.

• Communication performance deteriorates if multiple PCs access the recorder simultaneously.

2.3 Configuring the Ethernet Interface

Explanation

The following configurations must be made in order to use the Ethernet communication
functions of the RD-MV.

Setting the IP address, subnet mask, default gateway, and DNS

Confirm the settings such as the IP address, subnet mask, default gateway, and DNS
with the administrator of the system or network on which the recorder is to be used.

• IP address

• Set the IP address to assign to the RD-MV. The default setting is “0.0.0.0.”

• The IP address is used to distinguish between the various devices connected to

the Internet when communicating using the TCP/IP protocol. The address is a
32-bit value normally expressed with four values (0 to 255), each separated by a
period as in 192.168.111.24.

• Subnet mask

• Specify the mask that is used to determine the network address from the IP

address. The default setting is “0.0.0.0.”

• Set this value according to the system or the network to which the RD-MV

belongs. In some cases, this setting may not be necessary.

• Default gateway

• Set the IP address of the gateway (router, switch, etc.) used to communicate

with other networks. The default setting is “0.0.0.0.”

• Set this value according to the system or the network to which the RD-MV

belongs. In some cases, this setting may not be necessary.

• DNS (Domain Name System)

The DNS is a system that correlates the host name/domain name to the IP
address. The host name/domain name can be used instead of the IP address
when accessing the network. The DNS server manages the database that
contains the host name/domain name and IP address correlation.

• DNS server

• Set the address of the DNS server. The default setting is “0.0.0.0.”

• Up to two DNS servers can be specified (primary and secondary). If the
primary DNS server is down, the secondary server is used to search the host
name/domain name and IP address.

• Host name
Set the RD-MV’s host name using up to 64 alphanumeric characters.

• Domain name

• Set the network domain name to which the RD-MV belongs using up to 64

alphanumeric characters.

• When searching the data transfer destination using the DNS server, this

domain name is attached after the destination name (server). The
destination name is the name of the FTP server specified in section 2.5.

2

Using the Ethernet Interface

2-3

2.3 Configuring the Ethernet Interface

• Domain suffix
If the IP address corresponding to the “domain name,” described in the previous
paragraph, is not found on the DNS server, then it may be that the system is
configured to use another domain name. In this case, the domain suffix is
specified, so that this domain name is searched after the “domain name”
specified in the previous paragraph is searched.

• Set the domain suffix using up to 64 alphanumeric characters.

• Up to two domain suffixes can be specified (primary and secondary).

Selecting the communication interface used to output the data in the internal
memory and the files on the external storage medium

• Using output commands (ME/MI/MO commands), select the communication
interface used to output the data in the internal memory (display data, event data,
TLOG data, manual sampled data, and report data) and the files on the external
storage medium. Since Ethernet communications and serial communications
cannot be used simultaneously, you must select either one.

• When using Ethernet communications, select [Ethernet].

Storing the settings

To activate the settings made in the basic setting mode, the settings must be saved.
Otherwise, the settings return to the previous values.

2-4

Procedure

2.3 Configuring the Ethernet Interface

For the basic flow of operations, see “Flow of Operation using the Operation Keys” on
page vi.

1. Press the MENU key to display the setting menu.

2. Press the FUNC key for approximately 3 s to display the basic setting menu.

3. Press the [#10 (Communication)](RD-MV100) or [#6 (Communication)](RD­MV200) soft key to display the communication function setting menu.

4. Press the [#1 (Ethernet (IP Address))](RD-MV100) or [#1 (Ethernet, Serial)](RD­MV200) soft key to display the communication (Ethernet, serial) menu.

2

Using the Ethernet Interface

RD-MV100 Communication (Ethernet) menu

Setting the IP address

5. Press the arrow key to move the cursor to the [IP-address] box.

6. Press the [Input] soft key to display the entry box.

7. Enter the IP address of the RD-MV in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

8. Press the DISP/ENTER key. The entered value is set in the [IP-address] box.

RD-MV200 Communication (Ethernet, Serial) menu

Setting the subnet mask

Set this value according to the system or the network to which the RD-MV belongs.
If this setting is not necessary, go to “Setting the default gateway.”

9. Press the arrow key to move the cursor to the [Subnet mask] box.

10. Press the [Input] soft key to display the entry box.

2-5

2.3 Configuring the Ethernet Interface

11. In the entry box, enter the subnet mask of the network to which the RD-MV
belongs.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M3642/M3642).

12. Press the DISP/ENTER key. The entered value is set in the [Subnet mask] box.

Setting the default gateway

Set this value according to the system or the network to which the RD-MV belongs.
If this setting is not necessary, go to “Setting the DNS (Domain Name System).”

13. Press the arrow key to move the cursor to the [Default gateway] box.

14. Press the [Input] soft key to display the entry box.

15. In the entry box, enter the default gateway of the network to which the RD-MV
belongs.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M3641/M3642).

16. Press the DISP/ENTER key. The entered value is set in the [Default gateway]
box.
For RD-MV100, confirm the new settings pressing the DISP/ENTER key. To
cancel, press the ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

Setting the DNS (Domain Name System)

Set this value when using the DNS in the system or the network to which the RD-MV
belongs. If the DNS is not going to be used, go to step 39.
For RD-MV100, when settings are confirmed by procedure 16, press the ESC key to
return to the screen of procedure 4, and then press the [#2 (Ethernet (DNS))] soft key
to display the communication (DNS) menu.

• Select whether or not to use the DNS (ON/OFF)

17. Press the arrow key to move the cursor to the [DNS On/Off] box.

18. Press either the [On] or [Off] soft key. When using the DNS, select [ON] and
perform steps 19 through 38. Otherwise, select [Off] (you can skip steps 19
through 38).

• Setting the primary DNS server address

19. Press the arrow key to move the cursor to the [Primary] box under server search
order.

20. Press the [Input] soft key to display the entry box.

2-6

21. Enter the primary DNS server address in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M3641/M3642)

2.3 Configuring the Ethernet Interface

22. Press the DISP/ENTER key. The entered value is set in the [Primary] box.

• Setting the secondary DNS server address

Set this value when using the secondary DNS server in the system or the network
to which the RD-MV belongs. If this setting is not necessary, go to step 25.

23. Press the arrow key to move the cursor to the [Secondary] box under server
search order.

24. Set the secondary DNS server address using the same method from steps 20
through 22.

• Setting the RD-MV's host name

25. Press the arrow key to move the cursor to the [Host name] box.

26. Press the [Input] soft key to display the entry box.

27. Enter the RD-MV's host name in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

28. Press the DISP/ENTER key. The entered string/value is set in the [Host name]
box.

2

Using the Ethernet Interface

• Setting the domain name to which the RD-MV belongs

29. Press the arrow key to move the cursor to the [Domain name] box.

30. Press the [Input] soft key to display the entry box.

31. Enter the RD-MV's domain name in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

32. Press the DISP/ENTER key. The entered string/value is set in the [Domain
name] box.

• Setting the primary domain suffix

Set this value when the domain suffix is necessary. Otherwise, go to step 39.

33. Press the arrow key to move the cursor to the [Primary] box under Domain suffix
search order.

34. Press the [Input] soft key to display the entry box.

2-7

2.3 Configuring the Ethernet Interface

35. Enter the primary domain suffix in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

MV200 User’s Manual (M-3641/M-3642).

36. Press the DISP/ENTER key. The entered value is set in the [Primary] box.

• Setting the secondary domain suffix

Set this value when the secondary domain suffix exists. If this setting is not
necessary, go to step 39.

37. Press the arrow key to move the cursor to the [Secondary] box under Domain
suffix search order.

38. Set the secondary domain suffix in the same fashion as in steps 34 to 36.

Selecting the communication interface used to output the data in the internal
memory and the files on the external storage medium

39. Press the arrow key to move the cursor to the [Memory out] box.

40. Press either the [Ethernet] or the [Serial] soft key. Press the [Ethernet] soft key
when using Ethernet communications.

Confirming/Canceling the new settings

41. To confirm the new settings, press the DISP/ENTER key. To cancel, press the
ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

Storing the new settings

42. Press the ESC key several times to display the basic setting menu.

43. Pressing the [End] soft key to display a dialog box which you select whether or
not to store the new settings.

44. Select the [Yes] to store the new settings, the [No] to discard them, or the
[Cancel] to return to the basic setting menu by pressing the arrow key. Then,
press the DISP/ENTER key.

2-8

2.4 Checking the Connection Status of the
Ethernet Interface

Checking the connection status using the rear panel

The connection status of the Ethernet interface can be confirmed with the indicator that
is located to the upper right of the Ethernet connector on the RD-MV.

Indicator Connection Status of the Ethernet Interface

On (green) The Ethernet interface is electrically connected.

Blinking (green) Transmitting data

Off The Ethernet interface is not electrically connected.

Indicator

(Rear Panel)

Checking the connection using the recorder's screen

Checking using the status display of the screen

The connection status of the Ethernet interface can be checked using the indicator
located on the right hand side of the status display section of the basic setting menu.
The basic setting menu is displayed by pressing the FUNC key for approximately 3 s
after pressing the MENU key to display the setting menu.

Indicator Connection Status of the Ethernet Interface

On (green) The Ethernet interface is electrically connected.

Off The Ethernet interface is not electrically connected.

2

Using the Ethernet Interface

Checking using the display section located at the upper right corner of the
communication log screen

The connection status of the Ethernet interface can be checked using the indicator
located at the upper right corner of the communication log screen. For the
procedures on how to display the communication log, see section 2.8.

Indicator Connection Status of the Ethernet Interface

On (green) The Ethernet interface is electrically connected.

Off The Ethernet interface is not electrically connected.

2-9

2.5 Setting the FTP Client (Automatic Transfer of
Display/Event/Report Data Files)

Explanation

By setting this function, the display/event and report data files that are created in the
internal memory can be automatically transferred using FTP when the files are created.
Note that the Ethernet interface must be configured beforehand (see section 2.3).

Selecting the files to transfer

• You can select whether or not to automatically transfer the display/event data file
and the report data file. The default setting is “Off.”

• When the method to save the data is set to “Auto,” the data files are automatically
transferred at appropriate times to the FTP destination described in the next
section.

• Display data file: Automatically transferred at auto save intervals.

• Event data file: Automatically transferred when the specified length of data is
written.

• Report data file: Automatically transferred when reports are created.

Note

• For details related to saving data to the external storage medium and the auto save interval,

see the RD-MV100/RD-MV200 User’s Manual (M-3641/M-3642).

• When the method to save the data is set to “Manual,” auto transfer does not take place. You

can still output the display/event/report data files using commands.

• For the format of the report data file, see the RD-MV100/RD-MV200 User’s Manual (M-3641/

M-3642). However, the report data file to be transferred is divided by every timeout.

• If a file with the same name exists at the destination, it is overwritten without any warning

messages.

Setting the FTP connection

Confirm the settings such as the primary and secondary FTP servers, port number,
login name, password, account, PASV mode, and initial path with your system or
network administrator.

• Setting the primary and secondary servers

Specify the primary and secondary file transfer destinations (FTP servers) as
described in the previous close. When the primary FTP server is down, the data
are automatically transferred to the secondary FTP server.

• FTP server name

Set the FTP server name using up to 64 alphanumeric characters.

• When the DNS is being used, the host name can be used to specify the server
name.

• For DNS settings, see section 2.3.

• You can also specify the IP address. In this case, DNS is not necessary.

• Port number

Set the port number of the destination FTP server in the range from 0 to 65535.
The default setting is 21.

• Login name

Set the login name to use when accessing the FTP server. Up to 32 alphanumeric
characters can be used.

2-10

2.5 Setting the FTP Client (Automatic Transfer of Display/Event/Report Data Files)

• Password

Set the password to use when accessing the FTP server. Up to 32 alphanumeric
characters can be used.

• Account

Set the account (the ID number) to use when accessing the FTP server. Up to 32
alphanumeric characters can be used.

• PASV mode

When using the RD-MV behind a firewall that requires the PASV mode, turn this
mode “On.” A firewall is a security feature on a router which is used to prevent
undesired intrusion into the network from outside parties.

• Initial path

Set the destination directory for the file transfer using up to 64 alphanumeric
characters. The directory delimiter varies depending on the FTP server.
Example: When transferring files to the directory “data” which is a sub directory of

the “home” directory on a UNIX file system, use the forward slash “/” as
the directory delimiter:

/home/data

Note

If the file transfer to both the primary and the secondary servers fails, the RD-MV aborts the

file transfer. When the connection to the destination is recovered, the RD-MV transfers the

data files that were not transferred along with the new data file. However, due to the

limitation of the internal memory, files that are overacquired before they are transferred are

lost. For details related to the acquiring operation to the internal memory, see the RD-

MV100/RD-MV200 User’s Manual (M-3641/M-3642).

2

Using the Ethernet Interface

Storing the settings

To activate the settings made in the basic setting mode, the settings must be saved.
Otherwise, the settings return to the previous values.

2-11

2.5 Setting the FTP Client (Automatic Transfer of Display/Event/Report Data Files)

Procedure

For the basic flow of operations, see “Flow of Operation using the Operation Keys” on
page vi.

1. Press the Menu key to display the setting menu.

2. Press the FUNC key for approximately 3 s to display the basic setting menu.

3. Press the [#10 (Communication)](RD-MV100) or [#6 (Communication)](RD­MV100/RD-MV200) soft key to display the communication function setting
menu.

4. Press the [#3 (FTP transfer file)](RD-MV100) or [#2 (FTP Client)](RD-MV200) soft
key to display the Communication (FTP client) menu.

RD-MV100 Communication (FTP tramsfer file)

Selecting the files to be transferred

• Selecting whether or not to transfer the display and event data files (ON/OFF)

5. Press the arrow key to move the cursor to the [Disp&Event data] box.

6. Press either the [On] or [Off] soft key.

• Selecting whether or not to transfer the report data file (ON/OFF)

7. Press the arrow key to move the cursor to the [Report] box.

RD-MV200 Communication (FTP client)

2-12

8. Press either the [On] or [Off] soft key.

For RD-MV100, confirm the new settings pressing the DISP/ENTER key. To
cancel, press the ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

2.5 Setting the FTP Client (Automatic Transfer of Display/Event/Report Data Files)

Setting the primary FTP server

For RD-MV100, when settings are confirmed by procedure 8, press the ESC key to
return to the screen of procedure 4, and then press the [#4 (FTP connection)] soft key
to display the communication (FTP connection) menu.

9. Press the arrow key to move the cursor to the [FTP connection] box.

10. Press the [Primary] soft key.

• Setting the FTP server name

11. Press the arrow key to move the cursor to the [FTP server name] box.

12. Press the [Input] soft key to display the entry box.

13. Enter the primary FTP server name in the entry box. Generally, the IP address
is entered. However, if DNS is being used, the FTP server's host name can also
be specified.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

14. Press the DISP/ENTER key. The entered string/value is set in the [FTP server
name] box.

2

Using the Ethernet Interface

• Setting the FTP server’s port number

15. Press the arrow key to move the cursor to the [Port number] box.

16. Press the [Input] soft key to display the entry box.

17. Enter the port number of the primary FTP server in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M3641/M-3642).

18. Press the DISP/ENTER key. The entered value is set in the [Port number] box.

• Setting the login name used when accessing the FTP server

19. Press the arrow key to move the cursor to the [Login name] box.

20. Press the [Input] soft key to display the login name entry box.

2-13

2.5 Setting the FTP Client (Automatic Transfer of Display/Event/Report Data Files)

21. Enter the login name that is used when accessing the primary FTP server in the
entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

22. Press the DISP/ENTER key. The entered string/value is set in the [Login name]
box.

• Setting the password used when accessing the FTP server

23. Press the arrow key to move the cursor to the [Password] box.

24. Press the [Input] soft key to display the entry box.

25. Enter the password that is used when accessing the primary FTP server in the
entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

26. Press the DISP/ENTER key. The entered string/value is set in the [Password]
box.

• Setting the account used when accessing the FTP server

27. Press the arrow key to move the cursor to the [Account] box.

28. Press the [Input] soft key to display the entry box.

29. Enter the account that is used when accessing the primary FTP server in the
entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

30. Press the DISP/ENTER key. The entered string/value is set in the [Account]
box.

• Enabling (On)/Disabling (Off) the PASV mode

31. Press the arrow key to move the cursor to the [PASV mode] box.

32. Press either the [On] or [Off] soft key.

• Setting the initial path (file transfer destination directory)

33. Press the arrow key to move the cursor to the [Initial path] box.

2-14

2.5 Setting the FTP Client (Automatic Transfer of Display/Event/Report Data Files)

34. Press the [Input] soft key to display the entry box.

35. Enter the file transfer destination directory in the entry box.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

36. Press the DISP/ENTER key. The entered string/value is set in the [Initial path]
box.

Setting the secondary FTP server

Set the secondary FTP server when specifying a secondary file transfer destination.
If you are not using the secondary FTP server, go to step 40.

37. Press the arrow key to move the cursor to the [FTP connection] box.

38. Press the [Secondary] soft key.

39. Set the secondary FTP server using the same method from steps 11 through

36.

Confirming/Canceling the new settings

40. To confirm the new settings, press the DISP/ENTER key. To cancel, press the
ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

2

Using the Ethernet Interface

Storing the new settings

41. Press the ESC key several times to display the basic setting menu.

42. Pressing the [End] soft key to display a dialog box which you select whether or
not to store the new settings.

43. Select the [Yes] to store the new settings, the [No] to discard them, or the
[Cancel] to return to the basic setting menu by pressing the arrow key. Then,
press the DISP/ENTER key.

2-15

2.6 Performing the FTP Test

Explanation

You can check whether or not files can be transferred via the Ethernet interface by
transferring a test file from the RD-MV to the FTP server that was configured in section

2.5.

Items to check before performing this test

• Correctly connect the Ethernet cable. For the connection procedures, see section

2.2.

• Check that the Ethernet interface configuration is correct. For the procedures, see
section 2.3 and 2.5.

When configuring Ethernet related settings, check them with the administrator of the
system or network on which the RD-MV is to be used.

Checking the FTP test results

• The test file is transferred to the initial path on the destination FTP server that was
specified in section 2.5. After the FTP test completes, check whether or not the
test file was received on the FTP server

• The FTP test results can be confirmed on the FTP log screen (see section 2.8) or
the communication log output (FL command).

Procedure

Performing the FTP test.

1. Press the FUNC key to display the FUNC menu. The construction of the FUNC

menu varies depending on the basic settings and options. If [Next] is displayed
as a selection, multiple lines of selections are available. Press the [Next] soft
key to display the menu that contains the [FTP test] item.

2-16

2. Press the [FTP test] soft key to display a menu used to select the destination on

which the FTP test to be performed.

3. Press either the [Primary] or [Secondary] soft key. The FTP test is performed

on the specified FTP server.

2.7 Setting the Login/Timeout for Ethernet
Communications

Explanation

By setting the login and timeout, you can achieve the following:

• Prevent invalid access to the RD-MV from the network.

• Grant authority in operating the RD-MV via Ethernet communications.

• Disconnect connections when there are no data transfers over a predetermined
time period.

Note that the Ethernet interface must be configured beforehand (see section 2.3).

Enabling/Disabling the login function

If the login function is enabled, only users that are registered can login to the RD-MV.

User registration

• Selecting the user level

Select either of the user levels, administrator or user.

• Administrator (admin)

One administrator can be registered. An administrator has the authority to use
all setting/measurement server, maintenance/test server, and the FTP server
functions.

• User (user1 to user6)

Six user can be registered. A user has limited authority to use the setting/
measurement server functions, maintenance/test server functions, and FTP
server functions. For the limitation of commands, see section 5.2.

• Limitations on the use of the setting/measurement server
The user cannot change settings that would change the RD-MV’s operation.
Measurement and setup data can be output.

• Limitations on the use of the maintenance/test server
The user cannot disconnect a connection between another PC and the RD­MV. The connection between the PC that the user is operating and the RD­MV can be disconnected.

• Limitations on the use of the FTP server
Files cannot be saved to the RD-MV’s external storage medium. Files can
be retrieved from the server.

2

Using the Ethernet Interface

• Selecting whether or not to register the user (On/Off)

•On
Registers the user. You can specify the user name and password for the login.

• Off
Does not register the user.

• Setting the user name

• Set the user name using up to 16 alphanumeric characters.

• Each user name must be unique.

• Since the word “quit” is reserved as a command on the instrument, the user

name “quit” is not allowed.

• Setting the password

Set the password using up to 6 alphanumeric characters.

2-17

2.7 Setting the Login/Timeout for Ethernet Communications

Note

• The relationship between the login function and the user name that is used when accessing

the RD-MV is as follows.

• When the login function is set to “Enable”

• The registered user name and password can be used to access the RD-MV.

• The user level is the level that was specified when the user name was registered.

• If a user name “anonymous” is registered in the RD-MV, this user name can be used

to access only the FTP server on the RD-MV. The user level is the level that was

specified when “anonymous” was registered. In this case, password is not necessary

(access is possible regardless of whether or not the password is specified).

• When the login function is set to “Disable”

• The user name “admin” can be used to access the RD-MV as an administrator.

Password is not necessary.

• The user name “user” can be used to access the RD-MV as a user. Password is not

necessary.

• The user name “anonymous” can be used to access only the FTP server on the RD-

MV. The user level is “User” in this case. Password is not necessary.

• There are limitations on the number of simultaneous connections or simultaneous uses of

the RD-MV from the PC (see section 2.1).

Communication timeout

• Enabling/Disabling the timer (ON/OFF)

• On

The connection is dropped if no data transfer is detected over a predetermined
period of time. This applies to data transfer at the application level only (see
section 1.1).

• Off

Communication timeout is disabled.

• Setting the timeout time

When the communication timeout is enabled and if no data transfer is detected
over the time period specified here, the connection is dropped.
Range: 1 to 120 minutes

2-18

Enabling/Disabling keepalive (On/Off)

• On

If there is no response to the test packet that is periodically transmitted (every 30 s)
at the TCP level, the connection is dropped.

• Off

Keepalive is disabled.

Storing the settings

To activate the settings made in the basic setting mode, the settings must be saved.
Otherwise, the settings return to the previous values.

Procedure

2.7 Setting the Login/Timeout for Ethernet Communications

For the basic flow of operations, see “Flow of Operation using the Operation Keys” on
page vi.

1. Press the Menu key to display the setting menu.

2. Press the FUNC key for approximately 3 s to display the basic setting menu.

3. Press the [#10 (Communication)](RD-MV100) or [#6 (Communication)](RD­MV200) soft key to display the communication function setting menu.

4. Press the [#5 (Control (Login, Timeout))](RD-MV100) or [#3 (Control -Login,
Timeout-)](RD-MV200) soft key to display the Communication (Control -Login,
Time out) menu.

2

Using the Ethernet Interface

RD-MV100 Communication
(Control (Login, Time out))

Enabling/Disabling the login function of the RD-MV

5. Press the arrow key to move the cursor to the [Use/Not] box under Ethernet
login.

6. Press either the [Use] or [Not] soft key. If you select [Use], go to step 7. If you
select [Not], go to step 20.

RD-MV200 Communication (Control -Login, Time out)

Registering users

• Selecting the user level for the registered user

7. Press the arrow key to move the cursor to the [Level] box.

8. Press one of the keys from [admin] to [user6] to select the user level. To set the
user level to administrator, select [admin]. To set the user level to user, select
[user1] to [user6].

2-19

2.7 Setting the Login/Timeout for Ethernet Communications

• Selecting whether or not to register the user (On/Off)

9. Press the arrow key to move the cursor to the [On/Off] box under Level.

10. Press either the [On] or [Off] soft key. If you select [On], go to step 11. If you
select [Off], go to step 19.

• Setting the user name

11. Press the arrow key to move the cursor to the [User name] box.

12. Press the [Input] soft key to display the entry box.

13. In the box, enter the user name for the user at the specified level.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

14. Press the DISP/ENTER key. The entered string/value is set in the [User name]
box.

• Setting the password

15. Press the arrow key to move the cursor to the [Password] box.

16. Press the [Input] soft key to display the entry box.

17. In the box, enter the password for the user.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

18. Press the DISP/ENTER key. The entered string/value is set in the [Password]
box.

19. To register another user, repeat steps 7 to 18.

Setting the communication timeout

• Enabling/Disabling communication timeout (On/Off)

20. Press the arrow key to move the cursor to the [On/Off] box under
communication timeout.

21. Press either the [On] or [Off] soft key. If you select [On], go to step 22. If you
select [Off], go to step 26.

2-20

2.7 Setting the Login/Timeout for Ethernet Communications

• Setting the communication timeout time

22. Press the arrow key to move the cursor to the [Time] box.

23. Press the [Input] soft key to display the entry box.

24. In the box, enter the communication timeout time.

For the procedures related to entering character strings and values, see the RD-MV100/

RD-MV200 User’s Manual (M-3641/M-3642).

25. Press the DISP/ENTER key. The entered value is set in the [Time] box.

Enabling/Disabling keepalive (On/Off)

26. Press the arrow key to move the cursor to the [On/Off] box under keepalive.

27. Press either the [On] or [Off] soft key.

2

Using the Ethernet Interface

Confirming/Canceling the new settings

28. To confirm the new settings, press the DISP/ENTER key. To cancel, press the
ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

Storing the new settings

29. Press the ESC key several times to display the basic setting menu.

30. Pressing the [End] soft key to display a dialog box which you select whether or
not to store the new settings.

31. Select the [Yes] to store the new settings, the [No] to discard them, or the
[Cancel] to return to the basic setting menu by pressing the arrow key. Then,
press the DISP/ENTER key.

2-21

2.8 Displaying the Log Screen of the Error,
Communication, and FTP

Explanation

Displaying the error log

A log of operation errors is displayed on the error log screen. Up to the last 50
operation errors are logged. When the number of log entries exceeds 50, room is
made by clearing the oldest entries. For the meanings of the error messages, see
the RD-MV100/RD-MV200 User’s Manual (M-3641/M-3642).

Error code

Date and time when
the error occurred

Error message
RD-MV100: up to 23 characters
RD-MV200: up to 48 characters

Displaying the communication log

A log of input and output incidents of the communication interface is displayed on the
communication log screen. Up to a total of 200 incidents of input and output are
logged. When the number of log entries exceeds 200, room is made by clearing the
oldest entries. For the meanings of the messages, see “Communication Log” in
section 6.2.

Message
(up to 20 characters)

I/O symbol
(> : input, < : output)

Name of the user that accessed this instrument
(Name registered in section 2.7)

A number used to identify the user that is connected
(See “Communication log” in section 6.2.)

Date and time when the access occurred

Displaying the FTP log

A log of file transfers is displayed on the FTP log screen. Up to the last 50 accesses
are logged. When the number of log entries exceeds 50, room is made by clearing
the oldest entries. For the meanings of the error messages, see the RD-MV100/RD­MV200 User’s Manual (M-3641/M-3642).

2-22

File name (8 characters)

FTP server (P : primary, S : secondary)

Error code

Date and time when the file transfer was made

Note

• In addition to these logs, there is also a key login log. For details regarding the key login log

screen, see the RD-MV100/RD-MV200 User’s Manual (M-3641/M-3642).

• The error/communication/FTP log data can be output. For the data output format, see section

6.2.

Procedure

2.8 Displaying the Log Screen of the Error, Communication, and FTP

Displaying the error log

1. Press the FUNC key to display the FUNC menu. The construction of the FUNC
menu varies depending on the basic settings and options. If [Next] is displayed
as a selection, multiple lines of selections are available. Press the [Next] soft
key to display the menu that contains the [Log] item.

2. Press the [Log] soft key to display the log screen menu.

3. Press the [Error] soft key to display the error log screen.

Displaying the communication log

1. Press the FUNC key to display the FUNC menu. The construction of the FUNC
menu varies depending on the basic settings and options. If [Next] is displayed
as a selection, multiple lines of selections are available. Press the [Next] soft
key to display the menu that contains the [Log] item.

2. Press the [Log] soft key to display the log screen menu.

2

Using the Ethernet Interface

3. Press the [Commu] soft key to display the communication log screen.

Displaying the FTP log

1. Press the FUNC key to display the FUNC menu. The construction of the FUNC
menu varies depending on the basic settings and options. If [Next] is displayed
as a selection, multiple lines of selections are available. Press the [Next] soft
key to display the menu that contains the [Log] item.

2. Press the [Log] soft key to display the log screen menu.

3. Press the [FTP] soft key to display the FTP log screen.

2-23

Chapter 3 Using the Serial Interface (Option)

3.1 Serial Interface (Option) Specifications

The specifications for the two types of serial interfaces (RS-232 and RS-422-A/485) on
the RD-MV are given below.

RS-232 Interface Specifications

Connector type D-Sub 9 pin plug

Electrical, mechanical Conforms to the EIA-574 standard (for the 9-pin interface of the
specifications EIA-232 (RS-232) standard)

Connection Point-to-point

Communication Half-duplex

Synchronization Start-stop synchronization

Baud rate Select from 1200, 2400, 4800, 9600, 19200, or 38400[bps]

Start bit 1 bit (fixed)

Data length Select 7 or 8 bits
(Select 8 bits when outputting data in binary format.)

Parity Select odd, even, or none

Stop bit 1 bit (fixed)

Hardware handshaking Select whether to fix the CA and CB signals to TRUE or to use the

signal for flow control.

Software handshaking Select whether to use the X-ON and X-OFF signals to control the

transmitted data only or both the transmitted and received data.
X-ON (ASCII 11H), X-OFF (ASCII 13H)

Received buffer size 2047 bytes

3

Using the Serial Interface (Option)

RS-422-A/485 Interface Specifications

Terminal block type 6 point, terminal block, terminal screws: ISO M4/nominal length 6 mm

Electrical, mechanical Conforms to EIA-422-A (RS-422-A) and EIA-485 (RS-485) standards
specifications

Connection Multidrop Four-wire type 1 : 32

Communication Half-duplex

Synchronization Start-stop synchronization

Baud rate Select from 1200, 2400, 4800, 9600, 19200, or 38400[bps]

Start bit 1 bit (fixed)

Data length Select 7 or 8 bits

Parity Select odd, even, or none

Stop bit 1 bit (fixed)

Received buffer size 2047 bytes

Escape sequence Open and close

Electric characteristics FG, SG, SDB, SDA, RDB, RDA (six points)

Communication distance Up to 1.2 km

Terminator External: recommended resistance 120 Ω, 1/2 W

Two-wire type 1 : 31

SG, SDB, SDA, RDB, and RDA terminals and the internal circuit of the

RD-MV is functionally isolated.

FG terminal is the frame ground.

3-1

3.2 RS-232 Interface Connector Pin Arrangement
and Signal Names, the Connection Procedure,
and Handshaking

Connector Pin Arrangement and Signal Names

Connector pin arrangement

2

1

3

4 5

Table of RS-232 Standard Signal and Their JIS and ITU-T Abbreviations

Connection Procedure

Signal direction

(Rear panel)

Pin No. Signal Name Signal Meaning

2 RD (Received Data) Received data from the PC. Input signal.

3 SD (Send Data) Send data to the PC. Output signal.

5 SG (Signal Ground) Signal ground.

7 RS (Request to Send) Handshaking signal used when receiving data

8 CS (Clear to Send) Handshaking signal used when sending data to

* Pins 1, 4, 6, and 9 are not used.

RS-232

Abbreviation

ITU-T

102 SG

103

104

105

106

Pin No.

(9-pin connector)

5

3

2

7

8

AB (GND)

BA (TXD)

BB (RXD)

CA (RTS)

CB (CTS)

6

8

7

9

from the PC. Output signal.

the PC. Input signal.

JIS

SD

RD

RS

CS

Description

Signal ground

Transmitted data

Received data

Request to send

Clear to send

3-2

PC

RS[Request to send]

CS[Clear to send]

SD[Send data]

RD[Receive data]

7

8

MV

3

2

3.2 RS-232 Interface Connector Pin Arrangement and Signal Names, the Connection Procedure, and Handshaking

Connection example

Handshaking

Handshaking method

OFF-OFF

XON-XON

XON-RS

CS-RS

• OFF-OFF/XON-XON

PC MV

SD
RD
RS
CS
SG

3
2
7
8
5

• XON-RS(XON-RTS)

PC MV

SD
RD
RS
CS
SG

3
2
7
8
5

RD

SG

SD

RS
CS

SD
RD
RS
CS
SG

• CS-RS(CTS-RTS)

PC MV

SD
RD
RS
CS
SG

The RS on the PC side and the CS
on the instrument side do not need
to be connected for control.
However, we recommend that they
be connected so that the cable
can be connected in either direction.

SD

3
2

RD
RS

7
8

CS

5

SG

When using the RS-232 interface for transferring data, it is necessary for equipment on
both sides to agree on a set of rules to ensure the proper transfer of data. The set of
rules is called handshaking. Because there are many handshaking methods that can be
used between the instrument and the PC, one must make sure that the same method is
chosen by both the RD-MV and the PC. You can choose any of the four methods
shown in the following table.

Table of Handshaking Methods ( indicates that it is supported)

Data Transmission Control

(Control used to send data to a PC)

Software

handshaking

Stops
transmission
when X-OFF
is received.
Resume
when X-ON
is received.

Hardware

handshaking

Stops transmission
when CB (CTS)
is false.
Resume when
it is true.

No

handshaking

Software

handshaking

Send X-OFF
when the
received data
buffer is 3/4th
filled. Send
X-ON when the
received data
buffer becomes
1/4th filled.

Data Reception Control

(Control used to receive data from a PC)

Hardware

handshaking

Set CA (RTS) to
False when the
received data buffer
is 3/4th filled. Set to
True when the
received data buffer
becomes 1/4th filled.

handshaking

No

3

Using the Serial Interface (Option)

OFF-OFF

• Data transmission control
There is no handshaking between the RD-MV and the PC. The X-OFF and X-ON
signals are treated as data, and the CS signal is ignored.

• Data reception control
There is no handshaking between the RD-MV and the PC. When the received
buffer becomes full, all overflow data are discarded.
The RS signal is fixed to True.

3-3

3.2 RS-232 Interface Connector Pin Arrangement and Signal Names, the Connection Procedure, and Handshaking

XON-XON

• Data transmission control
Software handshaking is performed between the RD-MV and the PC. When an X­OFF code is received while sending data to the PC, the RD-MV stops the data
transmission. When it receives the next X-ON code, it resumes the data
transmission. The CS signal received from the PC is ignored.

• Data reception control
Software handshaking is performed between the RD-MV and the PC. When the
amount of used space in the received buffer reaches 1537 bytes, the X-OFF code
is transmitted. When the amount of used space in the received buffer falls to 511
bytes, X-ON code is transmitted. The RS signal is fixed to True.

XON-RS

• Data transmission control
Software handshaking is performed between the RD-MV and the PC. When an X­OFF code is received while sending data to the PC, the RD-MV stops the data
transmission. When it receives the next X-ON code, it resumes the data
transmission. CS signal from the PC is ignored.

• Data reception control
Hardware handshaking is performed between the RD-MV and the PC. When the
amount of used space in the received buffer reaches 1537 bytes, the RS signal is
set to “False.” When the amount of used space in the received buffer falls to 511
bytes, the RS signal is set to “True.”

CS-RS

• Data transmission control
Hardware handshaking is performed between the RD-MV and the PC. When the
CS signal becomes False while sending data to the PC, the RD-MV stops the data
transmission. When the CS signal becomes True, it resumes the data
transmission. X-OFF is treated as data.

• Data reception control
Hardware handshaking is performed between the RD-MV and the PC. When the
amount of used space in the received buffer reaches 1537 bytes, the RS signal is
set to “False.” When the amount of used space in the received buffer falls to 511
bytes, the RS signal is set to “True.”

Note

• The PC program must be designed so that the received buffers of both the RD-MV and the

PC do not become full.

• When using XON-XON, output the data in ASCII format.

3-4

3.3 RS-422-A/485 Interface Pin Arrangement and

FG SG SDB SDA RDB RDA

Shield potential

Two-wire

Shield

FG SG SDB SDA RDB RDA

Shield potential

Four-wire

Shield

Signal Names and the Connection Procedure

Pin Arrangement and Signal Names

Connection Procedure

Cable

Cable connection procedure

(Rear panel)

FG (Frame Ground) Case ground of the RD-MV.

SG (Signal Ground) Signal ground.

SDB (Send Data B) Send data B (+).

SDA (Send Data A) Send data A (−).

RDB (Received Data B) Received data B (+).

RDA (Received Data A) Received data A (−).

There are two types of cables available, the four-wire cable and the two-wire cable
(used only for the Modbus protocol). The cable should meet the following
specifications.

Cable Twisted-pair cable

3 pairs 24 AWG or more (four-wire), 2 pair 24AWG or more (two­wire)

Characteristic impedance 100 Ω

Capacitance 50 pF/m

Cable length Up to 1.2 km*

* The transmission distance of the RS-422-A/485 interface is not the straight-line distance, but

rather the total length of the (twisted-pair shielded) cable.

As shown in the figure below, attach a crimp-style terminal with an isolating sleeve for
4-mm screws to the end of the cable. Keep the section that is exposed from the
shielded cable to 5 cm or less.

FG SG SDB SDA RDB RDA

3

Using the Serial Interface (Option)

To prevent electric shock, turn OFF the power when connecting cables.

Note

• As shown on the next page, connect the RD pin to the SD (TD) pin on the PC (converter) side

and the SD pin to the RD pin on the PC side.

• The two-wire cable can be used only when using the Modbus protocol.

WARNING

3-5

3.3 RS-422-A/485 Interface Pin Arrangement and Signal Names and the Connection Procedure

Connection Example with the Host Computer

The instrument can be connected to a host computer that has an RS-232, RS-422-A, or
RS-485 port.

• For RS-232, use the converter.

• For recommended converters, see the latter section “Serial Interface converter.”

• The two-wire cable can be used only when using the Modbus protocol. For the
configuration procedure, see section 3.5, “Configuring the Serial Interface.”

Four-wire system

In general, the instrument and the host computer are connected using a four-wire
cable. For the four-wire system, the transmission and reception lines must be
crossed.

Host

computer

Terminator (externally attached) 120 Ω, 1/2 W or more

RS-422-A/485

pins on the RD-MV

Terminator (externally attached)

SDA( – )

SDB( + )

RDA( – )

RDB( + )

SG

Host

computer

RS-232

TD( – )

TD( + )

RD( – )

RD( + )

SHIELD

(SDA)

(SDB)

(RD A)

(RD B)

(SG)

SD A

SD B

RD A

RD B

#1

SG

FG

(SDA)

(SDB)

(RD A)

(RD B)

(SG)

SD A

SD B

RD A

RD B

SG

FG

(SDA)

(SDB)

(RD A)

(RD B)

(SG)

#2 #n

Do not connect terminator to #1 to #n–1

(The following diagram illustrates the case when the host computer's interface
is RS-232)

Terminator (externally attached) 120 Ω, 1/2 W or more

RS-422-A/485

pins on the RD-MV

(SDA)

(SDB)

(RD A)

(RD B)

(SG)

SD A

SD B

RD A

RD B

SG

FG

(SDA)

(SDB)

(RD A)

(RD B)

(SG)

Terminator (externally attached)

SD A

SD B

RD A

RD B

SG

FG

(SDA)

(SDB)

(RD A)

(RD B)

(SG)

SD A

SD B

RD A

RD B

SG

FG

(#n ≤ 32)

SD A

SD B

RD A

RD B

SG

FG

3-6

Converter

#1

#2 #n

(#n ≤ 32)

Do not connect terminator to #1 to #n–1

3.3 RS-422-A/485 Interface Pin Arrangement and Signal Names and the Connection Procedure

Two-wire system

Connect the transmission and reception signals with the same polarity on the RS-422­A/485 terminal block. The two-wire system can be used only when using the Modbus
protocol.

Host

computer

Terminator (externally attached)

SD A

SD B

RD A

RD B

SG

FG

(A)

(B)

(SG)

SDA( – )

SDB( + )

RDA( – )

RDB( + )

SG

Terminator (externally attached) 120 Ω, 1/2 W or more

RS-422-A/485

pins on the RD-MV

(A)

(B)

(SG)

SD A

SD B

RD A

RD B

SG

FG

(A)

(B)

(SG)

SD A

SD B

RD A

RD B

SG

FG

3

Using the Serial Interface (Option)

Host

computer

RS-232

RD( – )

RD( + )

TD( – )

TD( + )

SHIELD

Converter

#1

#2 #n

Do not connect terminator to #1 to #n–1

(The following diagram illustrates the case when the host computer’s interface
is RS-232)

Terminator (externally attached) 120 Ω, 1/2 W or more

RS-422-A/485

pins on the RD-MV

(SG)

(A)

(B)

SD A

SD B

RD A

RD B

SG

FG

(A)

(B)

(SG)

#1

Do not connect terminator to #1 to #n–1

Terminator (externally attached)

SD A

SD B

RD A

RD B

SG

FG

(A)

(B)

(SG)

#2 #n

Note

• The method used to eliminate noise varies depending on the situation. In the connection

example, only the cable shield on the RD-MV side is connected to ground (one-sided

grounding). This is effective when there is a difference in the electric potential between the

PC’s ground and the RD-MV’s ground. This may be the case for long distance

communications. If there is no difference in the electric potential between the PC and the

RD-MV, two-sided grounding, in which the PC side is also grounded, may be effective.

Furthermore, using two-sided grounding and connecting a serial capacitance on one-side

may be effective. Consider these possibilities to eliminate noise.

• When using the two-wire type interface (Modbus protocol), the 485 driver must be set to high

impedance within 3.5 characters after the last data byte is sent by the host computer.

(#n ≤ 31)

SD A

SD B

RD A

RD B

SG

FG

(#n ≤ 31)

3-7

3.3 RS-422-A/485 Interface Pin Arrangement and Signal Names and the Connection Procedure

Serial Interface Converter

Recommended converter: MODEL RC-57 by RA SYSTEMS CORP., or Z-101HE by
Sharp

CAUTION

Some converters not recommended by Omega FG and SG pins that are not
isolated. In this case, do not connect anything to the FG and SG pins as
shown in the diagram on the previous page. This can generate a potential
difference, especially for long distance communications, and can damage the
instrument or cause communication abnormalities. For converters that do not
have the SG pin, they can be used without using the signal ground. For details,
see the manual that came with the converter.

On some non-recommended converters, the signal polarity may be reversed (A/B or
+/– indication). In this case, reverse the connection.

For a two-wire system, the host computer must control the transmission driver of the
converter in order to prevent collisions of transmit and received data. When using the
recommended converter, the driver is controlled using the RS (RTS) signal on the RS-

232.

When the instrument that support only the RS-422-A interface exist in the system

When using the four-wire type interface, up to 32 RD-MVs can be connected to a
single host computer. However, this may not be true if the instrument that support
only the RS-422-A interface exist in the system.

When Omega's recorders that support only the RS-422-A interface exist in the
system

The maximum number of connection is 16. Some of Omega’s conventional
recorders (HR2400 and µR, for example) only support the RS-422-A driver. In this
case, only up to 16 units can be connected.

Note

In the RS-422-A standard, 10 is the maximum number of connections that are allowed on one

port (for a four-wire system).

Terminator

When using a multidrop connection (including a point-to-point connection), connect a
terminal resistance to the RD-MV on the end of the chain. Do not connect a terminal
resistance to a RD-MV in the middle of the chain. In addition, turn the terminator on
the host computer ON (see the computer's manual). If a converter is being used,
turn ON its terminator. An external terminator must be attached to the
recommended converter. However, there are converters that have built-in
terminations.

3-8

3.4 The Bit Structure of One Character and the
Operation of the Receive Buffer

The Bit Structure of One Character

The serial interface on the RD-MV communicates using start-stop synchronization.
With the start-stop synchronization, a start bit is added every time a character is
transmitted. The start bit is followed by the data bits, parity bit, and stop bit. (See the
figure below.)

Circuit back to idle state
(dotted line)
or the start bit of the next data
(solid line)

Stop bit (1 or 2 bits)

Circuit idle state

Start bit

Receive Buffer and Received Data

The data received from the computer are first placed in the receive buffer of the RD-MV.
Depending on the available free space in the receive buffer, the received data are
processed as shown in the figure below. When the receive buffer becomes FULL,
overflow data are discarded.

2047 bytes

Amount of used space is 1537 bytes Free

Amount of used space is 511 bytes

Amount of used space is FULL

Free

1 character

Data bits

(7 or 8 bits)

Parity bit
(Even, odd, or none)

When handshaking is used, the
MV stops data reception when
data in the buffer cannot be
processed fast enough and the
amount of used space reaches
1537 bytes.

After the data reception is
stopped as described above,
data in the buffer continues to
be passed to the internal
program. When the amount of
used space falls to 511 bytes, it
resumes data reception.

If the buffer becomes full in
spite of the handshaking
control, all overflow data are
discarded.

3

Using the Serial Interface (Option)

3-9

3.5 Configuring the Serial Interface

Explanation

Selecting the baud rate

Select the baud rate from the following list.
1200, 2400, 4800, 9600, 19200, 38400

Selecting the data length

Select the data length from the following list. Make sure to select 8 bits when
outputting data in binary format.
7, 8

Selecting the parity check

Select the parity check from the following list.
Odd, Even, None

Selecting the handshaking method

Select the handshaking method from the following list. This setting is valid only for
the RS-232 interface.
Off:Off, XON:XON, XON:RS, CS:RS

Selecting the address

Select the address from the following values. This setting is valid for the RS-422-A/
485 interface and the Modbus protocol.
1 to 32

Selecting the “Normal” protocol

When using the “Normal” protocol to communicate via RS-232 or RS-422-A/485,
select [Normal].

Selecting the communication interface used to output the data in the internal
memory and the files on the external storage medium

• Using output commands (ME/MI/MO commands), select the communication
interface used to output the data in the internal memory (display data, event data,
TLOG data, manual sampled data, and report data) and the files on the external
storage medium. Since Ethernet communications and serial communications
cannot be used simultaneously, you must select either one.

• When using serial communications, select [Serial].

Storing the settings

To activate the settings made in the basic setting mode, the settings must be saved.
Otherwise, the settings return to the previous values.

3-10

Procedure

3.5 Configuring the Serial Interface

For the basic flow of operations, see “Flow of Operation using the Operation Keys” on
page vi.

1. Press the MENU key to display the setting menu.

2. Press the FUNC key for approximately 3 s to display the basic setting menu.

3. Press the [#10 (Communication)](RD-MV100) or [#6 (Communication)](RD­MV200) soft key to display the communication function setting menu.

4. Press the [#6 (Serial, Memory out)](RD-MV100) or [#1 (Ethernet, Serial)](RD­MV200) soft key to display the communication (Serial) menu.

3

Using the Serial Interface (Option)

RD-MV100 Communication
(Serial, Memory out) menu

Selecting the baud rate

5. Press the arrow keys to move the cursor to the [Baud rate] box.

6. Press one of the soft keys from [1200] to [38400] to select the baud rate.

Selecting the data length

7. Press the arrow key to move the cursor to the [Data length] box.

RD-MV200 Communication (Ethernet, Serial) menu

8. Press the [7] or [8] soft key to select the data length.

3-11

3.5 Configuring the Serial Interface

Selecting the parity

9. Press the arrow keys to move the cursor to the [Parity] box.

10. Press one of the soft keys from [Odd] to [None] to select the parity check.

Selecting the handshaking

(Valid only for the RS-232 interface.)

11. Press the arrow keys to move the cursor to the [Handshaking] box.

12. Press one of the soft keys from [Off:Off] to [CS:RS] to select the handshaking

Selecting the address

(Valid for the RS-422-A/485 interface and the Modbus protocol)

13. Press the arrow keys to move the cursor to the [Address] box.

method.

14. Press one of the soft keys from [1] to [32] to select the address. If [Next] is
displayed as a selection, multiple lines of selections are available. Press the
[Next] soft key to display the desired address and press the corresponding soft
key.

Setting the protocol to “Normal”

15. Press the arrow keys to move the cursor to the [Protocol] box.

16. Press the [Normal] soft key.

3-12

3.5 Configuring the Serial Interface

Selecting the communication interface used to output the data in the internal
memory and the files on the external storage medium

17. Press the arrow key to move the cursor to the [Memory out] box.

18. Press either the [Ethernet] or the [Serial] soft key. Press the [Serial] soft key
when using serial communications.

Confirming/Canceling the new settings

19. To confirm the new settings, press the DISP/ENTER key. To cancel, press the
ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

Storing the new settings

20. Press the ESC key several times to display the basic configuration menu.

21. Press the [End] soft key to display a dialog box which you select whether or not
to store the new settings.

3

Using the Serial Interface (Option)

22. Select the [Yes] to store the new settings, the [No] to discard them, or the
[Cancel] to return to the basic setting menu by pressing the arrow key. Then,
press the DISP/ENTER key

3-13

Chapter 4 Using the Modbus Protocol

4.1 Modbus Protocol Specifications

The Modbus protocol can be used over the serial interface (RS-232 or RS-422-A/485).

The Modbus specifications of the RD-MV are as follows.

Specification Description

Transmission medium RS-232 or RS-422-A/485

Control (Flow control is not available.)

RS-232: None only
RS-422-A/485: None only

Baud rate Select from 1200, 2400, 4800, 9600, 19200, or 38400 [bps]

Start bit 1 bit (fixed)

Stop bit 1 bit (fixed)

Parity check Odd, Even, None

Transfer mode RTU (Remote Terminal Unit) mode only

• Data length: 8 bits

• Data interval: time equivalent to 24 bits or less*

• Error detection: Uses CRC-16
* Time interval equivalent to 3.5 characters or more is used

to detect the end of the message.

Slave address RS-232: 1 to 32

RS-422A/485: 1 to 32

4

Using the Modbus Protocol

The function code of Modbus protocol that are supported by the RD-MV are as follows.

Function Code Function Operation

3 Read the hold register (4xxxx). Read communication input data.

4 Read the input register (3xxxx). Read measured, computed, and time

8 Loop back test Supports message return (test code

16 Write to the hold register (4xxxx) Write communication input data.

data.

(0x00) only.

4-1

4.2 Register Assignments

The register assignments of the Modbus protocol are given below. The data in the
register do not contain unit and decimal position information. The unit and decimal
position information must be set to the Modbus master (host) beforehand.

Input register Data

30001 Measured data of CH01
30002 Measured data of CH02

··
30030 Measured data of CH30

The corresponding registers vary depending on the model as follows: 30001 to 30002 on the
RD-MV102. 30001 to 30004 on the RD-MV104. 30001 to 30006 on the RD-MV106. 30001
to 30012 on the RD-MV112. 30001 to 30004 on the RD-MV204. 30001 to 30008 on the RD­MV208. 30001 to 30010 on the RD-MV210. 30001 to 30020 on the RD-MV220. 30001 to
30030 on the RD-MV230.

31001 Alarm status of the measured data of CH01
31002 Alarm status of the measured data of CH02

··
31030 Alarm status of the measured data of CH30

The corresponding registers vary depending on the model as follows: 31001 to 31002 on the
RD-MV102. 31001 to 31004 on the RD-MV104. 31001 to 31006 on the RD-MV106. 31001
to 31012 on the RD-MV112. 31001 to 31004 on the RD-MV204. 31001 to 31008 on the RD­MV208. 31001 to 31010 on the RD-MV210. 31001 to 31020 on the RD-MV220. 31001 to
31030 on the RD-MV230.

32001 Computed data of CH31 (upper byte)
32002 Computed data of CH31 (lower byte)
32003 Computed data of CH32 (upper byte)
32004 Computed data of CH32 (lower byte)

··
32059 Computed data of CH60 (upper byte)
32060 Computed data of CH60 (lower byte)

• The corresponding registers vary depending on the model as follows: 32001 to 32008 on
the RD-MV102/RD-MV104. 32001 to 32024 on the RD-MV106/RD-MV112. 32001 to
32016 on the RD-MV204/RD-MV208. 32001 to 32060 on the RD-MV210/RD-MV220/RD­MV230.

• These registers are for models with the computation function option /M1.

33001 Alarm status of the Computed data of CH31
33002 Alarm status of the Computed data of CH32

··
33030 Alarm status of the Computed data of CH60

• The corresponding registers vary depending on the model as follows: 33001 to 33004 on
the RD-MV102/RD-MV104. 33001 to 33012 on the RD-MV106/RD-MV112. 33001 to
33008 on the RD-MV204/RD-MV208. 33001 to 33030 on the RD-MV210/RD-MV220/RD­MV230.

• These registers are for models with the computation function option /M1.

39001 Year (4 digits)
39002 Month
39003 Day
39004 Hour
39005 Minute
39006 Second
39007 Millisecond
39008 Summer/Winter time

4-2

Hold register Data

40001 Communication input data of C01
40002 Communication input data of C02

··
40030 Communication input data of C30

A value in the range from –32768 to 32767 can be written in the hold register.
For RD-MV100, the hold register is from 40001 to 40012 (from C01 to C12.)

4.3 Modbus Error Response

The following table contains only the Modbus error responses. For other communication
error messages, see the RD-MV100/RD-MV200 User’s Manual (M-3641/M-3642).

Code Meaning Cause

1 Bad function code Requested a function that is not supported. For

2 Bad register number Tried to read/write to a register that has no

3 Bad number of registers The number of specified registers is zero.

7 Cannot be executed. Tried to read a computation register from a model

However, no response is returned for the following cases.

• CRC error

• Errors other than the ones shown above.

supported functions, see section 4.1, “Modbus
Protocol Specifications.”

corresponding channel.

that has no computation option.

4

Using the Modbus Protocol

4-3

4.4 Setting the Configuration that is Used When
the Modbus Protocol is Used

Explanation

Selecting the baud rate

Select the baud rate from the following list.
1200, 2400, 4800, 9600, 19200, 38400

Selecting the parity check

Select the parity check from the following list.
Odd, Even, None

Selecting the address

Select the address from the following values.
1 to 32

Selecting the “Modbus” protocol

When communicating using the “Modbus” protocol, select [Modbus].

Selecting the communication interface used to output the data in the internal
memory and the files on the external storage medium

• Using output commands (ME/MI/MO commands), select the communication
interface used to output the data in the internal memory (display data, event data,
TLOG data, manual sampled data, and report data) and the files on the external
storage medium. Since Ethernet communications and serial communications
cannot be used simultaneously, you must select either one.

• When using serial communications, select [Serial].

Storing the settings

To activate the settings made in the basic setting mode, the settings must be saved.
Otherwise, the settings return to the previous values.

Note

When using the Modbus protocol, moving the cursor and setting the data length and

handshaking produces no effect. These settings become valid when the protocol selection is

set to [Normal] and the settings are saved.

4-4

Procedure

4.4 Setting the Configuration that is Used When the Modbus Protocol is Used

For the basic flow of operations, see “Flow of Operation using the Operation Keys” on
page vi.

1. Press the MENU key to display the setting menu.

2. Press the FUNC key for approximately 3 s to display the basic setting menu.

3. Press the [#10 (Communication)](RD-MV100) or [#6 (Communication)](RD­MV200) soft key to display the communication function setting menu.

4. Press the [#6 (Serial, Memory out)](RD-MV100) or [#1 (Ethernet, Serial)](RD­MV200) soft key to display the communication (Serial) menu.

RD-MV100 Communication
(Serial, Memory out) menu

Selecting the baud rate

5. Press the arrow keys to move the cursor to the [Baud rate] box.

6. Press one of the soft keys from [1200] to [38400] to select the baud rate.

Selecting the parity check

7. Press the arrow keys to move the cursor to the [Parity] box.

RD-MV200 Communication (Ethernet, Serial) menu

4

Using the Modbus Protocol

8. Press one of the soft keys from [Odd] to [None] to select the parity check.

4-5

4.4 Setting the Configuration that is Used When the Modbus Protocol is Used

Selecting the address

9. Press the arrow keys to move the cursor to the [Address] box.

10. Press one of the soft keys from [1] to [32] to select the address. If [Next] is
displayed as a selection, multiple lines of selections are available. Press the
[Next] soft key to display the desired address and press the corresponding soft
key.

Setting the protocol to “Modbus”

11. Press the arrow keys to move the cursor to the [Protocol] box.

12. Press the [Modbus] soft key.

Selecting the communication interface used to output the data in the internal
memory and the files on the external storage medium

13. Press the arrow key to move the cursor to the [Memory out] box.

14. Press either the [Ethernet] or the [Serial] soft key. Press the [Serial] soft key
when using serial communications.

Confirming/Canceling the new settings

15. To confirm the new settings, press the DISP/ENTER key. To cancel, press the
ESC key.

For detailed operations regarding confirmation and cancellation, see “Flow of Operation

using the Operation Keys” on page vi.

Storing the new settings

16. Press the ESC key several times to display the basic setting menu.

17. Pressing the [End] soft key to display a dialog box which you select whether or
not to store the new settings.

18. Select the [Yes] to store the new settings, the [No] to discard them, or the

[Cancel] to return to the basic setting menu by pressing the arrow key. Then,

press the DISP/ENTER key.

4-6

Chapter 5 Commands

5.1 Command Syntax

Command Syntax

The syntax of the setting/basic setting/output commands (see sections 5.4 to 5.9) of the
instrument is given below. ASCII codes are used for the character codes. For the
syntax of the maintenance/test commands (see section 5.10) and instrument information
output commands (see section 5.11), see the corresponding sections or the examples
for each command.

Command name

Parameter

Delimiter

Sub delimiter

?

Terminator

Command example

SR 02,SKIP;SR 03,VOLT,2V,-1500,1800

Parameter (02 SKIP ... 1800)

Delimiter (,)

Command name (SR)

Sub delimiter (;)

Command name

Defined using two alphabet characters.

Parameter

• Command parameters.

• Set using alphabet characters or numerical values.

• Parameters are separated by delimiters.

• All numerical values are specified using integers.

• When the parameter is a numerical value, the valid range varies depending on the
command.

• Spaces before and after of the parameter are ignored (except for parameters that
are specified using an ASCII character string (unit), when spaces are valid.)

• You can omit the parameters that do not need to be changed from their current
settings. However, delimiters cannot be omitted.

Example SR 01,,2V<terminator>

If multiple parameters are omitted and delimiters occur at the end of the command,
those delimiters can be omitted.

Example

• The number of digits of the following parameters is fixed. If the number of digits is
not correct when entering the command, a syntax error results.

• Date YY/MM/DD (8 characters)

• Time HH:MM:SS (8 characters)

• Channel number: 2 characters

• Relay number: 3 characters

SR 01,VOLT,,,<terminator> → SR 01,VOLT<terminator>

YY: Year (Enter the lower two digits of the year.)
MM: Month
DD: Day

HH: Hour
MM: Minute
SS: Second

5

Commands

5-1

5.1 Command Syntax

Query

• A question mark is used to specify a query.

• By placing a query after a command or parameter, the setting information of the
corresponding command can be queried. Some commands cannot execute
queries. For the query syntax of each command, see sections 5.4 to 5.7.
Example 1
Example 2

SR[ p1]? SR? or SR p1? can be executed.
SA[ p1[,p2]]? SA?, SA p1? or SA p1,p2? can be executed.

Delimiter

• A comma is used as a delimiter.

• Parameters are separated by delimiters.

Sub delimiter

• A semicolon is used as a sub delimiter.

• By separating each command with a sub delimiter, up to 10 commands can be
specified one after another. However, the following commands and queries cannot
be specified one after another. Use them independently.

• Output commands other than BO, CS, and IF commands.

• YO command

• Queries

* If there are consecutive sub delimiters, they are considered to be single. In addition, sub

delimiters at the front and at the end are ignored.
Example ;SR01,VOLT;;;SR02,VOLT;<terminator> is taken to be

SR01,VOLT;SR02,VOLT<terminator>.

Response

Terminator (Terminating character)

Use either of the following two characters for the terminator.

• CR + LF (0DH 0AH in ASCII code.)

•LF (0AH in ASCII code.)

Note

• Do not specify a channel or relay number that is not available on the RD-MV. An error will

occur.

• The total data length from the first character to the terminator must be less than 2047 bytes.

• Commands are not case sensitive (with the exception of user-specified character strings).

• All the commands that are listed using sub delimiters are executed even if one of the

commands is erroneous.

• Spaces that are inserted before and after a parameter are ignored. However, if spaces are

inserted before a command, after a sub delimiter, or after a query, an error occurs.

The RD-MV returns a response (affirmative/negative response) to a command that is
delimited by a single terminator*. The controller should follow the one command to one
response format. When the command-response rule is not followed, the operation is not
guaranteed. For the response syntax, see section 6.1.

* Commands dedicated to RS-422-A/485 (see section 5.9) and instrument information output

commands (section 5.11) are exceptions.

5-2

5.2 A List of Commands

Setting Commands

Command Command Function

Type Name Mode

Setting

SR Sets the input range Operation mode Yes No 5-9

SO Sets the computing equation Operation mode Yes No 5-10

SA Sets the alarm Operation mode Yes No 5-10

SD Sets the date and time Operation mode Yes No 5-11

SW Sets the display update rate/auto-save interval Operation mode Yes No 5-11

SZ Sets the zone Operation mode Yes No 5-11

SP Sets the partial expanded display Operation mode Yes No 5-12

ST Sets the tag Operation mode Yes No 5-12

SX Sets the group Operation mode Yes No 5-12

SL Sets the trip line Operation mode Yes No 5-12

SG Sets the message Operation mode Yes No 5-12

SH Sets the file header Operation mode Yes No 5-13

SE Sets the display direction, background color, Operation mode Yes No 5-13

trend line width, trip line width, number

of grids, and scroll time

SB Sets the number of scale divisions, base Operation mode Yes No 5-13

position of the bar graph,

and the display position of the trend scale

SV Sets the moving average of the measured channel Operation mode Yes No 5-13

SF Sets the filter Operation mode Yes No 5-13

SC Sets the channel display color Operation mode Yes No 5-14

SQ Sets the LCD brightness and the screen Operation mode Yes No 5-14

backlight saver

SY Sets the 4 screen display (only for RD-MV200) Operation mode Yes No 5-14

SU Sets the USER key (only for RD-MV200) Operation mode Yes No 5-15

SK Sets the computation constant Operation mode Yes No 5-15

SI Sets the rolling average of the computation Operation mode Yes No 5-15

channel

SJ Sets the TLOG timer Operation mode Yes No 5-15

SS Set the date and time at which to switch the Operation mode Yes No 5-16

daylight savings time

FR Sets the acquiring interval to the FIFO buffer Operation mode Yes No 5-16

BA Sets the application name, the supervisor name, Operation mode Yes No 5-16

and the manager name

BB Sets the batch number, the lot number, Operation mode Yes No 5-17

automatic increment of the lot number, and the

displayed information

BC Sets the comment number and the character Operation mode Yes No 5-17

string

BD Sets the alarm delay time Operation mode Yes No 5-17

Execution

Administrator User Page

5

Commands

Yes: Command usable

No : Command not usable

5-3

5.2 A List of Commands

Note

• There are two execution modes on the RD-MV. If you attempt to execute a command in a

mode that is different from the specification, a syntax error occurs. Use the DS command to

switch to the execution mode, then set or control the RD-MV. Query commands can be

executed in either mode.

• Basic setting mode

Measurement/computation is stopped and settings are changed in this mode.

• Operation mode

As a general rule, commands other than those for the basic setting mode described above

are used in this mode.

• The administrator and user specifications in the table indicate the user level that is specified

using the login function for Ethernet communications. For details, see section 1.2.

Command Command Function

Execution

Type Name Mode

Control

UD Switches the screen Operation mode Yes No 5-17

PS Starts/Stops measurements Operation mode Yes No 5-18

AK Confirms the alarm status (alarm acknowledge) Operation mode Yes No 5-18

EV Manual sample, manual trigger, snapshot, Operation mode Yes No 5-19

saving the display data, saving the event data

MS Writes the message (display and save) Operation mode Yes No 5-19

TL Starts/stops/resets computation (MATH)/ Operation mode Yes No 5-19

Clears the computation dropout status display

DS Switches execution modes All modes Yes No 5-19

(operation/basic setting)

LO Loads the setting data for setting commands Operation mode Yes No 5-19

LI Saves the setting data Operation mode Yes No 5-19

CM Sets the communication input data Operation mode Yes No 5-20

Administrator User Page

Yes: Command usable

No : Command not usable

5-4

5.2 A List of Commands

Basic Setting Commands

• In order to activate the settings that are changed using the basic setting
commands, the settings must be saved using the XE command. Make sure to
save the settings with the XE command before changing from the basic setting
mode to the operation mode. Otherwise, new settings will not be activated.

• The settings that are returned in response to a query in the basic setting mode will
contain the new settings even if they are not saved with the XE command.
However, the new settings will not be activated until they are saved. In order to
activate the new settings, the XE command must be issued as described earlier. If
the settings are not saved or cleared using the XE command and the execution
mode is changed from the basic setting mode to the operation mode, the settings
that are returned in response to a query will contain the settings that existed before
they were changed.

Note

• The settings that are changed using the YA/YK/YN/YQ/YS command are activated after

saving the new settings using the XE command and rebooting the RD-MV.

• When executing the YO command, the communication is disconnected.

Command Function

Name Mode

XA Sets alarm related settings Basic setting mode Yes No 5-20

XI Sets the A/D integral time Basic setting mode Yes No 5-21
XB Sets the burn out Basic setting mode Yes No 5-21
XJ Sets the RJC Basic setting mode Yes No 5-21
XV Sets the scan interval Basic setting mode Yes No 5-21
XT Selects the temperature unit Basic setting mode Yes No 5-21
XS Sets the channels to display the trend Basic setting mode Yes No 5-21

and acquire the data

XM Sets the conditions used to acquire Basic setting mode Yes No 5-21

display/event data to the internal memory or
save the data to the external storage medium

XU Sets the channel identification display, Basic setting mode Yes No 5-22

memory alarm time, language, whether or
not to use the partial expanded display

function and the batch function
XR Sets the remote action Basic setting mode Yes No 5-22
XQ Sets the timer Basic setting mode Yes No 5-23
RO Sets the report type and generation time Basic setting mode Yes No 5-23
RM Sets the report channel Basic setting mode Yes No 5-24
XO Selects the communication interface used to Basic setting mode Yes No 5-24

output data residing in the internal memory

(display, event, TLOG, manual sampled, and

report data) and files on the external storage

medium using output commands (ME/MI/MO commands)
XH Sets whether or not to use the key login, Basic setting mode Yes No 5-24

auto logout, and user ID functions
XE Sets whether or not to store the basic settings Basic setting mode Yes No 5-24
YA Sets the IP address, subnet mask, and default Basic setting mode Yes No 5-25

gateway
YK Sets keepalive Basic setting mode Yes No 5-25
YN Sets the DNS Basic setting mode Yes No 5-25
YQ Sets the communication timeout Basic setting mode Yes No 5-25
YS Sets the serial interface Basic setting mode Yes No 5-25
YO Loads setting data Basic setting mode Yes No 5-26
YI Saves setting data Basic setting mode Yes No 5-26
YC Clears the measured/computed data, initializes Basic setting mode Yes No 5-26

setup data

YT Sets the FTP transfer timing Basic setting mode Yes No 5-26

Execution

Administrator User Page

Yes: Command usable

No : Command unusable

5

Commands

5-5

5.2 A List of Commands

Output Commands

Command Command Function Execution Administrator User Page

Type Name Mode

control

BO Sets the output byte order All modes Yes Yes 5-27

CS Sets the checksum (This command can be used All modes Yes Yes 5-27

only during serial communications)

IF Sets the status filter All modes Yes Yes 5-27

CC Disconnects an Ethernet connection All modes Yes Yes 5-27

(This command can be used only during

Ethernet communications)

Setup, measured, and computed data output

FC Outputs screen image data All modes Yes Yes 5-27

FE Outputs setup data All modes Yes Yes 5-27

FD Outputs the most recent measured/computed data Operation mode Yes Yes 5-27

FF Outputs FIFO data Operation mode Yes Yes 5-28

FL Outputs communication log All modes Yes Yes 5-28

IS Outputs status information All modes Yes Yes 5-28

FU Outputs user level All modes Yes Yes 5-28

ME Outputs data saved in the external storage Operation mode Yes No 5-29

medium (Either Ethernet or serial

communication can be used)

MI Outputs display data and event data acquired Operation mode Yes No 5-29

in the internal memory (Either Ethernet or

serial communication can be used)

MO Outputs TLOG data, manual sampled data, Operation mode Yes No 5-30

and report data acquired in the internal memory

(Either Ethernet or serial communication can

be used)

RS-422-A/485 dedicated commands

Esc O Opens the instrument All modes Yes Yes 5-30

Esc C Closes the instrument All modes Yes Yes 5-30

Yes: Command usable

No : Command unusable

Maintenance/Test Commands (Available when using the maintenance/test server
function via Ethernet communications)

Command Function Administrator User Page

close Disconnects the connection between other devices Yes No 5-31

con Outputs connection information Yes Yes 5-31

eth Outputs Ethernet statistical information Yes Yes 5-31

help Outputs help Yes Yes 5-31

net Outputs network statistical information Yes Yes 5-31

quit Disconnects the connection of the device being operated Yes Yes 5-32

Yes: Command usable

No : Command unusable

Instrument Information Output Commands (Available when using the instrument
information server function via Ethernet communications)

Parameter Function Page

all Outputs all information that are output using the parameters below 5-32

serial Outputs the serial number 5-32

model Outputs the manufacturer, model, and firmware version 5-32

host Outputs the host name 5-32

ip Outputs the IP address 5-32

5-6

5.3 Input Range Parameter

The following tables show which measurement ranges of the instrument correspond to
the input types of the SR command (input range setting command), VOLT, TC, RTD, DI,
and SQRT. The table also shows the ranges for the upper and lower limits of the span.
These relationships are not given in the section describing the SR command that
appears later in the chapter. Please refer to this section for the information.

DC voltage (VOLT)

Measurement
Range

20 mV 20 mV –20.00 to 20.00 mV –2000 to 2000
60 mV 60 mV –60.00 to 60.00 mV –6000 to 6000
200 mV 200 mV –200.0 to 200.0 mV –2000 to 2000
2 V 2 V –2.000 to 2.000 V –2000 to 2000
6 V 6 V –6.000 to 6.000 V –6000 to 6000
20 V 20 V –20.00 to 20.00 V –2000 to 2000

Thermocouple (TC)

Measurement
Range

R R 0.0 to 1760.0°C 0 to 17600
S S 0.0 to 1760.0°C 0 to 17600
B B 0.0 to 1820.0°C 0 to 18200
K K –200.0 to 1370.0°C –2000 to 13700
E E –200.0 to 800.0°C –2000 to 8000
J J –200.0 to 1100.0°C –2000 to 11000
T T –200.0 to 400.0°C –2000 to 4000
N N 0.0 to 1300.0°C 00 to 13000
W W 0.0 to 2315.0°C 00 to 23150
L L –200.0 to 900.0°C –2000 to 9000
U U –200.0 to 400.0°C –2000 to 4000

Parameter for the
SR Command

Parameter for the
SR Command

Value of the Upper and Value of the Upper and
Lower Limits of the Span Lower Limits of the SR
(Upper and Lower Limits Command
of the Measurement Range)

5

Commands

Value of the Upper and Value of the Upper and
Lower Limits of the Span Lower Limits of the SR
(Upper and Lower Limits Command
of the Measurement Range)

Resistance Temperature Detector (RTD)

Measurement
Range

Pt100 PT –200.0 to 600.0°C –2000 to 6000
JPt100 JPT –200.0 to 550.0°C –2000 to 5500
Cu10 (GE)* CU1 –200.0 to 300.0°C –2000 to 3000
Cu10 (L&N)* CU2 –200.0 to 300.0° C –2000 to 3000
Cu10 (WEED)* CU3 –200.0 to 300.0°C –2000 to 3000
Cu10 (BAILEY)* CU4 –200.0 to 300.0°C –2000 to 3000
Cu10 α = 0.00392 at 20°C* CU5 –200.0 to 300.0°C –2000 to 3000
Cu10 α = 0.00393 at 20°C* CU6 –200.0 to 300.0°C –2000 to 3000
Cu25 α = 0.00425 at 0°C* CU25 –200.0 to 300.0°C –2000 to 3000

* Measurement range that can be specified on models with the Cu10, Cu25 resistance

temperature detector option /N1.

Parameter
for the

SR

Command

Value of the Upper Value of the Upper
and Lower Limits of and Lower Limits of
the Span (Upper and the SR Command
Lower Limits of the
Measurement Range)

5-7

5.3 Input Range Parameter

Digital Input (DI)

Measurement Parameter for the Value of the Upper and Value of the Upper and
Range SR Command Lower Limits of the Span Lower Limits of the SR

Voltage LEVEL 0 or 1
Contact CONT 0 or 1

*1: “0” when less than 2.4 V, “1” when greater than or equal to 2.4 V.
*2: “0” when contact is OFF, “1” when contact is ON.

(Upper and Lower Limits Command
of the Measurement Range)

*1

*2

0 or 1
0 or 1

Square Root (SQRT)

Measurement Parameter for the Value of the Upper and Value of the Upper and
Range SR Command Lower Limits of the Span Lower Limits of the SR

20 mV 20 mV –20.00 to 20.00 mV –30000 to 30000
60 mV 60 mV –60.00 to 60.00 mV –30000 to 30000
200 mV 200 mV –200.0 to 200.0 mV –30000 to 30000
2 V 2 V –2.000 to 2.000 V –30000 to 30000
6 V 6 V –6.000 to 6.000 V –30000 to 30000
20 V 20 V –20.00 to 20.00 V –30000 to 30000

(Upper and Lower Limits Command
of the Measurement Range)

Note

For the measurement accuracy of each measurement range, see the RD-MV100/RD-MV200

User’s Manual (M-3641/M-3642)

5-8

5.4 Setting Commands
(Setting)

SR Sets the input range

When setting channels to skip

Syntax SR p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Range mode (SKIP)

Query SR[ p1]?

Example Skips channel 01.

SR 01,SKIP

Description • This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

• Measurements are not made on channels that

are set to SKIP.

When setting the channels to voltage,
thermocouple, RTD, or digital input

Syntax SR p1,p2,p3,p4,p5<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Input type

VOLT DC VOLTAGE

TC Thermocouple

RTD Resistance temperature detector

DI Digital input

p3 Measurement range

p4 Lower limit of span

p5 Upper limit of span

Query SR[ p1]?

Example Set the input type for channel 01 to

thermocouple type R, span lower limit to

0° C, and span upper limit to 1760.0° C.

SR 01,TC,R,0,17600

Description • This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

• Set parameters p3, p4, and p5 according to

the table in section 5.3.

• For parameters p4 and p5, enter a value

using 5 digits or less excluding the decimal.

The decimal position is fixed to the position

indicated in the table in section 5.3.

When computing the difference between channels

Syntax SR p1,p2,p3,p4,p5,p6,p7<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Range mode (DELTA)

p3 Input type

VOLT DC VOLTAGE

TC Thermocouple

5.4 Setting Commands (Setting)

RTD Resistance temperature detector

DI Digital input

p4 Measurement range

p5 Lower limit of span

p6 Upper limit of span

p7 Reference channel (RD-MV100: 01 to

12, RD-MV200: 01 to 30)

Query SR[ p1]?

Example Set the range mode of channel 10 to the

difference computation between channels

with the reference channel set to 01 and

set the input type to TC. Set the range

to R. Set the span lower limit to 10.0° C

and span upper limit to 100.0° C.

SR 10,DELTA,TC,R,100,1000,01

Description • This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

• Set parameters p4, p5, and p6 according to

the table in section 5.3.

• For parameters p5 and p6, enter a value

using 5 digits or less, excluding the decimal.

The decimal position is fixed to the position

indicated in the table in section 5.3.

When setting the scaling

Syntax SR p1,p2,p3,p4,p5,p6,p7,p8,p9,

p10<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Range mode (SCALE)

p3 Input type

VOLT DC VOLTAGE

TC Thermocouple

RTD Resistance temperature detector

DI Digital input

p4 Measurement range

p5 Lower limit of span

p6 Upper limit of span

p7 Scaling lower limit (-30000 to 30000)

p8 Scaling upper limit (-30000 to 30000)

p9 Scaling decimal position (0 to 4)

p10 Unit (Up to 6 characters)

Query SR[ p1]?

Example Convert the DC voltage measured on

channel 02 to a DC current. Set the

measurement range to 6 V, span lower

limit to 1 V, span upper limit to 5 V,

scaling lower limit to 1.00 A, and

scaling upper limit to 5.00 A.

SR 02,SCALE,VOLT,6V,1000,5000,100,500,2,A

Description • This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

• Set parameters p4, p5, and p6 according to

the table in section 5.3.

5

Commands

5-9

5.4 Setting Commands (Setting)

• For parameters p5 and p6, enter a value

using 5 digits or less excluding the decimal.

The decimal position is fixed to the position

indicated in the table in section 5.3.

• For parameters p7, p8, and p9, either set all

three parameters or omit all three parameters.

When setting the square root

Syntax SR p1,p2,p3,p4,p5,p6,p7,p8,p9<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Range mode (SQRT)

p3 Measurement range

p4 Lower limit of span

p5 Upper limit of span

p6 Scaling lower limit

(-30000 to 30000)

p7 Scaling upper limit

(-30000 to 30000)

p8 Scaling decimal position (0 to 4)

p9 Unit (Up to 6 characters)

Query SR[ p1]?

Example Convert the DC voltage measured on

channel 01 to the amount of flow using

the square root computation. Set the

measurement range to 6 V, span lower

limit to 1 V, span upper limit to 5 V,

scaling lower limit to 10.0 m

scaling upper limit to 100.0 m

SR 01,SQRT,6V,1000,5000,100,1000,1,m3/S

3

/s, and

3

/s.

Description • This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

• Set parameters p3, p4, and p5 according to

the table in section 5.3.

• For parameters p4 and p5, enter a value

using 5 digits or less excluding the decimal.

The decimal position is fixed to the position

indicated in the table in section 5.3.

• For parameters p6, p7, and p8, either set all

three parameters or omit all three parameters.

SO Sets the computing equation

Syntax SO p1,p2,p3,p4,p5,p6,p7<terminator>

p1 Computation channel number (RD-MV100:

31 to 42, RD-MV200: 31 to 60)

p2 Turn ON/OFF computation

p3 Computing equation (Up to 40

characters)

p4 Lower limit of span(–9999999 to

99999999)

p5 Upper limit of span(–9999999 to

99999999)

p6 Decimal position of span (0 to 4)

p7 Unit (Up to 6 characters)

Query SO[ p1]?

Example Set the computation channel to 31, the

computation to ON, the computing equation

to the sum of channel 01 and 02, span

lower limit to –10.0000, span upper limit

to 15.0000, and the unit to V.

SO 31,ON,01+02,–100000,150000,4,V

Description • This command can be used on models with

the computation function option /M1.

• This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

• For computing equations, see the RD-

MV100/RD-MV200 User’s Manual.

• For parameters p4 and p5, enter a value

using 7 digits or less ,excluding the decimal,

for negative numbers and 8 digits or less for

positive numbers.

• For parameters p4, p5, and p6, either set all

three parameters or omit all three parameters.

SA Sets the alarm

When not using the alarm

Syntax SA p1,p2,p3<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

p2 Alarm number (1 to 4)

p3 Alarm ON/OFF state (OFF)

Query SA[ p1[,p2]]?

Example Set off the alarm number 1 of channel 10.

SA 10,1,OFF

Description Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option /

M1.

When using the alarm

Syntax SA p1,p2,p3,p4,p5,p6,p7<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

p2 Alarm number (1 to 4)

p3 Alarm ON/OFF state (ON)

p4 Alarm type

H Upper limit alarm

L Lower limit alarm

h Difference upper-limit alarm

l Difference lower-limit alarm

R Upper limit on rate-of-change alarm

r Lower limit on rate-of-change alarm

T Delay upper limit alarm

t Delay lower limit alarm

(Upper and lower case letters are

distinguished.)

p5 Alarm value

p6 Relay setting

ON Relay setting ON

OFF Relay setting OFF

5-10

p7 Relay number (RD-MV100: I01 to I06,

RD-MV200: I01 to I06/ I11 to I16/ I21

to I26, I31 to I36)

Query SA[ p1[,p2]]?

Example Set an upper limit alarm (alarm value =

1000) in alarm number 1 of channel 02,

and activate relay number 1 when an alarm

occurs.

SA 02,1,ON,H,1000,ON,I01

Description • When the input range setting (SR command)

is set to SKIP, p3 cannot be turned ON.

• When the computation channel setting (SO

command) is turned OFF, p3 cannot be

turned ON.

• The alarm settings are all turned OFF for the

following cases.

• When the input type is changed (VOLT,

TC······).

• When the measurement range is changed.

• When the span and scaling values are

changed during scaling display (includes

changing the decimal position).

• When the computation channel is turned

ON/OFF or when the computing equation

or the span value is changed on the

computation channel.

• The h and l settings of p4 are valid only when

the measurement range is set to computation

between channels.

• If p4 is set to R or r, set the interval for the

upper/lower limit on the rate-of-change using

the XA command.

• If p4 is set to T or t, set the alarm delay time

for the delay upper/lower limit alarm using the

BD command.

• For the range of alarm values of p5, see the

table in section 5.3.

• Set the alarm value of a computation channel

within the range of the span.

• For the alarm value of p5, enter a value using

5 digits or less, excluding the decimal. For

computation channels, enter a value using 8

digits or less, excluding the decimal.

• An error occurs if a number of a relay that is

not installed is specified in p7. For the

procedures used to set the relay numbers,

see the RD-MV100/RD-MV200 User’s

Manual.

• Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option

/M1.

• For computation channels, the alarm types

that can be specified are only H (upper limit

alarm), L (lower limit alarm), T (delay upper

limit alarm), and t (delay lower limit alarm).

5.4 Setting Commands (Setting)

• For computation channels, the alarm

hysteresis is fixed to zero. Use the XA

command to set the alarm hysteresis.

SD Sets the date and time

Syntax SD p1,p2<terminator>

p1 Date (YY/MM/DD fixed form)

YY Year (00 to 99)

MM Month (01 to 12)

DD Day (01 to 31)

p2 Time (HH/MM/SS fixed form)

HH Hour (00 to 23)

MM Minute (00 to 59)

SS Second (00 to 59)

Query SD?

Example Set the internal clock to 13:00:00,

October 1, 1999.

SD 99/10/01,13:00:00

Description The form of p1 and p2 is fixed to 8 characters.

Use the following form. Do not enter spaces in

between the digits, as an error will occur.

p1 = YY/MM/DD (Lower two digits of the year/

month/day)

p2 = HH:MM:SS (Hour:minute:second)

SW Sets the display update rate/

auto-save interval

Syntax SW p1,p2<terminator>

p1 Display update rate (15S, 30S, 1MIN,

2MIN, 5MIN, 10MIN, 20MIN, 30MIN, 1H,

2H, 4H)

p2 Auto-save interval (10MIN, 20MIN,

30MIN, 1H, 2H, 3H, 4H, 6H, 8H, 12H,

1DAY, 2DAY, 3DAY, 5DAY, 7DAY, 10DAY,

14DAY, 31DAY)

Query SW?

Example Set the display update rate to one minute

and the auto-save interval to 10 minutes.

SW 1MIN,10MIN

Description • This command cannot be specified while

measurement is in progress.

• The selectable auto-save interval (p2) varies

depending on the display update rate (p1)

setting. For details, see the RD-MV100/RD-

MV200 User’s Manual.

• 15S and 30S of p1 apply only to models RD-

MV102, RD-MV104, RD-MV204 and RD-

MV208.

• The p2 setting is valid when the saving

method to the external storage medium is set

to auto using the XM command (p1 of the XM

command is set to AUTO).

SZ Sets the zone

Syntax SZ p1,p2,p3<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

5-11

5

Commands

5.4 Setting Commands (Setting)

p2 Zone lower limit (0 to 95)[%]

p3 Zone upper limit (5 to 100)[%]

Query SZ[ p1]?

Example Display channel 02 in a zone between 30%

and 50%.

SZ 02,30,50

Description • Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option

/M1.

• The total display width of the screen in the

direction of the amplitude is taken to be 100%.

• The zone width must be at least 5%.

• Set the parameters for the zone upper and

lower limits so that the upper limit is greater

than the lower limit.

SP Sets the partial expanded

display

Syntax SP p1,p2,p3,p4<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

p2 Enable/disable (ON/OFF) the partial

expansion setting.

p3 Boundary position (1 to 99)[%]

p4 Boundary value

Query SP[ p1]?

Example Partially expand the display of channel

01. Set the boundary position to 25% and

the boundary value to 1.00 V.

SP 01,ON,25,100

Description • Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function

option /M1.

• When the input range setting (SR command)

is set to SKIP, p2 cannot be turned ON.

• When the computation channel setting (SO

command) is turned OFF, p2 cannot be

turned ON.

• The range of the upper and lower limits of the

span (scaling upper and lower limits when

scaling is enabled) is taken to be 100% for

parameter p3.

• Parameter p4 can be set in the range (span

upper limit –1) to (span lower limit +1). If

scaling is enabled, the range is (scaling upper

limit –1) to (scaling lower limit +1).

• The decimal position and the number of digits

become the same as the span and scaling

settings (see the SR command).

• This command cannot be specified unless the

partial expanded display function (p4) of the

XU command is set to USE.

• This command cannot be specified if the

partial expanded display range does not exist

(when the span width is set to 1, for example).

ST Sets the tag

Syntax ST p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

p2 Tag (Up to 16 characters)

Query ST[ p1]?

Example Set the tag of channel 02 to TAG2.

ST 02,TAG2

Description • For the characters that can be used for the

tags, see appendix 1, “ASCII Character

Codes.” Note that semicolons and commas

cannot be used.

• Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option

/M1.

SX Sets the group

Syntax SX p1,p2,p3<terminator>

p1 Group number (1 to 4)

p2 Group name (Up to 16 characters)

p3 Channel construction

Query SX[ p1]?

Example Set channels 01, 03, 04 to 06 to group

number 1, and group name is GROUP2.

SX 1,GROUP2,01.03.04-06

Set the channel configuration by using

periods "." to separate each channel or

by using a hyphen "-" to specify a range

of channels.

Description • An error occurs if a number of a channel that

is not installed in the instrument is specified.

• An error occurs if a number of a computation

channel that is not provided on the instrument

is specified.

• For the characters that can be used for the

group name, see appendix 1, “ASCII

Character Codes.” Note that semicolons and

commas cannot be used.

SL Sets the trip line

Syntax SL p1,p2,p3,p4,p5<terminator>

p1 Group number (1 to 4)

p2 Number of trip line (1 to 4)

p3 Turn ON/OFF the trip line display

p4 Display position (0 to 100)[%]

p5 Display color (RED, GREEN, BLUE,

B.VIOLET, BROWN, ORANGE, Y.GREEN,

LIGHTBLUE, VIOLET, GRAY, LIME, CYAN,

DARKBLUE, YELLOW, LIGHTGRAY, PURPLE)

Query SL[ p1[,p2]]?

Example Display trip line 1 in red for group 1.

SL 1,1,ON,RED

Description The total display width of the screen in the

direction of the amplitude is taken to be 100%.

5-12

SG Sets the message

Syntax SG p1,p2<terminator>

p1 Message number (1 to 8)

p2 Message (Up to 16 characters)

Query SG[ p1]?

Example Set character string "MESSAGE1" in

message number 1.

SG 1,MESSAGE1

Description For the characters that can be used for the

message, see appendix 1, “ASCII Character

Codes.” Note that semicolons and commas

cannot be used.

SH Sets the file header

Syntax SH p1,p2,p3<terminator>

p1 Header for the files saved to the

external storage medium (Up to 32

characters)

p2 Directory (Up to 8 characters)

p3 Data to be saved to the external

storage medium (UNSAVE, ALL)

Query SH?

Example Add a header, DATA1 and save the file to

the DATAFILE directory. Save only the

data in the internal memory that has not

been saved.

SH DATA1,DATAFILE,UNSAVE

Description • “Data to be saved to the external storage

medium” includes the display, event, TLOG,

manual sampled, and report data.

• Parameter p3 is valid when the saving method

to the external storage medium is set to

manual using the XM command (parameter

p1 of the XM command is set to MANUAL).

SE Sets the display direction,

background color, trend line
width, trip line width, number of
grids, and scroll time

Syntax SE p1,p2,p3,p4,p5,p6,p7<terminator>

p1 Display direction of the trend

waveform (HORIZONTAL, VERTICAL)

p2 Display direction of the bar graph

waveform (HORIZONTAL, VERTICAL)

p3 Background color (WHITE, BLACK)

p4 The line width of the trend (1 to

3)[dot]

p5 The width of the trip line (1 to

3)[dot]

p6 Number of grids (4 to 12)

p7 The time interval (scroll time) for

switching displayed group (5s, 10s,

20s, 30s, 1min)

Query SE?

5.4 Setting Commands (Setting)

Example Set the display direction of the trend

waveform to horizontal, the direction of

the bar graph to vertical, the background

color to white, the line width of the

trend to 1 dot, the width of the trip

line to 2 dots, and the number of grids

to 10, the time interval for switching

displayed group to 20s.

SE HORIZONTAL,VERTICAL,WHITE,1,2,10,20s

SB Sets the number of scale

divisions, base position of the
bar graph, and the display
position of the trend scale

Syntax SB p1,p2,p3,p4<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

p2 Number of scale divisions (4 to 12)

p3 Base position of the bar graph

display (NORMAL, CENTER)

p4 Position of the scale for the trend

display (OFF, RD-MV100: 1 to 6, RD-

MV200: 1 to 10)

Query SB[ p1]?

Example Set the number of scale divisions of the

bar graph of channel 02 to 5, and display

the bar graph from the span lower limit

(scaling lower limit if scaling is

enabled). Display the scale at the third

position.

SB 02,5,NORMAL,3

Description • Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option

/M1.

• The base position (p3) is valid when the

display direction of the bar graph is set to

HORIZONTAL. Use the SE command to set

the display direction of the bar graph.

SV Sets the moving average of the

measured channel

Syntax SV p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Number of times to measure the moving

average (OFF, 2 to 16) [times]

Query SV[ p1]?

Example Set the number of times to measure the

moving average on channel 02 to 12.

SV 02,12

Description This command can be used on models RD-

MV106, RD-MV112, RD-MV210, RD-MV220,

and RD-MV230.

SF Sets the filter

5

Commands

5-13

5.4 Setting Commands (Setting)

Syntax SF p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 04,

RD-MV200: 01 to 08)

p2 Filter (OFF, 2S, 5S, 10S)

Query SF[ p1]?

Example Set the filter on channel 02 to 2 s.

SF 02,2s

Description • An error occurs if a channel number other

than those shown above is specified.

• This command can be used on models RD-

MV102, RD-MV104, RD-MV204 and RD-

MV208.

SC Sets the channel display color

Syntax SC p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 30)

p2 Display color (RED, GREEN, BLUE,

B.VIOLET, BROWN, ORANGE, Y.GREEN,

LIGHTBLUE, VIOLET, GRAY, LIME, CYAN,

DARKBLUE, YELLOW, LIGHTGRAY, PURPLE)

Query SC[ p1]?

Example Set the display color of channel 02 to

blue.

SC 02,BLUE

Description Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option /

M1.

SQ Sets the LCD brightness and the

screen backlight saver

When the screen backlight saver function is OFF

Syntax SQ p1,p2<terminator>

p1 LCD brightness (RD-MV100: 1 to 8, RD-

MV200: 1 to 4)

p2 Screen backlight saver function ON/

OFF (OFF)

Query SQ?

Example Set the LCD brightness to 2 and the

screen backlight saver function to OFF.

SQ 2,OFF

When the screen backlight saver function is ON

Syntax SQ p1,p2,p3,p4<terminator>

p1 LCD brightness (RD-MV100: 1 to 8, RD-

MV200: 1 to 4)

p2 Screen backlight saver function ON/

OFF (ON)

p3 Time after which to enable the screen

saver function (1MIN, 2MIN, 5MIN,

10MIN, 30MIN, 1H)

p4 Factors that causes the screen to

return from the saver mode (KEY,

KEY+ALM)

Query SQ?

Example Set the LCD brightness to 2, the screen

backlight saver function to ON, the time

after which to enable the screen

backlight saver function to 1MIN, and the

factor that causes the screen to return

from the saver mode to KEY.

SQ 2,ON,1MIN,KEY

SY Sets the 4 screen display (only

for RD-MV200)

Syntax SY p1,p2,p3,p4,p5,p6,p7,p8,p9,

p10<terminator>

p1 Four screen display number (1 to 4)

p2 Four screen display name (Up to 16

characters)

p3 The display item of the upper left

quadrant of the divided screen

(screen 1)

TREND Trend display

DIGITAL Digital display

BAR Bar graph display

OVERVIEW Overview display

(Alarm indicator)

ALARM Alarm summary display

MESSAGE Message summary display

MEMORY Memory summary display

MEDIA Medium summary display

p4 The group number (1 to 4) to display

in the upper left quadrant of the

divided screen (screen 1)

p5 The display item of the lower left

quadrant of the divided screen

(screen 2), same as the selections

for p3.

p6 The group number (1 to 4) to display

in the lower left quadrant of the

divided screen (screen 2)

p7 The display item of the upper right

quadrant of the divided screen

(screen 3), same as the selections

for p3.

p8 The group number (1 to 4) to display

in the upper right quadrant of the

divided screen (screen 3)

p9 The display item of the lower right

quadrant of the divided screen

(screen 4), same as the selections

for p3.

p10 The group number (1 to 4) to display

in the lower right quadrant of the

divided screen (screen 4)

Query SY?

Example Set the four screen display number to 1,

four screen display name to 4DISPLAY1,

the display item of screen 1 to trend

display, the group number to display in

screen 1 to 1, the display item of screen

5-14

2 to digital display, the group number to

display in screen 2 to 2, the display

item of screen 3 to bar graph display,

the group number to display in screen 3

to 3, the display item of screen 4 to

message summary display, and the group

number to display in screen 4 to 4,

SY 1,4DISPLAY1,TREND,1,DIGITAL,2,BAR,3,

MESSAGE,4

Description The p4, p6, p8, and p10 parameters are valid

when p3, p5, p7, and p9 are set to a display
other the OVERVIEW, respectively.

SU Sets the USER key (only for RD-

MV200)

Syntax SU p1<terminator>

p1 Key action

NONE No action

ALARM ACK Alarm acknowledge

MANUAL SAMPLE

Manual sampling

TRIGGER External trigger input

(Event data)

MESSAGE1 Write message 1

MESSAGE2 Write message 2

MESSAGE3 Write message 3

MESSAGE4 Write message 4

MESSAGE5 Write message 5

MESSAGE6 Write message 6

MESSAGE7 Write message 7

MESSAGE8 Write message 8

SNAPSHOT Snapshot of the screen

MATH START/STOP

Start/Stop MATH

MATH RESET Reset MATH

Query SU?

Example Set the key action to the snapshot of the

screen.

SU SNAPSHOT

SK Sets the computation constant

Syntax SK p1,p2<terminator>

p1 Computation constant number (RD-

MV100: K01 to K12, RD-MV200: K01 to

K30)

p2 Constant (Up to 11 characters)

The range is –9.9999E+29 to –1.0000E

–30, 0, and 1.0000E–30 to 9.9999E+29.

(The + sign of "E+" can be omitted.)

Query SK[ p1]?

Example Set constant 1.0000E-10 for computation

constant number K01.

SK K01,1.0000E-10

Description • This command can be used on models with

the computation function option /M1.

5.4 Setting Commands (Setting)

• This command cannot be specified while

measurement/computation is in progress or

while a report is being created.

SI Sets the rolling average of the

computation channel

When the rolling average of a computation
channel is OFF

Syntax SI p1,p2<terminator>

p1 Computation channel number (RD-MV100:

31 to 42, RD-MV200: 31 to 60)

p2 Rolling average ON/OFF (OFF)

Query SI[ p1]?

Example Turn OFF the rolling average of

computation channel number 31.

SI 31,OFF

Description This command can be used on models with the

computation function option /M1.

When the rolling average of a computation
channel is ON

Syntax SI p1,p2,p3,p4<terminator>

p1 Computation channel number (RD-MV100:

31 to 42, RD-MV200: 31 to 60)

p2 Rolling average ON/OFF (ON)

p3 Sampling interval (1S, 2S, 3S, 4S,

5S, 6S, 10S, 12S, 15S, 20S, 30S,

1MIN, 2MIN, 3MIN, 4MIN, 5MIN, 6MIN,

10MIN, 12MIN, 15MIN, 20MIN, 30MIN,

1H)

p4 Number of samples (1 to 64)

Query SI[ p1]?

Example Turn the rolling average of computation

channel 31 ON, set the sampling interval

to 1 minute, and the number of samples to

20.

SI 31,ON,1MIN,20

Description This command can be used on models with the

computation function option /M1.

SJ Sets the TLOG timer

Syntax SJ p1,p2,p3<terminator>

p1 Computation channel number (RD-MV100:

31 to 42, RD-MV200: 31 to 60)

p2 Timer (1 to 3)

p3 Conversion of the time unit for TLOG.

SUM computation

OFF No conversion.

/S Convert to a physical amount in

unit of seconds that are

integrated.

/MIN Convert to a physical amount in

unit of minutes that are

integrated.

5

Commands

5-15

5.4 Setting Commands (Setting)

/H Convert to a physical amount in

unit of hours that are

integrated.

Query SJ[ p1]?

Example Set timer 1 to computation channel number

31. No conversion of time unit.

SJ 31,1

Description • This command can be used on models with

the computation function option /M1.

• This command cannot be specified while

computation is in progress.

• About p3

In the sum computation, sampled data are

summed over the scan interval. However,

when a physical value is measured over a

period of time, the actual value may not match

the computed result. (This is due to the fact

that the scan interval and the time unit are

different.) In these cases, set p3 to the same

unit as the time unit of the physical value.

The summed value is calculated according to

the following converting equation depending

on the parameter.

OFF Σ(measured value)

/S Σ(measured value) × scan interval

/MIN Σ(measured value) × scan interval/

60

/HOUR Σ(measured value) × scan interval/

3600

The scan interval unit is in seconds.

SS Sets the date and time at which

to switch the daylight savings
time

When the switching the daylight savings time is
OFF

Syntax SS p1,p2<terminator>

p1 Summer time or winter time (SUMMER,

WINTER)

p2 Enable/disable (ON/OFF) the switching

(OFF)

Query SS[ p1]?

Example Set the summer time is OFF.

SS SUMMER,OFF

Description This command can be used on models with the

display language code “-2.”

yy Year (00 to 99)

mm Month (01 to 12)

dd Day (01 to 31)

hh Hour (00 to 23)

Query SS[ p1]?

Example Set the summer time to the 23rd hour of

June 30, 2000.

SS SUMMER,ON,00/06/30 23

(The 23rd hour of June 30, 2000 is set to

0 hour of July 1, 2000.)

Description This command can be used on models with the

display language code “-2.”

FR Sets the acquiring interval to the

FIFO buffer

Syntax FR p1<terminator>

p1 FIFO acquiring interval (125MS,

250MS, 500MS, 1S, 2S)

Query FR?

Example Set the FIFO acquiring interval to 1 s.

FR 1S

Description • 125MS, 250MS, and 500MS apply only to

models RD-MV102, RD-MV104, RD-MV204,

and RD-MV208.

• Set the acquiring interval to a value greater
than the scan interval.

• If the scan interval is set to a value less than
the acquiring interval using the XV command
or from the screen, the acquiring interval is
automatically set equal to the scan interval.

• The RD-MV has a circular FIFO buffer. The
measured/computed values are acquired to
the internal memory at predetermined time
intervals from the time the power is turned
ON, and the data are output when a FF
command is received. The previous output
position is held for each connection and is
updated when the next set of data is output
with the FF command. Using this
functionality, data can be collected without
data dropouts if the PC reads the data in the
circular buffer before the data are
overacquired. This compensates for the
communication time differences that result
from periodically retrieving data from the RD­MV at a rate determined by the processing
power of the measurement PC. For the
output flow of FIFO data, see appendix 4.

When the switching the daylight savings time is
ON

Syntax SS p1,p2,p3<terminator>

p1 Summer time or winter time (SUMMER,

WINTER)

p2 Enable/disable (ON/OFF) the switching

(ON)

p3 Date and time (yy/mm/dd hh fixed

form. Insert a space between dd and

hh.)

5-16

5.4 Setting Commands (Setting)/5.5 Setting Commands (Control)

5.5 Setting Commands
(Control)

UD Switches the screen.

When switching the screen back to the screen that
existed before settings were changed using the
communication commands.

Syntax UD p1<terminator>

p1 Switching the screen (0)

Example Switch the screen back to the screen that

existed before settings were changed

using communication commands.

UD 0

When changing to 1 screen display

Syntax UD p1,p2,p3<terminator>

p1 Switching the screen (1)

p2 Display item

TREND Trend display

DIGITAL Digital display

BAR Bar graph display

OVERVIEW Overview display

(Alarm indicator)

ALARM Alarm summary display

MESSAGE Message summary display

MEMORY Memory summary display

p3 Group number (1 to 4)

Example Set the display to 1 screen display,

display the trend, and set the group

number to 4.

UD 1,TREND,4

When switching to 4 screen display (only for RD­MV200)

Syntax UD p1,p2,p3,p4,p5,p6,p7,p8,p9<terminator>

p1 Switching the screen (2)

p2 The display item of the upper left

quadrant of the divided screen

(screen 1)

TREND Trend display

DIGITAL Digital display

BAR Bar graph display

OVERVIEW Overview display

(Alarm indicator)

ALARM Alarm summary display

MESSAGE Message summary display

MEMORY Memory summary display

p3 The group number (1 to 4) to display

in the upper left quadrant of the

divided screen (screen 1)

p4 The display item of the lower left

quadrant of the divided screen

(screen 2), same as the selections

for p2.

5

Commands

5-17

5.5 Setting Commands (Control)

p5 The group number (1 to 4) to display

in the lower left quadrant of the

divided screen (screen 2)

p6 The display item of the upper right

quadrant of the divided screen

(screen 3), same as the selections

for p2.

p7 The group number (1 to 4) to display

in the upper right quadrant of the

divided screen (screen 3)

p8 The display item of the lower right

quadrant of the divided screen

(screen 4), same as the selections

for p2.

p9 The group number (1 to 4) to display

in the lower right quadrant of the

divided screen (screen 4)

Example Set the screen to four screen display,

the display item of screen 1 to trend

display, the group number to display in

screen 1 to 1, the display item of screen

2 to digital display, the group number to

display in screen 2 to 2, the display

item of screen 3 to bar graph display,

the group number to display in screen 3

to 3, the display item of screen 4 to

message summary display, and the group

number to display in screen 4 to 4,

UD 2,TREND,1,DIGITAL,2,BAR,3,MESSAGE,4

Description The p3, p5, p7, and p9 parameters are valid

when p2, p4, p6, and p8 are set to a display
other the OVERVIEW, respectively.

When displaying the 4 screen display set with the
SY command (only for RD-MV200)

Syntax UD p1,p2<terminator>

p1 Switching the screen (3)

p2 4 screen display number (0 to 4)

0 Set the screen to the 4 screen

display of which parameter p1 was

set to 2 with the UD command.

This setting (p1 = 3, p2 = 0) is

valid only when the 4 screen

display is enabled by setting p1

to 2 beforehand.

1 Display the screen of 4 screen

display number 1 that was

specified with the SY command.

2 Display the screen of 4 screen

display number 2 that was

specified with the SY command.

3 Display the screen of 4 screen

display number 3 that was

specified with the SY command.

4 Display the screen of 4 screen

display number 4 that was

specified with the SY command.

Example Display the screen of 4 screen display

number 1 that was specified with the SY

command.

UD 3,1

When turning ON or OFF automatic switching of
the displayed groups, switching to all channel
display from group display or vice versa, turning
ON or OFF the scales, and turning ON or OFF the
numerical section on the trend screen

Syntax UD p1,p2,p3,p4,p5<terminator>

p1 Switching the screen (4)

p2 Enables/disables automatic switching

of the displayed groups (ON, OFF)

p3 Switches all channel display and

group display (ALL, GROUP)

p4 Turns the scale display ON/OFF (ON/

OFF)

p5 Turns the numerical display section

ON/OFF (ON, OFF)

Example Enables the automatic switching of the

displayed groups, switches to group

display from all channel display, turns

ON the scale display, and turns OFF the

numerical section.

UD 4,ON,GROUP,ON,OFF

Description • Parameter p2 is valid on the trend, digital, or

bar graph screens. Automatically switches

the displayed groups. Use the SE command

to set the switching interval (scroll time).

• Parameters p3 and p4 are valid on the trend

screen.

• Parameter p5 is valid on the trend screen or

on the trend screen on the 4 screen display

(only for RD-MV200).

PS Starts/Stops measurements

Syntax PS p1<terminator>

p1 Starts/Stops measurements

0 Start

1 Stop

Example Start measurement.

PS 0

Description Acquires the display, event, and report data to

the internal memory when the measurement is

started.

AK Confirms the alarm status

(alarm acknowledge)

Syntax AK p1<terminator>

p1 Executes alarm acknowledge (0)

Example Confirm the current held condition of the

alarm (executes alarm acknowledge).

AK 0

5-18

EV Manual sample, Manual trigger,

snapshot, saving display data,
and saving event data

Syntax EV p1<terminator>

p1 Operation type

0 Perform manual sampling.

1 Activate manual trigger.

2 Snapshot.

3 Save the display data to the

storage medium.

4 Save the event data to the

storage medium.

Example Perform manual sampling.

EV 1

Description • EV3 is valid when display data are being

acquired to the internal memory, and the RD-

MV100/RD-MV200 is set to store the data to

the external storage medium using auto save.

The display data residing in the internal

memory can be stored to the external storage

medium at arbitrary times.

• EV4 is valid when event data are being

acquired to the internal memory in the free

mode, and the RD-MV100/RD-MV200 is set

to store the data to the external storage

medium using auto save. The event data

residing in the internal memory can be stored

to the external storage medium at arbitrary

times.

MS Writes the message (display and

save)

Syntax MS p1<terminator>

p1 Message number (1 to 8)

Example Write the message of message number 8.

MS 8

Description This command displays the message to the

screen and writes the message into the display

data and event data.

TL Starts/stops/resets computation

(MATH)/Clears the computation
dropout status display

Syntax TL p1<terminator>

p1 Operation type

0 Start computation

1 Stop computation

2 Reset computation

3 Clear the computation dropout

status display

Example Start computation.

TL 0

Description • This command cannot be executed while

setup data are being saved or loaded.

5.5 Setting Commands (Control)

• This command can be used on models with

the computation function option /M1.

DS Switches execution modes

(operation/basic setting)

Syntax DS p1<terminator>

p1 Execution modes

0 Operation mode

1 Basic setting mode

Example Set the mode to basic setting mode.

DS 1

Description • The setting p1 to 1 cannot be specified while

measurement/computation is in progress,

while the external storage medium is being

formatted, or while data are being saved to

the external storage medium.

• The setting p1 to 0 cannot be specified while

the external storage medium is being

formatted or while data are being saved to the

external storage medium.

• In order to activate the settings that are

changed using the basic setting commands,

the settings must be saved using the XE

command. Make sure to save the settings

with the XE command before changing from

the basic setting mode to the operation mode.

Otherwise, new settings will not be activated.

LO Loads the setting data for

setting commands

Syntax LO p1<terminator>

p1 File name (Up to 8 characters)

Example Load the setting data of setting commands

from the setup file SETFILE1 (.PNL

extension).

LO SETFILE1

Description • This command cannot be used to load the

setting data of the basic setting commands.

In order to load the setting data of both setting

and basic setting commands, use the YO

command.

• This command cannot be specified on models

that do not have an external storage device or

when a medium is not inserted into the drive.

LI Saves the setting data

Syntax LI p1<terminator>

p1 File name (Up to 8 characters)

Example Save the setting data of both setting and

basic setting commands to the file

SETFILE2.

LI SETFILE2

Description • A file extension “.PNL” is attached to the

saved file. This command is equivalent to the

YI command.

5

Commands

5-19

5.5 Setting Commands (Control)/5.6 Basic Setting Commands

• This command cannot be specified on

models that do not have an external storage

device or when a medium is not inserted into

the drive.

5.6 Basic Setting Commands

• In order to activate the settings that are changed

CM Sets the communication input

data

Syntax CM p1,p2<terminator>

p1 Communication input data number (RD-

MV100: C01 to C12, RD-MV200: C01 to

C30)

p2 Communication input data

The range is –9.9999E+29 to –1.0000E

–30, 0, and 1.0000E –30 to

9.9999E+29.

(The + sign of "E+" can be omitted.)

Example Set the communication input data 1.0000E–

10 in the communication input data number

C01.

CM C01,10.0000E02

Description This command can be used on models with the

computation function option /M1.

• The settings that are returned in response to a

using the basic setting commands, the settings

must be saved using the XE command. Make sure

to save the settings with the XE command before

changing from the basic setting mode to the

operation mode. Otherwise, new settings will not be

activated.

query in the basic setting mode will contain the new

settings even if they are not saved with the XE

command. However, the new settings will not be

activated until they are saved. In order to activate

the new settings, the XE command must be issued

as described earlier. If the settings are not saved or

cleared using the XE command and the execution

mode is changed from the basic setting mode to the

operation mode, the settings that are returned in

response to a query will contain the settings that

existed before they were changed.

Note

The settings that are changed using the YA/YK/YN/YQ/

YS/YT command are activated after saving the new

settings using the XE command and rebooting the RD-

MV.

XA Sets alarm related settings

Syntax XA p1,p2,p3,p4,p5,p6,p7,p8<terminator>

p1 Turn ON/OFF reflash (ON, OFF)

p2 Relay number set to AND logic (NONE,

I01, I01-Ixx)

Ixx: I02 to I06

I11 to I16 (only for RD-MV200)

I21 to I26 (only for RD-MV200)

I31 to I26 (only for RD-MV200)

p3 Energize/De-energize the relay

(ENERGIZE, DE_ENERGIZE)

p4 Hold/Not hold the relay (HOLD,

NONHOLD)

p5 Hold/Not hold the alarm status

display (HOLD, NONHOLD)

p6 Interval for the upper limit on the

rate-of-change (1 to 15)

p7 Interval for the lower limit on the

rate-of-change (1 to 15)

p8 Turn ON/OFF the alarm hysteresis (ON,

OFF).

Query XA?

5-20

Example Set relay numbers I01 to I12 to AND

logic. Enable reflash. Set the alarm to

energizing and hold. Set the alarm

status display to hold. Set the interval

for the upper limit on the rate-of-change

to 10 and the interval for the lower

limit on the rate-of-change to 12.

Enable alarm hysteresis.

XA ON,I01-I12,ENERGIZE,HOLD,HOLD,10,12,ON

Description • The interval is set in units of the scan interval.

The XV command is used to set the scan

interval.

• The hysteresis setting does not apply to

computation channels.

XI Sets the A/D integral time

Syntax XI p1<terminator>

p1 A/D integral time (AUTO, 50HZ, 60HZ,

100MS)

Query XI?

Example Set the A/D integral time to 50 Hz.

XI 50HZ

Description 100 MS is available only on models RD-MV106,

RD-MV112, RD-MV210, RD-MV220, and RD-

MV230.

XB Sets the burn out

Syntax XB p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Burn out procedure (OFF, UP, DOWN)

Query XB[ p1]?

Example Set to UP (+ overflow) when channel 01

burns out.

XB 01,UP

XJ Sets the RJC

When using the internal compensation circuit

Syntax XJ p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12,

MV200: 01 to 30)

p2 Reference junction compensation

selection (INTERNAL)

Query XJ[ p1]?

Example Set the RJC of channel 01 to the internal

compensation circuit.

XJ 01,INTERNAL

When using an external RJC

Syntax XJ p1,p2,p3<terminator>

p1 Channel number (RD-MV100: 01 to 12,

RD-MV200: 01 to 30)

p2 Reference junction compensation

selection (EXTERNAL)

p3 External RJC value (–20000 to 20000)

Query XJ[ p1]?

5.6 Basic Setting Commands

Example Set the reference junction compensation

of channel 02 to external and set the

compensation value to 0 µV.

XJ 02,EXTERNAL,0

Description The unit of p3 is µV.

XV Sets the scan interval

Syntax XV p1<terminator>

p1 Scan interval

Select from 125MS or 250MS on models

RD-MV102, RD-MV104, RD-MV204, and RD-

MV208.

Select from 1S or 2S on models RD-

MV106, RD-MV112, RD-MV210, RD-MV220,

and RD-MV230.

Query XV?

Example Set the scan interval to 1s.

XV 1S

Description When the A/D integration time (p1 of XI

command) is set to 100 MS on models RD-

MV106, RD-MV112, RD-MV210, RD-MV220,

and RD-MV230, the scan interval can only be

set to 2 s.

XT Selects the temperature unit

Syntax XT p1<terminator>

p1 Temperature unit

C Celsius (°C)

F Fahrenheit (°F)

Query XT?

Example Set the temperature unit to Fahrenheit.

XT F

Description This command can be used on models with the

display language code “-2”.

XS Sets the channels to display the

trend and acquire the data

Syntax XS p1,p2<terminator>

p1 Channel number (RD-MV100: 01 to 12 or

31 to 42, RD-MV200: 01 to 60)

p2 Enable/disable (ON, OFF) displaying

the trend and acquiring the data

Query XS[ p1]?

Example Enable displaying the trend and acquiring

the data on channel 01.

XS 01,ON

Description Computation channels (RD-MV100: 31 to 42,

RD-MV200: 31 to 60) can be configured on

products with the computation function option /

M1.

XM Sets the conditions used to

acquire display/event data to the
internal memory or save the
data to the external storage
medium

5-21

5

Commands

5.6 Basic Setting Commands

Syntax XM p1,p2,p3,p4,p5,p6,p7,p8,p9,

p10<terminator>

p1 Saving method to the external storage

medium (AUTO, MANUAL)

p2 Data type (DISPLAY, EVENT, E+D)

p3 Sample rate of event data (125MS,

250MS, 500MS, 1S, 2S, 10S, 30S, 60S,

120S)

p4 Event mode (FREE, TRIGGER, ROTATE)

p5 Number of block

When p2 is set to EVENT 1, 2, 4, 8, 16

When p2 is set to E+D 1, 2, 4

p6 Event data length (3MIN, 5MIN, 10MIN,

20MIN, 30MIN, 1H, 2H, 3H, 4H, 6H, 8H,

12H, 1DAY, 2DAY, 3DAY, 5DAY, 7DAY,

10DAY, 14DAY, 31DAY)

p7 Pretrigger(0, 5, 25, 50, 75, 95, 100)

[%]

p8 Turn ON/OFF manual trigger (ON, OFF)

p9 Turn ON/OFF external trigger (ON,

OFF)

p10 Turn ON/OFF alarm trigger (ON, OFF)

Query XM?

Example Set the saving method to the external

storage medium to auto, the data types to

both display data and event data, the

sample rate to 10 s, the event mode to

TRIGGER, the number of blocks to 1, the

event data length to 30 minutes, the

pretrigger to 50%, the manual trigger to

ON, the external trigger to ON, and the

alarm trigger to ON.

XM AUTO,E+D,10S,TRIGGER,1,30MIN,50,ON,ON,

ON

Description • The setting of p6 is valid when p1 is AUTO

and p4 is FREE.

• Parameters p3 through p10 are valid when p2

is set to EVENT or E+D.

• When p2 is set to E+D, p4 cannot be set to

FREE.

• Parameter p3 can be set to 125MS, 250MS,

or 500MS on models RD-MV102, RD-MV104,

RD-MV204, or RD-MV208.

• The settings of p5 to p10 are valid when p4 is

TRIGGER or ROTATE.

• The event data length selection (p5) varies

depending on the p3 setting and the number

of channels that are measuring and

computing. For details, see the RD-MV100/

RD-MV200 User’s Manual.

XU Sets the channel identification

display, memory alarm time,
language, and whether or not to
use the partial expanded display
function.

Syntax XU p1,p2,p3,p4,p5<terminator>

p1 The display used to identify the

measurement/computation channels

(TAG, CHANNEL)

p2 Memory alarm time (1H, 2H, 5H, 10H,

20H, 50H, 100H)

p3 Language (ENGLISH, JAPANESE, GERMAN,

FRENCH)

p4 Use/Not use partial expanded display

function (USE, NOT)

p5 Use/Not use batch function (USE, NOT)

Query XU?

Example Set the display used to identify the

measurement/computation channels to

channel numbers, the memory alarm length

to 1 hour, the language to English, use

the partial expansion function and the

batch function.

XU CHANNEL,1H,ENGLISH,USE,USE

Description • The memory alarm time (p2) is valid on

models with the FAIL/Memory End output

relay option /F1.

• The SP command cannot be specified unless

the partial expanded display function (p4) of

the XU command is set to USE.

• Parameter p5 (use/not use the batch function)

is valid on models with the optional /BT1

batch function.

XR Sets the remote action

Syntax XR p1,p2<terminator>

p1 Remote number (1 to 8)

p2 Remote action

NONE No action

ALARM ACK Alarm acknowledge

MEMORY START/STOP

Start/stop measurement

MANUAL SAMPLE

Manual sampling

TRIGGER External trigger input

(event data)

MESSAGE1 Write message 1

MESSAGE2 Write message 2

MESSAGE3 Write message 3

MESSAGE4 Write message 4

MESSAGE5 Write message 5

MESSAGE6 Write message 6

MESSAGE7 Write message 7

MESSAGE8 Write message 8

PANEL1 LOAD

Load setting 1

PANEL2 LOAD

Load setting 2

PANEL3 LOAD

Load setting 3

MATH START/STOP

Start/Stop MATH

5-22

MATH RESET Reset MATH

TIME ADJUST

Adjust time

Query XR[ p1]?

Example Set the remote action of remote number 1

to writing message 1.

XR 1,MESSAGE1

XQ Sets the timer.

When not using the timer

Syntax XQ p1,p2<terminator>

p1 Timer number (1 to 3)

p2 Timer type (OFF)

Query XQ[ p1]?

Example Turn the number 1 timer OFF.

XQ 1,OFF

Description This command can be used on models with the

computation function option /M1.

When using the absolute timer

Syntax XQ p1,p2,p3,p4,p5,p6<terminator>

p1 Timer number (1 to 3)

p2 Timer type (ABSOLUTE)

p3 Interval (1MIN, 2MIN, 3MIN, 4MIN,

5MIN, 6MIN, 10MIN, 12MIN, 15MIN,

20MIN, 30MIN, 1H, 2H, 3H, 4H, 6H, 8H,

12H, 24H)

p4 Reference Time (hh fixed form)

hh Hour (00 to 23)

p5 Reset/not reset the integrated value

when the timer expires. (ON/OFF)

p6 Action to take when the timer expires

(OFF, DATA SAVE)

Query XQ[ p1]?

Example Set an absolute timer to timer number 1.

Set the sampling interval to 30 minutes,

the reference time to 7 O'clock, reset

the integrated value when the timer

expires, and set no action when the timer

expires.

XQ 1,ABSOLUTE,30MIN,07,ON,NONE

Description • This command can be used on models with

the computation function option /M1.

• The timer expires at the interval specified by

parameter 3 from the time specified by p4,

and performs the operation set with

parameters p5 and p6.

When using the relative timer

Syntax XQ p1,p2,p3,p4,p5<terminator>

p1 Timer number (1 to 3)

p2 Timer type (RELATIVE)

p3 Interval (hh:mm fixed form)

hh Hour (00 to 24)

mm Minute (00 to 59)

Set in the range 00:01 to 24:00

5.6 Basic Setting Commands

p4 Reset/not reset the integrated value

when the timer expires. (ON/OFF)

p5 Action to take when the timer expires

(OFF, DATA SAVE)

Query XQ[ p1]?

Example Set a relative timer to timer number 1.

Set the sampling interval to 1 hour 15

minutes, reset the integrated value when

the timer expires, and set no action when

the timer expires.

XQ 1,RELATIVE,01:15,ON,NONE

Description • This command can be used on models with

the computation function option /M1.

• The timer expires at the interval specified by

parameter p3 from the time the instrument is

turned ON, the timer is reset, and when the

timer setting is OFF, and performs the

operation set with parameters p4 and p5.

RO Sets the report type and

generation time.

When report type is set to none

Syntax RO p1<terminator>

p1 Report type (OFF)

Query RO?

Example Set report to none.

RO OFF

Description This command can be used on models with the

computation function option /M1.

For hourly, daily, and daily + monthly reports

Syntax RO p1,p2,p3<terminator>

p1 Report type (HOUR, DAY, DAY+MONTH)

p2 Date of creation (dd fixed form)

dd Day (01 to 28)

p3 Time of creation (h h fixed form)

hh hour (00 to 23)

Query RO?

Example Create a daily report at 9 o'clock

everyday (Parameter p2 is invalid in this

example).

RO DAY,05,09

Description This command can be used on models with the

computation function option /M1.

For daily+weekly reports

Syntax RO p1,p2,p3<terminator>

p1 Report type (DAY+WEEK)

p2 Day of creation (SUN, MON, TUE, WED,

THU, FRI, SAT)

p3 Time of creation (hh fixed form)

hh hour (00 to 23)

Query RO?

5

Commands

5-23

5.6 Basic Setting Commands

Example Create a daily report at 9 o'clock

everyday, and a weekly report every

Tuesday.

RO DAY+WEEK,TUE,09

Description This command can be used on models with the

computation function option /M1.

RM Sets the report channel

When not using the report channel

Syntax RM p1,p2<terminator>

p1 Report channel number (RD-MV100: 01

to 12, RD-MV200: 01 to 30)

p2 Use/Not use the report channel (OFF)

Query RM[ p1]?

Example Set the report channel of number 1 to

unused.

RM 01,OFF

Description This command can be used on models with the

computation function option /M1.

When using the report channel

Syntax RM p1,p2,p3,p4<terminator>

p1 Report channel number (RD-MV100: 01

to 12, RD-MV200: 01 to 30)

p2 Use/Not use the report channel (ON)

p3 The measurement/computation channel

number for which to create reports

(RD-MV100: 01 to 12 or 31 to 42, RD-

MV200: 01 to 30)

p4 Summation conversion of the waveform

on which integration is to be

performed.

OFF no conversion

/S Convert as though the physical

values are integrated in units

of seconds.

/MIN Convert as though the physical

values are integrated in units

of minutes.

/H Convert as though the physical

values are integrated in units

of hours.

/DAY Convert as though the physical

values are integrated in units

of days.

Query RM[ p1]?

Example Use the report channel number 1. Set the

measurement/computation channel number

for which to create reports to 01, and

the summation conversion of the waveform

on which integration is to be performed

to 1 s.

RM 01,ON,01,/S

Description • This command can be used on models with

the computation function option /M1.

• About p4

Because the sampled data are integrated

over each scan interval, the physical value

integrated over a given period of time may be

different from the actual integrated value. This

occurs if the given period is not equal to the

scan interval. In these cases, set p4 to the

unit of the integration time desired. The

integrated value is found according to the

following conversion equations that depend

on the p4 parameter.

OFF Σ(Measured value)

/S Σ(Measured value) × scan interval

/MIN Σ(Measured value) × scan

interval/60

/HOUR Σ(Measured value) × scan

interval/3600

/DAY Σ(Measured value) × scan

interval/86400

The unit of the scan interval is seconds.

XO Selects the communication

interface used to output data
residing in the internal memory
(display, event, TLOG, manual
sampled, and report data) and
files on the external storage
medium using output
commands (ME/MI/MO
commands)

Syntax XO p1<terminator>

p1 Communication type

ETHERNET

SERIAL

Query XO?

Example Set the communication interface to

Ethernet (the communication interface is

used to output data in the internal

memory and files on the external storage

medium using the ME/MI/MO commands).

XO ETHERNET

Description The p1 parameter can be set on models with the

serial interface option /C2 or /C3.

XH Sets whether or not to use the

key login, auto logout, and user
ID functions

Syntax XH p1,p2,p3<terminator>

p1 Use/not use the key login function

(USE, NOT)

p2 Use/not use the auto logout function

(ON, OFF)

p3 Use/not use the User ID function

(USE, NOT)

Query XH?

Example Use the key login, auto logout, and user

ID functions.

5-24

XH USE,ON,USE

XE Sets whether or not to store the

basic settings

Syntax XE p1<terminator>

p1 Store or discard the settings (STORE,

ABORT)

Example Store the basic settings.

XE STORE

Description In order to activate the settings that are changed

using the basic setting commands, the settings

must be saved using the XE command. Make

sure to save the settings with the XE command

before changing from the basic setting mode to

the operation mode. Otherwise, new settings will

not be activated.

YA Sets the IP address, subnet

mask, and default gateway

Syntax YA p1,p2,p3<terminator>

p1 IP address (0.0.0.0 to

255.255.255.255)

p2 Subnet mask

(0.0.0.0 to 255.255.255.255)

p3 Default gateway

(0.0.0.0 to 255.255.255.255)

Query YA?

Example Set the IP address to 192.168.111.24,

subnet mask to 255.255.255.0, and default

gateway to 0.0.0.0.

YA 192.168.111.24,255.255.255.0,0.0.0.0

Description The settings specified by this command take

effect the next time the RD-MV is turned ON.

YK Sets keepalive

Syntax YK p1<terminator>

p1 Enable/Disable keepalive (ON, OFF)

Query YK?

Example Disable keepalive

YK OFF

Description The settings specified by this command take

effect the next time the RD-MV is turned ON.

YN Sets the DNS.

When not using the DNS

Syntax YN p1<terminator>

p1 Use/Not use the DNS (OFF)

Query YN?

Example Do not use the DNS.

YN OFF

Description The settings specified by this command take

effect the next time the RD-MV is turned ON.

5.6 Basic Setting Commands

Syntax YN p1,p2,p3,p4,p5,p6,p7<terminator>

p1 Use/Not use the DNS (ON)

p2 Address of the primary DNS server

(0.0.0.0 to 255.255.255.255)

p3 Address of the secondary DNS server

(0.0.0.0 to 255.255.255.255)

p4 Host name (Up to 64 characters)

p5 Domain name (Up to 64 characters)

p6 Domain suffix 1 (Up to 64 characters)

p7 Domain suffix 2 (Up to 64 characters)

Query YN?

Example Use the DNS server at 192.168.0.1.

YN 192.168.0.1

Description The settings specified by this command take

effect the next time the RD-MV is turned ON.

YQ Sets the communication timeout

When not using the timeout

Syntax YQ p1<terminator>

p1 Enable/Disable communication timeout

(OFF)

Query YQ?

Example Disable timeout.

YQ OFF

Description The settings specified by this command take

effect the next time the RD-MV is turned ON.

When using the timeout

Syntax YQ p1,p2<terminator>

p1 Enable/Disable communication timeout

(ON)

p2 Timeout time (1 to 120) [minutes]

Query YQ?

Example Enable communication timeout and set the

timeout period to 3 min.

YQ ON,3

Description The settings specified by this command take

effect the next time the RD-MV is turned ON.

YS Sets the serial interface

Syntax YS p1,p2,p3,p4,p5,p6<terminator>

p1 Baud rate (1200, 2400, 4800, 9600,

19200, 38400)

p2 Data length (7, 8)

p3 Parity check (NONE, ODD, EVEN)

p4 Handshaking (OFF:OFF, XON:XON,

XON:RS, CS:RS)

p5 RS-422-A/485 address (01 to 32)

p6 Protocol (NORMAL, MODBUS)

Query YS?

5

Commands

When using the DNS

5-25

5.6 Basic Setting Commands

Example Set the baud rate to 9600, the data

length to 8, the parity check to ODD,

handshaking to OFF:OFF, the RS-422-A/485

address to 02, and the protocol to

NORMAL.

YS 9600,8,ODD,OFF:OFF,02,NORMAL

Description • The settings specified by this command take

effect the next time the RD-MV is turned ON.

• This command can be used on models with

the serial interface option /C2 or /C3.

YO Loads setting data

Syntax YO p1<terminator>

p1 Name of the source file (Up to 8

characters)

Example Load the setting data of both setting and

basic setting commands from the setup

file SETFILE1 (.PNL extension).

YO SETFILE1

Description • This command loads the setting data of both

setting and basic setting commands. To load

only the setting data of setting commands,

use the LO command.

• This command cannot be specified on models

that do not have an external storage device or

when a medium is not inserted into the drive.

• When executing this command, the

communication is disconnected.

YI Saves setting data

Syntax YO p1<terminator>

p1 Name of the destination file (Up to 8

characters)

Example Save the setting data of both setting and

basic setting commands to the file

SETFILE2.

YI SETFILE2

Description • A file extension “.PNL” is attached to the

saved file. This command is equivalent to the

LI command.

• This command cannot be specified on models

that do not have an external storage device or

when a medium is not inserted into the drive.

1 Clear all measured/computed data

and initialize the setup data of

the setting mode.

2 Clear all measured/computed data.

Example Clear all measured/computed data.

YC 2

Description • The measured/computed data indicates the

data residing in the internal memory of the

RD-MV.

• This command cannot be specified while the

external storage medium is being formatted.

YT Sets the FTP transfer timing

Syntax YT p1,p2<terminator>

p1 Auto transfer when display and event

data files are created (ON, OFF)

p2 Auto transfer when report data files

are created (ON, OFF)

Query YT?

Example Auto transfer the display and event data

files. Do not transfer the report data

file.

YT ON,OFF

Description • When the method to save the data to the

external storage medium is set to “Auto,” the

data files are automatically transferred when

they are created. For the methods to save the

data to the external storage medium, see the

RD-MV100/RD-MV200 User’s Manual.

YC Clears the measured/computed

data, initializes setup data

Syntax YC p1<terminator>

p1 Type of data to be cleared or

initialized

0 Clear all measured/computed data

and initialize the setup data of

the setting mode and basic

setting mode.

5-26

5.7 Output Commands (Control)/5.8 Output Commands (Setup, measured, and computed data output)

5.7 Output Commands
(Control)

BO Sets the output byte order

Syntax BO p1<terminator>

p1 Byte order

0 Sends MSB first.

1 Sends LSB first.

Query BO?

Example Output MSB first

BO 0

Description This command is used to specify the byte order

for the numerical data during binary output.

CS Sets the checksum

Syntax CS p1<terminator>

p1 Use/not use checksum

0 Not use

1 Use

Query CS?

Example Use the checksum.

CS 1

Description This command can be used only during serial

communications.

IF Sets the status filter

Syntax IF p1<terminator>

p1 Status filter value

(0.0.0.0 to 255.255.255.255)

Query IF?

Example Set the status value to 1.0.4.0.

IF 1.0.4.0

Description For details, see chapter 7.

CC Disconnects an Ethernet

connection

Syntax CC p1<terminator>

p1 Disconnect the connection (0)

Example Disconnect the connection.

CC 0

Description This command can be used only during Ethernet

communications.

5.8 Output Commands (Setup,
measured, and computed
data output)

FC Outputs screen image data

Syntax FC p1<terminator>

p1 Outputs screen image data (GET)

Example Outputs screen image data from the RD-MV.

FC GET

Description Obtains the screen image data of the current

screen and outputs the data in PNG format.

FE Outputs setup data

Syntax FE p1,p2,p3<terminator>

p1 Output data type

0 Setup data of the setting

commands

1 Decimal position and unit

information

2 Setup data of the basic setting

commands

3 Decimal and unit information of

the most recent TLOG value

4 Setting data file

p2 First channel number (RD-MV100: 01 to

12 or 31 to 42, RD-MV200: 01 to 30)

p3 Last channel number (RD-MV100: 01 to

12 or 31 to 42, RD-MV200: 01 to 30)

Example Output the setup data of the setting

commands of channel 1 through 5 from the

instrument.

FE 0,01,05

Description • Set the parameters for the first and last

channel numbers so that the last channel

number is greater than or equal to the first

channel number.

• The settings of p2 and p3 are valid when p1 =

0, 1, 2, and 3.

FD Outputs the most recent

measured/computed data

Syntax FD p1,p2,p3<terminator>

p1 Output data type

0 Output the most recent measured/

computed data in ASCII format

1 Output the most recent measured/

computed data in binary format.

4 Output the most recent TLOG data

in ASCII format.

5 Output the most recent TLOG data

in binary format.

p2 First channel number (RD-MV100: 01 to

12 or 31 to 42, RD-MV200: 01 to 30)

5

Commands

5-27

5.8 Output Commands (Setup, measured, and computed data output)

p3 last channel number (RD-MV100: 01 to

12 or 31 to 42, RD-MV200: 01 to 30)

Example Output the most recent measured/computed

data from channel 1 to 5 in ASCII format.

FD 0,01,05

Description • The most recent measured/computed data

indicates the most recent measured/computed

data residing in the internal memory when the

RD-MV receives the FD command.

• Set the parameters for the first and last

channel numbers so that the last channel

number is greater than or equal to the first

channel number.

FF Outputs FIFO data

Syntax FF p1,p2,p3,p4<terminator>

p1 Operation type

GET Output the data starting

from the next to the

previous read position

RESEND Retransmit the previous

output

RESET Set the read position to the

most recent acquire position

GETNEW Output the newest data

p2 First channel number (RD-MV100: 01 to

12 or 31 to 42, RD-MV200: 01 to 30)

p3 last channel number (RD-MV100: 01 to

12 or 31 to 42, RD-MV200: 01 to 30)

p4 The upper limit of number of blocks

that are to be loaded (1 to 120)

1 to 240 for models RD-MV102, RD-

MV104, RD-MV204 and RD-MV208

1 to 60 for models RD-MV106, RD-

MV112, RD-MV210, RD-MV220, and RD-

MV230

If the measured/computed data is less

than the specified number of blocks,

only the available data are

transmitted.

Example Output two blocks of FIFO data from

channels 1 to 10.

FF GET,01,10,2

Description • The FIFO buffer is of a circular type which

overacquires from the oldest data when it is

full. The FR command is used to set the

acquiring interval.

• There are two types of output method, GET

and GETNEW.

GET

Output the specified number of blocks (p4) of

FIFO data starting from the next to the

previous read position (block). Make sure to

read the data within the following buffer period

to prevent data dropouts.

• For models RD-MV102, RD-MV104,

RD-MV204, and RD-MV208

5-28

FL Outputs communication log

Syntax FL p1,p2<terminator>

Example Output the ten most recent operation

Description • Outputs the log that is saved in the RD-MV.

IS Outputs status information

Syntax IS p1<terminator>

Example Output status information.

Description The output status can be masked using the

FU Outputs user level

Syntax FU p1<terminator>

Example Output user information.

Description Outputs the information of the user currently

connected to the MV.

FIFO buffer length: 240 intervals (scan

interval)

Maximum buffer period: 240 x (acquiring

period)

• For models RD-MV106, RD-MV112,

RD-MV210, RD-MV220, and RD-MV230

FIFO buffer length: 60 intervals (scan

interval)

Maximum buffer period: 60 x (acquiring

period)

GETNEW

Output the specified number of blocks (p4) of

FIFO data back starting from the recent

acquire position (block).

• Parameters p2 and p4 are valid when p1 is

set to GET or GETNEW.

• If p4 is omitted, all the data of all blocks

acquired in the FIFO buffer are output.

• Set the parameters for the first and last

channel numbers so that the last channel

number is greater than or equal to the first

channel number.

• For the output flow of FIFO data, see

appendix 4.

p1 Log type

COM Communication

FTPC FTP client

ERR Operation error

KEY Key login

p2 Maximum read length of the log

When p1 is COM: 1 to 200

When p1 is some type other than COM:

1 to 50

error logs.

FL ERR,10

• If p2 is omitted, all written logs are output.

p1 Output status information (0)

IS 0

status filter (IF command).

p1 Output user information (0)

FU 0

5.8 Output Commands (Setup, measured, and computed data output)

ME Outputs data saved in the

external storage medium

Syntax ME p1,p2,p3<terminator>

p1 Operation type

DIR Output the file list

GET Output (first time)

NEXT Output (succeeding times),

this parameter is used to

output the remaining data

when the first output

operation is not adequate.

RESEND Retransmit the previous

output

DEL Delete

DIRNEXT: Outputs the succeeding file

list after the file list is

output using the DIR command.

The number of output lists is

the p3 value specified with

the DIR command. If this

command is executed after all

lists have been output, only

the free space of the storage

medium is output.

p2 File name (Up to 26 characters)

Specify with a full path.

p3 The maximum number of file lists to

be output (1 to 100). All file lists

in the specified directory are output

when p3 is omitted.

Example • Output the list of all files in the

root directory.

ME DIR,/

• Output 10 files of the file list of the

root directory.

ME DIR,/,10

• Output the list of all files in the

DATA0 directory.

ME DIR,/DATA0/*.*

• Output the list of all display data

files in the DATA0 directory.

ME DIR,/DATA0/*.DDS

• Output the data in the file

72615100.DDS in the DATA0 directory.

ME GET,/DATA0/72615100.DDS

Description • Parameter p2 is valid when p1 is set to DIR,

GET, or DEL.

• Parameter p3 is valid when p1 is set to DIR.

• This command can be used to output data

over the communication interface (Ethernet or

serial) that was selected with the XO

command.

• If an error occurs during data transmission,

(p1=) RESEND can be used to retransmit the

data.

MI Outputs display data and event

data acquired in the internal
memory

Syntax MI p1,p2,p3,p4<terminator>

p1 Operation type

DIR Put the data on standby for

communication output and

output data list

GET Output (first time)

NEXT Output (succeeding times),

This parameter is used to

output the remaining data

when first output operation

is not adequate.

RESEND Retransmit the previous

output

SIZE Output the data size

(capacity)

p2 Output data type

DISPLAY Display data

EVENT Event data

p3 Block number (1 to 16)

p4 Output format (FILE, DATA)

Example Output the data in block number 1

containing display data using the file

output format.

MI GET,DISPLAY,1,FILE

Description • Parameter p2 is valid when p1 is set to DIR,

GET, or SIZE.

• Parameters p3 and p4 are valid when p1 is

set to GET or SIZE.

• This command can be used to output data

over the communication interface (Ethernet or

serial) that was selected with the XO

command.

• This command outputs the data that have

been put on standby using (p1=) DIR using

(p1=) GET. Make sure to put the data on

standby using DIR before outputting the data

using GET.

5

Commands

5-29

5.8 Output Commands/5.9 Output Commands (RS-422-A/485 Dedicated Commands)

MO Outputs TLOG data, manual

sampled data, and report data
acquired in the internal memory

Syntax MO p1,p2,p3<terminator>

p1 Operation type

DIR Put the data on standby for

communication output and

output data list

GET Output (first time)

NEXT Output (succeeding times),

This parameter is used to

output the remaining data

when first output operation

is not adequate.

RESEND Retransmit the previous

output

SIZE Output the data size

(capacity)

p2 Output data type

TLOG TLOG data

MANUAL Manual sampling data

REPORT Report

p3 Block number

When p2 is TLOG 1 to 16

When p2 is MANUAL 1 to 50

When p2 is REPORT 1 to 40

Example Output the data in block number 1

containing TLOG data from the instrument.

MO GET,TLOG,1

Description • Parameter p2 is valid when p1 is set to DIR,

GET, or SIZE.

• Parameter p3 is valid when p1 is set to GET

or SIZE.

• This command can be used to output data

over the communication interface (Ethernet or

serial) that was selected with the XO

command.

• This command outputs the data that have

been put on standby using (p1=) DIR using

(p1=) GET. Make sure to put the data on

standby using DIR before outputting the data

using GET.

5.9 Output Commands (RS­422-A/485 Dedicated
Commands)

ESC O Opens the instrument

Syntax ESC O p1<terminator>

p1 Instrument's address (01 to 32)

Example Open the instrument at address 01, and

enable all commands.

ESC O 01

Description • Specifies the address of the device with which

to communicate.

• Only one instrument can be opened at any

given time.

• When an instrument is opened with the ESC

O command, any other instrument that is

currently open is automatically closed.

• When this command is received correctly, the

RD-MV transmits the data “ESC 0

• Normally, either CR+LF or LF can be used as

terminators for communication commands.

However, the terminator for this command

must be CR+LF.

ESC C Closes the instrument

Syntax ESC C p1<terminator>

p1 Instrument's address (01 to 32)

Example Close the instrument with the address 01.

ESC C 01

Description • Clears the current connection with the

instrument.

• When this command is received correctly, the

RD-MV transmits the data “ESC C

• Normally, either CR+LF or LF can be used as

terminators for communication commands.

However, the terminator for this command

must be CR+LF.

.”

.”

5-30

5.10 Maintenance/Test
Commands (Available
when using the
maintenance/test server
function via Ethernet
communications)

5.10 Maintenance/Test Commands

eth Outputs Ethernet statistical

information

Syntax eth<terminator>

Example

eth

EA

00/00/00 12:34:56

Ethernet Statistics

close Disconnects the connection

between other devices

Syntax close,p1,p2:p3<terminator>

p1 Port on the RD-MV side (0 to 65535)

p2 IP address on the PC side

(0.0.0.0 to 255.255.255.255)

p3 Port on the PC side (0 to 65535)

Example close,34159,192.168.111.24:1054

E0

Description This command cannot be used to disconnect a

server port. Also, it cannot disconnect the RD-

MV being operated. Use the quit command for

this purpose.

con Outputs connection information

Syntax con<terminator>

Example

con

EA

00/00/00 12:34:56

Active connections

Proto Local Address Foreign Address State

TCP 192.168.111. 24:34159 192. 168.111. 24:1053 ESTABLISHED

TCP 0. 0. 0. 0:34155 0. 0. 0. 0: 0 LISTEN

TCP 0. 0. 0. 0:34159 0. 0. 0. 0: 0 LISTEN

TCP 0. 0. 0. 0:34150 0. 0. 0. 0: 0 LISTEN

EN

TCP

Protocol used.

Local Address

The RD-MV's socket address.

Displays “IP address : port number.”

Foreign Address

The destination socket address.

Displays “IP address : port number.”

State

Connection status

ESTABLISHED

Connection established

Name In Pkt In Err Out Pkt Out Err 16 Coll

lo0 0 0 0 0 0

mb0 74 0 64 0 0

EN

help Outputs help

Syntax help [,p1]<terminator>

p1 Command name

(close, con, eth, help, net, quit)

Example help

EA

con - echo connection information

eth - echo Ethernet information

help - echo help

net - echo network status

quit - close this connection

EN

net Outputs network information

Syntax net<terminator>

Example net

EA

00/00/00 12:34:56

Network Status

APP: power on time = 00/00/00 12:34:56

APP: applalive = disable

APP: genedrops = 0

APP: diagdrops = 0

APP: ftpsdrops = 0

TCP: keepalive = 30 s

TCP: connects = 14

TCP: closed = 0

TCP: timeoutdrop = 0

TCP: keepdrops = 0

TCP: sndtotal = 53

TCP: sndbyte = 0

TCP: sndrexmitpack = 0

TCP: sndrexmitbyte = 1

TCP: rcvtotal = 0

TCP: rcvbyte = 0

DLC: 16 collisions = 0

EN

5

Commands

5-31

5.10 Maintenance/Test Commands / 5.11 Instrument Information Output Commands

TCP: keepalive

Keepalive check cycle

TCP: connects

Total number of established

connections.

TCP: closed

Total number of dropped connections.

TCP: timeoutdrop

Total number of dropped connections

due to TCP retransmission timeout.

When the transmitted packet (the unit

of transmitted data) is not received,

the packet is automatically

retransmitted at a predetermined time

interval. If the packet is not

received after 14 retransmissions,

timeout occurs and the connection is

dropped.

TCP: keepdrops

Total number of dropped connections

due to TCP keepalive timeout.

TCP: sndtotal

Total number of transmitted packets.

TCP: sndbyte

Total number of transmitted bytes.

TCP: sndrexmitpack

Total number of retransmitted

packets.

TCP: sndrexmitbyte

Total number of retransmitted bytes.

TCP: rcvtotal

Total number of received packets.

TCP: rcvbyte

Total number of received bytes.

DLC: 16 collisions

Number of collision incidents. A

collision occurs when two or more

devices on the network attempt to

transmit simultaneously. The

tendency for collisions to occur

increases when the network is

congested. 16 collisions would mean

16 consecutive collision incidents.

quit Disconnects the connection of

the device being operated

Syntax quit<terminator>

5-32

Chapter 6 Response

6.1 Response Syntax

The following table shows the types of responses for the various commands described in
the previous chapter.
The RD-MV returns a response (affirmative/negative response) to a command that is
separated by a single delimiter. The controller should follow the one command to one
response format. When the command-response rule is not followed, the operation is not
guaranteed.

Function

Setting/
Measurement
server

* For the responses to the instrument information server function, see section 6.4.

Note

The “CRLF” used in this section denotes carriage return line feed.

Affirmative Response

When the command is processed correctly, an affirmative response is returned.

Syntax

E0CRLF

Example

E0

Single Negative Response

When the command is not processed correctly, a single negative response is returned.

Syntax

E1_nnn_mmm···mCRLF

nnn Error number (001 to 999)

mmm···m Message (Variable length, one line)

_ Space

Example

E1 001 "Syntax error"

Multiple Negative Responses

• If there is an error in any one of the multiple commands that are separated by sub
delimiters, multiple negative response are returned.

• The response is generated for each erroneous command.

• If there are multiple commands that have errors, the negative responses are
separated by commas.

• The error position number is assigned to the series of commands in order starting with
“1” assigned to the first command.

Syntax

E2_ee:nnnCRLF (When there is only one error)

E2_ee:nnn,ee:nnn,···,ee:nnn

ee Error position (01 to 10)

nnn Error number (001 to 999)

_ Space

Example

E2 02:001

Command Response

Setting command Setting

Basic setting command
Output command Control

Command Type Affirmation Negation

Control

Setup, measured, and ASCII output
computed data output BINARY output
RS422-A/485 dedicated Dedicated response No response

CRLF (When there are multiple errors)

Affirmative
response

Single
negative
response or
Multiple
negative
responses

6

Response

6-1

6.1 Response Syntax

ASCII Output

BINARY Output

The following types of ASCII data are available. For the data formats, see section 6.2.

Setting data, basic setting data, decimal position/unit information, measured/
computed data, communication log, FTP log, operation error log, key login log, status
information, file list, data list, and user level

Syntax

EACRLF

···············

:

···············

···············

CRLF

EN

CRLF

CRLF

CRLF

Conceptual diagram

1 byte

ASCII

BINARY

BINARY header
(12 bytes)

BINARY data

BINARY footer
(2 bytes)

EB

CRLF

'E' 'B' CR LF

Data length

Flag ID Header sum

BINARY data

Data sum

Indicates that the data are BINARY.

Data length

The byte value of “flag + identifier + header sum + BINARY data + data sum.”

Header sum

The sum value of “data length + flag + identifier.”

BINARY data

For the output format of various data types, see section 6.3.

Data sum

The sum value of “BINARY data.”

Note

The data length of the BINARY header section is output according to the byte order specified

with the BO command.

6-2

6.1 Response Syntax

Flag

Bit Name (abbreviation) Flag Meaning of the flag

7 BO MSB LSB Output byte order
6 CS No Yes Existence of a check sum
5– – –
4– – –
3– – –
2– – –
1– – –
0 END Middle End In the middle or at the end of the continuous data

01

• When the BO flag is “0,” the MSB is output first. When the BO flag is “1,” the LSB is
output first.

• If the check sum is enabled (parameter = 1) using the CS command parameter, each
sum value is inserted in the header sum and data sum sections in the “Conceptual
diagram” on the previous page. If the check sum is disabled (parameter = 0), a zero
is inserted in the header sum and data sum sections. For a sample program that
calculates the sum value, see “Calculating the sum value” on the next page.

• When the amount of data output in response to a ME, MI, or MO command is large,
all of the data may not be able to be returned in one output request (parameter GET).
In this case the END flag becomes “0.” You must send output requests (parameter
NEXT) to receive the rest of the data until the END flag becomes “1.”

• The bits that have “–” for the name and flag are not used. The value is undefined.

Identifier

ID number BINARY data type Type Format

0 Undefined file file (*.*)–
1 Measured/computed data data Yes
1 FIFO data data Yes
2 Display data file file (*.DDS)No
3 Event data file file (*.DEV)No
4 Manual sampled data file file (*.DMN) Yes
5 Hourly report data file file (*.DHR) Yes
6 Daily report data file file (*.DDR) Yes
7 Weekly report data file file (*.DWR) Yes
8 Monthly report data file file (*.DMR) Yes
9 TLOG data file file (*.DTG)No
10 Setup data file file (*.PNL)No
11 Display data data Yes
12 Event data data Yes
13 Screen image data file (*.PNG)–

Yes: disclosed, No: undisclosed, –: common format

• The table above shows the different types of BINARY Data.

• BINARY data come in two types, data and file.

• Data

• Measured/computed data can be output using the FD command.

• FIFO data can be output using the FF command.

• Display data or event data can be output using the MI command.

• The data format is disclosed. See section 6.3.

• File

• Display data, event data, TLOG data, and setup data files can be used on the
standard software that came with the package. For details, see the
DAQSTANDARD Software Manual (M-3644).

• Files that are in common formats can be opened using software programs
that are sold commercially.

• Other formats are written in ASCII code. A text editor can be used to open
these types of files.

• The identifier section in the “Conceptual diagram” on the previous page contains
the ID number that indicates the BINARY Data type.

Note

BINARY data that are not indicated in the above table are considered undefined files.

6

Response

6-3

6.1 Response Syntax

/*
* Sum Calculation Function (for a 32-bit CPU)
*
* Parameter buff : Pointer to the top of the data on which the sum is calculated
* len : Length of the data on which the sum is calculated
* Returned value : Calculated sum
*/

Calculating the sum value

When the CS command parameter is set to “1,” check sum values are output only
during serial communications. The check sum is the same as that used in the TCP/IP
and is derived according to the following algorithm.

Buffer on which the sum value is calculated

• For the header sum, it is calculated from “data length + flag + identifier” (fixed to 6
bytes).

• For the data sum, it is calculated from “BINARY data.”

1 byte

(1) (2) (3) (4) (6)

(5)

Padding

If the data length of the buffer is odd, a “0” is padded so that it is even. (1) through (6)
are summed as unsigned two-byte integers (unsigned short). When the digit

overflows a “1” is added. Finally, the result is bit-wise inverted.

Sample program

The sum value is determined using the following sample program, and the calculated
result is returned. The sum determined by the sample program can be compared with
the header sum of the output BINARY header section and the data sum of the output
BINARY footer section.

0

int cksum(unsigned char *buff, int len)
{

unsigned short *p;
unsigned int csum; /* Checksum value */
int i;
int odd;
csum = 0; /* Initialize. */
odd = len%2; /* Check whether or not the number of data points is even. */
len >>= 1; /* Determine the number of data points using a "short" data type. */
p = (unsigned short *)buff;

for(i=0;i<len;i++) /* Sum using an unsigned short data type. */

csum += *p++;

if(odd){ /* When the data length is odd */

union tmp{ /* Pad with a 0, and add to the unsigned short data. */
unsigned short s;
unsigned char c[2];
}tmp;
tmp.c[1] = 0;
tmp.c[0] = *((unsigned char *)p);
csum += tmp.s;

}

if((csum = (csum & 0xffff) + ((csum>>16) & 0xffff)) > 0xffff)

csum = csum - 0xffff; /* If the digit overflows again, add a 1. */

return((~csum) & 0xffff); /* bit inversion */

}

/* Pointer to the next two-byte data word in the buffer that is to be summed. */

/* Add the overflowed digits */

6-4

RS-422-A/485 Dedicated Response

The following table shows dedicated commands for the RS-422-A/485 interface and their
responses.

Command syntax Meaning Response

ESC O_xx CRLF Open the instrument • Response from the instrument with the specified

(_ Space) • Response when the instrument with the specified

ESC C_xx CRLF Close the instrument • Response from the instrument with the specified

(_ Space) • Response when the instrument with the specified

* The causes that the condition become “The instrument with the specified address does not

exist” is such as a command error, the address not matching that of the instrument, the
instrument is not being turned ON, and the instrument not being connected via the serial
interface.

6.1 Response Syntax

address

ESC_O_xx_CRLF

address does not exist*
None

address

ESC_C_xx_CRLF

address does not exist*
None

• The “xx” in the table indicates the instrument's address. Specify the address that is

assigned to the instrument from 01 to 32.

• Only one instrument can be opened at any one time.

• When an instrument is opened with the ESC O command, all commands on the
instrument become active.

• When an instrument is opened with the ESC O command, any other instrument that is
open is automatically closed.

• Normally, either CR+LF or LF can be used as terminators. However, the terminator
for this command must be CR+LF.

Note

For the ASCII codes of ESC, CR, and LF, see appendix 1.

6

Response

6-5

6.2 Output Format of ASCII Data

The following types of ASCII data are available. The format for each type is described in
this section.

• Setting data/basic setting data

• Decimal position/unit information

• Measured/computed data

• Communication log

• FTP log

• Operation error log

• Key login log

• Status information

• File list

• Data list

• User level

Note

The “CRLF” used in this section denotes carriage return line feed.

Setting data/basic setting data

• The FE command is used to output the data.

• The setting/basic setting data are output in the order of the listed commands in the
table in section 5.2, “A List of Commands.” However, the setting information for the
following commands is not output.

• Setting command (Setting)

SD/FR command

• Setting command (control)

All commands from UD to CM

• Basic setting command

XE, YO, YI, and YC commands

• The output format of the setting/basic setting data conforms to the syntax of each
command.

• Some commands are output in multiple lines. (Example: Commands that are
specified for each channel.)

6-6

Syntax

The two-character command name and the succeeding parameters are output in the
following syntax.

EACRLF

ttsss···s

··············

EN

CRLF

CRLF

tt Command name (SR, SA···, XA, XI···)

sss···s Setting, basic setting data (variable length, one line)

Example

EA

SR01,VOLT,20mV,0,20

SR02,VOLT,20mV,0,20

···················

EN

Decimal Position/Unit Information

• The FE command is used to output the data.

• The measured/computed data that are output using the FD command contains only
the mantissa. By combining with the BINARY display data or the decimal position
information obtained with the FE command, the correct measured/computed data can
be derived.

Syntax

The data are output in the following syntax.

EACRLF

s_kccuuuuuu,pp

··················

CRLF

EN

s Data status

N : Normal

D : Differential input

S : Skip (When the measurement range is set to SKIP for a

k Channel type

0 : Measurement channel

A : Computation channel

cc Channel number

01 to 60

uuuuuu Unit information (6 characters, left-justified)

mV____ : mV

V_____ : V

^C____ : ° C

xxxxxx : (user-defined character string)

pp Decimal position (00 to 04)

No decimal (00000) for 00.

One digit below the decimal (0000.0) for 01.

Two digits below the decimal (000.00) for 02.

Three digits below the decimal (00.000) for 03.

Four digits below the decimal (0.0000) for 04.

_ Space

6.2 Output Format of ASCII Data

CRLF

6

Response

measurement channel or when the channel is turned

OFF for a computation channel)

Example

EA

N 001mV ,01

N 002mV ,01

EN

6-7

6.2 Output Format of ASCII Data

Measured/Computed Data

• The FD command is used to output the data.

• The measured/computed data that are output using the FD command contains only
the mantissa. By combining with the BINARY display data or the decimal position
information obtained with the FE command, the correct measured/computed data can
be derived.

Syntax

The measured/computed data are output in the following syntax along with the date
and time information for each channel.

EACRLF

DATE_yy/mo/dd

TIME_hh:mi:ss.mmmt

s_kcca

····························

EN

CRLF

CRLF

uuuuuufdddddE-ppCRLF

1a2a3a4

CRLF

yy Year (00 to 99)
mo Month (01 to 12)
dd Day (01 to 31)
hh Hour (00 to 23)
mi Minute (00 to 59)
ss Second (00 to 59)
mmm Millisecond (000 to 999. A period is placed between

seconds and milli-seconds.)

t Summer time or winter time

S: summer time
(Space): winter time

s Data status

N : Normal
D : Differential input
S : Skip
O : Over
E : Error

k Channel type

0 : Measurement channel
A : Computation channel

cc Channel number

01 to 60

a

1a2a3a4

uuuuuu Unit information (6 characters, left-justified)

a1Alarm status (level 1)
a

Alarm status (level 2)

2

a3Alarm status (level 3)
a

Alarm status (level 4)

4

(Each status is set to H, L, h, l, R, r, T, t, or space.)
(H : upper limit alarm, L : lower limit alarm, h :
difference upper-limit alarm, l : difference lower-limit
alarm, R : upper limit on rate-of-change alarm, r : lower
limit on rate-of-change alarm, T : delay upper limit
alarm, t : delay lower limit alarm, space : no alarm)

mV____: mV
V_____: V
^C____: ° C
xxxxxx: (user-defined character string)

6-8

f Sign (+, -)

ddddd Mantissa (00000 to 99999, 5 digits)

• 8 digits for computed data.

• For abnormal data (data status is E) or data of which

the mantissa or the exponent exceeds the range (data

status is O), the mantissa is set to 99999 (99999999 for

computed data).

pp Exponent (00 to 04)

_ Space

Example

EA

DATE 99/02/23

TIME 19:56:32.500

N 001h mV +12345E-03

N 002 mV -67890E-01

S 003

EN

6.2 Output Format of ASCII Data

Communication Log

Note

• Data for non-existing channels are not output (not even the channel number).

• For channels set to skip, output values from alarm status to exponent are spaces.

• The FL command is used to output the data.

• A log of setting/basic setting/output commands and responses is output. Up to 200
logs are retained. Logs that exceed 200 are cleared from the oldest data.

Syntax

EACRLF

yy/mo/dd_hh:mi:ss_n_uuu···ufd_mmm···m

······································

CRLF

EN

yy Year (00 to 99)

mo Month (01 to 12)

dd Day (01 to 31)

hh Time (00 to 23)

mi Minute (00 to 59)

ss Second (00 to 59)

n Connection ID. A number used to identify the user that is

connected.

0 : serial

1 to 3 : Ethernet

uuu···u ser name (16 characters)

f Multiple command flag

(Space) : single

* : multiple

If multiple commands are separated by sub delimiters and

output at once, “*” is displayed. The multiple commands

are divided at each sub delimiter and stored as

CRLF

6

Response

6-9

6.2 Output Format of ASCII Data

individual logs (1 log for 1 command and 1 log for 1

response).

d Input/Output

> : input

< : output

mmm···m Message (up to 20 characters)

• The communication log contains only the error number

and not the error message section..

• Normally, the transfer data are transmitted as they are,

but in some cases, a special message is output. The

special messages are shown below.

Reception

(Over length) : Command length exceeded.

(Over number) : Number of commands exceeded

(Serial error) : Received an error character through

serial communications.

Transmission

(ddd byte) : data output (ddd is the number of data

points)

(Login) : login

(Logout) : logout

(Disconnected) : Forced disconnection (occurs when the

connection was disconnected when transmitting data using

Ethernet)

(Time out) : Timeout, keepalive, TCP retransmission,

etc.)

E1 nnn : single negative response. nnn is the error

number.

E2 ee:nnn : multiple negative response.ee is the error

position, nnn is the error number.

_ Space

6-10

Example

The following example shows the log when multiple commands separated by sub
delimiters, “B01;???;CS1,” are transmitted. The commands are separated and
output in order with the multiple command flags “*.”

EA

99/05/11 12:31:11 1 user *> BO1

99/05/11 12:31:11 1 user *< E0

99/05/11 12:31:11 1 user *> ???

99/05/11 12:31:11 1 user *< E2 01:124

99/05/11 12:31:11 1 user *> CS1

99/05/11 12:31:11 1 user *< E0

EN
