INSTALLATION OF PRESSURE TRANSMITTERS

NOTE: Each transmitter is calibrated in the vertical position.

16 PSID to 30 PSID

110 to 200 kPa

60 PSID

420 kPa

SERIES PX291

For maximum accuracy, re-zero the transmitter if it
is mounted in other than the vertical position. It is
not necessary to respan the instrument.

The Series PX291 differential pressure transmitter is suitable for clean air or inert gas
applications. If dust is present, a small in-line filter is recommended to insure long trouble-free
operation. The normal operating temperature range is from 0oC to 45oC (32oF to 115oF), and the
normal humidity range is from 10% to 90% R.H.

Air connections are by means of 3/16” (4.75mm) barbed fittings suitable for ¼” (6mm) O.D.
polyethylene tubing, 1/8” (3 –4mm) I.D. Tygon or polyurethane tubing.

The two mounting holes are 0.19” (4.8mm) in diameter and are suitable for #8 or #10 mounting
screws.

Electrical connections are by means of 3/8” terminal strips with #6 screws.
Care should be taken not to exceed the maximum overpressure.

Maximum Safe Momentary Overpressure Table

Range Overpressure

English Metric English Metric

0.1" to 1.0" H2O

2.0" to 10.0" H2O
11" H2O to 5 PSID
6 PSID to 15 PSID

25 to 250 Pa

0.5 to 2.5 kPa

2.7 to 35 kPa

40 to 100 kPa

8" H2O

5 PSID
20 PSID
30 PSID

2 kPa

35 kPa
140 kPa
200 kPa

Zero and Span Adjustment

The transmitter may be re-zeroed if overpressure occurs and a permanent drift is noted.
Vent both pressure ports to atmosphere before re-zeroing the transmitter.
A. Voltage Output units (PX291-XXXXD5V): Connect a voltmeter across the signal terminals

and adjust the zero potentiometer until the voltage is equal to or less than .015 Volts.

B. Current Output units (PX291-XXXXDI): Connect an ammeter in the loop and adjust the zero

potentiometer (R2) until the ammeter reads 4.00mA.

Should re-spanning of the transmitter become necessary in the field, a manometer or gage of
satisfactory accuracy must be used.

A. Voltage Output units (PX291-XXXXD5V): With the voltmeter connected across the signal

terminals (see Figure 1) apply full pressure to the instrument and adjust the Span
potentiometer (R1), until the output reading is 5.00V.

B. Current Output units (PX291-XXXXDI): With the ammeter connected in the loop (see Figure

2), apply full pressure tot he instrument and adjust the Span potentiometer (R2), until the
output reading is 20.00mA.

Check the zero reading again for accuracy, and repeat the above steps if required.

PX291 Series M-3485/0899

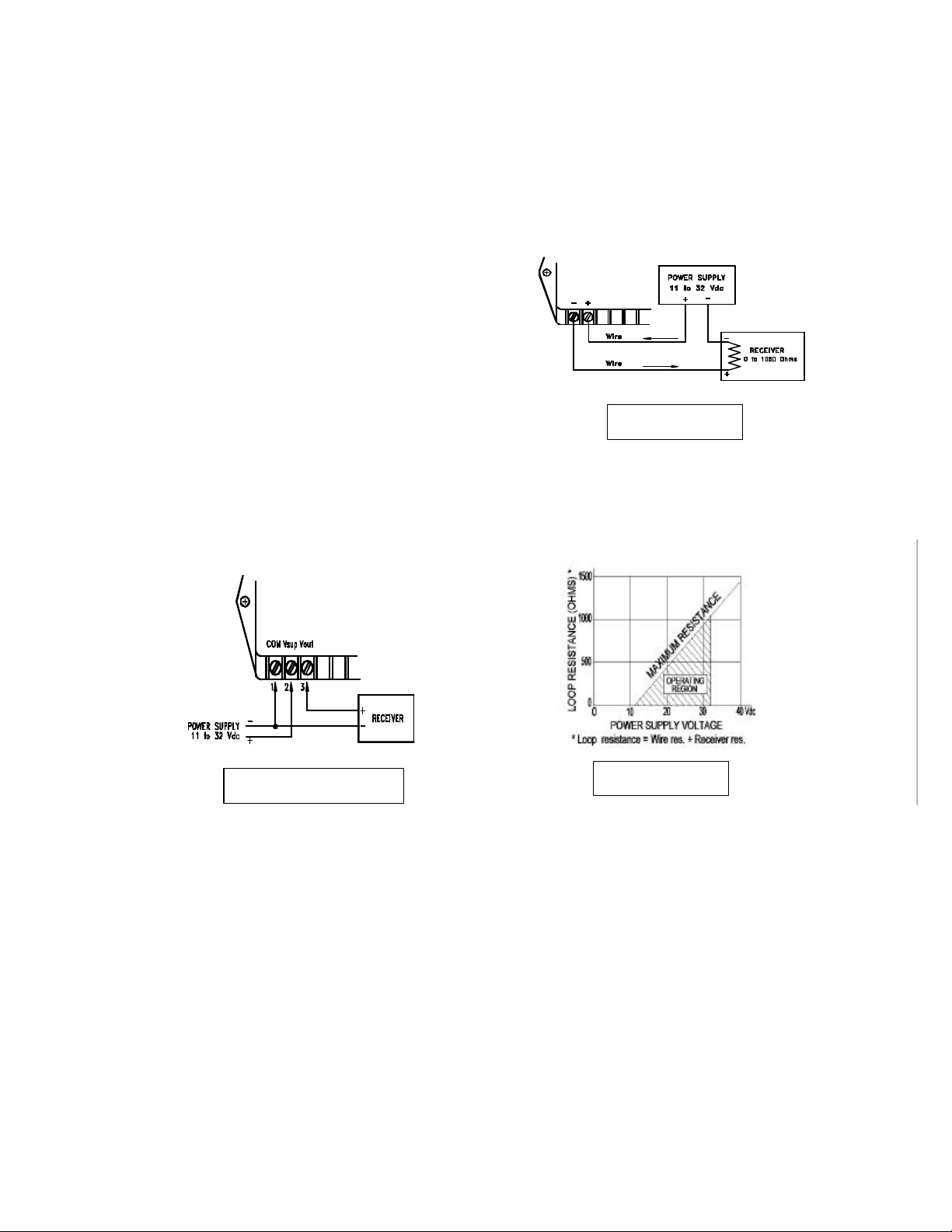

VOLTAGE OUTPUT UNITS

Figure 1

Figure 2

Figure 3

(PX291-XXXD5V)

CURRENT OUTPUT UNITS

(PX291-XXXDI)

This transmitter is powered by an external power
supply between 11 and 32 Vdc, the current
drawn is less than 8mA.
The output voltage is limited to about 5.6V when
the applied pressure exceeds the range of the
transmitter. Short-circuiting the signal terminals
will not damage the transmitter.

There are three terminals for electrical
connections (see Figure 1)

1. The left terminal labeled “COM” is the
negative terminal common to both the power
supply and the output signal.

2. The middle terminal labeled “Vsup” is
connected to the positive power supply lead.

3. The right terminal labeled “Vout” is the

positive signal voltage output. The current
(either sinking or sourcing) through this
terminal should be limited to about 3.5mA.
Linearity will suffer if this current is
exceeded. The output is current-limited to
protect against short circuits and also
voltage-limited to about 5.6 Volts should the
maximum pressure be exceeded

.

This is a 2-wire 4-20mA pressure transmitter
which requires an external power supply of 11 to
32Vdc to power the loop. The supply voltage
should not exceed 32Vdc (see Figure 2)

The following table (see Figure 3) illustrates the
maximum wire and receiver resistances as a
function of supply voltage. For example, the total
loop resistance should not exceed 650 Ohms for
a typical supply voltage of 24Vdc.

The standard transmitter is current-limited to

CAUTION: REVERSAL OF THE “Vdc SUPPLY”

AND “SIGNAL OUT” MAY RESULT IN

PERMANENT DAMAGE TO THE

TRANSMITTER.

PX291 Series M-3485/0899

about 3.85mA at the low end and approximately
27mA at the high end. An internal diode protects
the transmitter against reverse polarity (there is
no current flowing through the loop if the leads
are reversed).

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s Warranty adds an additional one (1) month grace
period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FIT­NESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner .

RETURN REQUESTS / INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR W

ARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product

was PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific problems

relative to the product.

FOR NON-WARRANTY REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 1999 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

MADE IN

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

TEMPERATURE

MU

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

MU

Wire: Thermocouple, RTD & Thermistor

MU

Calibrators & Ice Point References

MU

Recorders, Controllers & Process Monitors

MU

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

MU

Transducers & Strain Gages

MU

Load Cells & Pressure Gages

MU

Displacement Transducers

MU

Instrumentation & Accessories

FLOW/LEVEL

MU

Rotameters, Gas Mass Flowmeters & Flow Computers

MU

Air Velocity Indicators

MU

Turbine/Paddlewheel Systems

MU

Totalizers & Batch Controllers

pH/CONDUCTIVITY

MU

pH Electrodes, Testers & Accessories

MU

Benchtop/Laboratory Meters

MU

Controllers, Calibrators, Simulators & Pumps

MU

Industrial pH & Conductivity Equipment

DATA ACQUISITION

MU

Data Acquisition & Engineering Software

MU

Communications-Based Acquisition Systems

MU

Plug-in Cards for Apple, IBM & Compatibles

MU

Datalogging Systems

MU

Recorders, Printers & Plotters

HEATERS

MU

Heating Cable

MU

Cartridge & Strip Heaters

MU

Immersion & Band Heaters

MU

Flexible Heaters

MU

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

MU

Metering & Control Instrumentation

MU

Refractometers

MU

Pumps & Tubing

MU

Air, Soil & Water Monitors

MU

Industrial Water & Wastewater Treatment

MU

pH, Conductivity & Dissolved Oxygen Instruments

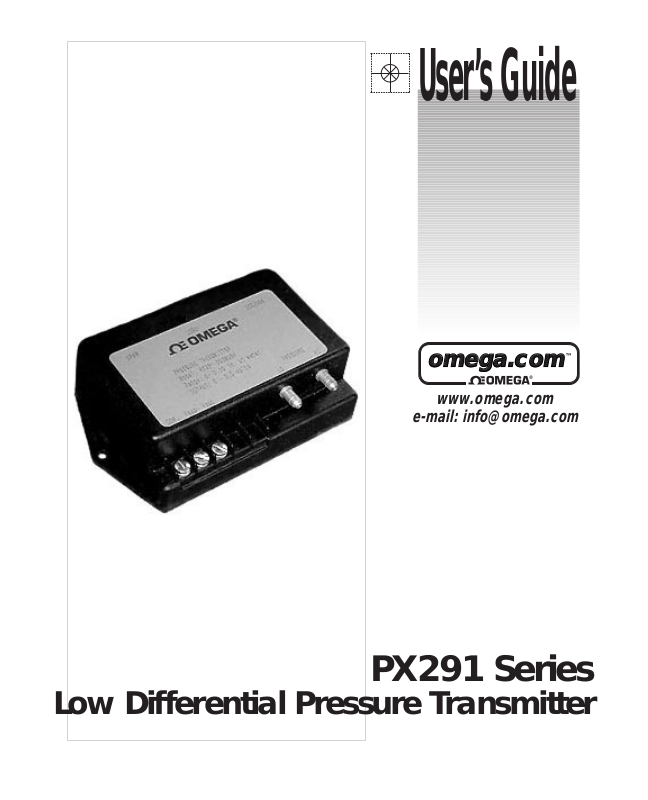

PX291 Series M-3485 / 0899
