Omega Products PX2150 Installation Manual

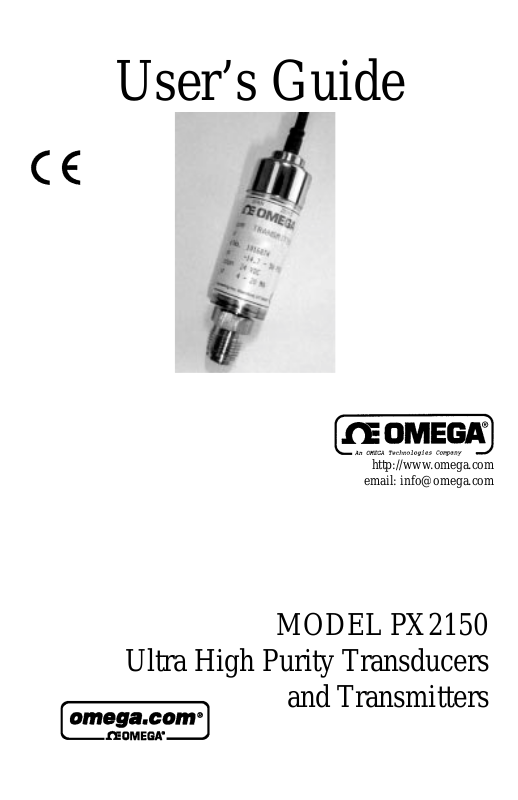

User’s Guide

http://www.omega.com

email: [e-mail]

MODEL PX2150

Ultra High Purity Transducers

and T ransmitters

OMEGAnet On-Line Service Internet e-mail
http://www.omega.com [e-mail]

Servicing North America:

USA: One Omega Drive, Box 4047
ISO 9001 Certified Stamford, CT 06907-0047
Tel: [phone] FAX: [phone]
e-mail: [e-mail]
Canada: 976 Bergar
Laval (Quebec) H7L 5A1
Tel: [phone] FAX: [phone]

e-mail: [e-mail]

For immediate techincal or application assistance:

USA and Canada Sales Service: 1-800-826-6342/1-800-TC-OMEGASM
Customer Service: 1-800-622-2378/1-800-622-BESTSM
Engineering Service: 1-800-872-9436/1-800-USA-WHENSM
TELEX:996404 EASYLINK: 62968934 CABLE: OMEGA
Mexico and Latin America: Tel: [phone] FAX: [phone]

En Espan~ol: (95) 203-359-7803 email: [e-mail]

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

Servicing Europe:

Tel: [phone] FAX: [phone]

Czech Republic ul. Rude armady 1868, 733 01 Karvina-Hranice
Tel: [phone] FAX: [phone]

France: 9, rue Denis Papin, 78190 Trappes
Tel: [phone] FAX: [phone]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
Tel: [phone] FAX: [phone]

United Kingdom: One Omega Drive, River Bend Technology Centre
ISO 9002 Certified Northbank, Irlam, Manchester

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certification of its products to the European New Approach Directives.
OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

Toll Free in Benelux: 0800 0993344
e-mail: [e-mail]

Toll Free: 0800-1-66342 e-mail: [e-mail]

Toll Free in France: 0800-4-06342
e-mail: [e-mail]

Toll Free in Germany: 0130 11 21 66
e-mail: [e-mail]

M44 5EX, England
Tel: [phone] FAX: [phone]
Toll Free in the United Kingdom: 0800-488-488
e-mail: [e-mail]

SS2042 02/26/99 Rev.A

General Information
The PX2150 Series Ultra High Purity Pressure Transducer and Transmitter has been

factory tested and calibrated prior to shipment. Specific details of the performance not
listed herein can be obtained from the product specification bulletin.

Environmental Conditions
The PX2150 Series are designed to be operated and stored under the following

environmental conditions:

Temperature

Operating: -40 to 180°F (-40 to 82°C)
Storage: -65 to 260°F (-54 to 126°C)

Electrical Connections

Voltage Output Transducers

The voltage output transducers are a three (3) wire device where the negative output
and excitation are commoned together internally on the PX2150 circuit board. Four (4)
wires are provided for the users convenience. The PX2150 is provided with either a 6
foot cable or a bayonet style connector. The connections are shown below and
depicted in Figure 1A and 1B:

Cable Pin Bayonet Pin Function
Red A + Excitation; connects to a 12 VDC+/-10% Power supply
Green B + Output; connects to controller or monitoring device
White C - Output; connects to controller or monitoring device
Black D - Excitation; connects to return of 12 VDC power supply
Shield Connects to system or Earth ground

Power

Supply

PX 2150

Transducer

(0 to 5 VDC)

Red Black White Green

+

+

Load

(Monitor)

__

Figure 1A

Power

Supply

PX 2150

Transducer

(0 to 5 VDC)

Pin A Pin D Pin C Pin B

+

+

Load

(Monitor)

__

Figure 1B
