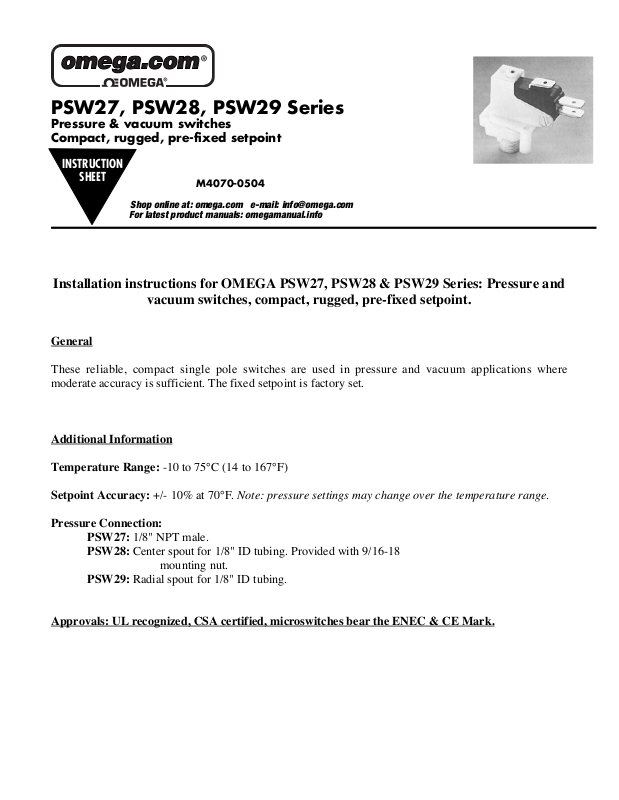

Omega Products PSW28V-30W User Manual



PSW27, PSW28, PSW29 Series

Pressure & vacuum switches
Compact, rugged, pre-fixed setpoint

INSTRUCTION

SHEET

Shop online at: omega.com e-mail: [e-mail]
For latest product manuals: omegamanual.info

Installation instructions for OMEGA PSW27, PSW28 & PSW29 Series: Pressure and

vacuum switches, compact, rugged, pre-fixed setpoint.

General

These reliable, compact single pole switches are used in pressure and vacuum applications where
moderate accuracy is sufficient. The fixed setpoint is factory set.

M4070-0504

Additional Information

Temperature Range: -10 to 75°C (14 to 167°F)

Setpoint Accuracy: +/- 10% at 70°F. Note: pressure settings may change over the temperature range.

Pressure Connection:

PSW27: 1/8" NPT male.
PSW28: Center spout for 1/8" ID tubing. Provided with 9/16-18

mounting nut.

PSW29: Radial spout for 1/8" ID tubing.

Approvals: UL recognized, CSA certified, microswitches bear the ENEC & CE Mark.

PSW27 Series

)

)

)

)

)

)

)

)

Mounting Instructions

PSW27 series come with a 1/8 NPT male pressure connection with a 9/16 threaded mounting, and nut is
included.

Electrical/Pneumatic Specification for PSW27 Series Pressure Switches

Model No. Fixed Setpoint Proof Pressure SPDT Switch Rating

PSW27-1P 1 psig 30 psig 10 amps (resistive)

PSW27-2P 2 psig 50 psig 21 amps (resistive)

PSW27-5P 5 psig 50 psig 21 amps (resistive)

PSW27-10P 10 psig 50 psig 21 amps (resistive)

PSW27-20P 20 psig 50 psig 21 amps (resistive)

PSW27-30P 30 psig 80 psig 21 amps (resistive)

PSW27-40P 40 psig 80 psig 21 amps (resistive)

PSW27-50P 50 psig 80 psig 21 amps (resistive)

Electrical/Pneumatic Specifications for PSW27V Vacuum Switches

Model No. Fixed Setpoint Proof Pressure

PSW27V-25W 25" WC Vac 300" WC Vac 10 amps (resistive

PSW27V-30W 30" WC Vac 300" WC Vac 10 amps (resistive

PSW27V-40W 40" WC Vac 300" WC Vac 21 amps (resistive

PSW27V-50W 50" WC Vac 300" WC Vac 21 amps (resistive

SPDT Switch Rating

PSW27V-75W 75" WC Vac 350" WC Vac 21 amps (resistive

PSW27V-100W 100" WC Vac 350" WC Vac 21 amps (resistive

PSW27V-150W 150" WC Vac 350" WC Vac 21 amps (resistive

PSW27V-200W 200" WC Vac 350" WC Vac 21 amps (resistive

PSW28 Series

Mounting Instructions

PSW28 Series come with a center spout for 1/8” ID tubing, with a 9/16 mounting thread and tube lock nut
included.

Electrical/Pneumatic Specifications for PSW28 Pressure Series

Model No. Fixed Setpoint Proof Pressure SPDT Switch Rating

PSW28-1P 1 psig 30 psig 10 amps (resistive)

PSW28-2P 2 psig 50 psig 21 amps (resistive)

PSW28-5P 5 psig 50 psig 21 amps (resistive)

PSW28-10P 10 psig 50 psig 25 amps (resistive)

PSW28-20P 20 psig 50 psig 25 amps (resistive)

PSW28-30P 30 psig 80 psig 25 amps (resistive)

PSW28-40P 40 psig 80 psig 25 amps (resistive)

PSW28-50P 50 psig 80 psig 25 amps (resistive)

Electrical/Pneumatic Specifications for PSW28V Vacuum Series

Model No. Fixed Setpoint Proof Pressure SPDT Switch Rating

PSW28V-25W 25" WC Vac 300" WC Vac 10 amps (resistive)

PSW28V-30W 30" WC Vac 300" WC Vac 10 amps (resistive)

PSW28V-40W 40" WC Vac 300" WC Vac 21 amps (resistive)

PSW28V-50W 50" WC Vac 300" WC Vac 21 amps (resistive)

PSW28V-75W 75" WC Vac 350" WC Vac 21 amps (resistive)

PSW28V-100W 100" WC Vac 350" WC Vac 21 amps (resistive)

PSW29 Series

Mounting Instructions

Radial spout for 1/8" ID tubing. Through hole legs for mounting bolt.

Electrical/Pneumatic Specifications for PSW29 Pressure series

Model No. Fixed Setpoint Proof Pressure SPDT Switch Rating

PSW29-1P 1 psig 30 psig 10 amps (resistive)

PSW29-2P 2 psig 50 psig 21 amps (resistive)

PSW29-5P 5 psig 50 psig 21 amps (resistive)

PSW29-10P 10 psig 50 psig 21 amps (resistive)

PSW29-20P 20 psig 50 psig 21 amps (resistive)

PSW29-30P 30 psig 50 psig 21 amps (resistive)

Materials of Construction (All Series)

Body Acetal

Diaphragm

Hysteresis (Dead

Band)

Electrical

Connection

Proof Pressure See table.

Media

Compatibility

EPDM (Ethylene-Propylene Diene Monomer) The EPDM diaphragm should not be

used with petroleum products. Specificy Nitrile for these assplications.

Pressure switches: approximately 25% of the setpoint.
Vacuum switches: approximately 30% of the setpoint.

6.35mm (0.25:) standard “Slide-On” male terminals

Air, water and many other fluids and gases that are compatible with EPDM & Acetal.

Note: Mineral Oil and similar fluids are not compatible with EPDM. Request Nitrile

diaphragm.

Overall

Dimensions

Weight 6 g (0.2 oz)

Listings UL Recognized & CSA Certified

46 x 51 x 26 mm (approximately 1.75" x 2" x 1")
