Omega Products PHP-601 User Manual

L-X
VERSATILITY OF DESIGN
The PHP-600 Series pumps have been designed to meet the ever­changing needs of industry. To accommodate diverse applications, the pumps can be easily mounted anywhere in your plant with a broad, flat base and mounting holes for tank, shelf or floor mounting (horizontal). The rear of the pump housing also provides mounting holes to facilitate vertical mounting; wall, tank or machine. With the pump valve assembly and unit controls both located on the front of the pump, there is never a problem with installation or flow adjustments.
SIMPLE OPERATION
The PHP-600 Series pumps are equipped with a single control for pump output. The external Flow Rate Control (potentiometer) on the face of the pump allows you to adjust the percentage of flow from 0 to 100% of the pump’s rated capacity. This feature eliminates the need to worry about stroke lengths and power settings. An LED indicator lights up each time a stroke begins. This allows the user to assess the stroke rate from a distance.
HIGH QUALITY MATERIALS
The PHP-600 Series pumps have been manufactured with the highest level of mechanical precision from materials chosen for their inherent ability to resist the effects of most aggressive chemicals. When you select a PHP-600 Series pump you are eliminating the time consuming
effort involved in picking the right material for your application. The PHP-600 Series pumps are supplied with the highest quality material as standard equipment, not optional. The diaphragm utilizes one-piece construction of PTFE, which unlike conventional laminated diaphragms will stand up to the test of time and wear. Ball valves are constructed in glass. The pump head, and O-rings are all made of FKM, PTFE or PVDF, which offer unsurpassed resistance to the chemicals in your industry.
RUGGED DESIGN
The PHP-600 Series pumps are completely sealed during assembly and offer NEMA 4 (IP65) protection against splashes and spills providing excellent protection even in hostile environments. The fiber­reinforced polypropylene housing stands up to most aggressive chemicals while offering superior strength under tough industrial conditions.
PHP-600 Series
Starts at
$
225
CHEMICAL METERING PUMPS
Flow Rates from 1.5 to
18.3 Liters per Hour
Simple OperationDesigned For Floor or
Wall Mounting
NEMA 4 (IP65) Protection
PHP-601, $225, shown smaller than actual size.
Comes complete with
discharge and suction
valves installed, 7 m
(23') polyethylene
tubing, and operator’s
manual.
RELIABILITY THROUGH SIMPLICITY
The PHP-600 Series positive displacement solenoid driven pumps use a minimum number of moving parts, therefore reducing the chance of mechanical failure. Part wear and oiling associated with motor driven pumps (ball-bearings, gear drives and cams) are not present in these pumps. The PHP-600 Series pumps are more accurate than standard pumps with the positive displacement design ensuring each stroke is identical to the strokes before and after it, thus keeping the flow rate constant.
THE PHP-600 SERIES PUMPS
A wide range of the PHP-600 Series pumps with different dosing capacities is available for your specific dosing needs. Each pump is supplied with discharge and suction valves. Polyethylene tubing, injection fittings, ceramic weights and replacement parts are also available.
L-X
L
165.2 (6.50)
65
*
(2.56)
120.7 (4.75)
176.3
**
(6.94)
194.3 (7.65)
151.4 (5.96)
151.4 (6.06)
165.2 (6.50)
PHP-601, $225, shown smaller than actual size.
SPECIFICATIONS
Power: 110/115 V 50/60 Hz
220/240 V 50/60 Hz (optional) Dimensions: 165 H x 194 W x 121 mm D
(6.5 x 7.6 x 4.8")
Weight: Approx. 3 kg (6.6 lb) Pump Casing:
Fiber-reinforced polypropylene
Max. Absorbed: Approx. 200W Power Protection: NEMA 4 (IP65) Environment:
From 0 to 50°C (32 to 122°F); max RH 95% non-condensing
Fittings: Polyethylene 5 x 8 mm tubing,
3
8" gas pipeline injection fitting
Pump Head: Pump head in PVDF, diaphragm and valve seats in PTFE glass ball Valves and O-rings in FKM
Self-Priming: Max self-priming height
1.5 m (5')
Comes complete with discharge and suction valves installed, 7 m (23') polyethylene tubing, and operator’s manual. Add suffix “-220VAC” to model number for 220/240V operation, no additional charge.
Ordering Examples: PHP-601, chemical metering pump, $225. PHP-605, chemical metering pump, and PHP-600-IVA, injection valve assembly, $260 + 23 = $283.
Dimensions:
mm (in)
Side View of Pump
Front View
of Pump
To Order
(Specify Model Number)
Max Capacity Rated Pressure
Strokes
Model No. Price LPH GPH PSI BAR Per Minute Small Diaphragm PHP-601 $225 1.5 0.4 188.5 13.0 120 PHP-602 225 2.9 0.8 116.0 8.0 120 PHP-603 235 5.0 1.3 101.5 7.0 120 Large Diaphragm PHP-604 $255 7.6 2.0 43.5 3.0 120 PHP-605 260 10.8 2.9 43.5 3.0 120 PHP-606 265 15.2 4.0 14.5 1.0 120 PHP-607 299 18.3 4.8 7.3 0.5 120
MOST POPULAR MODELS HIGHLIGHTED!

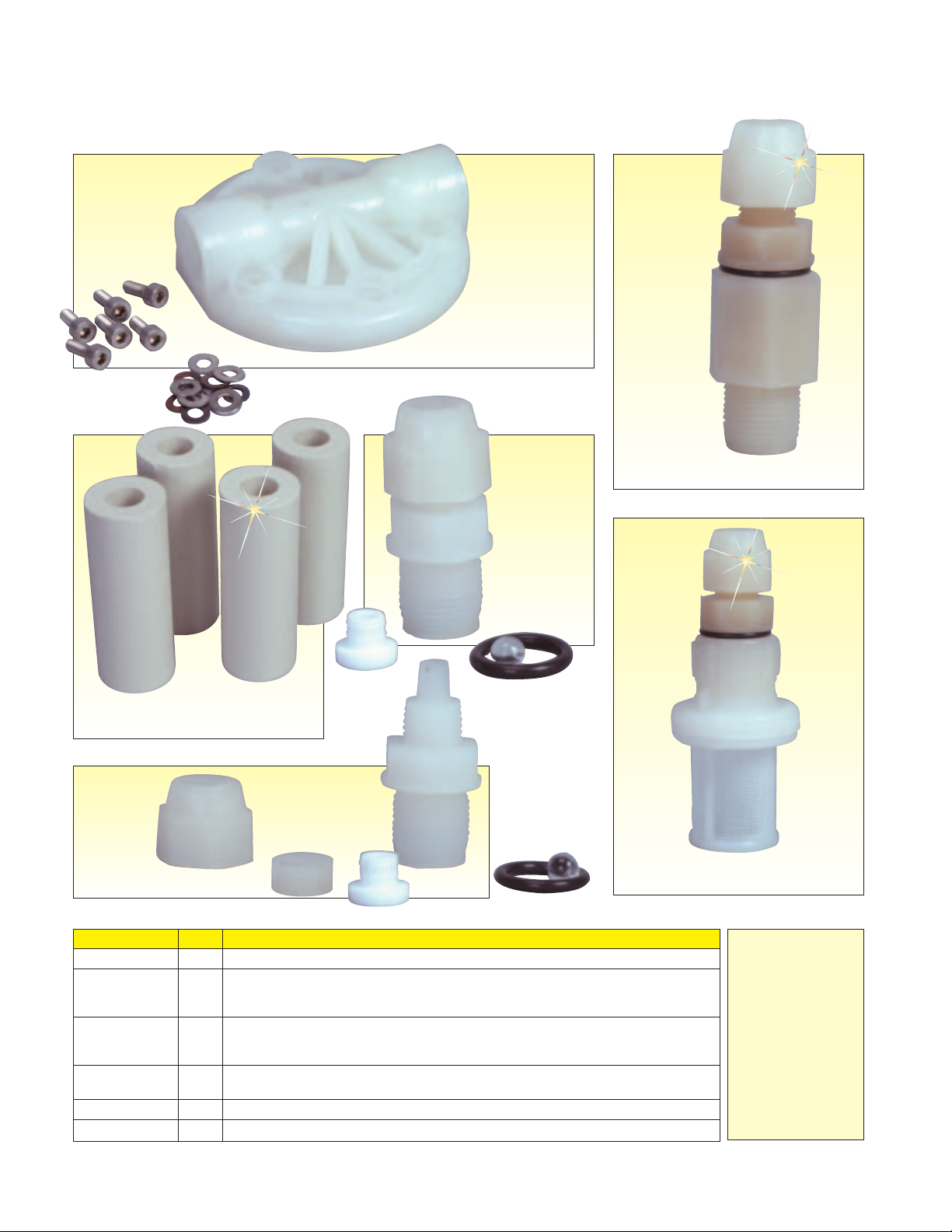

Accessories
Model No. Price Description PHP-600-PHK $70 PVDF pumphead, PTFE coated O-ring and 6 screws and washers PHP-600-DVA 25 Spare discharge valve assembly, complete with a FKM O-ring, glass valve ball,
the valve spacer and seat, head nipple and the tube nut to secure the assembled parts
PHP-600-SVA 25 Spare suction valve assembly, complete with a FKM O-ring, glass valve ball, the valve
spacer and seat, head nipple and the tube nut to secure the assembled parts
PHP-600-IVA 23 Injection valve assembly, complete with and injection nipple, PTFE coated spring,
glass valve ball and a valve assembly
PHP-600-FVA 20 Foot valve assembly contains a filter with a filter holder, and a valve assembly PHP-600-CW 25 4 x ceramic weight CM-4226 60 Reference Book: Chemical Engineering
*Dimensions for floor mounting
**Dimensions for floor and wall mounting
L-X
PHP-600-CW, $25, shown smaller than actual size.
PHP-600-PHK, $70, shown smaller than actual size.
Accessories
PHP-600-SVA, $25, shown larger than actual size.
PHP-600-FVA, $20,
shown larger than actual size.
Model No. Price Description PHP-600-PHK $70 Kynar pumphead, PTFE coated O-ring and 6 screws and washers PHP-600-DVA 25 Spare discharge valve assembly, complete with a FKM O-ring, glass
valve ball, the valve spacer and seat, head nipple and the tube nut to secure the assembled parts
PHP-600-SVA 25 Spare suction valve assembly, complete with a FKM O-ring, glass valve ball,
the valve spacer and seat, head nipple and the tube nut to secure the assembled parts
PHP-600-IVA 23 Injection valve assembly, complete with and injection nipple, PTFE
coated spring, glass valve ball and a valve assembly
PHP-600-FVA 20 Foot valve assembly contains a filter with a filter holder, and a valve assembly PHP-600-CW 25 4 x ceramic weight
PHP-600-DVA, $25, shown larger than actual size.
PHP-600-IVA, $23, shown larger than actual size.
PUMP ACCESSORIES FOR PHP-600 AND PHP-700 SERIES
AVAILABLE FOR FAST DELIVERY!
Recommended
Reference Book:
Newnes Mechanical
Engineer’s Pocket
,
CS-2024, $50
See Section Y
For Additional Books
