Omega Products PHH-253-KIT User Manual
B-23
U.S.A. and Canada
For Sales
& Service
Model No. Price Description
PHE-4201 $51 Clear, epoxy-bodied, gel-filled combination replacement electrode
ORE-1411 86 Double junction ORP probe
PHAT-253 80 Replacement temperature probe
FW-300 99.95 Reference Book: Water Wells and Septic Systems Handbook
PHH-253-KIT
$
475
To Order
(Specify Model Number)
Model No. Price Description
PHH-253-KIT $475 pH meter with case, pH electrode and temperature probe
Includes meter, epoxy-bodied general purpose pH electrode, temperature probe, carrying case
and operator’s manual.
Ordering Example: PHH-253-KIT, portable pH/mV and temperature meter and
PHE-4201, replacement electrode, $475 + 51 = $526.

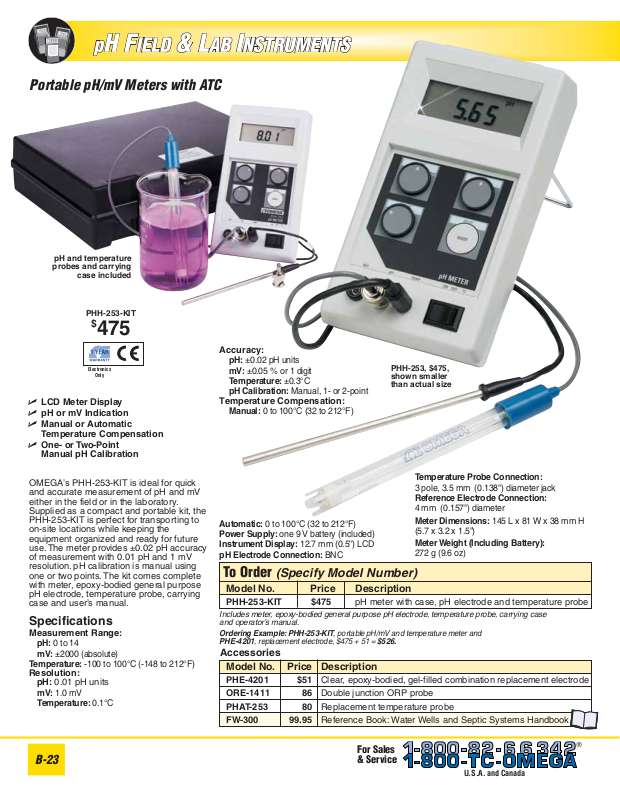

Portable pH/mV Meters with ATC
OMEGA’s PHH-253-KIT is ideal for quick
and accurate measurement of pH and mV
either in the field or in the laboratory.
Supplied as a compact and portable kit, the
PHH-253-KIT is perfect for transporting to
on-site locations while keeping the
equipment organized and ready for future
use. The meter provides ±0.02 pH accuracy
of measurement with 0.01 pH and 1 mV
resolution. pH calibration is manual using
one or two points. The kit comes complete
with meter, epoxy-bodied general purpose
pH electrode, temperature probe, carrying
case and user’s manual.
Specifications
Measurement Range:
pH: 0 to 14
mV: ±2000 (absolute)
Temperature: -100 to 100°C (-148 to 212°F)
Resolution:
pH: 0.01 pH units
mV: 1.0 mV
Temperature: 0.1°C
⻬ LCD Meter Display
⻬ pH or mV Indication
⻬ Manual or Automatic
Temperature Compensation
⻬ One- or Two-Point
Manual pH Calibration
PHH-253, $475,
shown smaller
than actual size
pH and temperature
probes and carrying
case included
Accessories
Temperature Probe Connection:
3 pole, 3.5 mm (0.138") diameter jack
Reference Electrode Connection:
4 mm (0.157") diameter
Meter Dimensions: 145 L x 81 W x 38 mm H
(5.7 x 3.2 x 1.5")
Meter Weight (Including Battery):
272 g (9.6 oz)
Accuracy:
pH: ±0.02 pH units
mV: ±0.05 % or 1 digit
Temperature: ±0.3°C
pH Calibration: Manual, 1- or 2-point
Temperature Compensation:
Manual: 0 to 100°C (32 to 212°F)
Automatic: 0 to 100°C (32 to 212°F)
Power Supply: one 9 V battery (included)
Instrument Display: 12.7 mm (0.5'') LCD
pH Electrode Connection: BNC
Electronics
Only
