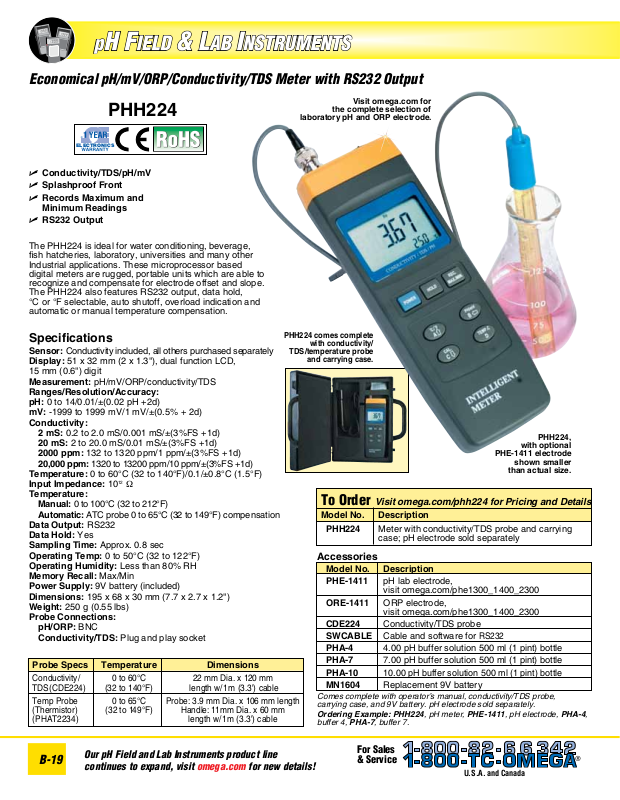

Omega Products PHH224 User Manual

Economical pH/mV/ORP/Conductivity/TDS Meter with RS232 Output

ELECTRONIC

Visit omega.com for

PHH224

U Conductivity/TDS/pH/mV U Splashproof Front U Records Maximum and

Minimum Readings

U RS232 Output

The PHH224 is ideal for water conditioning, beverage, ﬁsh hatcheries, laboratory, universities and many other Industrial applications. These microprocessor based digital meters are rugged, portable units which are able to recognize and compensate for electrode offset and slope. The PHH224 also features RS232 output, data hold, °C or °F selectable, auto shutoff, overload indication and automatic or manual temperature compensation.

laboratory pH and ORP electrode.

the complete selection of

Speciﬁcations

Sensor: Conductivity included, all others purchased separately Display: 51 x 32 mm (2 x 1.3"), dual function LCD,

15 mm (0.6") digit

Measurement: pH/mV/ORP/conductivity/TDS Ranges/Resolution/Accuracy: pH: 0 to 14/0.01/±(0.02 pH +2d) mV: -1999 to 1999 mV/1 mV/±(0.5% + 2d) Conductivity:

2 mS: 0.2 to 2.0 mS/0.001 mS/±(3%FS +1d) 20 mS: 2 to 20.0 mS/0.01 mS/±(3%FS +1d) 2000 ppm: 132 to 1320 ppm/1 ppm/±(3%FS +1d) 20,000 ppm: 1320 to 13200 ppm/10 ppm/±(3%FS +1d)

Temperature: 0 to 60°C (32 to 140°F)/0.1/±0.8°C (1.5°F) Input Impedance: 10 Temperature:

Manual: 0 to 100°C (32 to 212°F) Automatic: ATC probe 0 to 65°C (32 to 149°F) compensation

Data Output: RS232 Data Hold: Yes Sampling Time: Approx. 0.8 sec Operating Temp: 0 to 50°C (32 to 122°F) Operating Humidity: Less than 80% RH Memory Recall: Max/Min Power Supply: 9V battery (included) Dimensions: 195 x 68 x 30 mm (7.7 x 2.7 x 1.2") Weight: 250 g (0.55 lbs) Probe Connections: pH/ORP: BNC Conductivity/TDS: Plug and play socket

Probe Specs Temperature Dimensions

Conductivity/ 0 to 60°C 22 mm Dia. x 120 mm

TDS(CDE224) (32 to 140°F) length w/1 m (3.3') cable Temp Probe 0 to 65°C Probe: 3.9 mm Dia. x 106 mm length

(Thermistor) (32 to 149°F) Handle: 11 mm Dia. x 60 mm (PHAT2234) length w/1 m (3.3') cable

PHH224 comes complete

TDS/temperature probe

with conductivity/

and carrying case.

PHH224,

with optional

PHE-1411 electrode

shown smaller

than actual size.

To Order Visit omega.com/phh224 for Pricing and Details

Model No. Description

PHH224 Meter with conductivity/TDS probe and carrying

Accessories

Model No. Description PHE-1411 pH lab electrode,

ORE-1411 ORP electrode,

CDE224 Conductivity/TDS probe SWCABLE Cable and software for

PHA-4 4.00 pH buffer solution 500 ml (1 pint) bottle PHA-7 7.00 pH buffer solution 500 ml (1 pint) bottle PHA-10 MN1604 Replacement 9V battery

Comes complete with operator’s manual, conductivity/TDS probe, carrying case, and 9V battery. pH electrode sold separately.

Ordering Example: PHH224, pH meter, PHE-1411, pH electrode, PHA-4, buffer 4, PHA-7, buffer 7.

case; pH electrode sold separately

visit omega.com/phe1300_1400_2300

RS232

10.00 pH buffer solution 500 ml (1 pint) bottle

B-19

Our pH Field and Lab Instruments product line continues to expand, visit omega.com for new details!
