Omega Products PHH-128 User Manual
omega.comomega.com
®

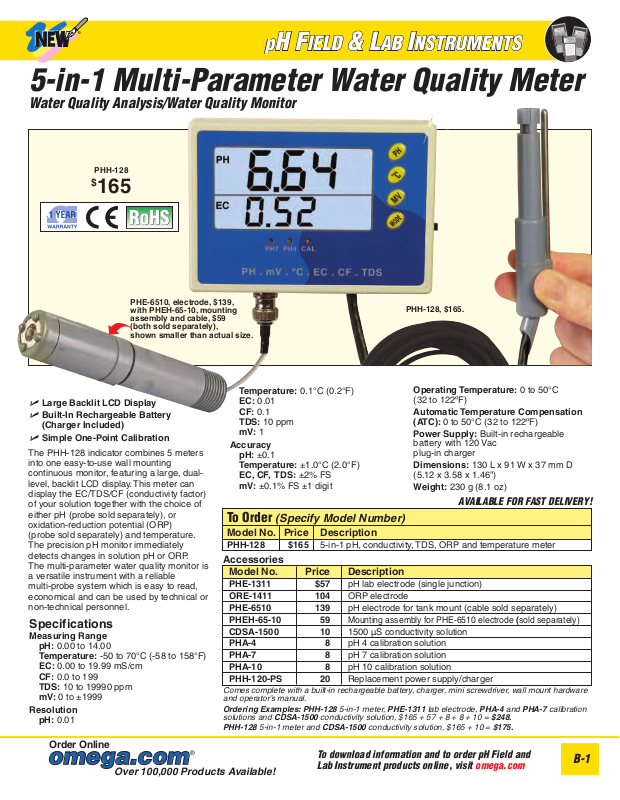

5-in-1 Multi-Parameter Water Quality Meter
Water Quality Analysis/Water Quality Monitor
PHH-128
$
165
PHE-6510, electrode, $139,
with PHEH-65-10, mounting
assembly and cable, $59
(both sold separately),
shown smaller than actual size.
⻬ Large Backlit LCD Display
⻬ Built-In Rechargeable Battery
(Charger Included)
⻬ Simple One-Point Calibration
The PHH-128 indicator combines 5 meters
into one easy-to-use wall mounting
continuous monitor, featuring a large, duallevel, backlit LCD display. This meter can
display the EC/TDS/CF (conductivity factor)
of your solution together with the choice of
either pH (probe sold separately), or
oxidation-reduction potential (ORP)
(probe sold separately) and temperature.
The precision pH monitor immediately
detects changes in solution pH or ORP.
The multi-parameter water quality monitor is
a versatile instrument with a reliable
multi-probe system which is easy to read,
economical and can be used by technical or
non-technical personnel.
Specifications
Measuring Range
pH: 0.00 to 14.00
Temperature: -50 to 70°C (-58 to 158°F)
EC: 0.00 to 19.99 mS/cm
CF: 0.0 to 199
TDS: 10 to 19990 ppm
mV: 0 to ±1999
Resolution
pH: 0.01
PHH-128, $165.
Temperature: 0.1°C (0.2°F)
EC: 0.01
CF: 0.1
TDS: 10 ppm
mV: 1
Accuracy
pH: ±0.1
Temperature: ±1.0°C (2.0°F)
EC, CF, TDS: ±2% FS
mV: ±0.1% FS ±1 digit
Operating Temperature: 0 to 50°C
(32 to 122ºF)
Automatic Temperature Compensation
(ATC): 0 to 50°C (32 to 122ºF)
Power Supply: Built-in rechargeable
battery with 120 Vac
plug-in charger
Dimensions: 130 L x 91 W x 37 mm D
(5.12 x 3.58 x 1.46")
Weight: 230 g (8.1 oz)
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
Model No. Price Description
PHH-128 $165 5-in-1 pH, conductivity, TDS, ORP and temperature meter
Accessories
Model No. Price Description
PHE-1311 $57 pH lab electrode (single junction)
ORE-1411 104 ORP electrode
PHE-6510 139 pH electrode for tank mount (cable sold separately)
PHEH-65-10 59
CDSA-1500 10 1500 µS conductivity solution
PHA-4 8 pH 4 calibration solution
PHA-7 8 pH 7 calibration solution
PHA-10 8 pH 10 calibration solution
PHH-120-PS 20 Replacement power supply/charger
Comes complete with a built-in rechargeable battery, charger, mini screwdriver, wall mount hardware
and operator’s manual.
Ordering Examples: PHH-128 5-in-1 meter, PHE-1311 lab electrode, PHA-4 and PHA-7 calibration
solutions and CDSA-1500 conductivity solution, $165 + 57 + 8 + 8 + 10 = $248.
PHH-128 5-in-1 meter and CDSA-1500 conductivity solution, $165 + 10 = $175.
Mounting assembly for PHE-6510 electrode (sold separately)
Order Online
Over 100,000 Products Available!
To download information and to order pH Field and
Lab Instrument products online, visit omega.com
B-1
