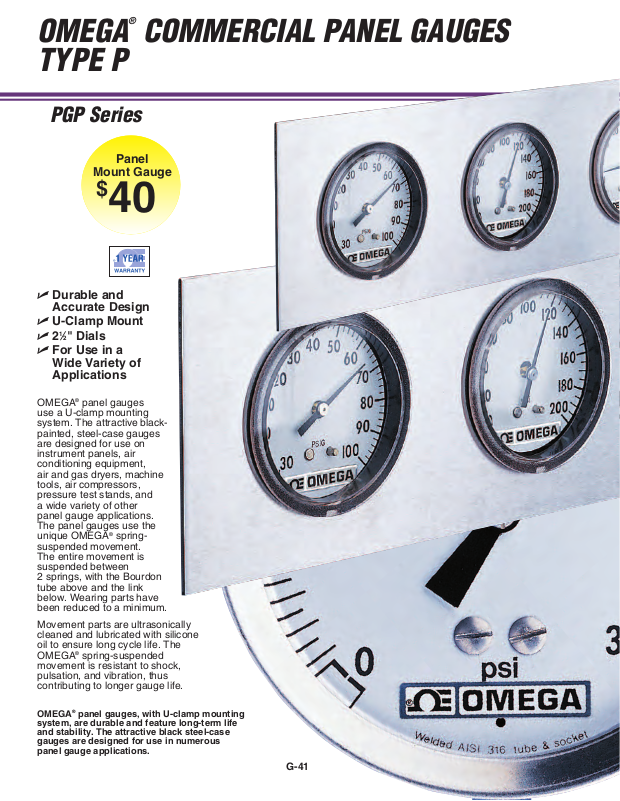

OMEGA®COMMERCIAL PANEL GAUGES
TYPE P

PGP Series

Panel

Mount Gauge

$

40

⻬ Durable and

Accurate Design

⻬ U-Clamp Mount

1

⁄2" Dials

⻬ 2
⻬ For Use in a

Wide Variety of
Applications

OMEGA®panel gauges
use a U-clamp mounting
system. The attractive black­painted, steel-case gauges
are designed for use on
instrument panels, air
conditioning equipment,
air and gas dryers, machine
tools, air compressors,
pressure test stands, and
a wide variety of other
panel gauge applications.
The panel gauges use the
unique OMEGA®spring­suspended movement.
The entire movement is
suspended between
2 springs, with the Bourdon
tube above and the link
below. Wearing parts have
been reduced to a minimum.

Movement parts are ultrasonically
cleaned and lubricated with silicone
oil to ensure long cycle life. The
OMEGA®spring-suspended
movement is resistant to shock,
pulsation, and vibration, thus
contributing to longer gauge life.

OMEGA®panel gauges, with U-clamp mounting
system, are durable and feature long-term life
and stability. The attractive black steel-case
gauges are designed for use in numerous
panel gauge applications.

G-41

A

E

B

D

H

J

10-32 STUDS

CUSTOMER'S PANEL

1/4 NPT

CG

F

HOW TO ORDER PANEL-MOUNT GAUGES

See Section Y for a

Selection of Scientific,

Technical, and Reference

Books Available from

omega.com

PGP Panel
Mount

Dimensions: mm (in)

DIAL SIZE ABCDEFGHJ

63.5 73 25 68 51 7 25 51 22 14 sq

1

(2

⁄2) (27⁄8) (1) (211⁄16) (2) (7⁄32) (1) (2) (7⁄8)(9⁄16 ) sq

PRESSURE

GAUGES

G

SPECIFICATIONS

Case: Painted steel
Window: Polycarbonate plastic
Bourdon Tube: Bronze
Connection: Back
Fitting:
Dial Size: 2
Mounting: “U” bracket

1

⁄4 NPT brass

1

⁄2" Dia.

Warning: To prevent misapplication,
all gauge components should be
chosen with an eye to the media
and ambient operating conditions
to which they will be subjected.
Improper application can be
detrimental to the gauge, causing
failure and possible personal injury
and property damage.

Ranges: Vacuum through 400 psi
Accuracy: 3-2-3%

3% first 10%, 2% middle 80%, 3% last 10%

Temperature: 66°C (150°F) max

MOST POPULAR RANGES HIGHLIGHTED!

RANGE CODE RANGE

30V 30/0 inHg vac
30V/15 30 inHg vac to 15 psi
30V/30 30 inHg vac to 30 psi
30V/60 30 inHg vac to 60 psi
30V/100 30 inHg vac to 100 psi
30V/300 30 inHg vac to 300 psi
15 0 to 15 psi
30 0 to 30 psi
60 0 to 60 psi
100 0 to 100 psi
160 0 to 160 psi
200 0 to 200 psi
300 0 to 300 psi
400 0 to 400 psi

DIAL SIZE MODEL NO. CONNECTION PRICE

21⁄2" PGP-25B-[*] Back $40

Insert range code from table above.

*

Ordering Example: PGP-25B-100, pressure gauge, commercial panel type, U-clamp mount,

1

2

" dial, back connection, 0 to 100 psi range, $40.

⁄
