Omega Products OS551A-MA-4 User Manual

Industrial Infrared Thermometer

Non-Contact Temperature Measurement with Integral Display and Analog Output

OS550A Series

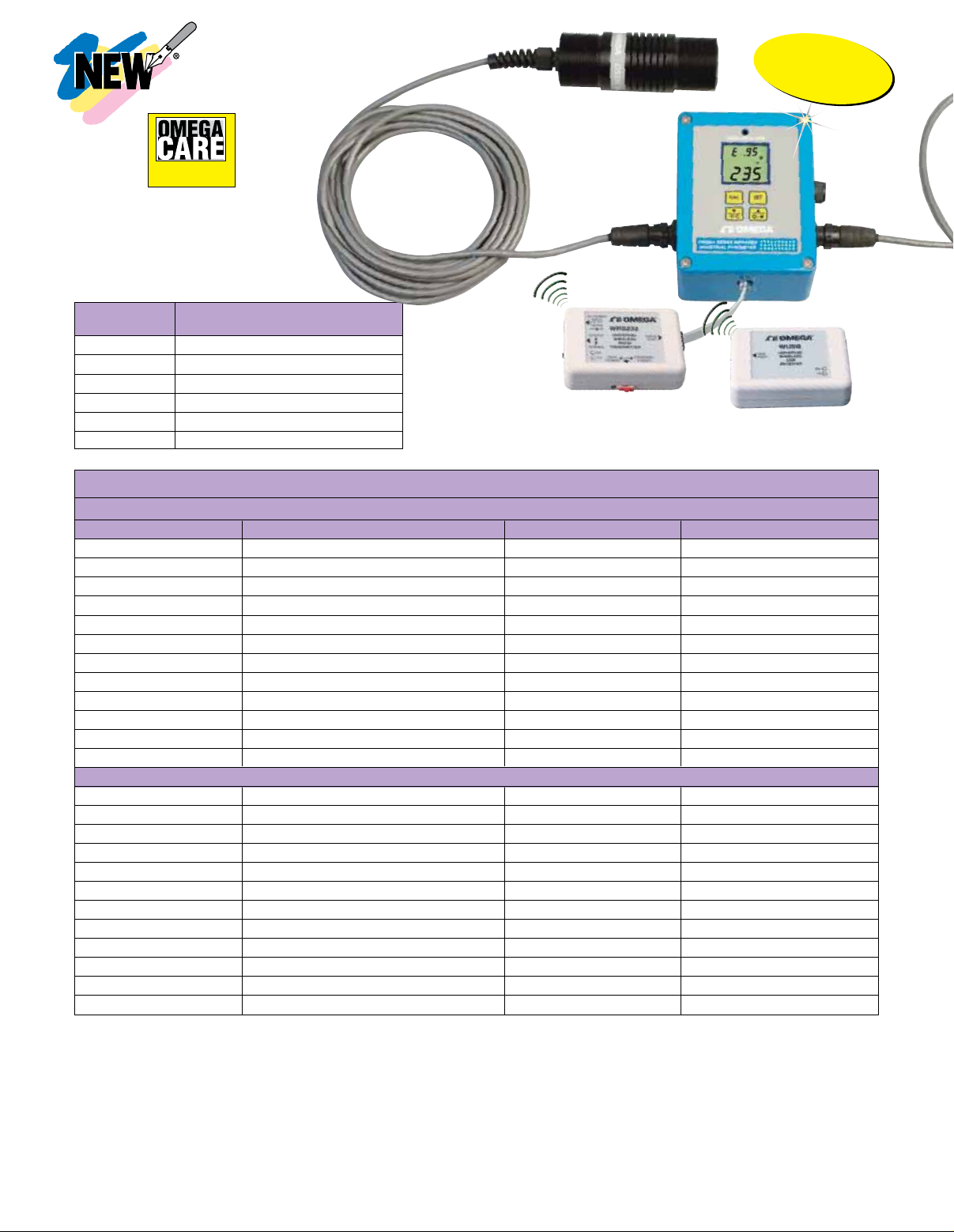

OS550A

shown smaller

than actual size.

4 Models for Temperature Measurements up to 1370°C (2500°F)

±1% Rdg Accuracy

Voltage/Current Analog Output

Backlit LCD

Dual Display Design Indicates Min/Max/Avg or ∆T Temperatures

Adjustable Emissivity

Data Storage and Logging

High/Low Voltage Alarm Outputs with Red LED Indication

Fast 100 ms Response Time

U Two-Way

Communications Available

Available with NEMA 4 Plastic or Aluminum Housing, or with No Case for OEM Applications

U Windows

Application Data Logging Software

The new OMEGA® OS550A series infrared thermometers offer an industrial, high performance, economical transmitter package with a wide choice of temperature ranges, optical ﬁelds of view and analog outputs to feed directly to panel meters, recorders,

RS232

Based PC

Laptop not

temperature/process controllers, data loggers, data acquisition systems or other process instrumentation.

Since the OS550A Series infrared thermometers do not use chopper motors or vibrator mechanisms, they can be mounted in any position and in hostile environments without suffering any loss in performance.

This rugged design coupled with relatively small dimensions makes these sensors ideally suited for a wide variety of applications.

Speciﬁcations

General

Accuracy: ±1% rdg or 1.7°C (3°F),

whichever is greater; 25°C ambient,

0.95 emissivity

Repeatability: ±(1% rdg + 1 digit) Spectral Response: 8 to 14 microns Emissivity: 0.10 to 1.00 in 0.01 steps Response Time: 100 ms, 0 to 63.5% of

ﬁnal value

Display: Backlit LCD Analog Output: 1 mV/degree,

0 to 5 Vdc or 4 to 20 mA Alarms: High and low; red LED and

audible indicators; two voltage outputs, 100 mA current to drive external relays

Power: 8 to 24 Vdc, 80 mA PC Interface (OS552A/553A/554A

Models Only): RS232, 2-way, PC user

software included

††

Refer to Accessories on next page for

NIST calibration ordering information.

J-73

††

Optional

included.

FREE

Data Logging

Software Included With

OS552A,

OS553A and OS554A

High Temperature and

See Through Glass Model

Available—OS555A

Visit omega.com/os555a

Environmental

Rating: NEMA 4 (IP65); sensor head

and plastic or aluminum electronics enclosure

Operating Ambient: 0 to 50°C (32 to 122°F) electronics and standard sensing head; 85°C (185°F) max temp for sensing head with OS550-WC water cooled jacket

Physical Dimensions: Sensing Head: 109 L x 41 OD mm (4.3 x 1.63"); 1.5-20 thread Electronics, Plastic Case: 120 H x 80 W x 51 mm L (4.75 x 3.15 x 2") Electronics, Aluminum Case: 115 H x 90 W x 56 mm L (4.5 x 3.5 x 2.2")

Connections: 4.5 m (15') sensor head and power/output cables included

Weight: 0.45 kg (12 oz) sensing head;

1.2 kg (42.3 oz) plastic case

Laser Sighting

Wavelength: 650 nm, red Operating Distance: Up to 12 m (40') Max Laser Power Output:

Less than 1 mW Classiﬁcation: FDA Class II Laser

product; European Class 2

Beam Diameter: 5 mm Operating Ambient: 0 to 50°C

(32 to 122°F)

Shahin Baghai X7896

5/22/03 L-1615 SqLabelColorComp.eps

200%

For Reference Only

ACTUAL SIZE

Bleed

LASER RADIATION - DO NOT STARE INTO BEAM

LASER RADIATION DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. CLASS 2 LASER PRODUCT.

MAX. OUTPUT 1mW, WAVELENGTH 630-670 nm, CLASS II (2)

LASER PRODUCT. COMPLIES WITH FDA 21CFR 1040.10

CAUTION

AVOID EXPOSURE. LASER

RADIATION IS EMITTED FROM THIS APERTURE

TYPE AND RULES PRINT BLACK 100%

BACKGROUND YELLOW 100%

Available Accessories

OS550-MF mounting ﬂange.

OS550-AP

air purge collar.

OS550-MN

mounting nut.

OS550-WC air/water cooling jacket.

OS550-MB mounting bracket.

Accessories

OS550A sensor head (included), shown with optional mounting bracket and mounting nut.

OS550-LS laser sighting with included battery pack.

Make it Wireless with

Optional RS232 to USB Wireless

Transceiver!

WRS232-USB

wireless transceiver,

sold separately. Shown

smaller than actual size.

Make it Wireless!

The WRS232-USB transceiver can make the OS550A wireless! Simply attach the WRS232 transceiver to the RS232 port on the OS550A, and the WUSB transceiver to a USB port on your PC. Capable of full, two-way communications, the WRS232-USB operates transparently to the user. The WRS232-USB can extend the distance from your PC to your instrumentation, up to 40 m (130') in indoor/urban settings, or up to 120 m (400') outdoors/line of sight.

We make

running changes

when technical

advances allow.

Check at time of ordering for

additional features.

OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales representative for full details

Extended Warranty

Program

when placing an order. OMEGACARE covers parts, labor and equivalent loaners.

LASER RADIATION DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. CLASS 2 LASER PRODUCT.

LASER RADIATION - DO NOT STARE INTO BEAM

MAX. OUTPUT 1mW, WAVELENGTH 630-670 nm, CLASS II (2)

LASER PRODUCT. COMPLIES WITH FDA 21CFR 1040.10

OS550 Series Optical Field of View Diagrams

CAUTION

AVOID EXPOSURE. LASER

RADIATION IS EMITTED FROM THIS APERTURE

To Order Visit omega.com/os550a for Pricing and Details

Model No. Description

WRS232-USB Wireless RS232 transceiver OS550-AP Air purge collar OS550-WC Air/water cooling jacket OS550-MF Mounting ﬂange OS550-MB Right-angle mounting bracket OS550-MN Mounting nut OS550-LS Laser sighting**

†

CAL-3-IR

CAL-3-IR-X PSR-24S Regulated power supply, US plug, 90 to

PSR-24L Regulated power supply, US plug, 90 to

PSR-24L-230 Regulated power supply, European plug,

TX8-100 Power/output extension cable 30 m (100') OM-CONV-USB RS232 to USB interface converter

OS550A-PCAB-15 Power/output cable connector 4.5 m (15') OS550A-PCAB-100 Power/output cable connector 30 m (100')

1 unit suitable for aligning many sensor heads.

NIST calibration certiﬁcation

††

NIST calibration for over 1000°F temp

264 Vac input, 24 Vdc output, 400 mA, screw terminals, UL

264 Vac input, 24 Vdc output, 400 mA, stripped leads, UL

230 Vac input, 24 Vdc output, 400 mA, stripped leads, CE

(INCH)

J-74
