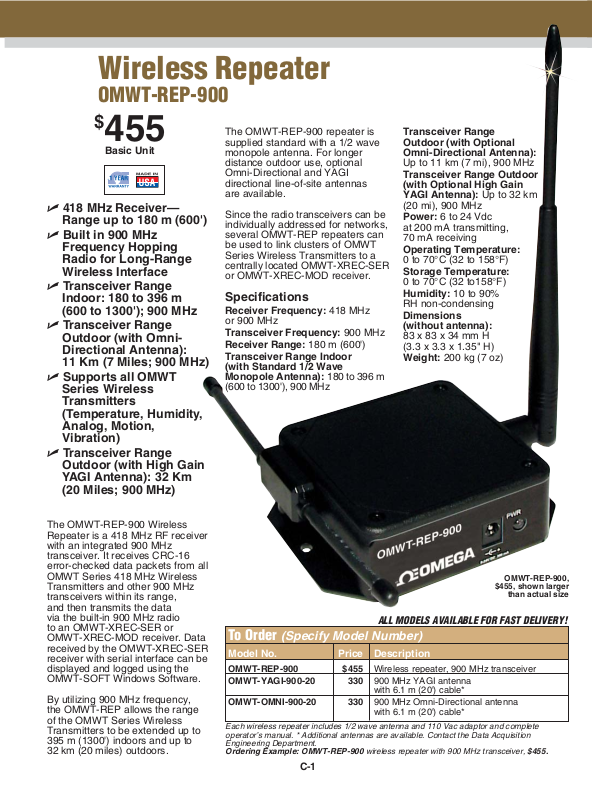

Page 1
C-1
Wireless Repeater
OMWT-REP-900
$
455
Basic Unit
⻬ 418 MHz Receiver—
Range up to 180 m (600')
⻬ Built in 900 MHz
Frequency Hopping
Radio for Long-Range
Wireless Interface
⻬ Transceiver Range
Indoor: 180 to 396 m
(600 to 1300'); 900 MHz
⻬ Transceiver Range
Outdoor (with OmniDirectional Antenna):
11 Km (7 Miles; 900 MHz)
⻬ Supports all OMWT
Series Wireless
Transmitters
(Temperature, Humidity,
Analog, Motion,
Vibration)
⻬ Transceiver Range
Outdoor (with High Gain
YAGI Antenna): 32 Km
(20 Miles; 900 MHz)
The OMWT-REP-900 repeater is
supplied standard with a 1/2 wave
monopole antenna. For longer
distance outdoor use, optional
Omni-Directional and YAGI
directional line-of-site antennas
are available.
Since the radio transceivers can be
individually addressed for networks,
several OMWT-REP repeaters can
be used to link clusters of OMWT
Series Wireless Transmitters to a
centrally located OMWT-XREC-SER
or OMWT-XREC-MOD receiver.
Specifications
Receiver Frequency: 418 MHz
or 900 MHz
Transceiver Frequency: 900 MHz
Receiver Range: 180 m (600')
Transceiver Range Indoor
(with Standard 1/2 Wave
Monopole Antenna): 180 to 396 m
(600 to 1300'), 900 MHz
Transceiver Range
Outdoor (with Optional
Omni-Directional Antenna):
Up to 11 km (7 mi), 900 MHz
Transceiver Range Outdoor
(with Optional High Gain
YAGI Antenna): Up to 32 km
(20 mi), 900 MHz
Power: 6 to 24 Vdc
at 200 mA transmitting,
70 mA receiving
Operating Temperature:
0 to 70°C (32 to 158°F)
Storage Temperature:
0 to 70°C (32 to158°F)
Humidity: 10 to 90%
RH non-condensing
Dimensions
(without antenna):
83 x 83 x 34 mm H
(3.3 x 3.3 x 1.35" H)
Weight: 200 kg (7 oz)
The OMWT-REP-900 Wireless
Repeater is a 418 MHz RF receiver
with an integrated 900 MHz
transceiver. It receives CRC-16
error-checked data packets from all
OMWT Series 418 MHz Wireless
Transmitters and other 900 MHz
transceivers within its range,
and then transmits the data
via the built-in 900 MHz radio
to an OMWT-XREC-SER or
OMWT-XREC-MOD receiver. Data
received by the OMWT-XREC-SER
receiver with serial interface can be
displayed and logged using the
OMWT-SOFT Windows Software.
By utilizing 900 MHz frequency,
the OMWT-REP allows the range
of the OMWT Series Wireless
Transmitters to be extended up to
395 m (1300') indoors and up to
32 km (20 miles) outdoors.
OMWT-REP-900,
$455, shown larger
than actual size
ALL MODELS AVAILABLE FOR FAST DELIVERY!
To Order
Model No. Price Description
OMWT-REP-900 $455 Wireless repeater, 900 MHz transceiver
OMWT-YAGI-900-20 330 900 MHz YAGI antenna
OMWT-OMNI-900-20 330 900 MHz Omni-Directional antenna
Each wireless repeater includes 1/2 wave antenna and 110 Vac adaptor and complete
operator’s manual. * Additional antennas are available. Contact the Data Acquisition
Engineering Department.
Ordering Example: OMWT-REP-900 wireless repeater with 900 MHz transceiver, $455.
(Specify Model Number)
with 6.1 m (20') cable*
with 6.1 m (20') cable*
Page 2
OMWT Series wireless transmiters can send data to a computer up to 20
miles away using the OMWT-REP-900 repeater and OMWT-XREC-SER-900
transceiver. These receivers communicate with the PC via RS-232
communications
*Indoors (with 1/2 wave antenna, conditions allowing): up to 1300' (900 MHz)
Outdoors (with
Omni-Directional antenna, conditions allowing): up to 7 mi
(900 MHz)
Outdoors (with YAGI antenna, conditions allowing): up to 20 mi (900 MHz)
OMWT Series Wireless Transmitters with Repeater
High Power 900 MHz System
serial cable
OMWT-REP-900
Repeater, $455
PC Running OMWT-SOFT
Windows Software
(Laptop not Included)
As many as 100 transmitters can be used
C-2
C
OMWT-XREC-SER-900
Transceiver, $382
As many as 100 transmitters can be used
OMWT Series Wireless Transmitters with Modbus Receiver
High Power 900 MHz System with Modbus Receiver
OMWT-REP-900
Repeater, $455
OMWT-XREC-MOD
Modbus Receiver, $400
serial cable
PC Running User’s
Custom SCADA Software
(Laptop not Included)
OMWT Series wireless transmitters can send data to a computer running
third party SCADA software up to 20 miles away using the OMWT-REP-900
repeater and OMWT-XREC-MOD modbus transceiver.
*Indoors (with 1/2 wave antenna, conditions allowing): up to 1300' (900 MHz)
Outdoors (with Omni-Directional antenna, conditions allowing): up to 7 mi
(900 MHz)
Outdoors (with YAGI antenna, conditions allowing): up to 20 mi (900 MHz)
OMWT-MOT, $145,
Series Wireless Transmitter
OMWT-AIN5V, $156,
Series Wireless Transmitter
OMWT-TEMPPRH, $200,
Series Wireless Transmitter
OMWT-MOT, $145, Series
Wireless Transmitter
OMWT-AIN5V, $156,
Series Wireless Transmitter
OMWT-TEMPPRH, $200,
Series Wireless Transmitter
