Omega Products OMPMDC1-18-180V-56C-E User Manual

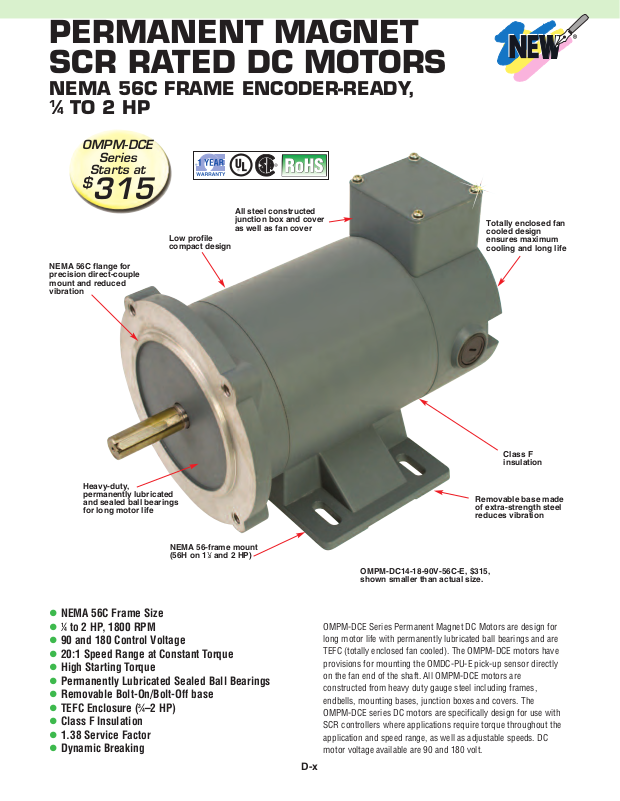

PERMANENT MAGNET SCR RATED DC MOTORS
NEMA 56C FRAME ENCODER-READY,
1
4 TO 2 HP
Series
Starts at
$
315
All steel constructed junction box and cover as well as fan cover
Low profile compact design
NEMA 56C flange for precision direct-couple mount and reduced vibration
Totally enclosed fan cooled design ensures maximum cooling and long life
Heavy-duty, permanently lubricated and sealed ball bearings for long motor life
NEMA 56-frame mount (56H on 11⁄2 and 2 HP)
l NEMA 56C Frame Size
1
l
4 to 2 HP, 1800 RPM
l 90 and 180 Control Voltage l 20:1 Speed Range at Constant Torque l High Starting Torque l Permanently Lubricated Sealed Ball Bearings l Removable Bolt-On/Bolt-Off base l TEFC Enclosure (
3
4–2 HP)
l Class F Insulation l 1.38 Service Factor l Dynamic Breaking
Class F insulation
Removable base made of extra-strength steel reduces vibration
OMPM-DC14-18-90V-56C-E, $315, shown smaller than actual size.
OMPM-DCE Series Permanent Magnet DC Motors are design for long motor life with permanently lubricated ball bearings and are TEFC (totally enclosed fan cooled). The OMPM-DCE motors have provisions for mounting the OMDC-PU-E pick-up sensor directly on the fan end of the shaft. All OMPM-DCE motors are constructed from heavy duty gauge steel including frames, endbells, mounting bases, junction boxes and covers. The OMPM-DCE series DC motors are specifically design for use with SCR controllers where applications require torque throughout the application and speed range, as well as adjustable speeds. DC motor voltage available are 90 and 180 volt.
D-x
143
(5.63)
Nameplate
.19 SQ x 1.38 Key
Decal
Warning
Hole Plug To Shaft Hole 10-32 UNF-2B 0.50 Deep Min
R
6.35 (0.25)
1.65
(0.065)
95.25 (3.75)
B
52.32 (2.06)
.6245
35.8
(1.41)
A
Depth
47.625 (1.875)
49.27
(1.94)
.12
.6250
Full
8.36
(0.34)
76.2 (3.0)
70
(2.75)
77.9
(3.07)
.000
±.01
114.3
(4.500)
-.003
+
C
Equally Spaced
(4) 3/8-16 UNC-2B
ON A
5.875 BC
Locked Bearing
Scibed Line
(3)
7/8
Knockouts
+
123.9 (4.88)
165.1 (6.50)
165.1 (6.50)
2.6
(0.104)
45°
.00
169.4 (6.67)
30.9
(1.22)
TYP
92.2
(3.63)
.06
61.9
(2.44)
88.9
(3.50)
-
207.5 (8.17)
3.0
(0.12)
Dimensions: mm (in)
A
B
C
53.32 (2.06)
49.02 (1.93)
49.02
(1.875)
3.175
(0.125)
1.524 (0.06)
Full
Depth
35.8
(1.41)
(0.19 SQ. x 1.38)
Key
[4](3/8–16 UNC–2B
ON ø5.875 BC
76.2
(3.00)
101.6 (4.00)
8.63
(0.34)
69.85 (2.75)
31
(1.22)
61.9
(2.44)
123.9 (4.88)
160.27 (6.31)
174.75 (6.88)
202.4 (7.97)
3.02
(0.119)
3.0
(0.12)
131 (5.16)
124 (4.88)
165.1 (6.50)
165.1(6.50)
Hole Plug
to Shaft Hole
10–32 UNF–2B
0.50 Deep Min
Locked
Bearing
(3) ø7/8 Knockouts
+.000
3.500 – .060
REF
Base Removal Warning Decal
On Frame Under Base
Nameplate
Warning
Decal
REF
ø = diameter
MOTOR LENGTH DIMENSIONS: mm (in)
HP ABC
1
1
376.4 324.1 173.9
(14.82) (12.76) (6.85)
1
427.2 374.9 224.79
2
(16.82) (14.76) (8.85)
MOTOR LENGTH DIMENSIONS: mm (in)
HP AB C
274.57 222.25 152.14
1
4
(10.81) (8.75) (5.99)
287.27 234.95 164.84
1
3
(11.31) (9.25) (6.49)
299.97 247.65 177.5
1
2
(11.81) (9.75) (6.99)
363.22 311.15 241.06
3
4
(14.31) (12.25) (9.49)
PICK-UP SENSORS
MODEL NO. PRICE DESCRIPTION
OMDC-PU-2E $114 NPN pick-up sensor, 1 pulse per revolution OMDC-PU-4E 114 NPN pick-up sensor, 2 pulse per revolution OMDC-PU-20E 114 NPN pick-up sensor, 10 pulse per revolution
OMDC-PU-2E, NPN pick-up
sensor, $114, shown smaller
than actual size.
To Order (Specify Model Number)
OMDC-PU-40E 114 NPN pick-up sensor, 20 pulse per revolution OMDC-PU-20EQUAD 114 NPN quadrature pick-up sensor, 10 pulse per revolution
MOST POPULAR MODELS HIGHLIGHTED!
ARM TORQUE**
MODEL NO. PRICE VOLTAGE HP RPM AMPS* ENCLOSURE WEIGHT (ft lbs)
D-x
1
1750 2.5 TEFC 21 0.75
4
1
1750 3.5 TEFC 21 1
3
1
1750 2.5 TEFC 23 1.5
2
1
1750 5 TEFC 23 1.5
2
3
1750 3.8 TEFC 31 2.25
4
3
1750 7.6 TEFC 31 2.25
4
1
1750 7.6 TEFC 47 4.5
2
OMPMDC14-18-90V-56C-E $315 90 OMPMDC13-18-90V-56C-E 325 90 OMPMDC12-18-180V-56C-E 350 180 OMPMDC12-18-90V-56C-E 350 90 OMPMDC34-18-180V-56C-E 410 180 OMPMDC34-18-90V-56C-E 410 90 OMPMDC1-18-180V-56C-E 465 180 1 1750 5 TEFC 36 3 OMPMDC1-18-90V-56C-E 480 90 1 1750 10 TEFC 36 3 OMPMDC1.5-18-180V-56C-E 545 180 1 OMPMDC2-18-180V-145TC-E 985 180 2 1750 9.5 TEFC 75 6
* Armature Full Load Amps ** Torque rated at 1750 RPM (Torque = HP*5252/RPM) Ordering Examples: OMPMDC14-18-90V-56C-E, 90 Volt, ¼ HP, 1750 RPM DC encoder-ready motor with maximum of 2.5 Arm Amps,
NEMA 56C frame and mounting base and OMDC-PU-2E pick-up sensor, $315 + 114 = $429. OMPMDC1-18-180V-56C-E, 180 Volt 1 HP 1750 RPM DC encoder-ready motor with maximum of 5 Arm Amps, NEMA 56C frame and
mounting base and OMDC-PU-2E pick-up sensor, $465 + 114 = $579.
