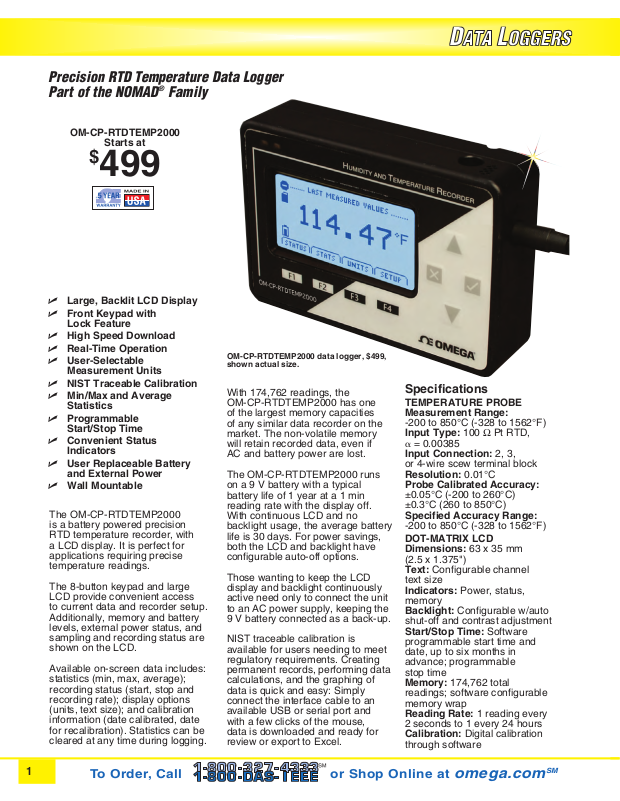

Page 1
Precision RTD Temperature Data Logger
Part of the NOMAD®Family
OM-CP-RTDTEMP2000
Starts at
$
499
⻬
Large, Backlit LCD Display
⻬
Front Keypad with
Lock Feature
⻬
High Speed Download
⻬
Real-Time Operation
⻬
User-Selectable
Measurement Units
⻬
NIST Traceable Calibration
⻬
Min/Max and Average
Statistics
⻬
Programmable
Start/Stop Time
⻬
Convenient Status
Indicators
⻬
User Replaceable Battery
and External Power
⻬
Wall Mountable
The OM-CP-RTDTEMP2000
is a battery powered precision
RTD temperature recorder, with
a LCD display. It is perfect for
applications requiring precise
temperature readings.
The 8-button keypad and large
LCD provide convenient access
to current data and recorder setup.
Additionally, memory and battery
levels, external power status, and
sampling and recording status are
shown on the LCD.
Available on-screen data includes:
statistics (min, max, average);
recording status (start, stop and
recording rate); display options
(units, text size); and calibration
information (date calibrated, date
for recalibration). Statistics can be
cleared at any time during logging.
OM-CP-RTDTEMP2000 data logger, $499,
shown actual size.
With 174,762 readings, the
OM-CP-RTDTEMP2000 has one
of the largest memory capacities
of any similar data recorder on the
market. The non-volatile memory
will retain recorded data, even if
AC and battery power are lost.
The OM-CP-RTDTEMP2000 runs
on a 9 V battery with a typical
battery life of 1 year at a 1 min
reading rate with the display off.
With continuous LCD and no
backlight usage, the average battery
life is 30 days. For power savings,
both the LCD and backlight have
configurable auto-off options.
Those wanting to keep the LCD
display and backlight continuously
active need only to connect the unit
to an AC power supply, keeping the
9 V battery connected as a back-up.
NIST traceable calibration is
available for users needing to meet
regulatory requirements. Creating
permanent records, performing data
calculations, and the graphing of
data is quick and easy: Simply
connect the interface cable to an
available USB or serial port and
with a few clicks of the mouse,
data is downloaded and ready for
review or export to Excel.
Specifications
TEMPERATURE PROBE
Measurement Range:
-200 to 850°C (-328 to 1562°F)
Input Type: 100 Ω Pt RTD,
␣ = 0.00385
Input Connection: 2, 3,
or 4-wire scew terminal block
Resolution: 0.01°C
Probe Calibrated Accuracy:
±0.05°C (-200 to 260°C)
±0.3°C (260 to 850°C)
Specified Accuracy Range:
-200 to 850°C (-328 to 1562°F)
DOT-MATRIX LCD
Dimensions: 63 x 35 mm
(2.5 x 1.375")
Text: Configurable channel
text size
Indicators: Power, status,
memory
Backlight: Configurable w/auto
shut-off and contrast adjustment
Start/Stop Time: Software
programmable start time and
date, up to six months in
advance; programmable
stop time
Memory: 174,762 total
readings; software configurable
memory wrap
Reading Rate: 1 reading every
2 seconds to 1 every 24 hours
Calibration: Digital calibration
through software
1
To Order, Call or Shop Online at omega.com
SM
Page 2
Calibration Date: Automatically
recorded within device
Battery Type: 9 V lithium battery
(included), user replaceable;
optional AC adaptor
Battery Life: 1 year battery life
at 1 min reading rate with display
off. 30 days typical with continuous
LCD and no backlight usage.
Data Format: Date and time
stamped °C, °F, K, °R
Time Accuracy: ±1 minute/month
(at 20 to 30°C)
Computer Interface:
PC serial or USB (interface
cable required); 115,200 baud
Software: XP SP3/Vista and 7
(32-bit and 64-bit)
Operating Environment:
-20 to 60°C (-4 to 140°F)
0 to 95% RH non-condensing
Dimensions: 122 x 84 x 32 mm
(4.8 x 3.3 x 1.25")
Weight: 440 g (16 oz)
Enclosure: Black anodized
aluminum
OM-CP-IFC200, $129,
Windows®software
displays data in
graphical or tabular
format.
PR-11-2-100-1/4-6-E,
$66, shown smaller
than actual size. See
omega.com for details.
OM-CP-RTDTEMP2000 data logger, $499,
shown smaller than actual size
AVAILABLE FOR FAST DELIVERY!
To Order
(Specify Model Number)
Model No. Price Description
OM-CP-RTDTEMP2000 $499 Precision temperature data logger
OM-CP-RTDTEMP2000-CERT 559 Precision temperature data logger with NIST calibration certificate
OM-CP-IFC200 129 Windows software and 3.7 m (12') USB interface cable
OM-CP-BAT103 25 Replacement 9 V lithium battery
OM-CP-110-PWR-2000 18 110 Vac power adaptor
OM-CP-220-PWR-2000 18 220 Vac power adaptor
Comes with operator’s manual and 9V lithium battery.
Ordering Example: OM-CP-RTDTEMP2000-CERT,
and
OM-CP-IFC200,
Windows software and USB interface cable, $559 + 129 =
precision temperature data logger with NIST calibration certificate
$688.
