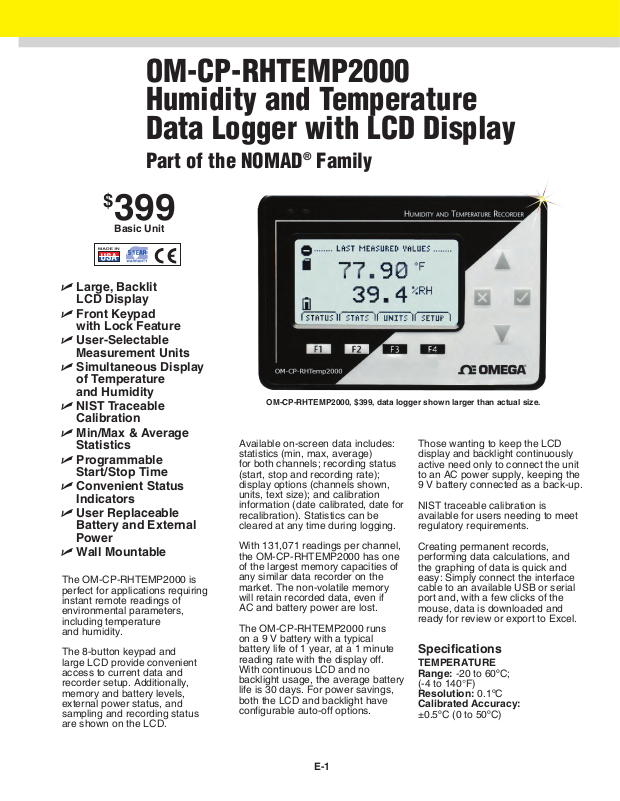

OM-CP-RHTEMP2000
Humidity and Temperature
Data Logger with LCD Display
Part of the NOMAD®Family
$
399
Basic Unit
⻬ Large, Backlit
LCD Display
⻬ Front Keypad
with Lock Feature
⻬ User-Selectable
Measurement Units
⻬ Simultaneous Display
of Temperature
and Humidity
⻬ NIST Traceable
Calibration
⻬ Min/Max & Average
Statistics
⻬ Programmable
Start/Stop Time
⻬ Convenient Status
Indicators
⻬ User Replaceable
Battery and External
Power
⻬ Wall Mountable
The OM-CP-RHTEMP2000 is
perfect for applications requiring
instant remote readings of
environmental parameters,
including temperature
and humidity.
The 8-button keypad and
large LCD provide convenient
access to current data and
recorder setup. Additionally,
memory and battery levels,
external power status, and
sampling and recording status
are shown on the LCD.
OM-CP-RHTEMP2000, $399, data logger shown larger than actual size.
Available on-screen data includes:
statistics (min, max, average)
for both channels; recording status
(start, stop and recording rate);
display options (channels shown,
units, text size); and calibration
information (date calibrated, date for
recalibration). Statistics can be
cleared at any time during logging.
With 131,071 readings per channel,
the OM-CP-RHTEMP2000 has one
of the largest memory capacities of
any similar data recorder on the
market. The non-volatile memory
will retain recorded data, even if
AC and battery power are lost.
The OM-CP-RHTEMP2000 runs
on a 9 V battery with a typical
battery life of 1 year, at a 1 minute
reading rate with the display off.
With continuous LCD and no
backlight usage, the average battery
life is 30 days. For power savings,
both the LCD and backlight have
configurable auto-off options.
Those wanting to keep the LCD
display and backlight continuously
active need only to connect the unit
to an AC power supply, keeping the
9 V battery connected as a back-up.
NIST traceable calibration is
available for users needing to meet
regulatory requirements.
Creating permanent records,
performing data calculations, and
the graphing of data is quick and
easy: Simply connect the interface
cable to an available USB or serial
port and, with a few clicks of the
mouse, data is downloaded and
ready for review or export to Excel.
Specifications
TEMPERATURE
Range: -20 to 60ºC;
(-4 to 140°F)
Resolution: 0.1ºC
Calibrated Accuracy:
±0.5ºC (0 to 50ºC)
E-1
Page 2
OM-CP-RHTEMP2000, $399, data logger
shown larger than actual size.
OM-CP-IFC200, $129, Windows software, displays data
in graphical or tabular format
E
HUMIDITY
Range: 0 to 95% RH
Resolution: 0.1% RH
Calibrated Accuracy: ±3% RH
(±2% RH typical at 25ºC)
Specified Accuracy Range:
10 to 40°C, 10 to 80% RH
DOT-MATRIX LCD
Dimensions: 2.5 x 1.375"
(63 mm x 35 mm)
Text: Configurable channel
text size
Indicators: Power, status, memory
Backlight: Configurable w/auto
shut-off and contrast adjustment
Start/Stop Time: Software
programmable start time
and date, up to six months in
advance; programmable stop time
Memory: 131,071 readings
per channel; 262,142 total
readings; software configurable
memory wrap
Reading Rate: 1 reading every
2 seconds to 1 every 24 hours
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded within device
Battery Type: 9 V lithium battery
included, user replaceable;
optional AC adapter
Battery Life: 1 year battery life
at 1 min reading rate with display
off. 30 days typical with continuous
LCD and no backlight usage.
Unit Display: Date and time
stamped ºC, ºF, K, ºR ; %RH, mg/
ml water vapor concentration,
dew point
Time Accuracy: ±1 minute/month
at 20 to 30°C (68 to 86°F)
Software: XP SP3/Vista and 7
(32-bit and 64-bit)
Operating Environment:
-20 to 60ºC, (-4 to 140°F)
0 to 95% RH non-condensing
Dimensions: 4.8 x 3.3 x 1.25"
(122 mm x 84 mm x 32 mm)
Weight: 16 oz (440 g)
Enclosure: Black anodized
aluminum
Computer Interface: PC serial
or USB (interface cable required);
115,200 baud
AVAILABLE FOR FAST DELIVERY!
To Order
(Specify Model Number)
Model No. Price Description
OM-CP-RHTEMP2000 $399 Humidity and temperature data logger
OM-CP-RHTEMP2000-CERT 519 Humidity and temperature data logger
OM-CP-IFC200 129 Windows software and 3.7 m (12') USB
OM-CP-BAT103 25 Replacement 9V lithium battery
OM-CP-110-PWR-2000 18 110 Vac power adapter
OM-CP-220-PWR-2000 18 220 Vac power adapter
Operator’s manual and USB cable are included with the
operate the data logger and is sold separately).
Ordering Example: OM-CP-RHTEMP2000-CERT
with NIST calibration certificate,
OM-CP-IFC200
with LCD display
with LCD display and NIST calibration
certificate
interface cable
OM-CP-IFC200
humidity and temperature data logger
Windows software, $519 + 129 =
(software is required to
$648.
E-2
