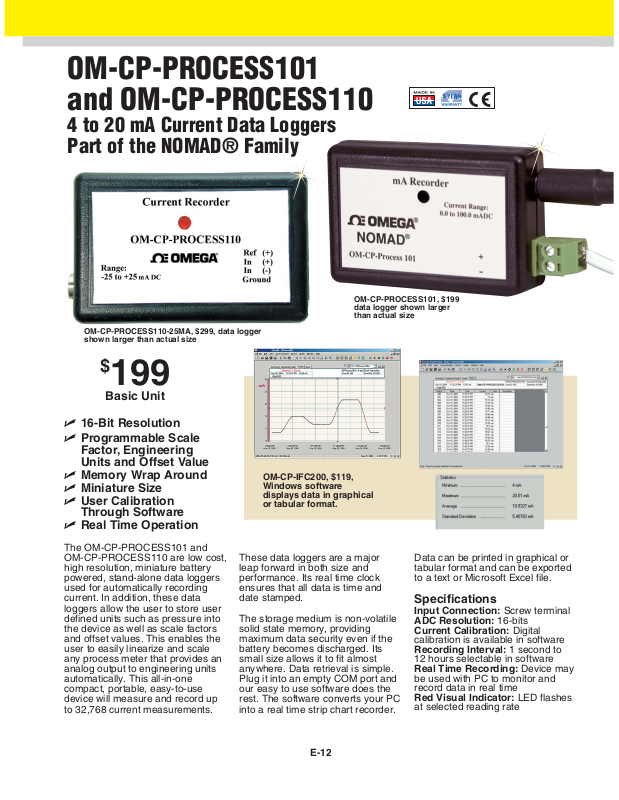

E-12
The OM-CP-PROCESS101 and
OM-CP-PROCESS110 are low cost,
high resolution, miniature battery
powered, stand-alone data loggers
used for automatically recording
current. In addition, these data
loggers allow the user to store user
defined units such as pressure into
the device as well as scale factors
and offset values. This enables the
user to easily linearize and scale
any process meter that provides an
analog output to engineering units
automatically. This all-in-one
compact, portable, easy-to-use
device will measure and record up
to 32,768 current measurements.
⻬ 16-Bit Resolution
⻬ Programmable Scale
Factor, Engineering
Units and Offset Value
⻬ Memory Wrap Around
⻬ Miniature Size
⻬ User Calibration
Through Software
⻬ Real Time Operation
$
199
Basic Unit
OM-CP-PROCESS101
and OM-CP-PROCESS110
4 to 20 mA Current Data Loggers
Part of the NOMAD® Family
These data loggers are a major
leap forward in both size and
performance. Its real time clock
ensures that all data is time and
date stamped.
The storage medium is non-volatile
solid state memory, providing
maximum data security even if the
battery becomes discharged. Its
small size allows it to fit almost
anywhere. Data retrieval is simple.
Plug it into an empty COM port and
our easy to use software does the
rest. The software converts your PC
into a real time strip chart recorder.
Data can be printed in graphical or
tabular format and can be exported
to a text or Microsoft Excel file.
Specifications
Input Connection: Screw terminal
ADC Resolution: 16-bits
Current Calibration: Digital
calibration is available in software
Recording Interval: 1 second to
12 hours selectable in software
Real Time Recording: Device may
be used with PC to monitor and
record data in real time
Red Visual Indicator: LED flashes
at selected reading rate
OM-CP-PROCESS110-25MA, $299, data logger
shown larger than actual size
OM-CP-PROCESS101, $199
data logger shown larger
than actual size
OM-CP-IFC200, $119,
Windows software
displays data in graphical
or tabular format.
E-13
E
To Order
(Specify Model Number)
Model No. Price Description
OM-CP-PROCESS101 $199 Process input data logger, 0 to 100 mA input range (CE approved only)
OM-CP-PROCESS101-CERT 259 Process input data logger, 0 to 100 mA input range
with NIST calibration certificate (CE approved only)
OM-CP-PROCESS110-1MA 299 Process input data logger, ±1 mA input range, extended battery life
OM-CP-PROCESS110-1MA-CERT 359 Process input data logger, ±1 mA input range, extended battery life
with NIST calibration certificate
OM-CP-PROCESS110-25MA 299 Process input data logger, ±25 mA input range, extended battery life
OM-CP-PROCESS110-25MA-CERT 359 Process input data logger, ±25 mA input range, extended battery life
with NIST calibration certificate
OM-CP-PROCESS110-100MA 299 Process input data logger, ±100 mA input range, extended battery life
OM-CP-PROCESS110-100MA-CERT 359 Process input data logger, ±100 mA input range, extended battery life
with NIST calibration certificate
OM-CP-IFC200 119 Windows software and 3.7 m (12') USB interface cable
OM-CP-BAT105 12 Replacement 3.6 V lithium battery
OM-CP-CONNECTOR-2 4 Replacement 2 position terminal block connector
for the OM-CP-PROCESS101
OM-CP-CONNECTOR-3 6 Replacement 3 position terminal block connector
for the OM-CP-PROCESS110-1MA, OM-CP-PROCESS110-25MA
and OM-CP-PROCESS110-100MA
Operator’s manual, battery, and USB interface cable are included with the OM-CP-IFC200 Windows software,
(software is required to operate the data logger and is sold separately).
Ordering Example: OM-CP-PROCESS101-CERT 4 to 20 mA current data logger with NIST calibration certificate
and
OM-CP-IFC200
Windows software and USB interface cable, $259 + 119 = $378.
MOST POPULAR MODELS HIGHLIGHTED!
INPUT RANGES OM-CP-PROCESS101 OM-CP-PROCESS110-1MA OM-CP-PROCESS110-25MA OM-CP-PROCESS110-100MA
Nominal Input Range 0 to 100 mA ±1 mA ±25 mA ±100 mA
Measurement Range -20 to 120 mA ±1.25 mA ±30mA ±120 mA
Resolution 10 µA 0.05 µA 1 µA 5 µA
Accuracy ±0.1% FSR ±0.5% FSR ±0.1% FSR ±0.1% FSR
Input Impedance 10 Ω 50 Ω 10 Ω 2 Ω
Overload Protection ±125 mA ±20 mA ±100 mA ±125 mA
*OM-CP-PROCESS101
is CE approved only
Power:
3.6 V lithium battery included
Battery Life:
OM-CP-PROCESS101:
1 year at 1 min reading rate
OM-CP-PROCESS110:
10 years at 15 min reading rate
Time Accuracy: ±1 minute per
month at 20°C
Data Format: Date and time
stamped, volts, other engineering
units programmable through
software
Weight:
OM-CP-PROCESS101:
30 g (1 oz)
OM-CP-PROCESS110:
60 g (2 oz)
Computer Interface:
PC serial, RS-232C COM
or USB (interface cable required)
Software: XP SP3/Vista and 7
(32-bit and 64-bit)
OM-CP-PROCESS110-25MA,
$299, data logger shown
larger than actual size
OM-CP-PROCESS101, $199 data
logger shown larger than actual size
Communications:
OM-CP-PROCESS101: 2400 baud
OM-CP-PROCESS110: 57600 baud
Operating Environment:
-40 to 80°C (-40 to 176°F)
0 to 95% RH non-condensing
Dimensions:
OM-CP-PROCESS101:
35 H x 64 W x 15 mm D
(1.4 x 2.5 x 0.6")
OM-CP-PROCESS110:
41 H x 58 W x 20 mm D
(1.6 x 2.3 x 0.8")
