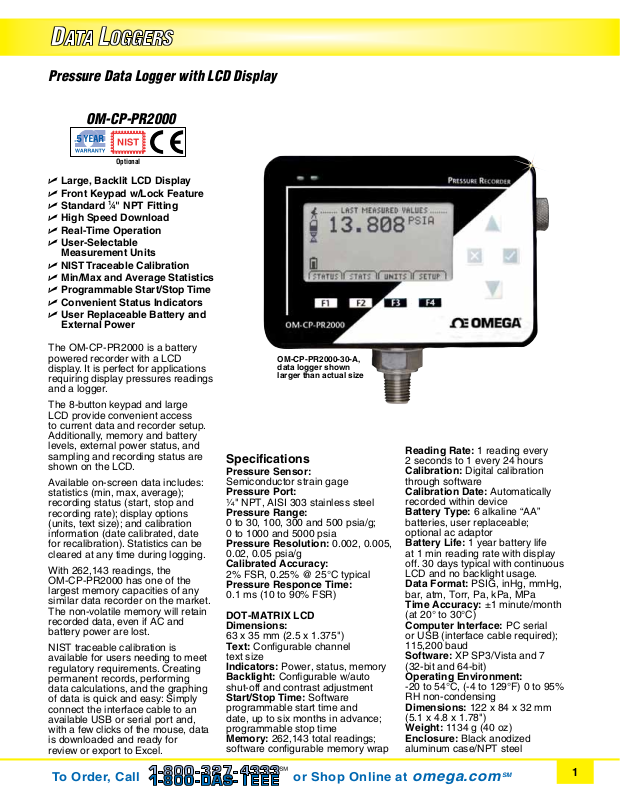

Omega Products OM-CP-PR2000-100-G User Manual

Pressure Data Logger with LCD Display

OM-CP-PR2000

Optional

U

Large, Backlit LCD Display

U

Front Keypad w/Lock Feature

U

Standard 1⁄4" NPT Fitting

U

High Speed Download

U

Real-Time Operation

U

User-Selectable
Measurement Units

U

NIST Traceable Calibration

U

Min/Max and Average Statistics

U

Programmable Start/Stop Time

U

Convenient Status Indicators

U

User Replaceable Battery and
External Power

The OM-CP-PR2000 is a battery
powered recorder with a LCD
display. It is perfect for applications
requiring display pressures readings
and a logger.

The 8-button keypad and large
LCD provide convenient access
to current data and recorder setup.
Additionally, memory and battery
levels, external power status, and
sampling and recording status are
shown on the LCD.

Available on-screen data includes:
statistics (min, max, average);
recording status (start, stop and
recording rate); display options
(units, text size); and calibration
information (date calibrated, date
for recalibration). Statistics can be
cleared at any time during logging.

With 262,143 readings, the
OM-CP-PR2000 has one of the
largest memory capacities of any
similar data recorder on the market.
The non-volatile memory will retain
recorded data, even if AC and
battery power are lost.

NIST traceable calibration is
available for users needing to meet
regulatory requirements. Creating
permanent records, performing
data calculations, and the graphing
of data is quick and easy: Simply
connect the interface cable to an
available USB or serial port and,
with a few clicks of the mouse, data
is downloaded and ready for
review or export to Excel.

OM-CP-PR2000-30-A,
data logger shown
larger than actual size

Specifications

Pressure Sensor:

Semiconductor strain gage
Pressure Port:
¹⁄₄" NPT, AISI 303 stainless steel
Pressure Range:
0 to 30, 100, 300 and 500 psia/g;
0 to 1000 and 5000 psia
Pressure Resolution: 0.002, 0.005,

0.02, 0.05 psia/g

Calibrated Accuracy:

2% FSR, 0.25% @ 25°C typical
Pressure Responce Time:

0.1 ms (10 to 90% FSR)

DOT-MATRIX LCD
Dimensions:

63 x 35 mm (2.5 x 1.375")
Text: Configurable channel
text size

Indicators: Power, status, memory
Backlight: Configurable w/auto

shut-off and contrast adjustment
Start/Stop Time: Software
programmable start time and
date, up to six months in advance;
programmable stop time
Memory: 262,143 total readings;
software configurable memory wrap

Reading Rate: 1 reading every
2 seconds to 1 every 24 hours
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded within device
Battery Type: 6 alkaline “AA”
batteries, user replaceable;
optional ac adaptor
Battery Life: 1 year battery life
at 1 min reading rate with display
off. 30 days typical with continuous
LCD and no backlight usage.
Data Format: PSIG, inHg, mmHg,
bar, atm, Torr, Pa, kPa, MPa
Time Accuracy: ±1 minute/month
(at 20° to 30°C)
Computer Interface: PC serial
or USB (interface cable required);
115,200 baud
Software: XP SP3/Vista and 7
(32-bit and 64-bit)

Operating Environment:

-20 to 54°C, (-4 to 129°F) 0 to 95%
RH non-condensing
Dimensions: 122 x 84 x 32 mm
(5.1 x 4.8 x 1.78")

Weight: 1134 g (40 oz)
Enclosure: Black anodized

aluminum case/NPT steel

To Order, Call or Shop Online at omega.com

SM

1

OM-CP-PR2000-30-A,
data logger shown
larger than actual size

OM-CP-IFC200,
Windows® software
displays data in
graphical or tabular
format

To Order

Visit omega.com/om-cp-pr2000 for Pricing and Details

Model No. Description
OM-CP-PR2000-30-A 0 to 30 psia pressure data logger with LCD display

OM-CP-PR2000-30-G 0 to 30 psig pressure data logger with LCD display
OM-CP-PR2000-100-A 0 to 100 psia pressure data logger with LCD display
OM-CP-PR2000-100-G 0 to 100 psig pressure data logger with LCD display
OM-CP-PR2000-300-A 0 to 300 psia pressure data logger with LCD display
OM-CP-PR2000-300-G 0 to 300 psig pressure data logger with LCD display
OM-CP-PR2000-500-A 0 to 500 psia pressure data logger with LCD display
OM-CP-PR2000-500-G 0 to 500 psig pressure data logger with LCD display
OM-CP-PR2000-1000-A 0 to 1000 psia pressure data logger with LCD display
OM-CP-PR2000-5000-A 0 to 5000 psia pressure data logger with LCD display
OM-CP-IFC200 Windows software and 1.8 m (6') USB interface cable
OM-CP-110-PWR-2000 110 Vac power adaptor
OM-CP-220-PWR-2000 220 Vac power adaptor

Operator’s manual and USB cable are included with the OM-CP-IFC200 (software is required to operate the data logger and is sold separately).

To order data logger with NIST calibration certificate, add suffix “-CERT” to model number and add additional cost to price.
Ordering Example: OM-CP-PR2000-30-A-CERT, pressure data logger with NIST calibration certificate, OM-CP-IFC200, Windows software

and USB interface cable with DB9F termination.
