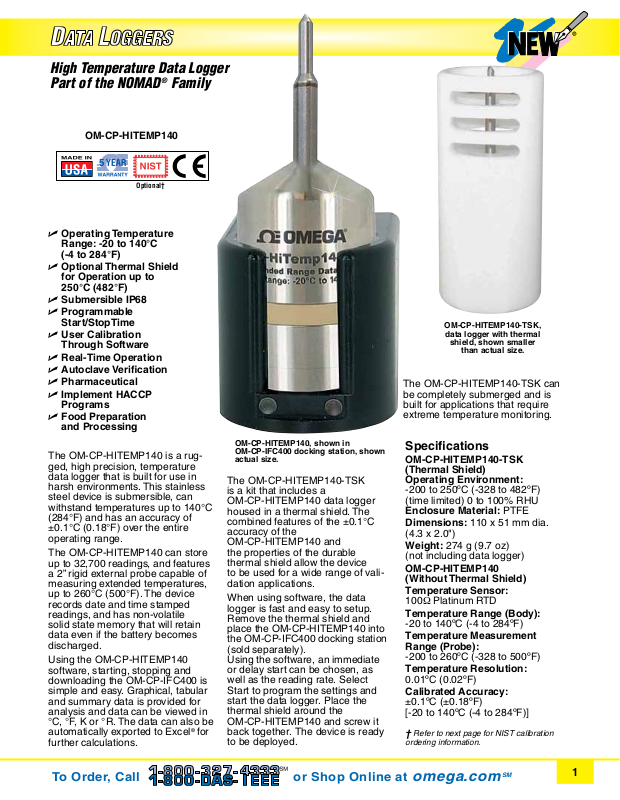

Page 1
High Temperature Data Logger
Part of the NOMAD® Family
OM-CP-HITEMP140
Optional†
U Operating Temperature
Range: -20 to 140°C
(-4 to 284°F)
U Optional Thermal Shield
for Operation up to
250°C (482°F)
U Submersible IP68
U Programmable
Start/StopTime
U User Calibration
Through Software
U Real-Time Operation
U Autoclave Verification
U Pharmaceutical
U Implement HACCP
Programs
U Food Preparation
and Processing
The OM-CP-HITEMP140 is a rugged, high precision, temperature
data logger that is built for use in
harsh environments. This stainless
steel device is submersible, can
withstand temperatures up to 140°C
(284°F) and has an accuracy of
±0.1°C (0.18°F) over the entire
operating range.
The OM-CP-HITEMP140 can store
up to 32,700 readings, and features
a 2” rigid external probe capable of
measuring extended temperatures,
up to 260°C (500°F). The device
records date and time stamped
readings, and has non-volatile
solid state memory that will retain
data even if the battery becomes
discharged.
Using the OM-CP-HITEMP140
software, starting, stopping and
downloading the OM-CP-IFC400 is
simple and easy. Graphical, tabular
and summary data is provided for
analysis and data can be viewed in
°C, °F, K or °R. The data can also be
automatically exported to Excel® for
further calculations.
OM-CP-HITEMP140, shown in
OM-CP-IFC400 docking station, shown
actual size.
The OM-CP-HITEMP140-TSK
is a kit that includes a
OM-CP-HITEMP140 data logger
housed in a thermal shield. The
combined features of the ±0.1°C
accuracy of the
OM-CP-HITEMP140 and
the properties of the durable
thermal shield allow the device
to be used for a wide range of validation applications.
When using software, the data
logger is fast and easy to setup.
Remove the thermal shield and
place the OM-CP-HITEMP140 into
the OM-CP-IFC400 docking station
(sold separately).
Using the software, an immediate
or delay start can be chosen, as
well as the reading rate. Select
Start to program the settings and
start the data logger. Place the
thermal shield around the
OM-CP-HITEMP140 and screw it
back together. The device is ready
to be deployed.
OM-CP-HITEMP140-TSK,
data logger with thermal
shield, shown smaller
than actual size.
The OM-CP-HITEMP140-TSK can
be completely submerged and is
built for applications that require
extreme temperature monitoring.
Specifications
OM-CP-HITEMP140-TSK
(Thermal Shield)
Operating Environment:
-200 to 250ºC (-328 to 482ºF)
(time limited) 0 to 100% RHU
Enclosure Material: PTFE
Dimensions: 110 x 51 mm dia.
(4.3 x 2.0")
Weight: 274 g (9.7 oz)
(not including data logger)
OM-CP-HITEMP140
(Without Thermal Shield)
Temperature Sensor:
100Ω Platinum RTD
Temperature Range (Body):
-20 to 140ºC (-4 to 284ºF)
Temperature Measurement
Range (Probe):
-200 to 260ºC (-328 to 500ºF)
Temperature Resolution:
0.01ºC (0.02ºF)
Calibrated Accuracy:
±0.1ºC (±0.18ºF)
[-20 to 140ºC (-4 to 284ºF)]
Refer to next page for NIST calibration
†
ordering information.
To Order, Call or Shop Online at omega.com
SM
1
Page 2
Start Modes:
• Software programmable
immediate start
• Delay start up to eighteen
months in advance
Stop Modes:
• Manual through Software
• Time (specific date and time)
Real Time Recording: May be used
with PC to monitor and record data in
real time
Memory: 32,700 readings
Reading Rate: One second up to
once every 24 hours
Battery Type: 3.6V high-temperature
lithium battery (included)
Battery Life: 1 year typical
[1 minute reading rate at 25ºC (77ºF)]
Calibration: Digital calibration
through software
OM-CP-IFC400, Windows software displays
data in graphical or tabular format.
Calibration Date: Automatically
recorded within device
Data Format: Date and time
stamped ºC, ºF, K, ºR
Time Accuracy: ±1 minute/month
at 20 to 30ºC (68 to 86ºF)
(RS232 cable not in use)
Computer Interface:
OM-CP-IFC400 USB docking station
required 125,000 baud
Software: Windows XP SP3/Vista/7
(32- and 64-bit)
Operating Environment:
-20 to 140ºC (-4 to 284ºF),
0 to 100% RH
Dimensions
Body: 67 H x 25 mm D
(2.7 x 0.97")
Probe: 50 L x 3.8 to 3.2 mm
transitional dia (2.0 x 0.188
to 0.125"); See additional probe
lengths in the ordering chart below
Weight: 120 g (4.2 oz)
Material: 316 stainless steel
OM-CP-HITEMP140-TSK Data Logger with Thermal Shield
Time in Air to Max Internal Time in Liquid to Max Internal
Ambient Temperature Temp (140°C / 284°F) Temp (140°C / 284°F)
-200°C (-328°F) 18 min N/A
-180°C (-292°F) 19 min N/A
-160°C (-256°F) 21 min N/A
-140°C (-220°F) 24 min N/A
-120°C (-184°F) 27 min N/A
-100°C (-148°F) 32 min N/A
-80°C (-112°F) 40 min N/A
-60°C (-76°F) 55 min 25 min
-40°C (-40°F) 70 min 32 min
-20 to 140°C (-4 to 284°F) Indefinitely Indefinitely
150°C (302°F) 88 min 40 min
160°C (320°F) 75 min 34 min
170°C (338°F) 63 min 29 min
180°C (356°F) 55 min 26 min
190°C (374°F) 50 min 23 min
200°C (392°F) 45 min 21 min
210°C (410°F) 42 min 19 min
220°C (428°F) 39 min 18 min
230°C (446°F) 36 min 17 min
240°C (464°F) 34 min 16 min
250°C (482°F) 32 min 15 min
To Order
Visit omega.com/om-cp-hitemp140 for Pricing and Details
Model No. Description
OM-CP-HITEMP140 High temperature data logger with 50 mm (2") probe
OM-CP-HITEMP140-CERT† High temperature data logger with 50 mm (2") probe and NIST certificate
OM-CP-HITEMP140-TSK OM-CP-HITEMP140 data logger with thermal shield
OM-CP-HITEMP140-TSK-CERT† OM-CP-HITEMP140 data logger with thermal shield and NIST certificate
OM-CP-HITEMP140-1 High temperature data logger with 25 mm (1") probe
OM-CP-HITEMP140-1-CERT† High temperature data logger with 25 mm (1") probe with NIST certificate
OM-CP-HITEMP140-5.25 High temperature data logger with 131 mm (5.25") probe
OM-CP-HITEMP140-5.25-CERT† High temperature data logger with 131 mm (5.25") probe and NIST certificate
OM-CP-HITEMP140-5.25-TSK High temperature data logger with 131 mm (5.25") probe and thermal shield
OM-CP-HITEMP140-5.25-TSK-CERT† High temperature data logger with 131 mm (5.25") probe, thermal shield and
NIST certificate
OM-CP-HITEMP140-7 High temperature data logger with 175 mm (7") probe
OM-CP-HITEMP140-7-CERT† High temperature data logger with 175 mm (7") probe and NIST certificate
OM-CP-HITEMP140-7-TSK High temperature data logger with 175 mm (7") probe and thermal shield
OM-CP-HITEMP140-7-TSK-CERT† High temperature data logger with 175 mm (7") probe, thermal shield and
NIST certificate
OM-CP-IFC400 Docking station with USB cable, software and manual
OM-CP-BAT110 Replacement 3.6V high-temperature lithium battery
Comes complete with 3.6V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC400 software/cable
package (required for data logger operation, sold separately).
Ordering Example: OM-CP-HITEMP140-CERT high temperature data logger with NIST certificate.
