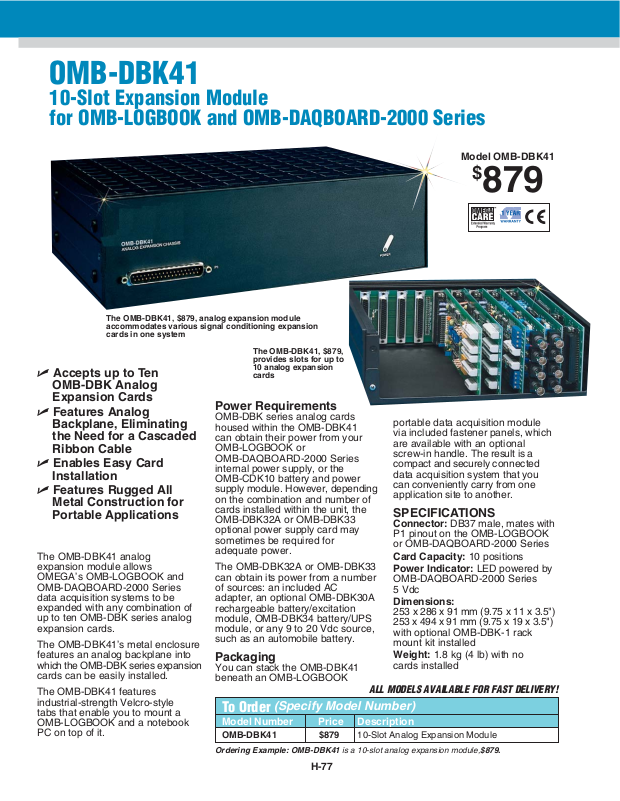

Model OMB-DBK41
$
879
The OMB-DBK41, $879, analog expansion module
accommodates various signal conditioning expansion
cards in one system
The OMB-DBK41, $879,
provides slots for up to
10 analog expansion
cards
⻬ Accepts up to Ten
OMB-DBK Analog
Expansion Cards
⻬ Features Analog
Backplane, Eliminating
the Need for a Cascaded
Ribbon Cable
⻬ Enables Easy Card
Installation
⻬ Features Rugged All
Metal Construction for
Portable Applications
The OMB-DBK41 analog
expansion module allows
OMEGA’s OMB-LOGBOOK and
OMB-DAQBOARD-2000 Series
data acquisition systems to be
expanded with any combination of
up to ten OMB-DBK series analog
expansion cards.
The OMB-DBK41’s metal enclosure
features an analog backplane into
which the OMB-DBK series expansion
cards can be easily installed.
The OMB-DBK41 features
industrial-strength Velcro-style
tabs that enable you to mount a
OMB-LOGBOOK and a notebook
PC on top of it.
Power Requirements
OMB-DBK series analog cards
housed within the OMB-DBK41
can obtain their power from your
OMB-LOGBOOK or
OMB-DAQBOARD-2000 Series
internal power supply, or the
OMB-CDK10 battery and power
supply module. However, depending
on the combination and number of
cards installed within the unit, the
OMB-DBK32A or OMB-DBK33
optional power supply card may
sometimes be required for
adequate power.
The OMB-DBK32A or OMB-DBK33
can obtain its power from a number
of sources: an included AC
adapter, an optional OMB-DBK30A
rechargeable battery/excitation
module, OMB-DBK34 battery/UPS
module, or any 9 to 20 Vdc source,
such as an automobile battery.
Packaging
You can stack the OMB-DBK41
beneath an OMB-LOGBOOK
portable data acquisition module
via included fastener panels, which
are available with an optional
screw-in handle. The result is a
compact and securely connected
data acquisition system that you
can conveniently carry from one
application site to another.
SPECIFICATIONS
Connector: DB37 male, mates with
P1 pinout on the OMB-LOGBOOK
or OMB-DAQBOARD-2000 Series
Card Capacity: 10 positions
Power Indicator: LED powered by
OMB-DAQBOARD-2000 Series
5 Vdc
Dimensions:
253 x 286 x 91 mm (9.75 x 11 x 3.5")
253 x 494 x 91 mm (9.75 x 19 x 3.5")
with optional OMB-DBK-1 rack
mount kit installed
Weight: 1.8 kg (4 lb) with no
cards installed
OMB-DBK41
10-Slot Expansion Module
for OMB-LOGBOOK and OMB-DAQBOARD-2000 Series
To Order
(Specify Model Number)
Model Number Price Description
OMB-DBK41 $879 10-Slot Analog Expansion Module
Ordering Example: OMB-DBK41 is a 10-slot analog expansion module,$879.
H-77
ALL MODELS AVAILABLE FOR FAST DELIVERY!
