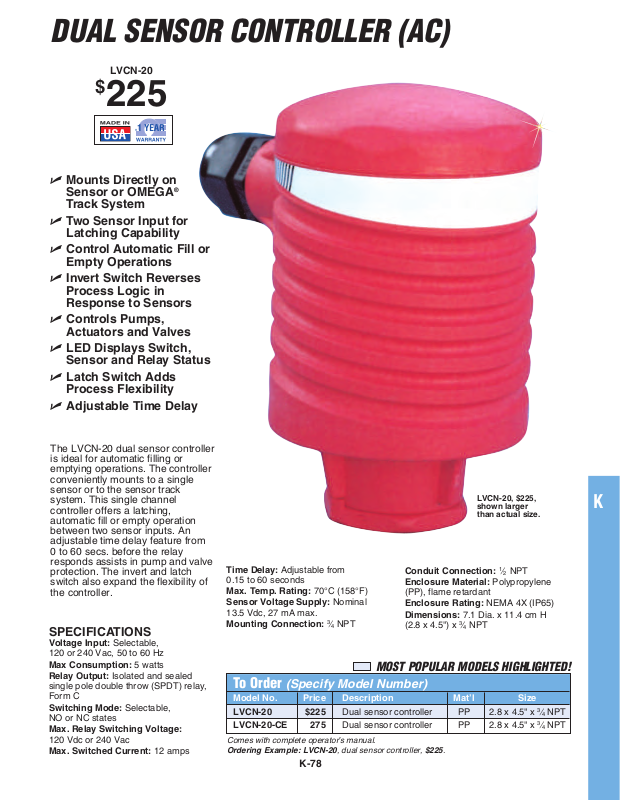

DUAL SENSOR CONTROLLER (AC)
LVCN-20
$
225
⻬ Mounts Directly on
Sensor or OMEGA
®
Track System
⻬ Two Sensor Input for
Latching Capability
⻬ Control Automatic Fill or
Empty Operations
⻬ Invert Switch Reverses
Process Logic in
Response to Sensors
⻬ Controls Pumps,
Actuators and Valves
⻬ LED Displays Switch,
Sensor and Relay Status
⻬ Latch Switch Adds
Process Flexibility
⻬ Adjustable Time Delay
The LVCN-20 dual sensor controller
is ideal for automatic filling or
emptying operations. The controller
conveniently mounts to a single
sensor or to the sensor track
system. This single channel
controller offers a latching,
automatic fill or empty operation
between two sensor inputs. An
adjustable time delay feature from
0 to 60 secs. before the relay
responds assists in pump and valve
protection. The invert and latch
switch also expand the flexibility of
the controller.
SPECIFICATIONS
Voltage Input: Selectable,
120 or 240 Vac, 50 to 60 Hz
Max Consumption: 5 watts
Relay Output: Isolated and sealed
single pole double throw (SPDT) relay,
Form C
Switching Mode: Selectable,
NO or NC states
Max. Relay Switching Voltage:
120 Vdc or 240 Vac
Max. Switched Current: 12 amps
LVCN-20, $225,
shown larger
than actual size.
Time Delay: Adjustable from
0.15 to 60 seconds
Max. Temp. Rating: 70°C (158°F)
Sensor Voltage Supply: Nominal
13.5 Vdc, 27 mA max.
Mounting Connection:
3
⁄4NPT
Conduit Connection:1⁄2NPT
Enclosure Material: Polypropylene
(PP), flame retardant
Enclosure Rating: NEMA 4X (IP65)
Dimensions: 7.1 Dia. x 11.4 cm H
(2.8 x 4.5") x
3
⁄4NPT
MOST POPULAR MODELS HIGHLIGHTED!
To Order (Specify Model Number)
Model No. Price Description Mat’l Size
LVCN-20 $225 Dual sensor controller PP 2.8 x 4.5" x 3⁄4NPT
LVCN-20-CE 275 Dual sensor controller PP 2.8 x 4.5" x 3⁄4NPT
Comes with complete operator’s manual.
Ordering Example: LVCN-20, dual sensor controller, $225.
K-78
K
