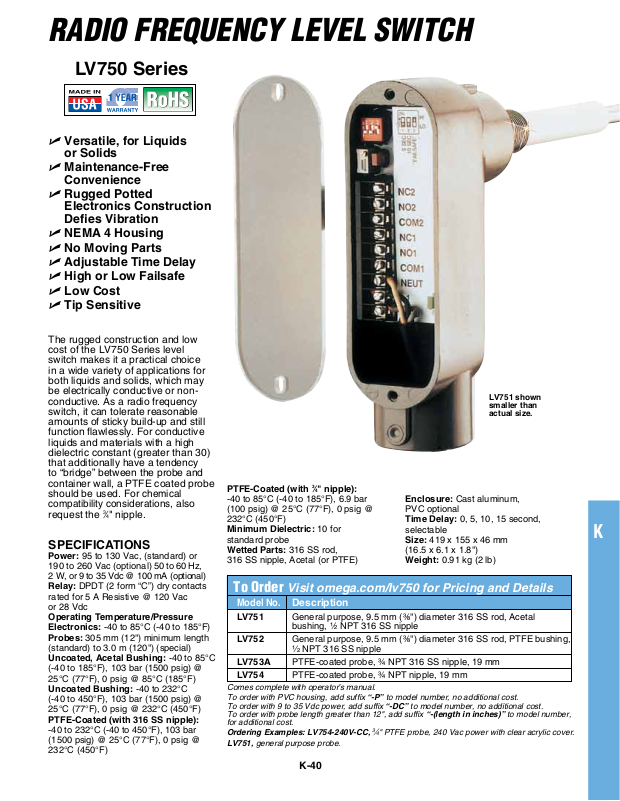

RADIO FREQUENCY LEVEL SWITCH

LV750 Series

U Versatile, for Liquids

or Solids

U Maintenance-Free

Convenience

U Rugged Potted

Electronics Construction
Defies Vibration

U NEMA 4 Housing
U No Moving Parts
U Adjustable Time Delay
U High or Low Failsafe
U Low Cost
U Tip Sensitive

The rugged construction and low
cost of the LV750 Series level
switch makes it a practical choice
in a wide variety of applications for
both liquids and solids, which may
be electrically conductive or non­conductive. As a radio frequency
switch, it can tolerate reasonable
amounts of sticky build-up and still
function flawlessly. For conductive
liquids and materials with a high
dielectric constant (greater than 30)
that additionally have a tendency
to “bridge” between the probe and
container wall, a PTFE coated probe
should be used. For
compatibility considerations,

chemical

also

request the 3⁄4" nipple.

SPECIFICATIONS

Power: 95 to 130 Vac, (standard) or

190 to 260 Vac (optional) 50 to 60 Hz,
2 W, or 9 to 35 Vdc @ 100 mA (optional)
Relay: DPDT (2 form “C”) dry contacts
rated for 5 A Resistive @ 120 Vac
or 28 Vdc

Operating Temperature/Pressure
Electronics: -40 to 85°C (-40 to 185°F)
Probes: 305 mm (12") minimum length

(standard) to 3.0 m (120") (special)
Uncoated, Acetal Bushing: -40 to 85°C
(-40 to 185°F), 103 bar (1500 psig) @
25°C (77°F), 0 psig @ 85°C (185°F)
Uncoated Bushing: -40 to 232°C
(-40 to 450°F), 103 bar (1500 psig) @
25°C (77°F), 0 psig @ 232°C (450°F)
PTFE-Coated (with 316 SS nipple):

-40 to 232°C (-40 to 450°F), 103 bar
(1500 psig) @ 25°C (77°F), 0 psig @
232°C (450°F)

LV751 shown
smaller than
actual size.

PTFE-Coated (with 3⁄4" nipple):

-40 to 85°C (-40 to 185°F), 6.9 bar
(100 psig) @ 25°C (77°F), 0 psig @
232°C (450°F)
Minimum Dielectric: 10 for
standard probe
Wetted Parts: 316 SS rod,
316 SS nipple, Acetal (or PTFE)

Enclosure: Cast aluminum,
PVC optional
Time Delay: 0, 5, 10, 15 second,
selectable
Size: 419 x 155 x 46 mm
(16.5 x 6.1 x 1.8")
Weight: 0.91 kg (2 lb)

To Order Visit omega.com/lv750 for Pricing and Details

Model No.

LV751 General purpose, 9.5 mm (³⁄₈") diameter 316 SS rod, Acetal

LV752 General purpose, 9.5 mm (³⁄₈") diameter 316 SS rod, PTFE bushing,

LV753A PTFE-coated probe, ³⁄₄ NPT 316 SS nipple, 19 mm
LV754 PTFE-coated probe, ³⁄₄ NPT nipple, 19 mm

Comes complete with operator’s manual.
To order with PVC housing, add suffix “-P” to model number, no additional cost.

To order with 9 to 35 Vdc power, add suffix “-DC” to model number, no additional cost.
To order with probe length greater than 12", add suffix “-(length in inches)” to model number,
for additional cost.

Ordering Examples: LV754-240V-CC,
LV751, general purpose probe.

Description

bushing, ¹⁄₂ NPT 316 SS nipple

¹⁄₂ NPT 316 SS nipple

3

⁄4" PTFE probe, 240 Vac power with clear acrylic cover.

K-40
