F-133

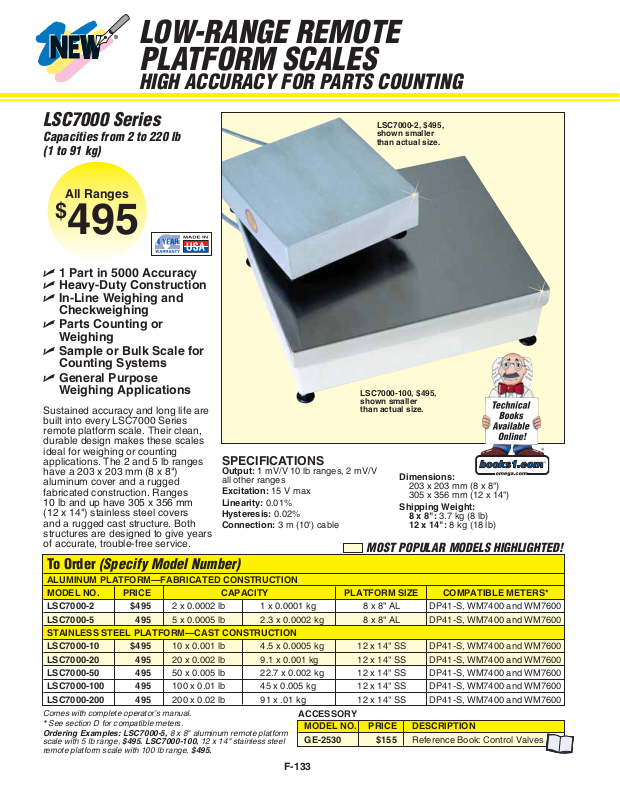

LOW-RANGE REMOTE
PLATFORM SCALES
HIGH ACCURACY FOR PARTS COUNTING
LSC7000 Series
Capacities from 2 to 220 lb
(1 to 91 kg)
All Ranges
$
495
⻬ 1 Part in 5000 Accuracy
⻬ Heavy-Duty Construction
⻬ In-Line Weighing and
Checkweighing
⻬ Parts Counting or
Weighing
⻬ Sample or Bulk Scale for
Counting Systems
⻬ General Purpose
Weighing Applications
Sustained accuracy and long life are
built into every LSC7000 Series
remote platform scale. Their clean,
durable design makes these scales
ideal for weighing or counting
applications. The 2 and 5 lb ranges
have a 203 x 203 mm (8 x 8")
aluminum cover and a rugged
fabricated construction. Ranges
10 lb and up have 305 x 356 mm
(12 x 14") stainless steel covers
and a rugged cast structure. Both
structures are designed to give years
of accurate, trouble-free service.
Comes with complete operator’s manual.
* See section D for compatible meters.
Ordering Examples: LSC7000-5, 8 x 8" aluminum remote platform
scale with 5 lb range, $495. LSC7000-100, 12 x 14" stainless steel
remote platform scale with 100 lb range, $495.
SPECIFICATIONS
Output: 1 mV/V 10 lb ranges, 2 mV/V
all other ranges
Excitation: 15 V max
Linearity: 0.01%
Hysteresis: 0.02%
Connection: 3 m (10') cable
Dimensions:
203 x 203 mm (8 x 8")
305 x 356 mm (12 x 14")
Shipping Weight:
8 x 8": 3.7 kg (8 lb)
12 x 14": 8 kg (18 lb)
MOST POPULAR MODELS HIGHLIGHTED!
To Order
(Specify Model Number)
ALUMINUM PLATFORM—FABRICATED CONSTRUCTION
MODEL NO. PRICE CAPACITY PLATFORM SIZE COMPATIBLE METERS*
LSC7000-2 $495 2 x 0.0002 lb 1 x 0.0001 kg 8 x 8" AL DP41-S, WM7400 and WM7600
LSC7000-5 495 5 x 0.0005 lb 2.3 x 0.0002 kg 8 x 8" AL DP41-S, WM7400 and WM7600
STAINLESS STEEL PLATFORM—CAST CONSTRUCTION
LSC7000-10 $495 10 x 0.001 lb 4.5 x 0.0005 kg 12 x 14" SS DP41-S, WM7400 and WM7600
LSC7000-20 495 20 x 0.002 lb 9.1 x 0.001 kg 12 x 14" SS DP41-S, WM7400 and WM7600
LSC7000-50 495 50 x 0.005 lb 22.7 x 0.002 kg 12 x 14" SS DP41-S, WM7400 and WM7600
LSC7000-100 495 100 x 0.01 lb 45 x 0.005 kg 12 x 14" SS DP41-S, WM7400 and WM7600
LSC7000-200 495 200 x 0.02 lb 91 x .01 kg 12 x 14" SS DP41-S, WM7400 and WM7600
LSC7000-100, $495,
shown smaller
than actual size.
LSC7000-2, $495,
shown smaller
than actual size.
MODEL NO. PRICE DESCRIPTION
GE-2530 $155 Reference Book: Control Valves
ACCESSORY
