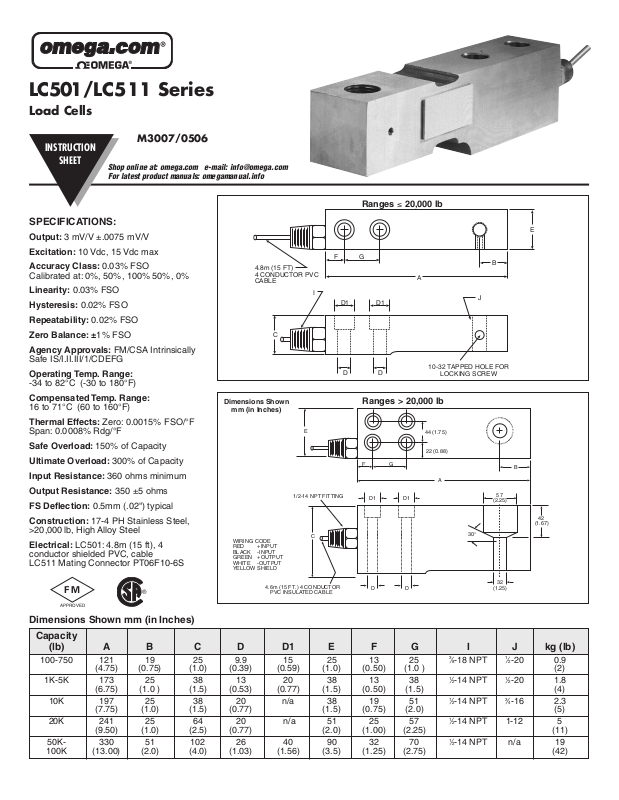

Omega Products LC501 Installation Manual

FM

APPROVED

SPECIFICATIONS:

Output: 3 mV/V ±.0075 mV/V

Excitation: 10 Vdc, 15 Vdc max

Accuracy Class: 0.03% FSO

Calibrated at: 0%, 50%, 100% 50%, 0%

Linearity: 0.03% FSO

Hysteresis: 0.02% FSO

Repeatability: 0.02% FSO

Zero Balance: ±1% FSO

Agency Approvals: FM/CSA Intrinsically

Safe IS/I.II.III/1/CDEFG

Operating Temp. Range:

-34 to 82°C (-30 to 180°F)

Compensated Temp. Range:

16 to 71°C (60 to 160°F)

Thermal Effects: Zero: 0.0015% FSO/°F
Span: 0.0008% Rdg/°F

Safe Overload: 150% of Capacity

Ultimate Overload: 300% of Capacity

Input Resistance: 360 ohms minimum

Output Resistance: 350 ±5 ohms

FS Deflection: 0.5mm (.02") typical

Construction: 17-4 PH Stainless Steel,

>20,000 lb, High Alloy Steel

Electrical: LC501: 4.8m (15 ft), 4
conductor shielded PVC, cable
LC511 Mating Connector PT06F10-6S

A

GF

WIRING CODE
RED +INPUT
BLACK -INPUT
GREEN +OUTPUT
WHITE -OUTPUT
YELLOW SHIELD

D1

D1

D

D

4.6m (15 FT.) 4 CONDUCTOR
PVC INSULATED CABLE

1/2-14 NPT FITTING

E

22 (0.88)

B

C

30°

32

(1.25)

42

(1.67)

57

(2.25)

44 (1.75)

Dimensions Shown

mm (in Inches)

A

GF

B

E

10-32 TAPPED HOLE FOR

LOCKING SCREW

J

D1

D1

I

C

D

D

4.8m (15 FT)
4 CONDUCTOR PVC
CABLE

Ranges ≤ 20,000 lb

Ranges > 20,000 lb

Dimensions Shown mm (in Inches)

Capacity

(lb) A B C D D1 E F G I J kg (lb)

100-750 121 19 25 9.9 15 25 13 25

3

⁄8-18 NPT

1

⁄2-20 0.9

(4.75) (0.75) (1.0) (0.39) (0.59) (1.0) (0.50) (1.0 ) (2)

1K-5K 173 25 38 13 20 38 13 38

1

⁄2-14 NPT

1

⁄2-20 1.8

(6.75) (1.0 ) (1.5) (0.53) (0.77) (1.5) (0.50) (1.5) (4)

10K 197 25 38 20 n/a 38 19 51 1⁄2-14 NPT

3

⁄4-16 2.3

(7.75) (1.0) (1.5) (0.77) (1.5) (0.75) (2.0) (5)

20K 241 25 64 20 n/a 51 25 57

1

⁄2-14 NPT 1-12 5

(9.50) (1.0) (2.5) (0.77) (2.0) (1.00) (2.25) (11)

50K- 330 51 102 26 40 90 32 70

1

⁄2-14 NPT n/a 19

100K (13.00) (2.0) (4.0) (1.03) (1.56) (3.5) (1.25) (2.75) (42)

LC501/LC511 Series

Load Cells

INSTRUCTION

SHEET

M3007/0506
