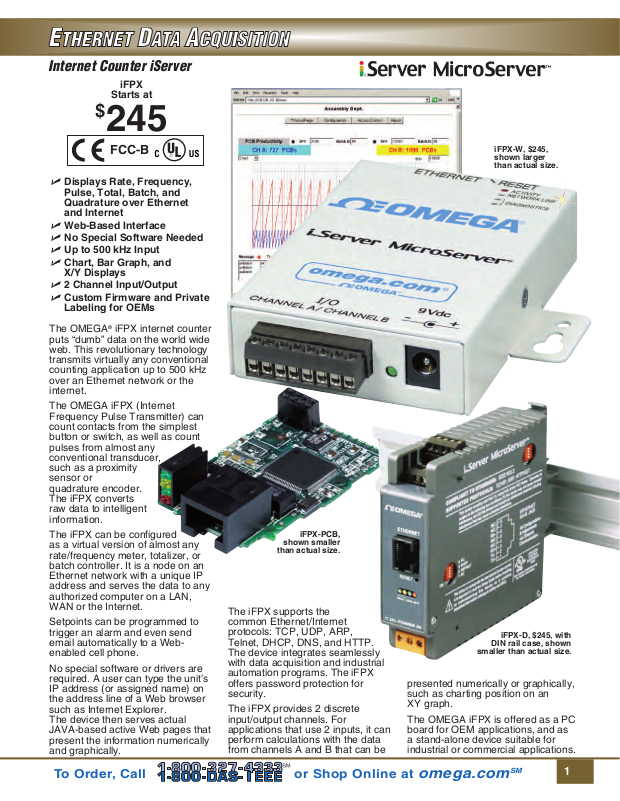

Omega Products iFPX-D5 User Manual

Internet Counter iServer

™

iFPX

Starts at

245

FCC-B

⻬ Displays Rate, Frequency,

Pulse, Total, Batch, and Quadrature over Ethernet and Internet

⻬ Web-Based Interface ⻬ No Special Software Needed ⻬ Up to 500 kHz Input ⻬ Chart, Bar Graph, and

X/Y Displays

⻬ 2 Channel Input/Output ⻬ Custom Firmware and Private

Labeling for OEMs

The OMEGA®iFPX internet counter puts “dumb” data on the world wide web. This revolutionary technology transmits virtually any conventional counting application up to 500 kHz over an Ethernet network or the internet.

The OMEGA iFPX (Internet Frequency Pulse Transmitter) can count contacts from the simplest button or switch, as well as count pulses from almost any conventional transducer, such as a proximity sensor or quadrature encoder. The iFPX converts raw data to intelligent information.

The iFPX can be configured as a virtual version of almost any rate/frequency meter, totalizer, or batch controller. It is a node on an Ethernet network with a unique IP address and serves the data to any authorized computer on a LAN, WAN or the Internet.

Setpoints can be programmed to trigger an alarm and even send email automatically to a Webenabled cell phone.

No special software or drivers are required. A user can type the unit’s IP address (or assigned name) on the address line of a Web browser such as Internet Explorer. The device then serves actual JAVA-based active Web pages that present the information numerically and graphically.

iFPX-PCB,

shown smaller

than actual size.

The iFPX supports the common Ethernet/Internet protocols: TCP, UDP, ARP, Telnet, DHCP, DNS, and HTTP. The device integrates seamlessly with data acquisition and industrial automation programs. The iFPX offers password protection for security.

The iFPX provides 2 discrete input/output channels. For applications that use 2 inputs, it can perform calculations with the data from channels A and B that can be

iFPX-W, $245, shown larger than actual size.

iFPX-D, $245, with

DIN rail case, shown

smaller than actual size.

presented numerically or graphically, such as charting position on an XY graph.

The OMEGA iFPX is offered as a PC board for OEM applications, and as a stand-alone device suitable for industrial or commercial applications.

To Order, Call or Shop Online at omega.com

http://192.168.1.200

Assembly Dept.

SERVER HOME PAGE

3199 12000.0SP1 SP2

PCB Productivity

Message:

1000000

A/B: 3 PCBs CH B: 23733 PCBs

Mon Nov 24 15:57:43 PST 2003Mon Nov 24 15:24:05 PST 2003

Reset Latch A Reset Latch BReset Timer

1Day(1Hour/Div)

a=A-B T Mode;b=3;c=81441;d=23310;e=PCB Productivity;f=PCBs;g=100;h=3199;i=12000;j=209;k=65;l=/;m=12:50:03 Nov,22 2003; a=A-B T Mode;b=3;c=82163;d=23517;e=PCB Productivity;f=PCBs;g=100;h=3199;i=12000;j=209;k=65;l=/;m=12:50:04 Nov,22 2003 a=A-B T Mode;b=3;c=82916;d=23733;e=PCB Productivity;f=PCBs;g=100;h=3199;i=12000;j=209;k=65;l=/;m=12:50:05 Nov,22 2003

Applet pulse started

CH A: 82916 PCBs

SP1

SP2

82916.0

3199.0

23733.0

12000.0

3.0

Bar

Specifications

INPUT TYPE Dual Input A and B:

Min low level signal input (magnetic pickups); 120 mV

Open Collector NPN:

Max current source; 1.66 mA

Open Collector PNP:

Max current sink; 5 mA

TTL/CMOS Input:

Low ≤0.8V, high ≥3.5V (for input; 1Hz to 30 kHz)

Low ≤0.8V, high ≥10V (for input; 1Hz to 60 kHz)

OPERATING MODES Frequency:

Range: 1 Hz to 100 kHz Max Input Frequency:

Input level 0 to 5V; 50 kHz Input level 0 to 12V; 100 kHz

Frequency Resolution:

1 x 10-10 Hz

Totalizer:

Range = 0 to 999999999* Totalizer Accuracy: 0.3% * Resolution is 1 count

A/B Totalize/Frequency (A Input Used with B Input):

Could be A + B, A - B, A x B, A/B Range = -999999999 to 999999999*

Batch: Similar to totalize except the batch = 0 to 65,535

Quadrature: Range = -999999999 to 999999999; resolution is 1 count

Output A and B: Open-collector transistors, rated 150 mA sink, 30V. For external supply.

Embedded Web Server:

Serves dynamic Web pages and Java applets (256 KB capacity)

NETWORK INTERFACE Interface: Ethernet 10Base-T

Connector: RJ45 Protocols: TCP/IP, UDP/IP, ARP,

ICMP, DHCP, DNS, HTTP, Telnet Indicators (LEDs): Power, network

activity, network link and diagnostics

Memory: 512 KB flash, 16 KB SRAM Management: Embedded Web

server, Telnet login, serial login

GENERAL Input Impedance: 1 MΩ to +EXC 5V

Excitation: 5V at 25 mA

(per channel)

Debounce Time: Programmable Gate Time: Programmable Isolation: Dielectric strength per

1 minute test based on EN 61010

iFPX-W: Power to Ethernet; 1500 Vrms; power to input/output; none; input/output to Ethernet: 1500 Vrms

iFPX-D: Pwr to Ethernet; 1500 Vrms; power to input/output; 1500 Vrms; input/output to Ethernet; 1500 Vrms

POWER iFPX-W: 9 Vdc at 200 mA; AC/DC

power adaptor included (9 Vdc at

0.5 A min)

iFPX-D: 10 to 32 Vdc; 2 W max consumption

iFPX-PCB: 5 Vdc at 150 mA ENVIRONMENTAL

Operating Temperature:

0 to 70°C (32 to 158°F)

Storage Temperature:

-40 to 125°C (-40 to 257°F)

Relative Humidity:

90% at 40°C non-condensing

PHYSICAL iFPX-W: Metal case with

flange mount

Dimensions:

20.8 H x 61.6 W x 90.3 mm D (0.83 x 2.93 x 3.56")

Weight: 180 g (0.4 lb) iFPX-D: Polycarbonate case with

DIN rail mount

Dimensions:

90.2 H x 25.1 W x 115.0 mm D (3.54 x 0.99 x 4.53")

Weight: 113 g (0.25 lb) iFPX-PCB: circuit board; FR-4 Board Surface Area: Approximately

76 mm2 (3 in2)

Weight: 23 g (0.05 lb)
