iDR Monitor

iDR-AL Limit Alarm

Temperature & Process DIN Rail

®

®

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark
to every appropriate device upon certification.

The information contained in this document is believed to be correct but OMEGA Engineering, Inc. accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient connected applications.

This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or
commissioning this device as it contains important information relating to safety and EMC.

®

®

OMEGAnet® On-Line Service

www.omega.com

Internet e-mail

[e-mail]

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

 TEL: [phone] FAX: [phone]
 e-mail: [e-mail]

Canada:;  976 Bergar
 Laval (Quebec) H7L 5A1
 TEL: [phone] FAX: [phone]
 e-mail: [e-mail]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

 Customer Service: 1-800-622-2378 / 1-800-622-BEST
 Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

Mexico and  TEL: (001)800-TC-OMEGA® FAX: [phone]
Latin American: En Espa

ñol: [phone]-7803

 e-mail: [e-mail]

®

®

®

Servicing Europe:

Czech Republic: Frystatska 184, 733 01 Karviná

 TEL: [phone] FAX: [phone]
 e-mail: [e-mail]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
 TEL: [phone] FAX: [phone]
 Toll Free in Germany: 0800 639 7678
 e-mail: [e-mail]

United Kingdom: One Omega Drive

ISO 9002 Certified River Bend Technology Centre

 Northbank, Irlam Manchester M44 5BD United Kingdom
 TEL: [phone] FAX: [phone]
 Toll Free in England: 0800 488 488
 e-mail: [e-mail]

TABLE OF CONTENTS

Part 1: Introduction............................................................................................2

1.1 Description .................................................................................2

1.2 Safety Considerations ...............................................................3

1.3 Before You Begin .......................................................................4

Part 2: Setup.......................................................................................................5

2.1 Optional Remote Programmer Front Panel .............................5

2.2 Front Panel Connections...........................................................6

2.3 Electrical Installation .................................................................7

2.3.1 Power Connections........................................................7

2.3.2 Thermocouple - Input Connection................................8

2.3.3 Two / Three / Four Wire RTD-Hookups .........................9

2.3.4 Process Current - Wiring Hookup...............................10

2.3.5 Process Voltage - Wiring Hookup ...............................10

2.3.6 Wiring Outputs - Wiring Hookup.................................11

Part 3: Operation: Configuration Mode..........................................................11

3.1 Introduction ..............................................................................11

Turning your Instrument On for the First Time
Buttons Functions in Configuration Mode

3.2 Menu Configuration ................................................................15

3.2.1 ID Number .....................................................................16

3.2.2 Setpoints .......................................................................17

3.2.3 Configuration Menu ....................................................18

3.2.4 Input Type Menu...........................................................19

Input Type (Thermocouple) ........................................20

Input Type (RTD)...........................................................21

Input Type (Process) ...................................................22

3.2.5 Reading Configuration Menu .....................................23

3.2.6 Alarm 1 Menu ...............................................................27

3.2.7 Alarm 2 Menu................................................................31

3.2.8 Reading Adjust Menu...................................................32

3.2.9 Setpoint Deviation Menu/Field Calibration ................33

3.2.10 ID Code Menu ...............................................................34

3.2.11 Communication (Options) Menu .................................36

3.2.12 Display Color Selection Menu .....................................43

Part 4: Specifications ......................................................................................46

Part 5: Factory Preset Values.........................................................................49

CE APPROVAL INFORMATION .......................................................................50

i

LIST OF FIGURES:

Figure 2.1 Optional Remote Programmer Front Panel Display ...............5

Figure 2.2 Front Panel Connections...........................................................6

Figure 2.3 Main Power Connections ..........................................................7

Figure 2.4 Thermocouple Wiring Hookup..................................................8

Figure 2.5 Two/Three/Four-Wire RTD Wiring Hookup

a) RTD-1000 ohm/RTD-500 ohm..............................................9

b) RTD-100 ohm ........................................................................9

Figure 2.6 Process Current Wiring Hookup

(Internal and External Excitation) ...........................................10

Figure 2.7 Process Voltage Wiring Hookup

(With Sensor Excitation and without Sensor Excitation) .....10

Figure 2.8 Output Wiring Hookup

a) Mechanical Relay and SSR Outputs.................................11

b) Pulse and Analog Outputs.................................................11

Figure 2.9 Snubber Circuit Wiring Hookup..............................................11

Figure 2.10 Typical Wiring ...........................................................................12

Figure 2.11 Communication Output Wiring Hookup

a) RS-232 Output ....................................................................13

b) RS-485 Output ....................................................................13

Figure 2.12 Excitation Output .....................................................................13

Figure 2.13 Embedded Ethernet .................................................................13

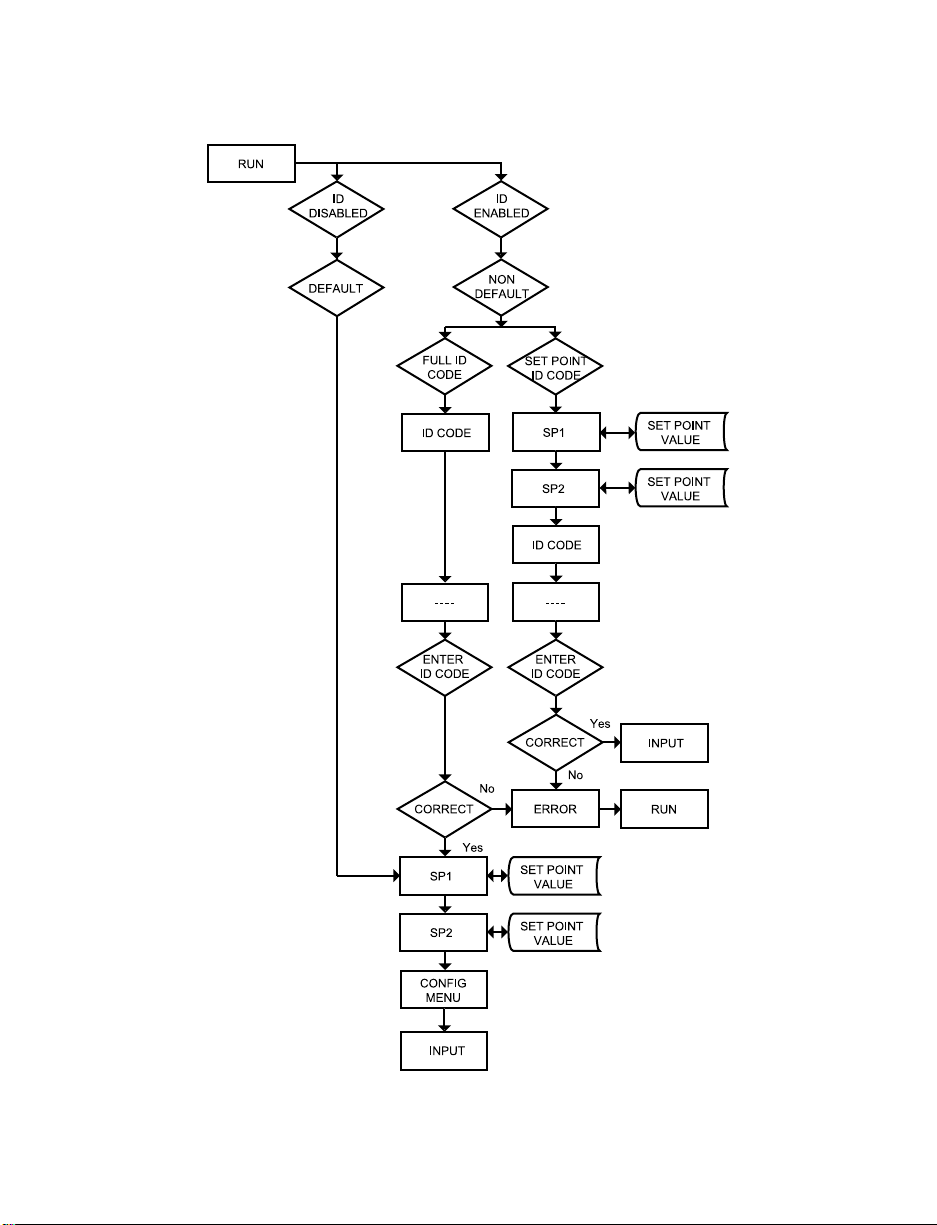

Figure 3.1 Flow Chart for ID and Setpoints .............................................15

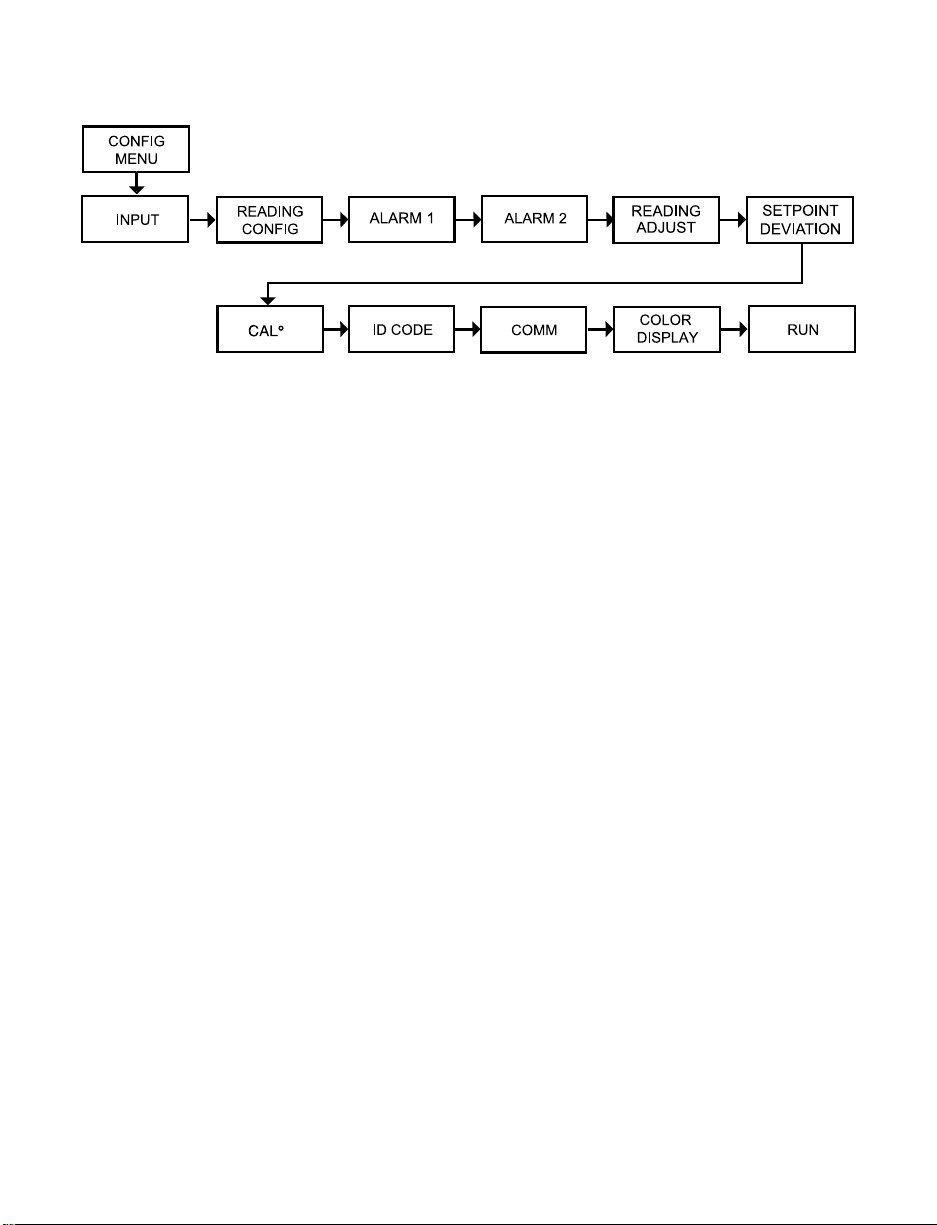

Figure 3.2 Flow Chart for Configuration Menu........................................18

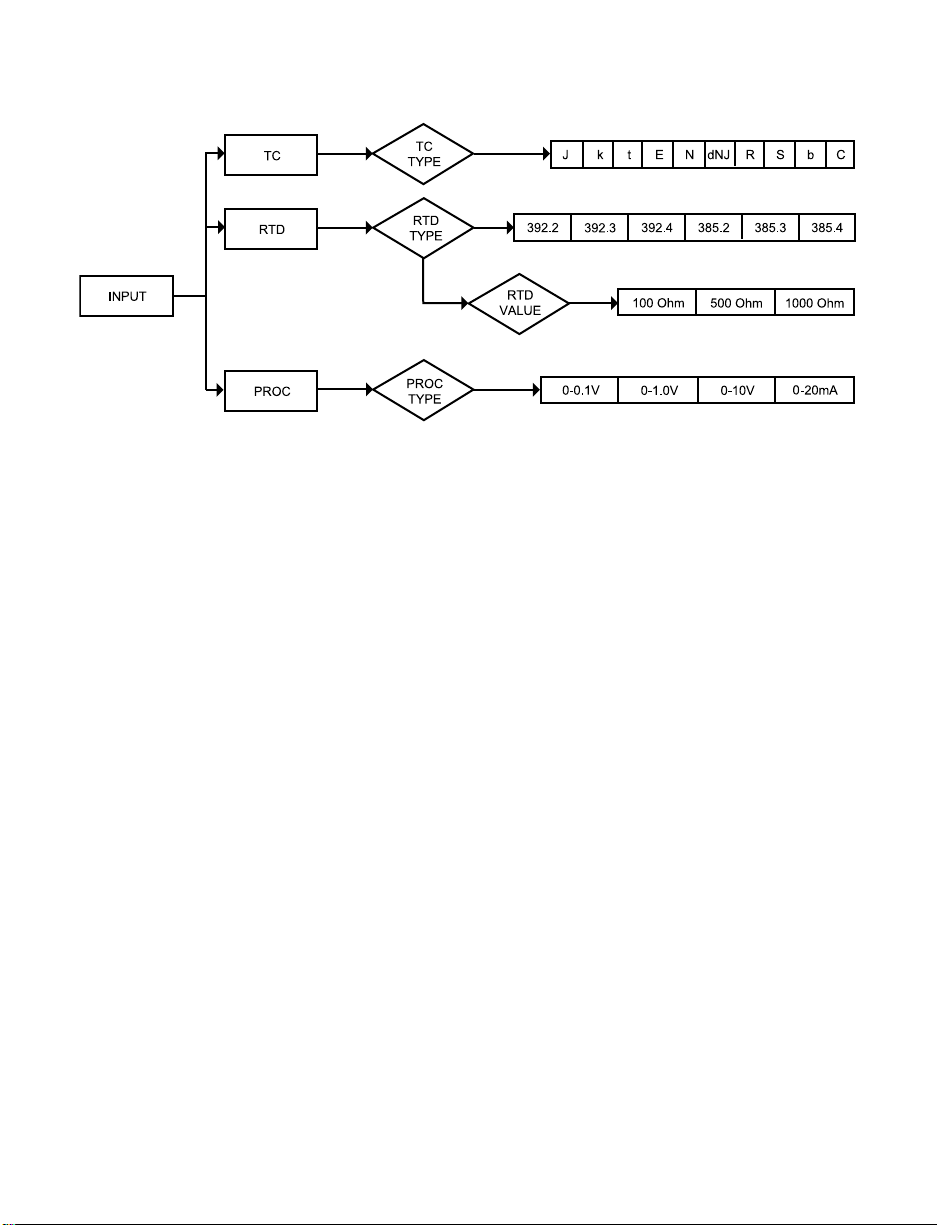

Figure 3.3 Flow Chart for Input Type Menu .............................................19

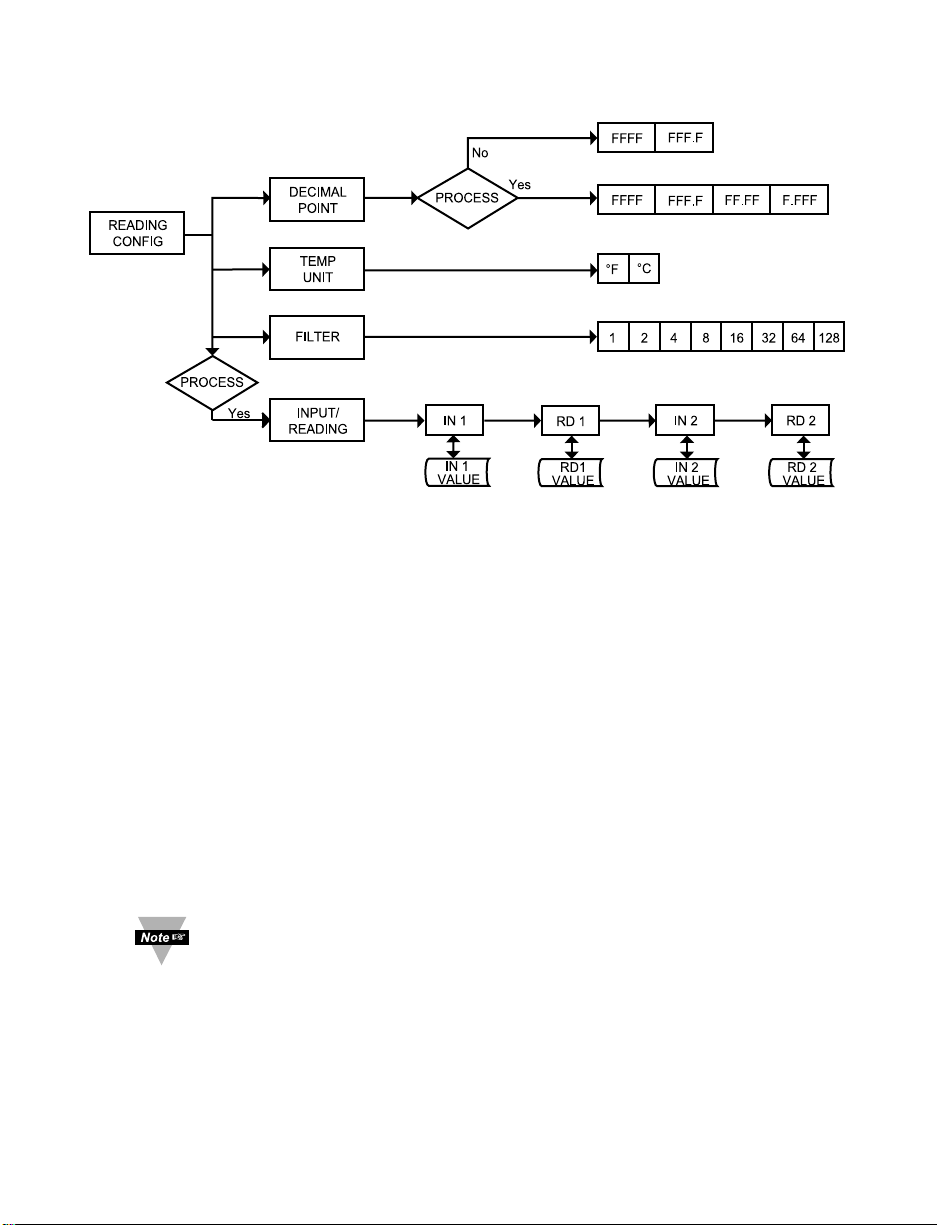

Figure 3.4 Flow Chart for Reading Configuration ...................................23

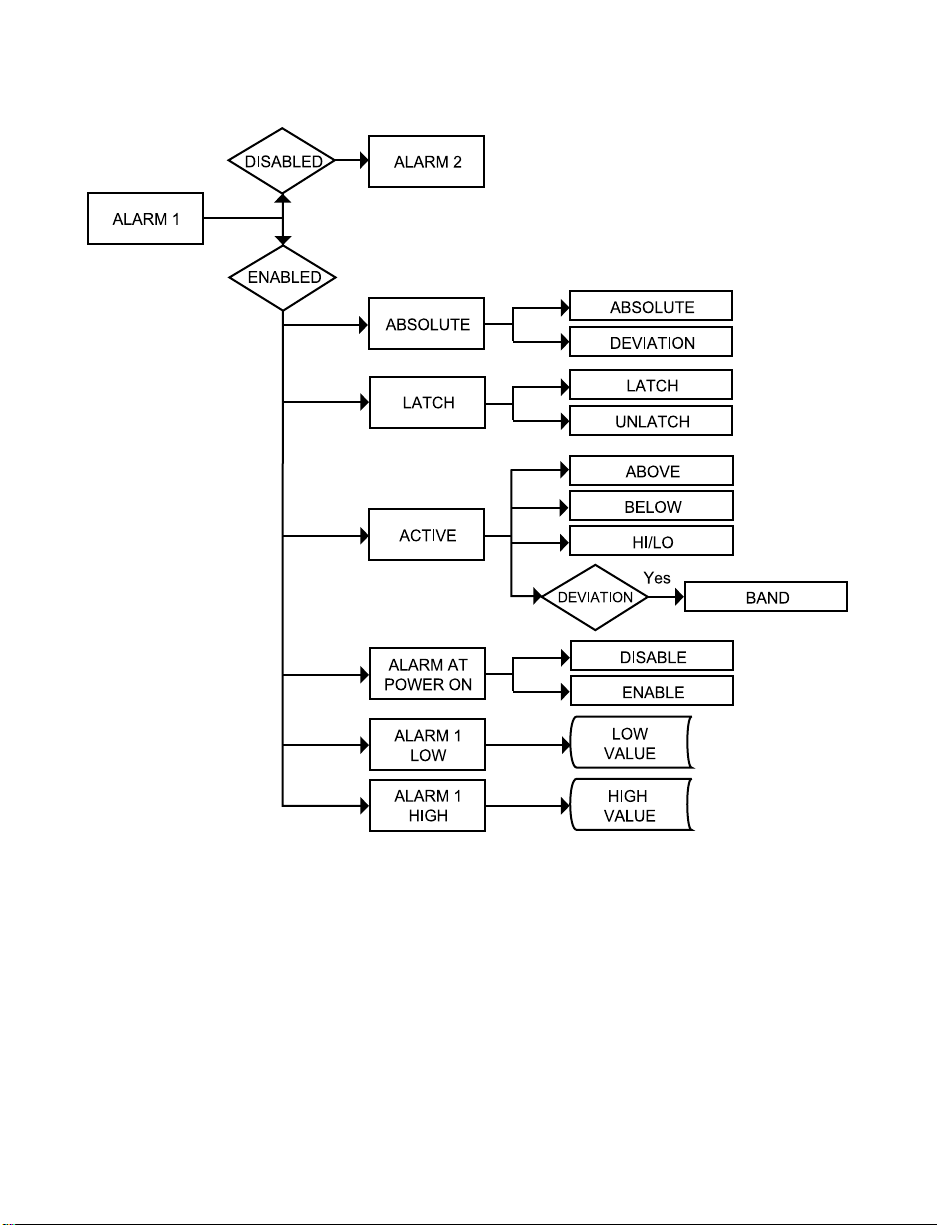

Figure 3.5 Flow Chart for Alarm 1.............................................................27

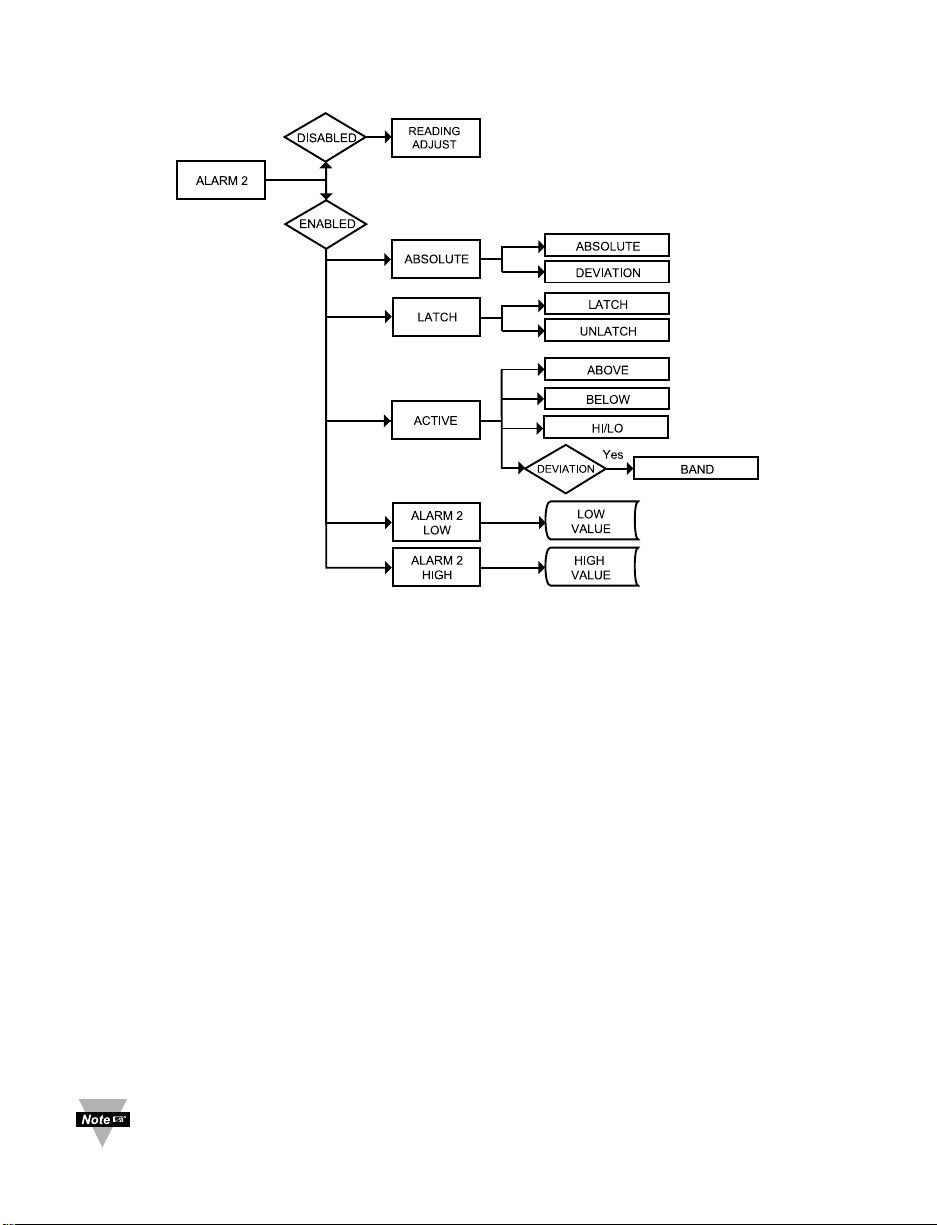

Figure 3.6 Flow Chart for Alarm 2.............................................................31

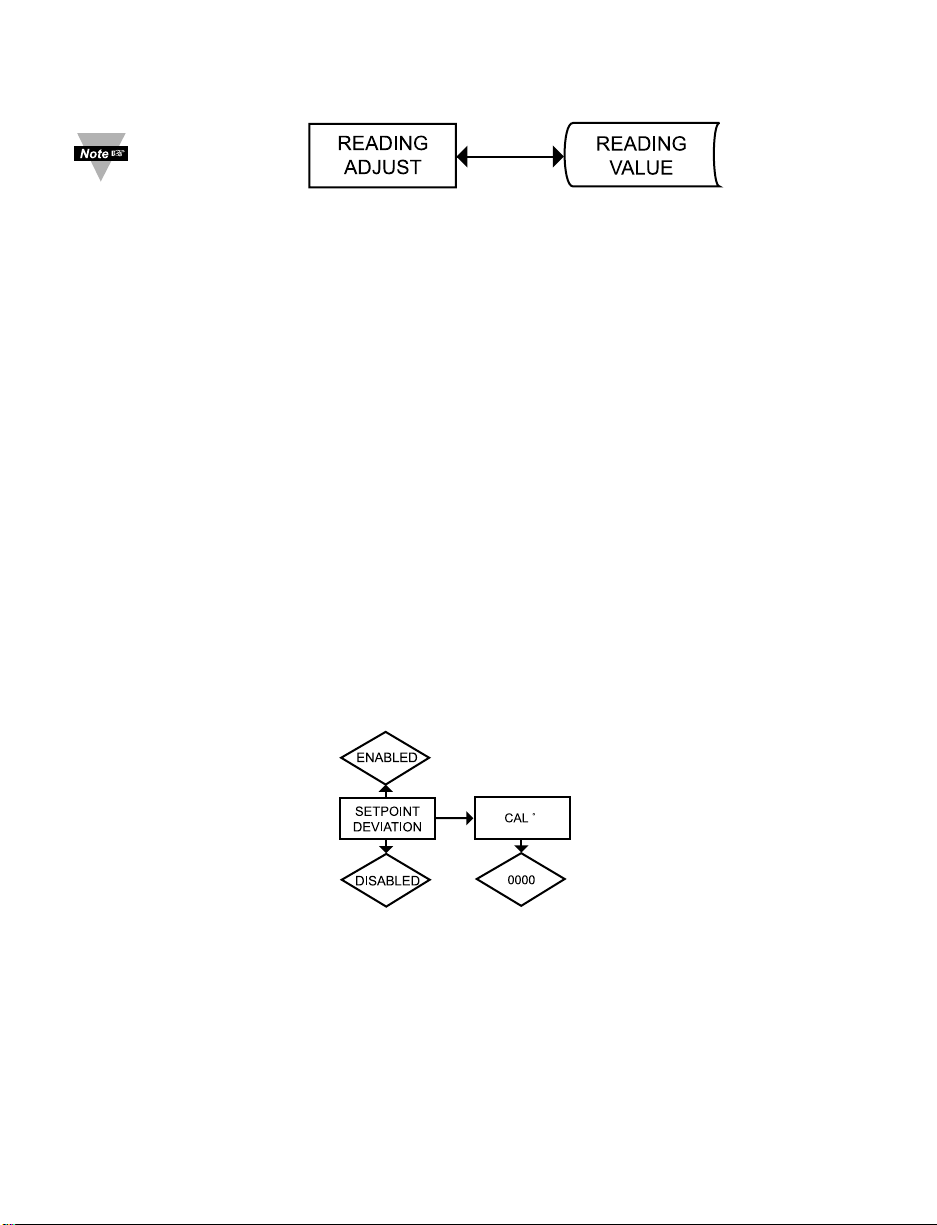

Figure 3.7 Flow Chart for Reading Adjust................................................32

Figure 3.8 Flow Chart for Setpoint Deviation/Field Calibration .............33

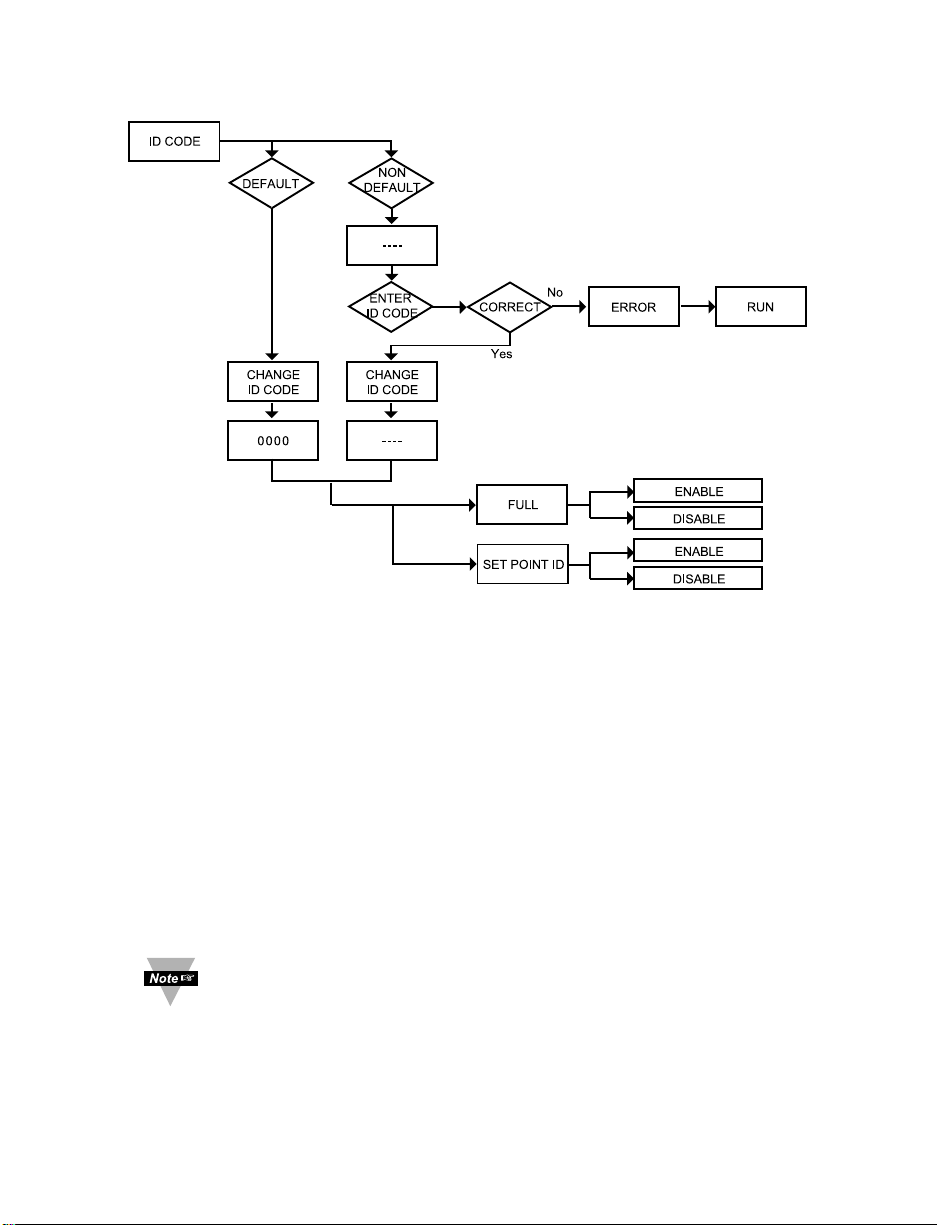

Figure 3.9 Flow Chart for ID Code ............................................................34

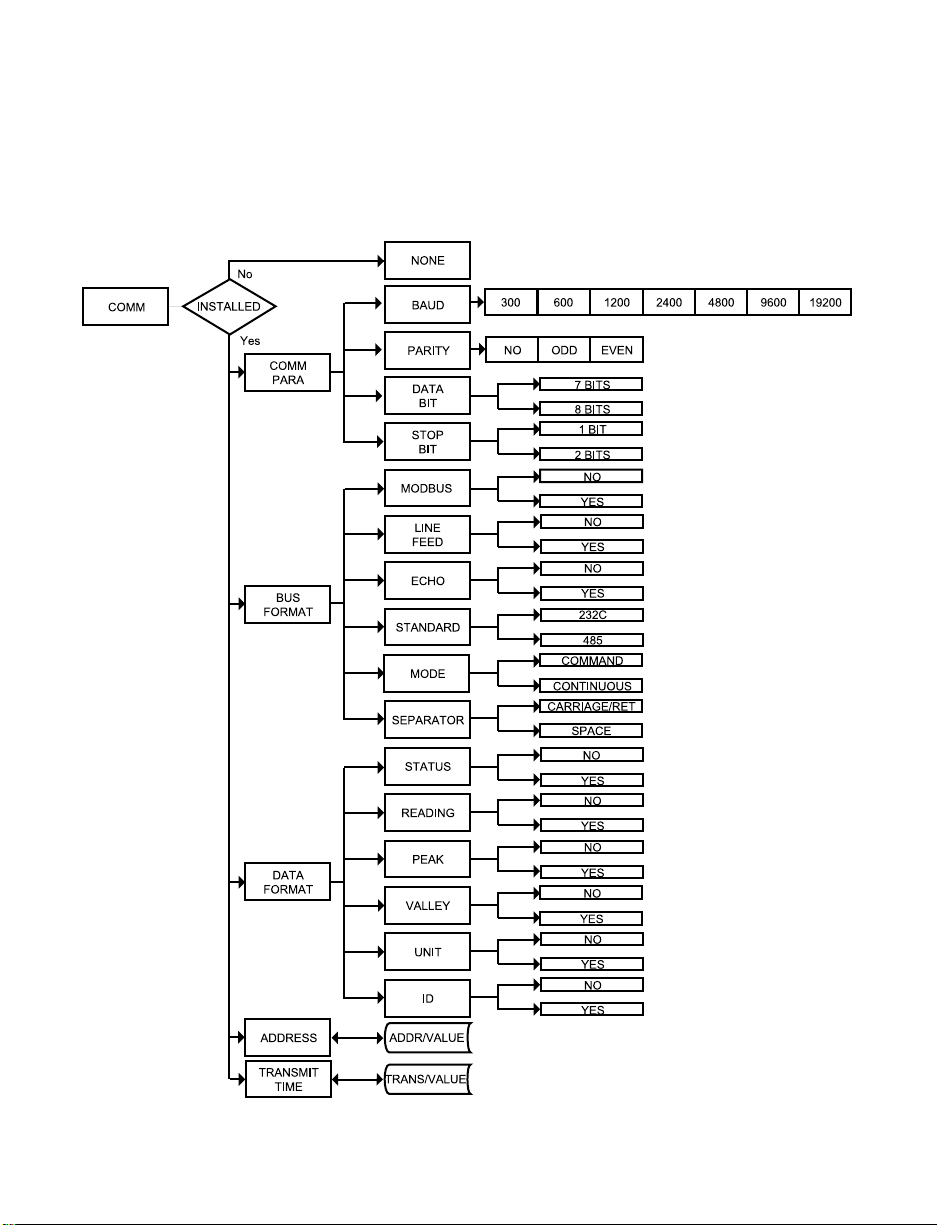

Figure 3.10 Flow Chart for Communication Option ..................................36

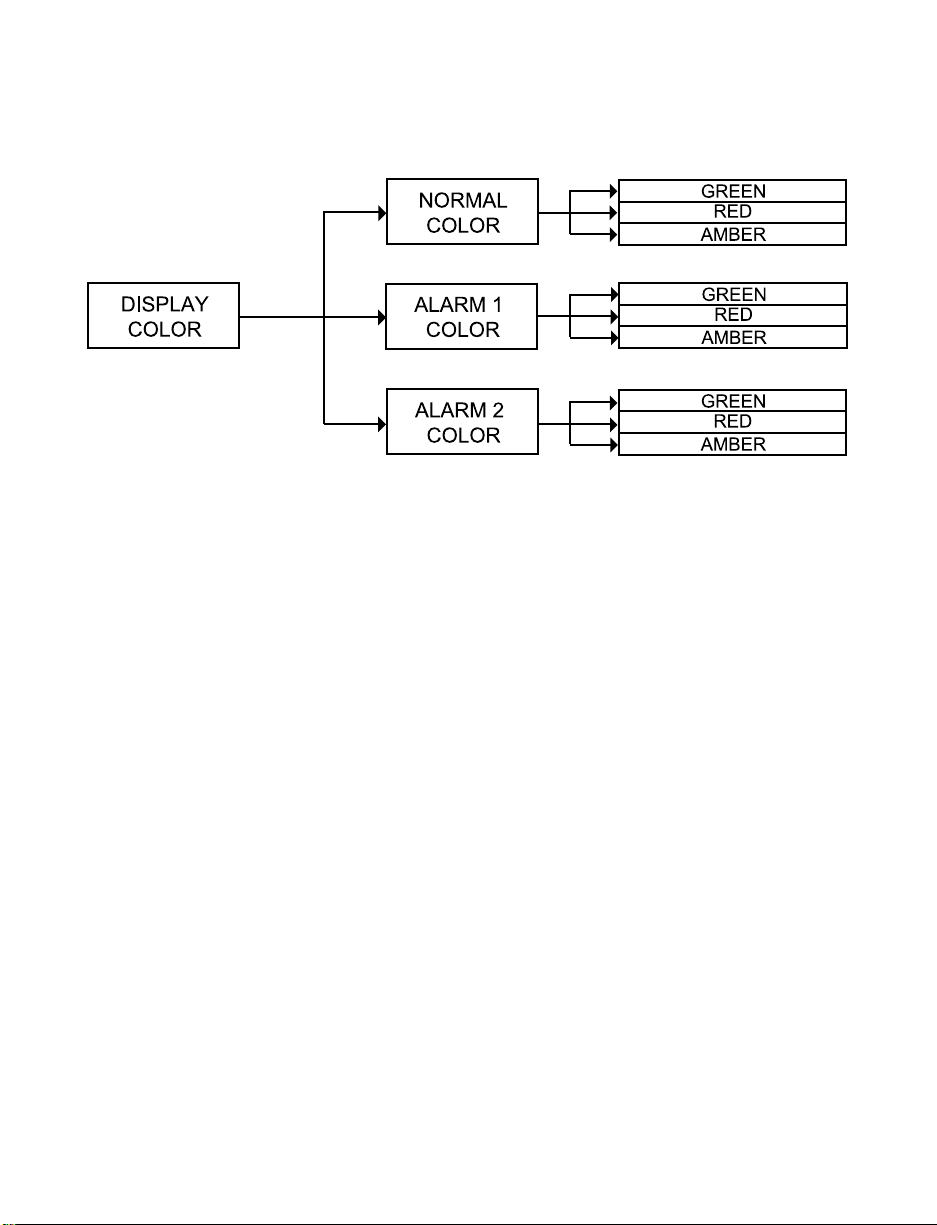

Figure 3.11 Flow Chart for Display Color Selection..................................43

LIST OF TABLES:

Table 2.1 Front Panel Annunciators...........................................................5

Table 2.2 Connectors...................................................................................6

Table 2.3 Power Connections .....................................................................7

Table 2.4 TC Wire Color Chart ....................................................................8

Table 3.1 Button Function in Configuration Mode..................................14

Table 3.2 Conversion Table .......................................................................26

Table 4.1 Input Properties .........................................................................48

Table 5.1 Factory Preset Values ...............................................................49

ii

NOTES, WARNINGS and CAUTIONS

Information that is especially important to note is identified by following labels:

• NOTE

• WARNING or CAUTION

• IMPORTANT

NOTE: Provides you with information that is important to successfully

setup and use the Programmable Digital Meter.

CAUTION or WARNING: Tells you about the risk of electrical shock.

CAUTION, WARNING or IMPORTANT: Tells you of circumstances or

practices that can effect the instrument’s functionality and must refer
to accompanying documents.

TIP: Provides you helpful hints.

1

PART 1

INTRODUCTION

1.1 Description

This device can be purchased as monitor (read process value only), limit
alarm with alarm menu but no PID control (specify -AL option), or as a
controller.

• The iSeries offers unparalleled flexibility in process measurement. Each unit

allows the user to select the input type, from 10 thermocouple types (J, K, T,
E, R, S, B, C, N and J DIN), Pt RTDs (100, 500 or 1000 Ω, with either 385 or
392 curve), DC voltage, or DC current. The voltage/current inputs are fully
scalable to virtually all engineering units, with selectable decimal point,
perfect for use with pressure, flow or other process input.

• Options include programmable RS-232 or RS-485 serial communication and

ethernet with an embedded web server. Analog Output is fully scalable and
may be configured as a proportional controller or retransmission to follow
your display. Universal power supply accepts 90 to 240 Vac. Low voltage
power option accepts 24 Vac or 12 to 36 Vdc.

• The optional Remote Programmer features a large, three color

programmable display with capability to change a color every time the Alarm
is triggered.

2

1.2 Safety Considerations

This device is marked with the international caution symbol. It is important
to read this manual before installing or commissioning this device as it
contains important information relating to Safety and EMC
(Electromagnetic Compatibility).

This instrument is a panel mount device protected in accordance with
EN 61010-1:2001, electrical safety requirements for electrical equipment
for measurement, control and laboratory. Installation of this instrument
should be done by qualified personnel. In order to ensure safe operation,
the following instructions should be followed.

This instrument has no power-on switch. An external switch or circuit­breaker shall be included in the building installation as a disconnecting
device. It shall be marked to indicate this function, and it shall be in close
proximity to the equipment within easy reach of the operator. The switch or
circuit-breaker shall meet the relevant requirements of IEC 947–1 and
IEC 947-3 (International Electrotechnical Commission). The switch shall
not be incorporated in the main supply cord.

Furthermore, to provide protection against excessive energy being drawn
from the main supply in case of a fault in the equipment, an overcurrent
protection device shall be installed.

• Do not exceed voltage rating on the label located on the top of the
instrument housing.

• Always disconnect power before changing signal and power
connections.

• Do not use this instrument on a work bench without its case for safety
reasons.

• Do not operate this instrument in flammable or explosive atmospheres.

• Do not expose this instrument to rain or moisture.

• Unit mounting should allow for adequate ventilation to ensure
instrument does not exceed operating temperature rating.

• Use electrical wires with adequate size to handle mechanical strain
and power requirements. Install without exposing bare wire outside the
connector to minimize electrical shock hazards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the instrument if EMC
problems persist.

Failure to follow all instructions and warnings may result in injury!

3

1.3 Before You Begin

Inspecting Your Shipment:

Remove the packing slip and verify that you have received everything
listed. Inspect the container and equipment for signs of damage as soon
as you receive the shipment. Note any evidence of rough handling in
transit. Immediately report any damage to the shipping agent. The carrier
will not honor damage claims unless all shipping material is saved for
inspection. After examining and removing the contents, save the packing
material and carton in the event reshipment is necessary.

Customer Service:

If you need assistance, please call the nearest Customer Service
Department, listed in this manual.

Manuals, Software:

The latest Operation and Communication Manual as well as free
configuration software are available at the website listed on the cover

page of this manual or on the CD-ROM enclosed with your
shipment.

For first-time users: Refer to the QuickStart Manual for basic operation
and set-up instructions.

The following steps in this manual for configuring your device are
explained by using the optional Remote Programmer Display (iDRP).

If you have the Serial Communications/Ethernet Option (-C24, -C4EI or

-EI) you can easily configure the controller on your computer or on-line.

To Reset the Meter:

When the monitor is in the "MENU" Mode, push c once to direct monitor
one step backward of the top menu item.

Push c twice to reset monitor, prior to resuming "Run" Mode except
after "Alarms", that will go to the "Run" Mode without resetting the
monitor.

4

PART 2

SETUP

Refer to the Quick Start Guide for assembly and disassembly
instructions.

2.1 Optional Remote Programmer Front Panel

Figure 2.1 Optional Remote Programmer Front Panel Display

Table 2.1 Front Panel Annunciators

1 Setpoint 1/ Alarm 1 indicator
2 Setpoint 2/ Alarm 2 indicator

°C °C unit indicator

°F °F unit indicator

a

Changes display to Configuration Mode and
advances through menu items*

b

Used in Program Mode and peak recall*

c

Used in Program Mode and valley recall*

d

Accesses submenus in Configuration Mode
and stores selected values*

* See Part 3 Operation: Configuration Mode

5

2.2 Front Panel Connections

The front panel connections are shown in Figures 2.2 and 2.3.

Figure 2.2 Input and Output Connections

Table 2.2 Connectors

POWER AC/DC Power Connector: All models

INPUT

Input Connector:

All models TC, PR (Process), RTD

OUTPUT 1 Based on one of the following models:

Relay SPDT
Solid State Relay
Pulse

OUTPUT 2 Based on one of the following models:

Relay SPDT
Solid State Relay
Pulse

OPTION

Based on one of the following models:

RS-232C or RS-485 programmable
Excitation

Output 1 and 2 are for -AL Limit Alarm Option only.

6

2.3 Electrical Installation

2.3.1 Power Connections

Caution: Do not connect power to your device until you have completed all

input and output connections. Failure to do so may result in injury!

Connect the main power connections as shown in the figure below.

Figure 2.3 Main Power Connections

Table 2.3 Power Connections

FUSE Connector For 115Vac For 230Vac DC

FUSE 1 Power * 100 mA(T) 100 mA(T) 100 mA(T)
FUSE 2 Power * N/A N/A 400 mA(T)

For the low voltage power option, in order to maintain the same degree of
protection as the standard high voltage input power units (90-240 Vac), always
use a Safety Agency Approved DC or AC source with the same Overvoltage
Category and pollution degree as the standard AC unit (90-240 Vac).

The Safety European Standard EN61010-1 for measurement, control,
and laboratory equipment requires that fuses must be specified based on
IEC127. This standard specifies for a Time-lag fuse, the letter code “T”.
The above recommended fuses are of the type IEC127-2-sheet III. Be
aware that there are significant differences between the requirements
listed in the UL 248-14/CSA 248.14 and the IEC 127 fuse standards. As a
result, no single fuse can carry all approval listings. A 1.0 Amp IEC fuse
is approximately equivalent to a 1.4 Amp UL/CSA fuse. It is advised to
consult the manufacturer’s data sheets for a cross-reference.

7

* See Specification Section

2.3.2 Thermocouple

The figure below shows the wiring hookup for any thermocouple type. For
example, for Type K hookup, connect the yellow wire to the "2" terminal and the
red wire to the "1(-)" terminal.

When configuring your monitor, select Thermocouple and Thermocouple
Type in the Input Type menu (see Part 3).

Figure 2.4 Thermocouple Wiring Hookup

If the input wires of the meter get disconnected or broken, it will display
+OPN “Input (+) Open” message. For safety purpose you may want to
set up your alarm to be triggered when input is open. See Alarm 1 and 2
chapters for details.

8

TYPE Input Connector Jacket (external insulation)

Terminal 1 (-) Terminal 2 (+) Extension Grade

J Red White dark-Brown Black
K Red Yellow dark-Brown Yellow
T Red Blue dark-Brown Blue
E Red Purple dark-Brown Purple
N Red Orange dark-Brown Brown
R Red Black - Green
S Red Black - Green
B Red Gray - Black

Table 2.4 TC Wire Color Chart

2.3.3 Two/Three/Four-Wire RTD

The figures below show the input connections and input connector jumpers
(shown in bold lines) required to hookup a 2-, 3- or 4-wire RTD.

Figure 2.5 a) RTD-1000 ohm and b) RTD-100 ohm Wiring Hookup

500 ohm Wiring Hookup

The two-wire connection is simplest method, but does not compensate for
lead-wire temperature change and often requires calibration to cancel lead-wire
resistance offset.

The three-wire connection works best with RTD leads closely equal in resistance.
The device measures the RTD, plus upper and lower lead drop voltage and the
subtracts twice the measured drop in the lower supply current lead producing
excellent lead-resistance cancellation for balanced measurements.

The four-wire RTD hookup is applicable to unbalanced lead resistance and
enables the device to measure and subtract the lead voltage, which produces the
best lead-resistance cancellation.

When configuring your monitor, select RTD type and RTD value in the Input
Type menu (see Part 3).

If the input wires of the meter get disconnected or broken, it will display

+OPN

“Input (+) Open” message except in case of 500/1000 Ω 2-wire

RTD. In this case the display shows

-OPN

“Input (-) Open” message. For
safety purpose you may want to set up your alarm to be triggered when
input is open. See Alarm 1 & 2 chapters for details.

9

3-WIRE

2-WIRE

4-WIRE

2-WIRE

4-WIRE

3-WIRE

2.3.4 Process Current

The figure below shows the wiring hookup for Process Current 0 – 20 mA.

Figure 2.6 Process Current Wiring Hookup

(Internal and External Excitation)

When configuring your instrument, select Process Type in the Input Type Menu
(see Part 3).

2.3.5 Process Voltage

The figure below shows the wiring hookup for Process Voltage 0 – 100 mV,
0 – 1 V, 0 – 10 V.

Figure 2.7 Process Voltage Wiring Hookup

(with Sensor Excitation and without Sensor Excitation)

RL - Voltage limited resistor, which allows to convert 24 Vdc internal excitation

voltage to the appropriate process input value. For instance: if the potentiometer
value is equal to 10 kΩ, the minimum RL is 14 kΩ for 10 V process input.

When configuring your instrument, select Process Type in the Input Type Menu
(see Part 3).

100 mV

Return

1 V or 10 V

R

L

100 mV

1 V or 10 V

Return

10

0-20 mA

Internal

Excitation

0-20 mA
External

Excitation

2.3.6 Wiring Outputs

This meter, if ordered with -AL, Limit Alarm Option, has two, factory installed,
outputs. The SPDT Mechanical Relay, SPST Solid State Relay and Pulse Output
Connection are shown below.

Figure 2.8

a) Mechnical Relay and SSR b) Pulse Output

Output Wiring Hookup Wiring Hookup

This device has snubber circuits designed to protect the contacts of the
mechanical relays when it switches to inductive loads (i.e. solenoids, relays).
These snubbers are internally connected between the Common (C) and
Normally Open (NO) relay contacts of Output 1 and Output 2.

If you have an inductive load connected between Common (C) and
Normally Closed (NC) contacts of the mechanical relays and you want to
protect them from the rush current during the switching period, you have
to connect an external snubber circuit between Common (C) and
Normally Closed (NC) contacts as indicated in the figure below.

Figure 2.9 Snubber Circuits Wiring Hookup

11

C

SSR

NO

C

NC

RELAY

NO

OUTPUT 1 OUTPUT 2

External

Load

External

Load

0.5 A (T)

3 A (T)

OUTPUT 1 OUTPUT 2

RETURN

PULSE

PULSE

RETURN

PULSE

PULSE

C

NC

NO

C

NC

NO

OUTPUT 1 OUTPUT 2

100
1/4 W

0.033

RC CIRCUIT

OR

VARISTOR

275 V

12

Figure 2.10 Typical Applications

TEMPERATURE

CONTROLLER

CONTROL

SIDE

dc INPUT

SSR

ac INPUT

SSR

ac INPUT

SSR

LOAD

SIDE

HEATER

Vac

Vac

dc CONTROLLED SSR USED WITH TEMPERATURE CONTROLLER WITH dc VOLTAGE SSR DRIVER OUTPUT

FAST BLOW

FUSE

0 or 5 Vdc,

TYPICALLY

4

3

1

2

TEMPERATURE

CONTROLLER

CONTROL

SIDE

LOAD

SIDE

HEATER

Vac

Vac

ac CONTROLLED SSR USED WITH TEMPERATURE CONTROLLER WITH MECHANICAL RELAY OUTPUT

FAST BLOW

FUSE

Vac

DRIVING

SSR

4

3

1

2

TEMPERATURE

CONTROLLER

CONTROL SIDE

LOAD

RESISTOR

LOAD

SIDE

HEATER

Vac

Vac

ac CONTROLLED SSR USED WITH TEMPERATURE CONTROLLER WITH TRIAC OUTPUT

FAST BLOW

FUSE

Vac

DRIVING

SSR

4

3

1

2

This device may have a programmable serial communication output.
The RS-232 and RS-485 Output Connections are shown below.

Figure 2.11 Serial Communication

a) RS-232 Output Wiring Hookup b) RS-485 Output Wiring Hookup

This device has built-in excitation. The connections are shown below.

Figure 2.12 Excitation Output

This device may have the Ethernet with embedded web server option.
The connections are shown below.

Figure 2.13 Embedded Ethernet

13

Tx
Rx
RTN

-Tx / Rx
+Tx / Rx

­24 Vdc

+
