Omega Products iBTX-M Installation Manual

Download

Page 1

Pressure/Temp

Main Menu

http://192.168.1.200

Pressure/Temp

(1 Hour/Div)

1 Day

1 Week 1 Month 1 Year

1 Minute

1 Hour

Mon Jul 24 09:42:10 PST 2006

9/Div

122

400

80/Div

1200

Temperature

78.3

PressureArchives_Inactive

1000.3

Tues Jul 25 08:42:10 PST 2006

Alarm SP1(above)=0095.0 F Alarm SP2(below)=0070.0 F

hPa

User’s Guide

Shop on line at

omega.com

e-mail: info@omega.com

For Latest Product Manuals

omegamanual.info

Barometric Pressure +

Temperature

Page 2

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as the guide contains important information relating to safety and EMC.

Page 3

TABLE OF CONTENTS

Part 1: Introduction

1.1 Safety and EMC Considerations...............................................................2

1.2 Before You Begin.......................................................................................2

1.3 Description .................................................................................................2

Part 2: Hardware

2.1 Dimensioins ...............................................................................................4

2.2 Wall Mounting ...........................................................................................5

2.3 DIP Switches ..............................................................................................5

2.4 Parts of iServer Unit .................................................................................6

2.5 Disassembly Instruction ..........................................................................7

2.6 Network Communication Interfaces ........................................................8

2.6.1 10Base-T RJ-45 Pinout.................................................................8

2.6.2 10Base-T Crossover Wiring.........................................................8

2.7 Relay Wiring Connections .......................................................................8

2.8 Running on Battery Power .......................................................................8

2.9 Flash Memory Format................................................................................9

Part 3: Network Configuration

3.1 Network Protocols ..................................................................................10

3.2 Ethernet (MAC) Address ........................................................................10

3.3 DHCP .....................................................................................................11

3.4 DNS .....................................................................................................11

3.5 IP Address ...............................................................................................11

3.5.1 Default IP Address......................................................................12

3.6 Port Number .............................................................................................12

Part 4: Operations

4.0 Testing the Connection ...........................................................................13

4.1 iConnect Software ...................................................................................14

4.2 Setting a new IP Address over the Network .........................................16

4.3 Setup and Operation using the iServer Web Page ..............................17

4.3.1 Read Sensor................................................................................17

4.3.1.1 Java Runtime Environment 1.4 Setup Instructions.....18

4.3.1.2 Java Runtime 1.5 (5.0) Setup Instructions ...................19

4.3.1.3 Browser Proxy Selection................................................19

4.3.2 Adjustable Chart.........................................................................20

4.3.3 Retrieving Data from Flash........................................................21

4.3.4 Access Control ..........................................................................22

4.3.5 Configuration ..............................................................................23

4.3.5.1 Configuration - Recording Initializing ......................................29

4.3.5.2 Configuration - Recording Active .............................................30

4.3.5.3 Important Recording Notes .......................................................31

4.3.6 Sensor Parameter.......................................................................32

4.4 Telnet Setup ............................................................................................33

4.5 HTTPget Program ....................................................................................33

4.5.1 HTTPget using Port 1000 ...........................................................34

4.5.2 HTTPget and ARP to setup Device IP Address ......................34

4.6 ARP Protocol............................................................................................35

4.7 iLog Software ...........................................................................................36

4.8 Mail Notifier Software ..............................................................................37

4.8.1 Installation...................................................................................37

4.8.2 Program Options Setup and Configuration ............................38

4.8.3 Device Setting Setup and Configuration...............................39

Page 4

Part 5: Specifications .................................................................................................40

Part 6: Factory Preset Values ......................................................................................43

Appendix A Glossary ................................................................................................44

Appendix B IP Address ............................................................................................45

Appendix C IP Netmask ............................................................................................46

Appendix D ASCII Chart ..........................................................................................47

ASCII Chart Control Codes .................................................................48

Appendix E iLog Error Messages ............................................................................49

Part 7: Approvals Information

7.1 Electromagnetic Compatibility (EMC) ...............................................50

7.2 FCC ..................................................................................................50

LIST OF FIGURES & TABLES:

Figure 1.1 iServer and iLD Big Display on the Ethernet Network........................3

Figure 2.1 Dimensions ............................................................................................4

Figure 2.2 Wall Mounting ........................................................................................5

Figure 2.3 DIP Switches...........................................................................................5

Figure 2.4 Parts of iServer Unit...............................................................................6

Figure 2.5 Opening the Unit ....................................................................................7

Figure 2.6 RJ45 Pinout ............................................................................................8

Figure 2.7 10Base-T Crossover Cable Wiring .......................................................8

Figure 2.8 Relay Connections ................................................................................8

Figure 2.9 Chart of Simulated Data ........................................................................9

Figure 3.1 Labeling ................................................................................................10

Figure 3.2 DIP Switch on Bottom Side of iServer................................................11

Figure 3.3 Telnet Login into the iServer...............................................................12

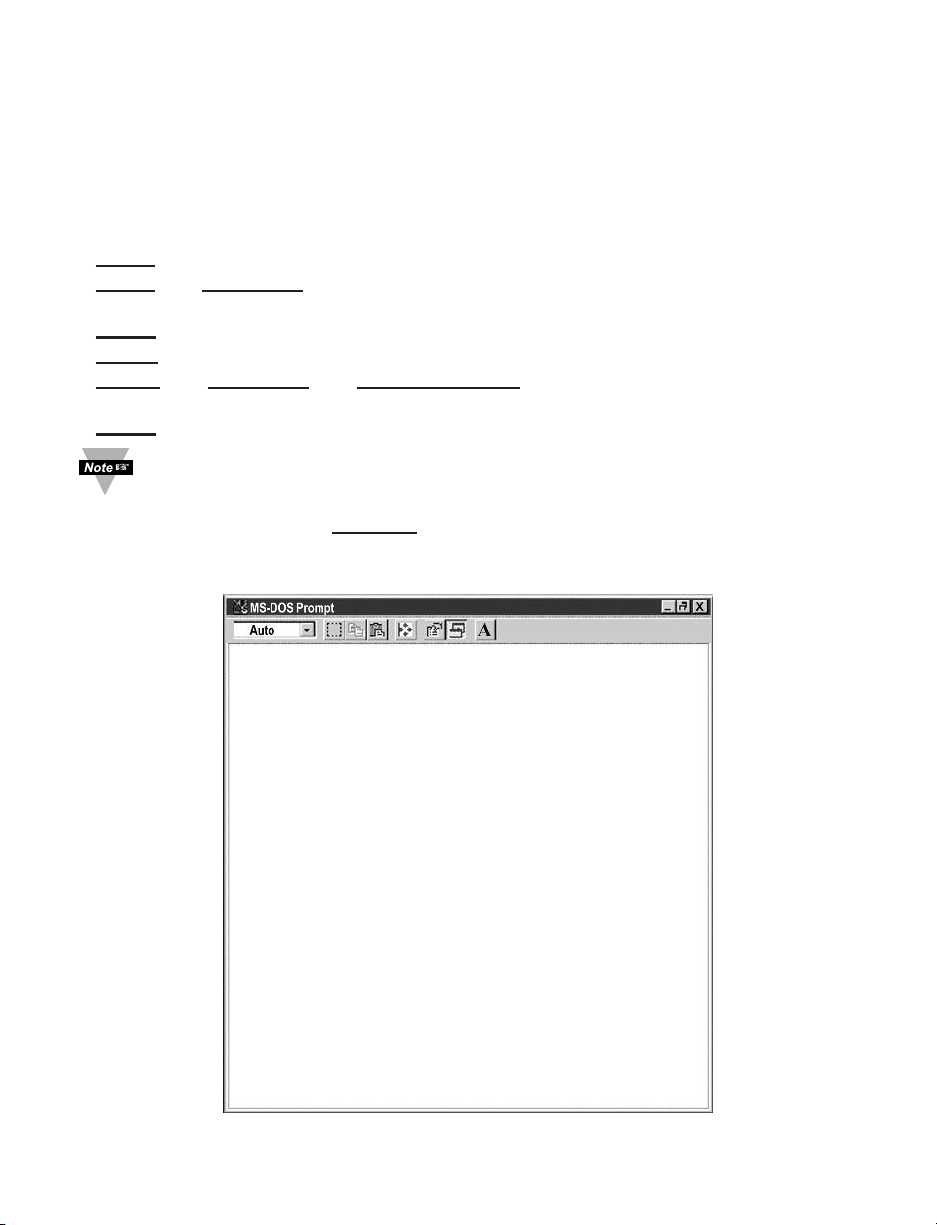

Figure 4.1 Pinging the iServer from MS-DOS Prompt ........................................13

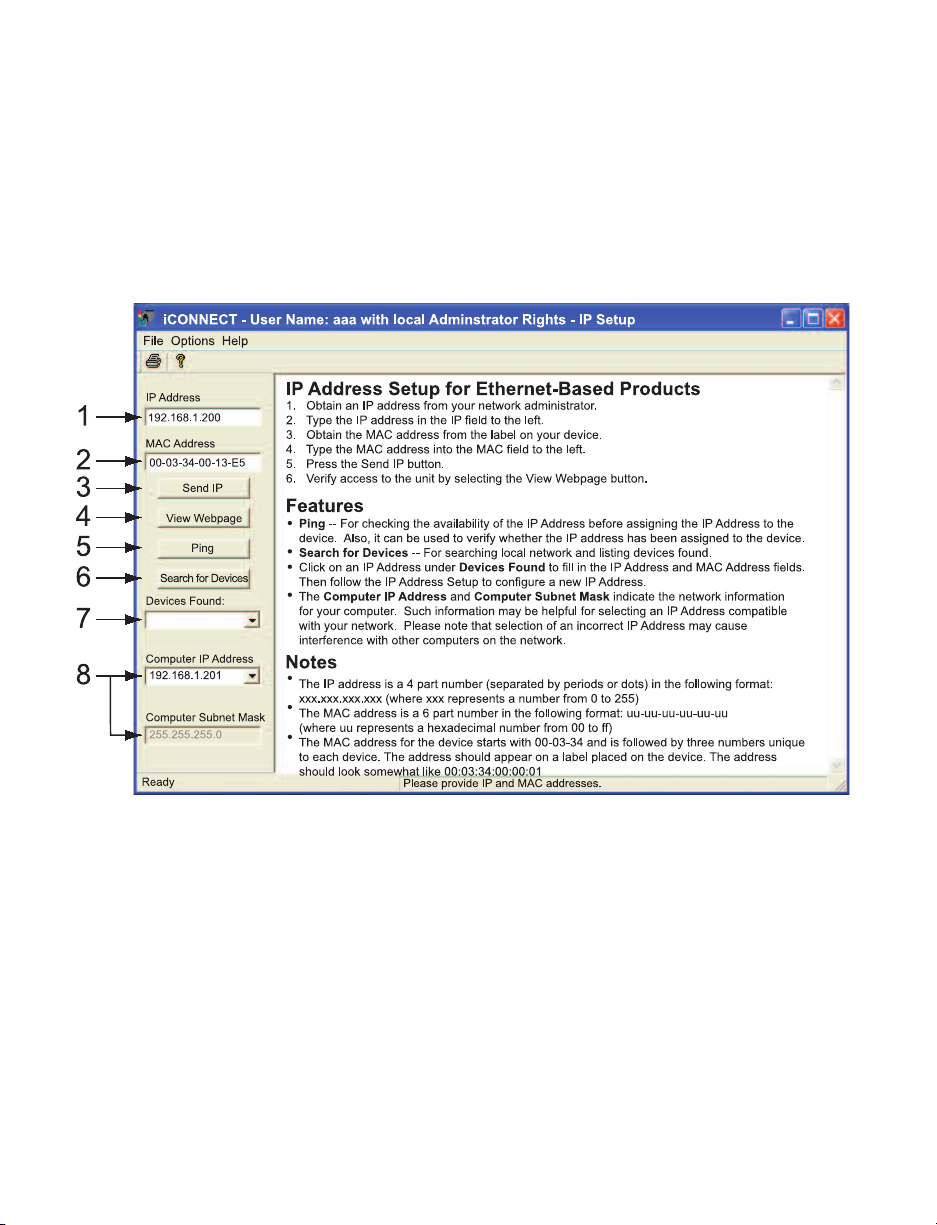

Figure 4.2 Assigning an IP Address using iConnect .........................................14

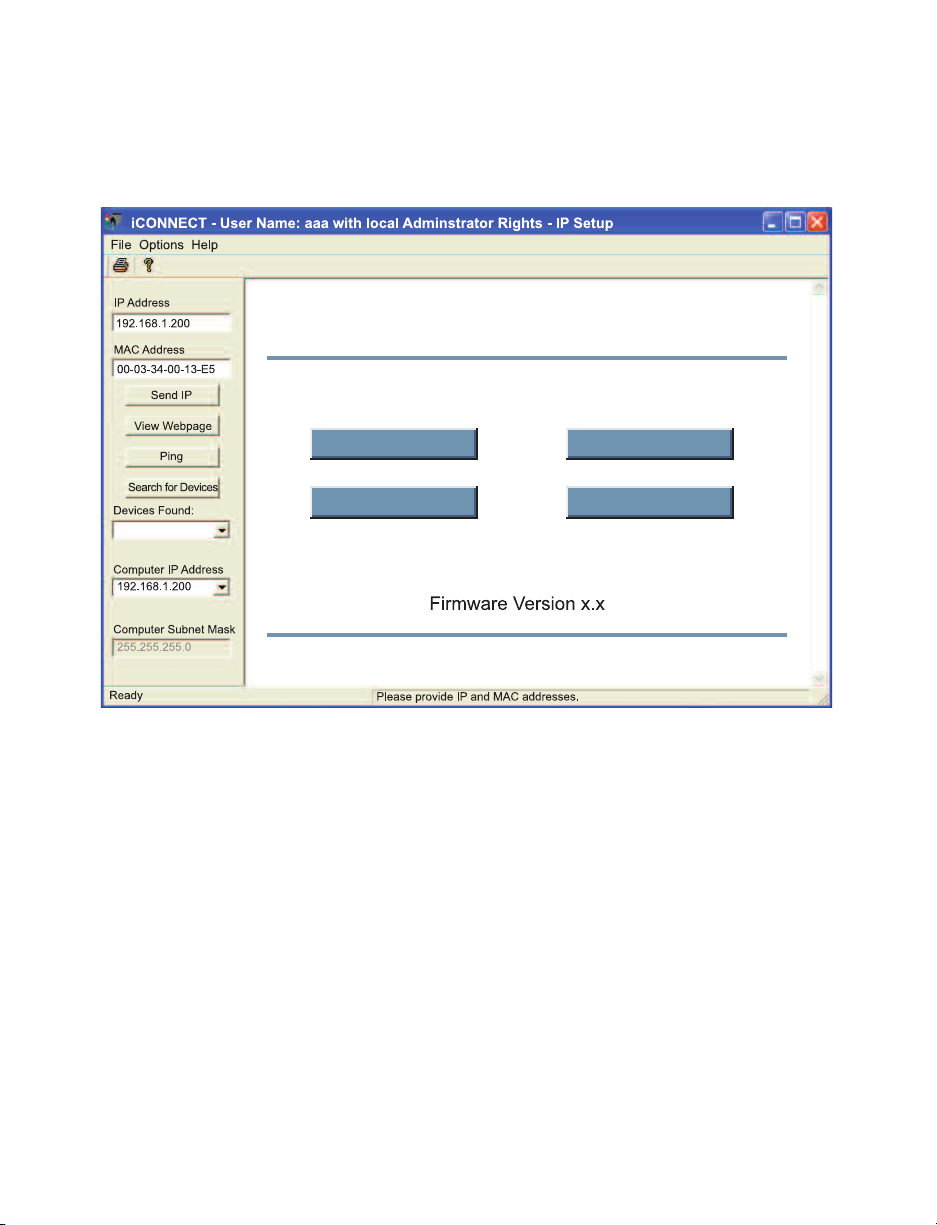

Figure 4.3 Accessing the iServer’s Home Page Menu........................................15

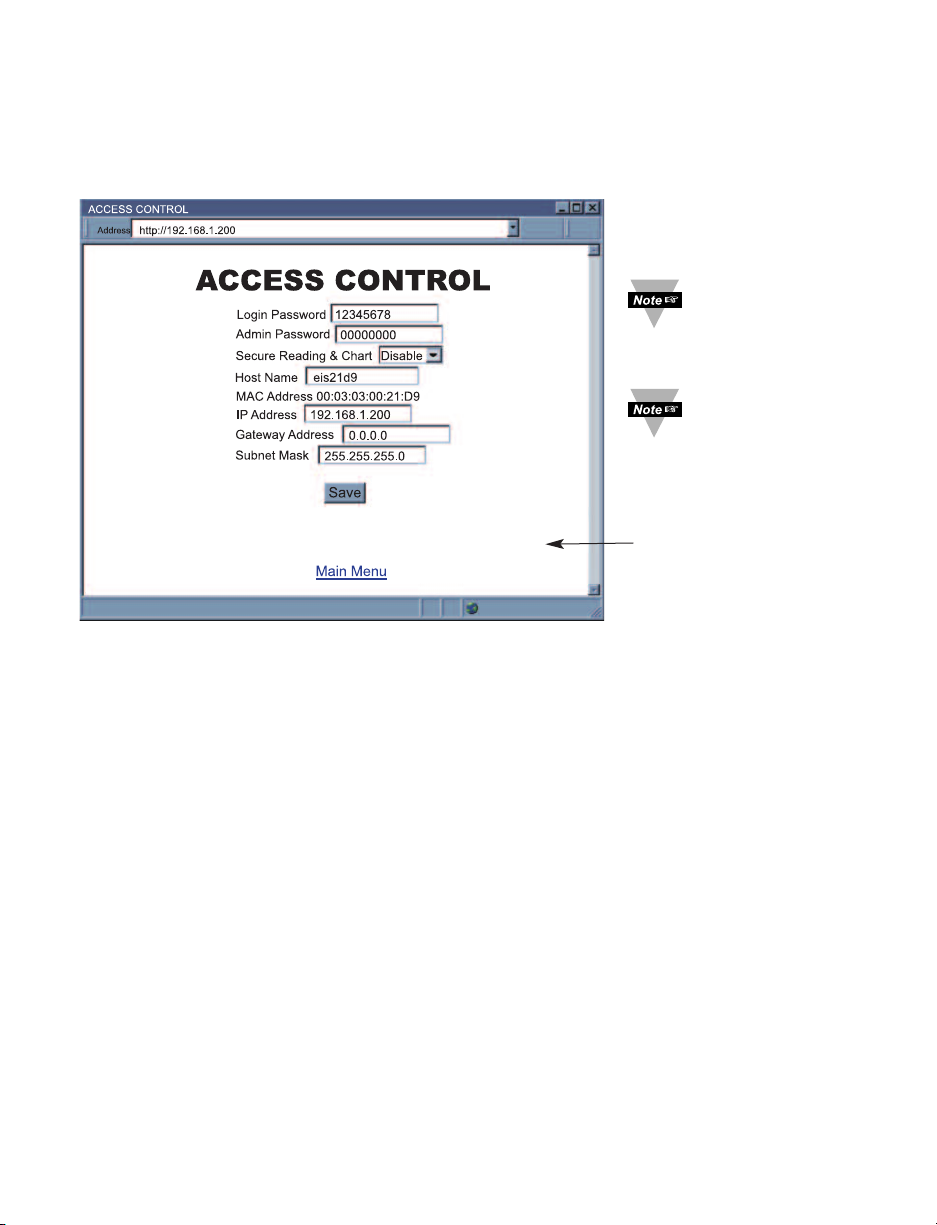

Figure 4.4 Access Control ...................................................................................16

Figure 4.5 iServer Home Page ..............................................................................17

Figure 4.6 Login and Administration Password .................................................17

Figure 4.7 Read Sensor .........................................................................................18

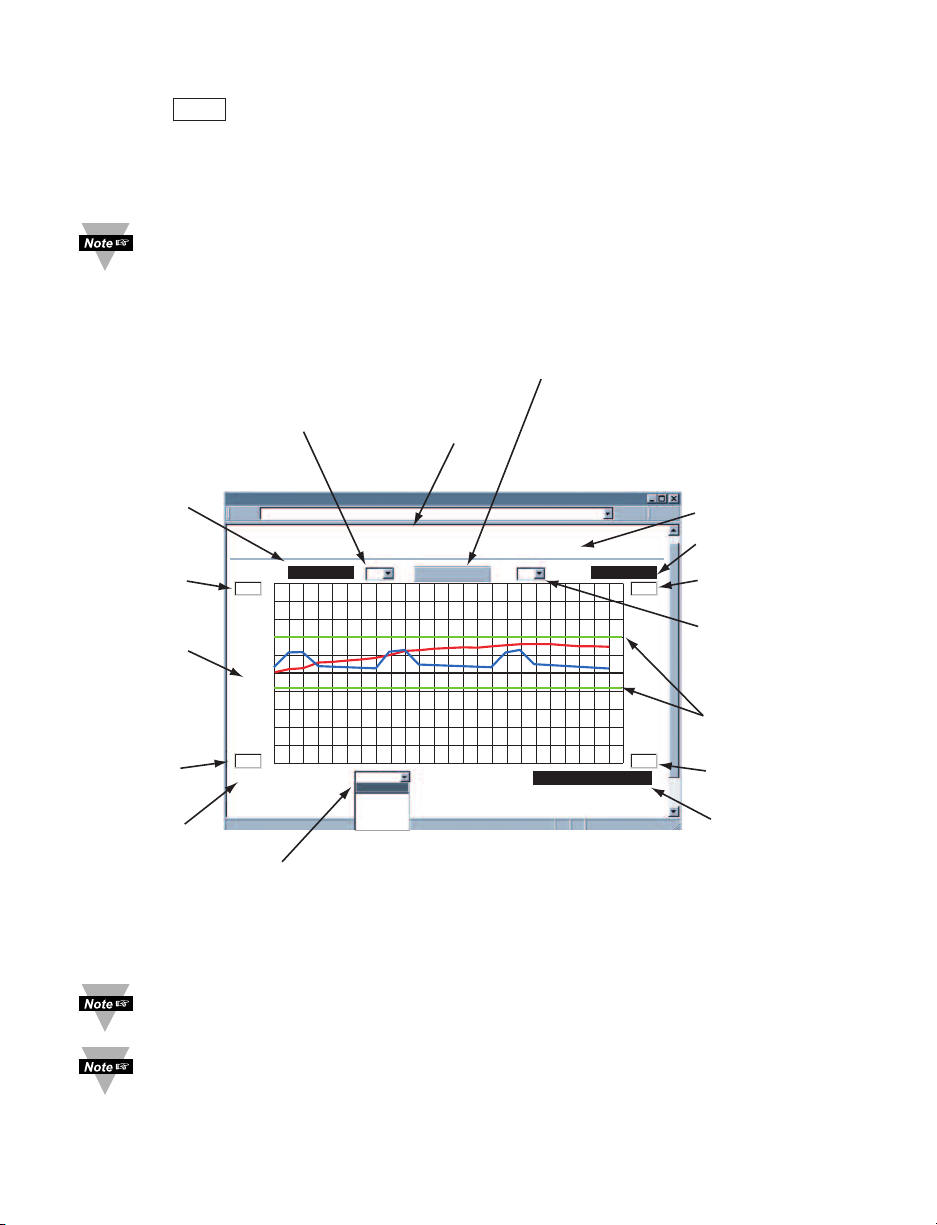

Figure 4.8 Adjustable Chart...................................................................................20

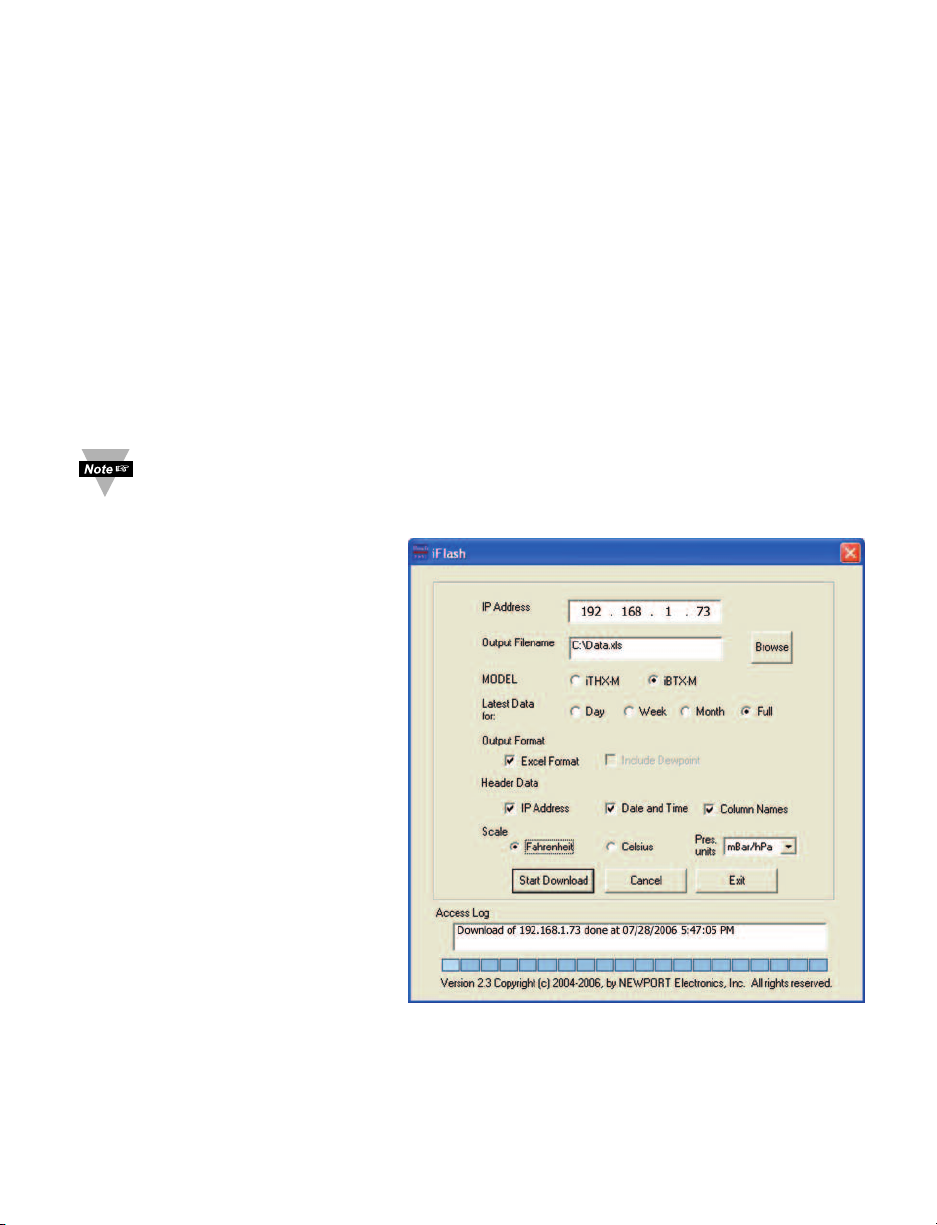

Figure 4.9 iFlash Download Utility........................................................................21

Figure 4.10 Access Control ....................................................................................22

Figure 4.11 Configuration (Recording Not Active) ...............................................24

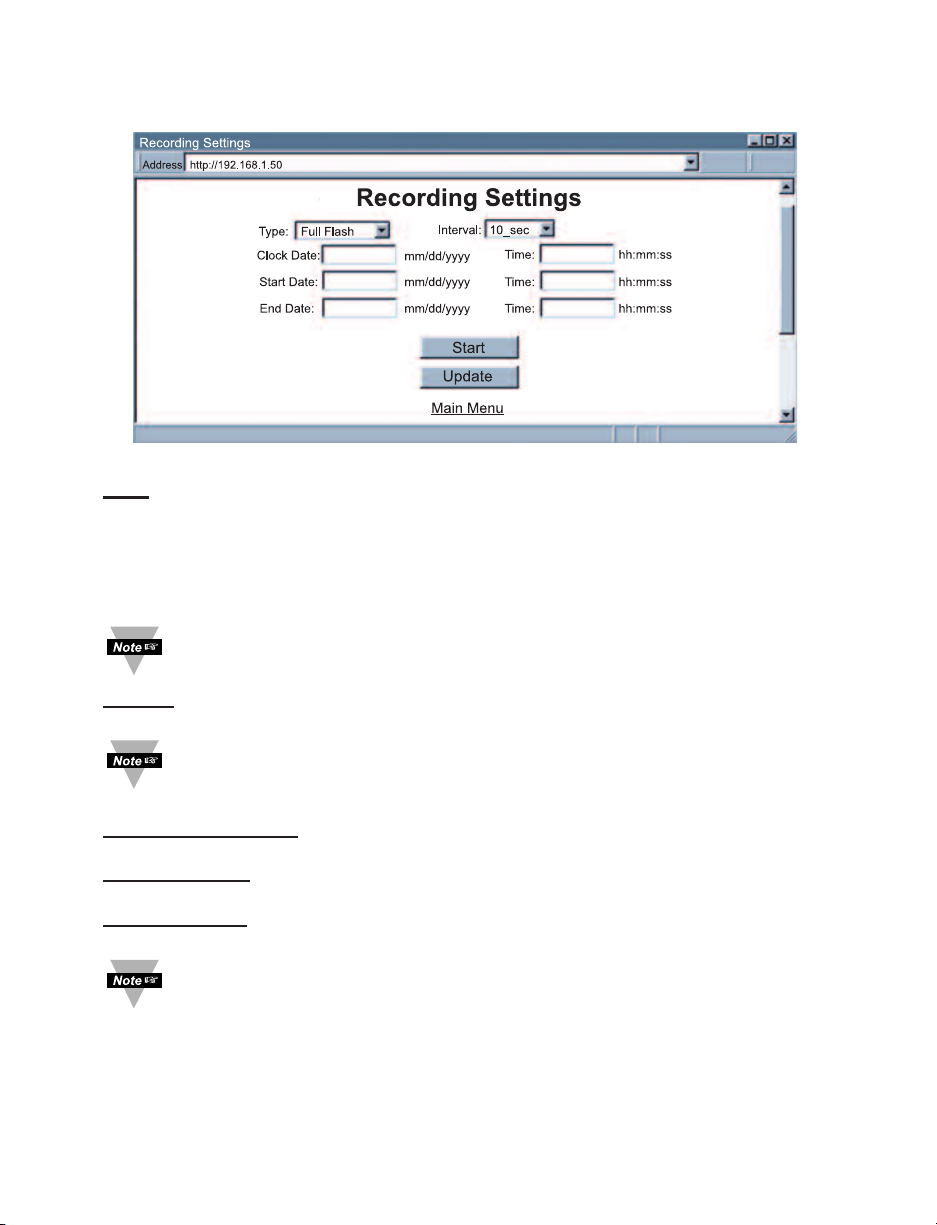

Figure 4.12 Configuration - Recording Settings ...................................................28

Figure 4.13 Configuration (Recording Initializing) ...............................................29

Figure 4.14 Configuration (Recording Active).......................................................30

Figure 4.15 Sensor Parameter ................................................................................32

Figure 4.16 Remote End Char .................................................................................32

Figure 4.17 ARP Commands and Responses .......................................................35

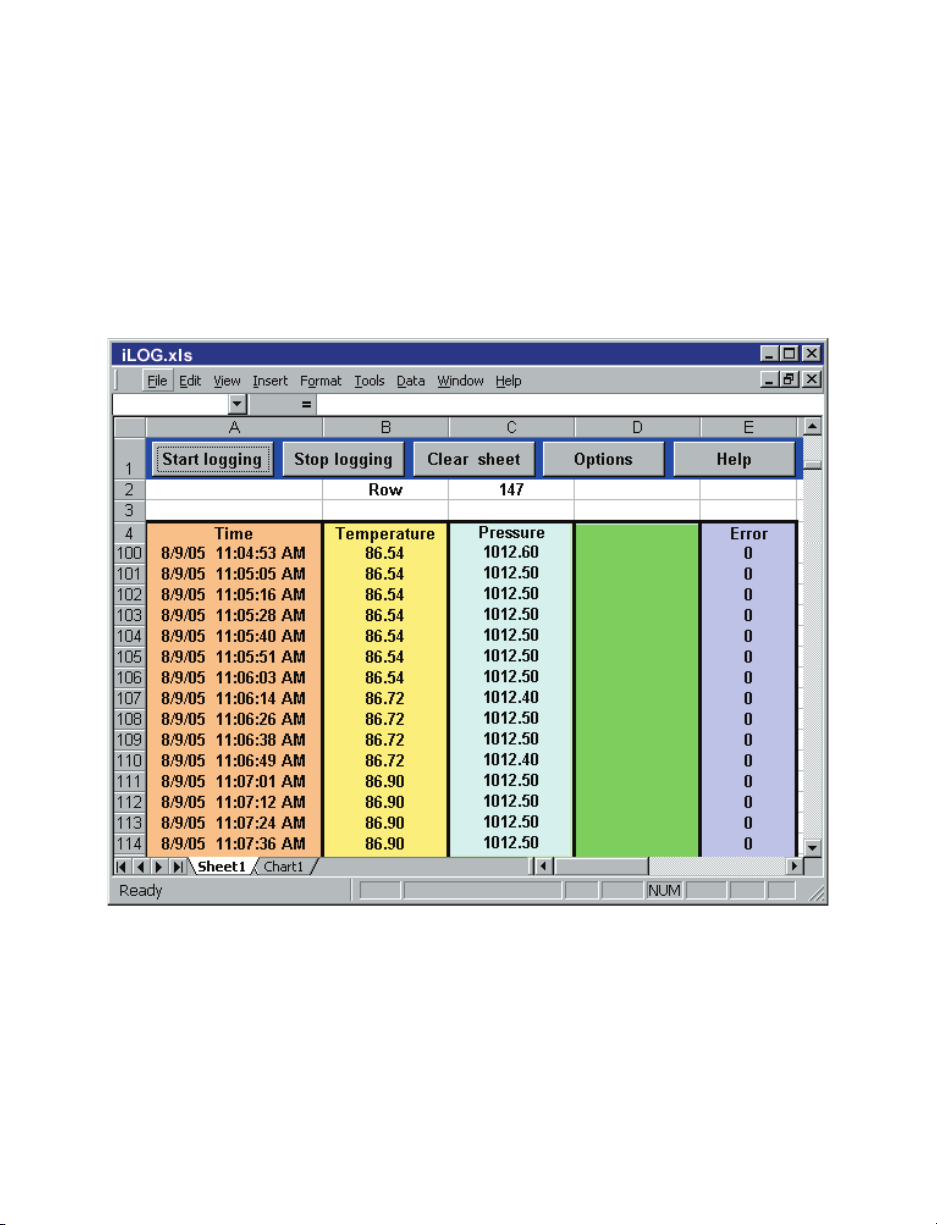

Figure 4.18 iLog Software Logging Data................................................................36

Figure 4.19 iServer Mail Notifier Main Window......................................................38

Figure 4.20 iServer Mail Notifier Profile Setup ......................................................39

Figure 4.21 iServer Mail Notifier Device Setting ...................................................40

Table 2.1 Parts of iServer Unit.............................................................................5

Table 4.1 iLog Excel Applications.....................................................................38

Page 5

NOTES, WARNINGS and CAUTIONS

Information that is especially important to note is identified by the following labels:

• NOTE

• WARNING or CAUTION

• IMPORTANT

• TIP

NOTE: Provides you with information that is important to successfully

setup and use the iServer.

CAUTION: Tells you about the risk of electrical shock.

CAUTION: Risk of danger. Tells you of circumstances or practices

that can effect the instrument’s functionality and must refer to accompanying documents.

TIP: Provides you helpful hints.

FEATURES

• Virtual Chart Recorder

• Web Server

• Temperature

• Barometric Pressure

• Accurate Readings

• Password Protection

• Email Alarms

• Data Logging

• Two Relay Alarms

• 2, 4 or 8M bytes Flash Memory Card

• Real-Time Clock

• LCD Display

• UPS / Stand-alone 9Vdc Battery

Page 6

PART 1

INTRODUCTION

1.1 Safety and EMC Considerations

Refer to the CE Approvals Section.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use twisted-pair wires for signal connections.

• Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist. Failure to follow all instructions and warnings may result in injury!

1.2 Before You Begin Inspecting Your Shipment: Remove the packing slip and verify that you have received

everything listed. Inspect the container and equipment for signs of damage as soon as you receive the shipment. Note any evidence of rough handling in transit. Immediately report any damage to the shipping agent. The carrier will not honor damage claims unless all shipping material is saved for inspection. After examining and removing the contents, save the packing material and carton in the event reshipment is necessary.

Customer Service: If you need assistance, please contact the Customer Service Department nearest you.

Manuals, Software: The latest Operation Manual as well as free software and iServer Mail Notifier are available at the website listed on the cover page of this manual or

on the CD-ROM enclosed with your shipment.

1.3 Description View Temperature + Barometric Pressure with a Web Browser. The iServer let’s you

monitor and record Temperature and Barometric Pressure over an Ethernet network or the Internet with no special software except a Web browser. The iServer serves Active Web Pages to display real time readings and display charts of temperature and barometric pressure, or log data in standard data formats for use in a spreadsheet or data acquisition program such as Excel or Visual Basic.

Adjustable Charts. The Java™ Applet chart scales are fully adjustable on the fly. For example, the chart can display one day, one week, one month or one year. Temperature and barometric pressure can be charted across the full span (-40 to 123ºC) or within any narrow range (such as 20-30ºC). Barometric pressure can be displayed in hectopascals (hPa), millimeters of Mercury (mmHg), or inches of Mercury (inHg).

Page 7

Award-winning Technology. The iServer is simple to install and use. It features award

COMPUTER with

Standard Web Browser

COL ON TX RX 

winning technology that requires no special software except a Web browser. The iServer connects to an Ethernet Network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web browser and can be password protected. From within an Ethernet LAN or over the Internet, the user simply types its IP address or an easy to remember name such as "Cleanroom 5" or "Midwest Server Room" in any Web Browser, and the iServer serves a Web Page with the current readings. The iServer comes complete with one temperature/barometric pressure wand probe, full documentation and software.

Alarms and Email. If temperature and/or barometric pressure exceeds a set limit, the iServer can trigger an alarm that could be sent by email to an Internet enabled pager or cell phone.

A standard web browser can be used to monitor and chart temperature and barometric pressure. The browser can also be used to configure the device’s IP address, passwords for access and overall configuration parameters. An iLD Big Display can display temperature and barometric pressure received from an iServer over the Ethernet or the Internet.

The following example illustrates how you can hookup an iServer and iLD to your network:

Figure 1.1 iServer and iLD Big Display on the Ethernet Network

Page 8

PART 2 HARDWARE

3.2 [82]

2.42 [61.6]

3.56 [90.3] 2.00 [50.8]

9.15 [232.3]

0.12 [3.0]

1.44

[36.6]

Dimensions are in inches with millimeters in [ ].

0.10

[2.54]

2.1 Dimensions

If unit is to be mounted on a flat surface, you may take the bottom rubber feet off the unit.

Figure 2.1 Dimensions

Page 9

2.2 Wall Mounting

2.42 [61.6]

1.50 [38.1]0.46 [11.7]

1.31 [33.3]

REAR WIRE

ENTRY AREA

DRILL 0.125 [3.17]

USE TWO, #4

FLAT HEAD SCREWS

TO MOUNT BRACKET

BRACKET CLIPS (3)

SNAP

OFF

Position unit where required. Mark and drill the two #4 screw holes. After bracket is mounted on the wall, align back of unit over the three bracket clips, once

engaged, slide downward, the unit will snap in place.

It is recommended that you ground your unit by connecting a wire to the Return/Ground position of the relay connector, see Figure 2.8.

2.3 DIP Switches

The iServer is shipped with all DIP switches in "OFF" position.

DIP Switch Usage

1) N/C - not used

2) To change to default factory settings

3) To enable/disable DHCP

4) N/C - not used

To set the iServer to factory default settings, slide DIP switch #2 to ON position. Power the iServer on and wait about 10 seconds until the iServer fully boots up. Set the DIP switch #2 back to OFF position (it does not matter if the iServer is powered

ON or OFF, just make sure that the DIP switch is set to OFF, otherwise, every time the unit is power-cycled the factory settings will take over.

Figure 2.2 Wall Mounting

Figure 2.3 DIP Switches

Page 10

2.4 Parts of the iServer Unit

9-12 Vdc

ACTIVITY NETWORK LINK DIAGNOSTICS AND STATUS

iServer Reset Button

iServer LEDs

iServer

RJ45 interface

dc Power Input

Probe Handle Clip

BAROMETER/TEMPERATURE

UNITS STBYTIME BKLT

ETHERNET

RESET

Flash Memory Card Reset Button

Flash Memory Card

16 Digit LCD Display

Buttons

DB9

Connector

Side or Bottom Wire Entry for Relay Connector

Removable Plug Connector for Relays under the Cover

Table 2.1 Parts of iServer Unit

Figure 2.4 Parts of the iServer Unit

ETHERNET RJ45 interface for 10BASE-T connection.

iServer RESET Button: Used for power reseting the iServer board (Ethernet connection).

FLASH RESET Button: Used for power reseting the Flash Memory Card/LCD board.

ACTIVITY LED (Red) Blinking: Indicates network activities (receiving or sending packets).

NET LINK LED (Green) Solid: Indicates good network link.

DIAGNOSTICS LED (Yellow) Blinking: Indicates transmitting data from iServer to flash memory card.

When DHCP enabled, it remains solid until DHCP IP address is received. LED (Green) Blinking: Indicates receiving data by the iServer from flash memory card

UNITS

TIME Button: Change display from DATE and TIME to Pressure and Temperature

STBY Button: Will stop the Flash from recording.

BKLT Button: Display Back Light

Button: Change display units of measurement from °C to °F

When using the small push buttons, hold the button until “WAIT” is displayed on the LCD and then release.

Page 11

2.5 Disassembly Instruction

MOUNTING SCREWS (2)

KEEP INSULATOR COVER ON BATTERY CLIP WHEN BATTERY IS NOT BEING USED

JTAG

COVER

TRAY

FLASH

CARD

REMOVE BATTERY CLIP INSULATOR COVER AND STORE WHERE SHOWN WHEN 9V BATTERY IS BEING USED.

RELAY

CONNECTOR

FLASH

RESET

SWITCH

S5 (WITH LONG PINS)

POWER ADAPTOR

You may need to open the unit for one of the following reasons:

• To wire relay connector. (Refer to Figure 2.8)

• To connect or replace the battery.

• To change S5 jumper. In the absence of AC power, and if S5 is installed, the LCD

Backlight and iServer Board will be on and running on the battery power. Refer to Section 2.8.

Disconnect the power supply before proceeding.

• Make sure the Flash memory Card is fully installed, before removing the cover,

• Remove Probe (if needed), then remove cover, by removing 2 screws on each

side.

Figure 2.5 Opening the Unit

Page 12

2.6 Network Communication Interfaces

623451

NO1

NO2

9 Vdc

RTN

COM2

COM1

RELAY 2 RELAY 1

2.6.1 10Base-T RJ-45 Pinout

The 10BASE-T Ethernet network (RJ45) system is used in the iServer for network connectivity. The 10 Mbps twisted-pair Ethernet system operates over two pairs of wires. One pair is used for receiving data signals and the other pair is used for transmitting data signals. This means that four pins of the eight-pin connector are used.

2.6.2 10Base-T Crossover Wiring

When connecting the iServer directly to the computer’s network port, the transmit data pins of the computer should be wired to the receive data pins of the iServer, and vice versa. The 10Base-T crossover cable with pin connection assignments are shown below.

Use straight through cable for connecting the iServer to an Ethernet hub. The ports on the hub are already crossed.

2.7 Relay Wiring Connections

To access the Relay Connector you must remove the cover, refer to Section 2.4.

It is recommended that you ground your unit by connecting a wire to the Ground/Return position of the relay connector. Or by wrapping a wire around the mounting tab screw (on older units) and tightening a lock washer so that it embeds itself into the metal of the mounting tab.

Pin Name Description

1 +Tx + Transmit Data 2 -Tx - Transmit Data 3 +RX + Receive Data 4 N/C Not Connected 5 N/C Not Connected 6 -Rx - Receive Data 7 N/C Not Connected 8 N/C Not Connected

Figure 2.6 RJ45 Pinout

Figure 2.7 10Base-T

Crossover Cable Wiring

Figure 2.8 Relay Connections

2.8 Running on Battery Power

Battery and S5 jumper installed: if there is a power outage the iServer board will be fully functional including the Ethernet and LCD backlight “ON” for approximately 1 hour.

You need to make sure that the LCD/PWR field on the Configuration page of the iServer is set to UPS (see Section 4.3.5.A)

Battery installed and S5 jumper in storage position (Factory Default of S5): if there is a power outage the LCD Backlight and Ethernet will not run, but the unit will be collecting and storing data for approximately 10 days.

When you first connect the battery, without the AC power adapter, the unit will be in “Sleep Mode”, in order to save power, and the LCD will display “Flash Standby” (provided that S5 jumper is not installed). When battery is installed, plug the AC adapter into unit and push the Flash Reset Button (refer to Figure 2.4 or Figure 2.5). Unit is now ready to be configured for recording the data. Also, if the AC adapter is unplugged while the unit is recording, the battery will take over and recording will continue.

Page 13

2.8 Running on Battery Power (continued)

If you want to move the unit to a different location, remove the AC adapter; the installed battery will keep the recording alive until the AC adapter is plugged back in.

In case of power outage and the unit is running on a low battery, the message “Ack bitP Stand by” will appear on the LCD display.

2.9 Flash Memory Format

A 2 Meg flash memory card is included with your product. This memory card is already formatted; however, the following procedure describes how to format your memory card.

Once the memory card is formatted, all the data that had previously been recorded will be replaced by simulated test data (see Figure 2.9).

1) Unplug the AC adapter from the unit.

2) Hold down the ºC/ºF button and connect the AC adapter back into the unit. Release the ºC/ºF button.º

3) You will see the following message appear on the LCD: *ºWAITº* *FLASH*.

4) Wait for about 60 seconds and a new message should appear: *ºWAITº* *OKAY*.

5) Press the ºC/ºF button once and this message will appear: DATA_REC

ORD_TEST.

6) Press the TIME button and this message will appear: ORD_TEST DATA_REC.

7) Press the STBY button, the firmware version of the unit will appear, followed by *OKAY*.

8) Again, press the ºC/ºF button, the firmware version, followed by *WAIT* will apear and then will switch to firmware version, followed by *OKAY*.

9) Unplug the AC adapter and plug it back in. The flash memory card is now formatted. To verify whether the formatting was completed correctly, you should be able to see the following graph on the WEB server’s “Chart” page.

Figure 2.9 Chart of Simulated Data

Page 14

PART 3

NETWORK CONFIGURATION

3.1 Network Protocols

The iServer can be connected to the network using standard TCP/IP protocols. It also supports ARP, HTTP (WEB server), DHCP, DNS and Telnet protocols.

3.2 Ethernet (MAC) Address

MAC (Media Access Control) address is your computer's unique hardware number. When you're connected to the LAN from your computer, a correspondence table relates

your IP address to your computer's physical (MAC) address. The MAC address can be found on a label attached to your device and contains 6 bytes

(12 characters) of hexadecimal numbers XX:XX:XX:XX:XX:XX hex For example: 0A:0C:3D:0B:0A:0B

Remove the small label with the default IP address and there will be room to put your IP address. See Figure 3.1

Figure 3.1 Labeling

101011

Page 15

3.3 DHCP

OFF

DHCP, Dynamic Host Configuration Protocol enables individual computers or devices to extract their IP configurations from a server (DHCP server). If the DHCP is enabled on your iServer, as soon as the iServer is connected to the network, there is an exchange of information between DHCP server and the iServer. During this process the IP address, the Gateway address, and the Subnet Mask will be assigned to the iServer by the DHCP server. Note that the DHCP server must be configured correctly to do such assignment.

If a fixed or static IP address is desired, the DHCP must be disabled. The iServer is shipped with DHCP disabled (factory default). The DHCP can be enabled by setting the DIP switch #3 to the “ON” position (refer to Figure 3.2).

To enable the DHCP, besides using DIP switch #3, set the iServer’s IP address to 0.0.0.0. An iServer with IP address of 0.0.0.0 will request an IP address, gateway address, and subnet mask from the DHCP server over the Ethernet.

If the DHCP is enabled, the iServer will not fully boot-up until the DHCP IP address is received. While the iServer is requesting an IP address from the DHCP server the iServer’s LCD display will show the firmware version. It will display the

Figure 3.2 DIP Switch on the

Bottom Side of iServer

readings once the DHCP IP assignment is complete.

3.4 DNS

DNS, Domain Name System enables individual computers and devices to be recognized over a network based on a specific name instead of an IP address. For example, instead of having to use http://192.168.1.200 (IP address), you would use only http://eis03ec or any eight character name stored as Host Name under the Access Control page in the iServer Home Page. The default DNS name for an iServer is "eis" followed by the last four digits of the MAC address of that particular iServer.

1. It is very important to communicate with the network administrator in order to understand the DHCP and its existing configurations on the host server, before enabling the DHCP on the iServer.

2. The iServers are shipped with a default static IP address of

192.168.1.200 and Subnet Mask of 255.255.255.0.

3. On Windows servers where DHCP and DNS are separate functions it is very important to configure the DHCP server to communicate with the DNS in order for the iServer’s Host Name to correctly respond. If you cannot access the iServer using its Host Name, please contact your network administrator to make sure the DHCP and DNS servers are linked together.

3.5 IP Address

Every active device connected to the TCP/IP network must have a unique IP address. This IP address is used to build a connection to the iServer. Every computer using TCP/IP should have a unique 32-bit address. It is divided into two portions, the network ID and the host ID. For instance, every computer on the same network uses the same network ID. At the same time, all of them have a different host ID. For more details about the IP address see Appendix B.

DIP switch #3 shown in “ON” position

Page 16

3.5.1 Default IP Address

Firmware Version x.xx Admin. Password:00000000

Admin. Login Successful reset

The unit will reset in 5 seconds _

The default

Admin. Password

Type "reset"

to reboot

the server

C:\

Telnet 192.168.1.200

The iServer is shipped with a default IP address set to 192.168.1.200 and Subnet Mask of 255.255.255.0. If you are going to use a Web browser or Telnet program to access the iServer using its default IP address, make sure that the PC from which you’re establishing the connection has an IP address that is in the same range as the iServer’s IP address (192.168.1.x, where x can be any number from 1 to 254.

Your PC’s IP address cannot

be the same as the iServer’s IP address).

You also need to make sure that your PC’s Subnet Mask is 255.255.255.0. This is a good way to access the iServer over the network and make any configuration changes needed. If 192.168.1.200 is already in use on your network, use an Ethernet crossover cable between your computer and the iServer to change the IP address or any other settings within the iServer.

3.6 Port Number

All TCP connections are defined by the IP address and a port number. A port number is an internal address that provides an interface between an application running on your computer and the network through the TCP/IP protocol.

There are three default TCP socket port numbers assigned to the iServer:

1. Port (socket) number 1000 when using HTTPGET program.

2. Port (socket) number 2000 when trying to access the sensor (probe) connected to the port of the iServer to receive ASCII data.

3. Port (socket) number 2002 when trying to access the iServer itself for Power Recycling the iServer remotely. This can be done using Windows standard Telnet application.

Power recycling the iServer can also be done through the iServer’s Web Server (see Section 4.2).

Telnet stands for Telecommunications Network, is a protocol that provides a way for users (or clients) to connect to computers (or servers) on a network, whether in the next building or across the world.

Example: C:\>Telnet 192.168.1.200 2002

You will then get the following screen.

You can open a Telnet session using other terminal emulation programs like Tera Term Pro (downloadable from the internet), which is a free software for MS-Windows. It supports VT100 emulation, Telnet connection and serial com port connections.

Figure 3.3 Telnet Login into the iServer

Page 17

PART 4

C:\>ping eis03ec Pinging eis03ec with 32 bytes of data:  Reply from eis03ec: bytes=32 time=15ms TTL=60 Reply from eis03ec: bytes=32 time=8ms TTL=60 Reply from eis03ec: bytes=32 time=8ms TTL=60 Reply from eis03ec: bytes=32 time=8ms TTL=60  Pinging statistics for eis03ec:  Packets: Sent=4, Received=4, Lost=0 (0% loss)  Approximate round trip times in milli-seconds:  Minimum=8ms, Maximum=15ms, Average=9ms

OPERATIONS

This iServer can be used and configured in several ways, depending on user’s preference and network setup. It can be configured using a Web browser, like Netscape or Internet Explorer. It can also be configured using NEWPORT’s iConnect Configuration Software.

If DHCP and DNS servers are used, the connection is very simple, no need to find the right IP address or watch for network conflicts, these are all done for you by your network DHCP and DNS server. All that is left for you to do, is to enable DHCP on the iServer (see Section 3.3) and use a straight network cable to connect the iServer to a hub and power it up.

If DHCP is not the preferred method, you can configure your PC’s network connection with an IP address of 192.168.1.x that is in the same range as the iServer’s default IP address (192.168.1.200) and connect to the iServer using a cross-over network cable between your PC’s network port and the iServer. After you’re done with configuring the iServer, you can always set your PC back to its original settings.

On your computer, from the MS-DOS Prompt window type "ping 192.168.1.200” and press Enter. If DHCP and DNS servers are used type “ping eisxxxx”, where xxxx are the last four digits of the iServer’s MAC address, located on the back of the device. You should get a reply as shown in Figure 4.1.

You can use the iServer’s host name (eisxxxx) instead of its IP address only if your DHCP server is configured to communicate with your DNS. Please consult with your IT department for details.

4.0 Testing the Connection

This proves that the connection is proper and you can get into configuration or run mode using the Telnet or Web browser.

Figure 4.1 Pinging the iServer from MS-DOS Prompt

Page 18

4.1 iConnect Software

The iServer may also be assigned an IP Address by using the iConnect software. a) Download the iConnect software from the website listed in this manual. b) Install iConnect software on a networked PC. This software is compatible with

Windows 95, 98, NT, 2000, and XP.

c) Use iConnect to assign an IP address to the iServer and access its web pages for

configuration. You can also use any standard web browser to access the iServer’s web pages. Consult with your IT department for obtaining an IP address.

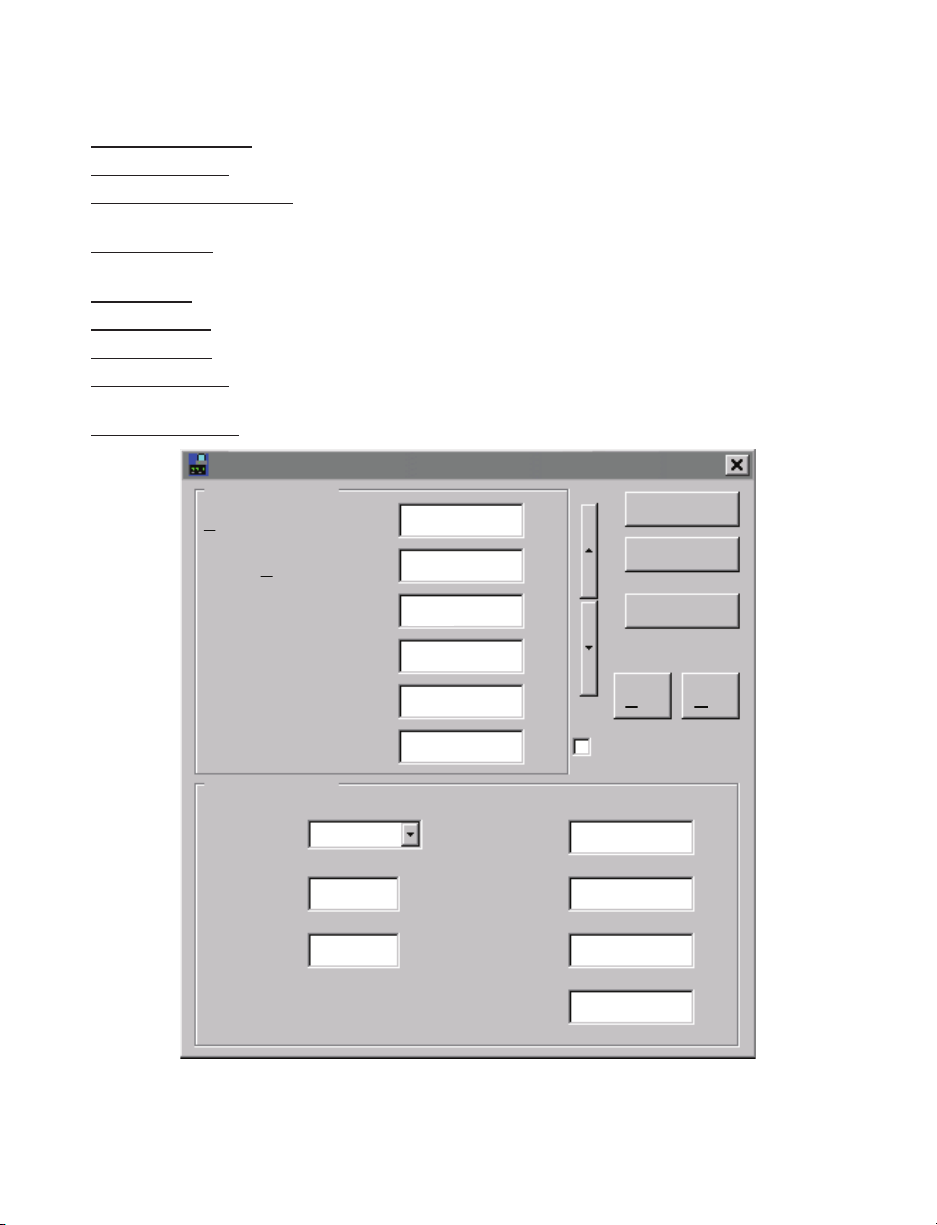

Figure 4.2 Assigning an IP Address using iConnect

1) Place the IP address in this box.

2) Take the MAC address from the label attached to the bottom of the iServer and place it in this box.

3) Click here to send the above IP address to the iServer.

4) After the IP address is assigned to the iServer, click here to access it’s web pages.

5) Click here to Ping the iServer whose IP address is shown in the IP address box.

6) Click here to find all the iServer’s on your network .

7) The IP addresses for the iServer’s found by the iConnect will be listed here.

8) These fields indicate the IP address and the subnet mask of the PC on which the iConnect is running.

Page 19

4.1 iConnect Software (continued)

iSERVER HOME PAGE

Read Sensor

Access Control

Chart

Configuration

d) To access the iServer for Configuration:

Click on the “View Webpage” button, you will access the iServer’s home page, refer to

Section 4.3 for details.

Figure 4.3 Accessing the iServer’s Home Page Menu

Page 20

4.2 Setting a New IP Address over the Network

ACCESS CONTROL

Admin Password:

Host Name:

MAC Address: 0A:0B:0C:0D:0E:0F

IP Address:

Gateway Address:

Subnet Mask:

Main Menu

Access Control

Save Reset

0.0.0.0

00000000

12345678

255.255.255.0

192.168.1.200

eis0e0f

http://192.168.1.200

Power Recycle

Besides using the iConnect software, you may use the iServer’s default IP address to access it and assign a new IP address to it.

The iServer is shipped with a default IP address of 192.168.1.200 and Subnet Mask of

255.255.255.0. You can configure your PC’s Network connection with an IP address that

is in the same range as the iServer’s IP address (192.168.1.x) and connect to the iServer using a crossover network cable between your PC and the iServer.

With this completed, you can go to the DOS-Prompt and ping 192.168.1.200. If you receive responses back (Figure 4.1), you can go to a Web browser and type in http://192.168.1.200 and it will take you to the iServer’s main web page.

Select

Access Control

button, you’ll be asked for the password. The default LOGIN password is "12345678" and the ADMINISTRATOR password is "00000000", then you should be on the Access Control page were you can simply type in the desired Static IP address, and click Save.

For the IP address to take effect, the iServer needs to be turned OFF/ON. Clicking on the “Save” button will save the changes and turn the iServer (only the Ethernet board of the unit) OFF and ON. Pressing the physical button marked “RESET” on the iServer (right next to the RJ45 Ethernet Port) will also power reset the Ethernet board.

You can now connect the iServer to an Ethernet hub using a straight through cable, power it up, and follow the ping routine mentioned in the previous section.

Figure 4.4 Access Control

Page 21

4.3 Setup and Operation using the iServer Web Page

ADMINISTRATOR

http://192.168.1.200 http://192.168.1.200

iSERVER HOME PAGE

Firmware Version x.x

http://192.168.1.200

iServer Home Page

Read Sensor

Access Control

Chart

Configuration

• Start your web browser.

• From the browser you type http://eisxxxx using the last four-digits from the MAC

address label located on the device if DHCP and DNS are used. If a static IP address is used, then simply type http://x.x.x.x, where x.x.x.x is the iServer’s IP address.

• The Home Page, shown in Figure 4.5, will be displayed.

Figure 4.5 iServer Home Page

In order to access certain menu items of the Home Page, users may be prompted for a password, as shown in Figure 4.6.

Figure 4.6 LOGIN and ADMINISTRATOR Passwords

There are 2 different access levels:

1. ADMINISTRATOR Password (administrator) allows certain groups and individual users to

access and modify "entire" iServer parameters without any restrictions. The default password is 00000000. This password can be up to 16 alphanumeric case-

sensitive characters.

2. LOGIN Password (operator) allows users to access and modify all of the iServer’s

parameters, except “Access Control” which requires an Administrator password. The "Read Sensor" does not require a password.

The default password is 12345678. This password can be up to 16 alphanumeric case-sensitive characters.

Page 22

4.3.1 Read Sensor

http://192.168.1.200

Pressure/Temp

Pressure

Temperature

hPa

1000.40

79.80

Pressure/Temp

• Click on . In a few seconds the following page (Figure 4.7) will appear

with all default values of 100.00. Then the actual readings of Temperature and Barometric Pressure will be displayed.

• This page automatically updates the Temperature and Barometric Pressure values.

• Click on Main Menu to return to Home Page.

Read Sensor

While accessing the Read Sensor page, If a blank screen appears without any “java application running” or image of a “Java logo”, please verify you have the latest Java Runtime Environment installed and configured according to the following instructions. If you do not have Java Runtime Environment, you may download it from our website or contact the Customer Service Department nearest you.

4.3.1.1 Java Runtime Environment 1.4 Setup instructions

Figure 4.7 Read Sensor

1. Go to your computer's Control Panel. Open the Java Plug-in

2. Select the "Cache" Tab

3. Select the "Proxy" Tab. Follow these Browser Proxy Selection instructions

4. Refresh or restart the webpage.

Un-check the "Enable Caching" box

below. (Generally, un-check the box if accessing iServers on your local network and check the box for access from your internal network to the internet.)

Page 23

4.3.1.2 Java Runtime Environment 1.5 (5.0) Setup instructions

1. Go to your computer's Control Panel. Open the Java Plug-in

2. Click on "Settings" & "View Applets" in the "General" tab.

3. Select the "Settings" button on the General Tab Un-check the "Enable Caching" box. Then close dialog box to show the General Tab

again

4. Select the "Network Settings" button on the General Tab. Proceed to the Browser tab. Follow the Browser Proxy Selection instructions

below.You should either select the "Use Browser Settings" option or the "Direct Connection" option depending on the network connections between your computer and the iServer product. (Generally, select "Direct Connection" if accessing iServers on your local network and select "Use Browser Settings" option for access from your internal network to the internet.)

5. Refresh or restart the webpage.

4.3.1.3 Browser Proxy Selection Accessing iServer units within your internal network

• Usually when the computer and iServer are on an internal network, you will not use Proxy

server access.

• You should un-check the "Use Browser Settings" option on the "Proxy" tab. Accessing iServer units using the internet

• Often the web browser will use Proxy server access to the internet. In such cases, the

default Java runtime settings on the "Proxy" tab should suffice. The default setting is the "Use Browser Settings" option.

• If the default proxy setting doesn't work, then you may have a situation where the proxy settings of the web browser are incorrect.

Diagnostics:

If the web page of the iServer appears, then the HTTP Proxy is working fine. If the data isn't updated on the iServer upon selecting the Read Sensor web page, there may be

a problem with access through a winsock proxy server. In such cases your network administrator will need to provide the winsock proxy server and port #s. (If the administrator requires knowledge of the port # required on the iServer, the value is 2003).

These values should be entered into the Socks line on the "Proxy" tab (of the Java Plugin control panel) or into the "connections" tab on the View,Internet Options dialog and make sure that the Proxy tab shows that the "Use Browser Settings" option is not selected (i.e. when you specify proxy connections in the Java Plugin control panel.

Accessing iServer units over Peer-to-Peer network A simple peer-to-peer network is setup by disconnecting from the main network (as users will

often do when trying to do initial setup of the iServer) and then connecting the iServer to another computer using a ethernet hub, an ethernet switch, or a Cross-over cable connection.

Often when using a peer-to-peer network, the Java plugin and the web browser (such as Internet Explorer) have internet connections configured to connect through proxy servers. In such case, you will need to simply assign the final IP address on this peer to peer network and then view the iServer charts after connecting the iServer into the regular network. Otherwise you can disable the Java plug-in's "Use Browser Settings" temporarily and then reconfigure the Java plug-in settings for regular network access after testing the iServer chart access on your peerto-peer network.

The "Use Browser Settings" should not be selected. And the HTTP and Socks proxy entries should be blank. Also, setup the internet browser so that proxy servers are disabled.

Java and the Java Coffee Cup Logo are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries."

Page 24

4.3.2 Adjustable Chart



Pressure/Temp

Main Menu

http://192.168.1.200

Pressure/Temp

(1 Hour/Div)

1 Day

1 Week 1 Month 1 Year

1 Minute

1 Hour

Mon Jul 24 05:00:00 PST 2006

9/Div

122

400

80/Div

1200

Temperature

78.3

PressureArchives_Inactive

1000.3

Tues Jul 28 19:00:00 PST 2006

Alarm SP1(above)=0095.0 F Alarm SP2(below)=0070.0 F

hPa

User selectable time base

1 minute, 1 hour, 1 day,

1 week, 1 month, or 1 year

User selectable

temperature range

User selectable

temperature range

Number of degrees

per division

based on

temperature range

Actual Temperature

User selectable

temperature units: F or C

(See Note 1)

Actual Barometric Pressure

Alarm Type

Title

Archives_Inactive: 1minute or 1hour Archives_Enable: 1Day, 1Week, 1Month, or 1Year Archives_Done: displays after done archiving your selected interval

Start Time

End Time

User selectable Barometric Pressure units: HectoPascals (hPa) / mbar Inches of Mercury (inHg) Millimeters of Mercury (mmHg)

User selectable Pressure range

Setpoint Range (See Note 1)

• Click on , the following page (Figure 4.8) should appear. The Java™ Applet

Chart

graph displays Temperature and Barometric Pressure and can be charted across the full span (-40 to 123ºC) or within any narrow range (such as 20-30ºC). The time-base can display one minute, one hour, one day, one week, one month or one year.

If a blank screen appears without any “java application running” or image of a “Java logo”, please verify you have the latest Java Runtime Environment installed and configured according to the instructions (refer to Section 4.3.1.1). If you do not have Java Runtime Environment, you may download it from our website or contact the Customer Service Department nearest you.

Figure 4.8 Adjustable Chart

1). If you select an Alarm the degree C or F unit must match your “Sensor Unit” for the Setpoint line to show correctly.

To avoid any miscommunications when downloading the stored data from the “Chart” page, it is strongly recommended to let the recording run for a minimum of 3 minutes if the time interval is 10 seconds (from “Configuration” page), and 15 minutes if the time interval is 1 minute.

Page 25

4.3.3 Retrieving Data from Flash

To retrieve and graph the data that is stored in the Flash Memory, you have two options:

OPTION 1:

You can use the iServer’s WEB interface to chart the data stored in the flash memory.

1. Click on the “Chart” button located on the Server Home Page, see Figure 4.5.

2. Select a time interval of Day, Week, Month or Year (Minute and Hour are not selectable for data retrieval).

3. As soon as the time interval is selected the “Archives_Inactive” button will change to “Archives_Enable”.

4. Click on “Archives_Enable” button to graph the stored data.

OPTION 2:

Download the iServer Download Utility iFlash software from the website listed in this manual and install it on your networked PC. This software is compatible with Windows 95, 98, NT, 2000, and XP operating systems. After the installation is completed, you can run the program to obtain the screen shown in Figure 4.9.

To avoid any miscommunications when downloading the stored data using the iFlash program, it is strongly recommended to let the recording run for a minimum of 3 minutes if the time interval is 10 seconds (from “Configuration” page), and 15 minutes if the time interval is 1 minute.

IP Address: Place the IP address of the iServer from which you want to download data, in this window.

Output Filename: Assign the path and the file name in which the downloaded data will be placed, in this window.

Model: Select the iBTX-M option. Latest Data for: This option allows

you to download data for the last day, week, or month. By selecting “Full” you can download the whole data.

Output Format: This option gives the data in either Excel format (check the box) or Text format (uncheck the box). By default, the temperature and barometric pressure values are always provided.

Header Data: You can choose what to appear for the header of the data

Figure 4.9 iFLASH Download Utility

file either in Excel or Text format. Scale: This will give you the

temperature in either Fahrenheit or Celsius as well as barometric pressure units.. Access Log: The completion of data download will be reported in this window. You can

start downloading by clicking on the “Start Download” button.

Page 26

4.3.4 Access Control

This section describes the "Access Control" page of the iServers’s Web interface. This page allows the users to set up the network and security parameters of the iServer.

At the initial entrance to the “Access Control” page you will be prompted for the LOGIN Password (see Figure 4.6) prior to an ADMINISTRATOR Password.

The DHCP can be enabled by setting the dip switch #3 to ON position.

Changes made in the iServer’s Access Control page can be saved permanently by pressing the Save button.

Power is Recycling. Reconnect to the iServer.

If you change a field and press Save, this message will appear

Figure 4.10 Access Control

menu items, except “Access Control”, which requires an Administrator password. The default Login password is 12345678. This password can be up to 16 alpha-numeric case-sensitive characters. If there is no Login Password assigned (blank box) the iServer will not require a password to access and modify iServer Home page menu items.

Admin (administrator) Password: This allows users to access and modify the "Access Control" page. The default password is 00000000. This password can be up to 16 alphanumeric case-sensitive characters. If there is no Administrator Password assigned (blank box) the iServer will not require password to access and modify "Access Control" page.

Secured Reading & Chart: If checked, the LOGIN password is required to open “Read Sensor” and “Chart” Java applets.

Host Name: Refer to Section 3.4, DNS. MAC Address: This is also called Hardware address or Ethernet address, which is

assigned to the iServer at production. The MAC (Media Access Control) address is the iServer’s unique hardware number and is not changeable.

IP Address: The IP (Internet Protocol) address is a 32-bit number that identifies each sender or receiver of information that is sent in packets across the Ethernet or the Internet. The iServer’s default IP address is 192.168.1.200. The iServer’s IP address should be changed to fit user’s networking environment. Consult with your IT department for obtaining an IP address.

Page 27

4.3.4 Access Control (continued) Gateway Address: A gateway is a network point that acts as an entrance to another

network. A gateway is often associated with a router, which knows where to direct a given packet of data that arrives at the gateway. If the iServer is sending packets to another network node that is not on the same network on which the iServer is connected, a gateway address needs to be given to the iServer.

The gateway address should be the IP address of the router connected to the same LAN to which the iServer is connected. The iServer’s default gateway address is 0.0.0.0. Consult with your IT department for obtaining a gateway address.

Subnet Mask: It is a 32-bit number that is used to determine which part of the IP address is the network portion and which part is the host portion. The iServer’s default subnet mask is 255.255.255.0. Consult with your IT department for obtaining a subnet mask.

4.3.5 Configuration

Setting up the Flash Memory Card can be done in the Configuration page. From the Home Page Menu click on .

Configuration

Below are the definitions of terms used in the Configuration page, refer to Figure 4.11 for each described Section (A through J).

A) Configuration/Device Setup

Clicking on the No. 1, 2, or 3 allows you to modify the Sensor Parameters (see Section 4.3.6 for more details).

Title: Editable field with up to 16 characters long. The given name will display as a title

on the “Chart” and “Read Sensor” pages either for the real-time data or the stored data.

Sensor Unit: The unit of temperature either in degree Fahrenheit F or degree Celcius C

for each type of barometric pressure unit hPa, inHg or mmHg.

LCD/PWR: The selections are “ON ”, “OFF ”, and “UPS”. Selecting “OFF” will cause the LCD to turn off during a power outage, provided the

battery is connected. The current consumption is about 1.5 mA or 3 mA depending on “OFF ” or “ON ” selection respectively.

If recording is “ON “, depending on the recording interval, the LCD will be updated every 10 seconds or 1 minute. Therefore, when the LCD is set to “ON ”, it could take some time before the LCD is turned on. If recording is not “ON “, the LCD will be updated every 10 seconds.

Selecting “UPS” puts the iServer into full operational mode when it’s running on the battery (S5 jumper needs to be installed, see Section 2.5 and 2.8). This means that in case of power outage, sensing, recording, LCD display, and network communication capabilities of the iServer will all operate on the battery. Due to heavy power consumption the battery will not last more than an hour.

B) Flash Card Size

Reports the Flash Card size and if it is already recorded, how many locations are filled.

0-Megabytes: Flash Card is not installed or is a bad Flash Card

2-Megabytes, 4-Megabytes, 8-Megabytes: available sizes of Flash Cards.

Page 28

4.3.5 Configuration (continued)

No. Sensor Name Offset

Remote Format

Remote End Char

Temperature

Pressure

T0000.00

P0000.0

Read Command

SRTF

SRHb

0000.0

CONFIGURATION

http://192.168.1.50

DEVICE SETTINGS

Terminal Server

Alarm Setup

Real Time Clock

2-MegaBytes Flash Card 22 Kbytes Used Space

AC Power On. Check Battery

Remote Access (Tunneling)

Update

Flash Recording

Remote IP Address:

Remote Port:

Remote Access:

TCP/UDP:

Server Type: Forward CR

Number of

Connections

Port:

2000

Command

TCP

2000

Disable

0.0.0.0

Click on Sensor No. on left to modify Sensor Parameters.

Main Menu

Clock Date:

06/01/2009

mm/dd/yyyy Time:

12:00:00

hh:mm:ss

Disable

Time Stamp:

No Alarm

Alarm Type:

Unlatch

Enabled Alarm:

0095.5

SP1:

nnnn.n 0050.5

SP2:

nnnn.n

Read Settings

Hard Reset

Address

Title:

Data_Record_Test

Sensor Unit:

F:hPa

LCD/PWR:

Figure 4.11 Configuration (Recording not Active)

Page 29

C) Flash Card/Power Messages

Describes the status of the Flash Card and power.

Flash Card Module Malfunctional Flash Card Standby Flash Card Recording Stopped Flash Card Pre-Recorded Flash Card Recording Complete Flash Card Recording On Flash Card Module Not Initialized Flash Card Corrupt Initialization Recording Initialized Entries Error Low Battery Archive Busy

If the battery is not connected or the voltage is low, the message “Check Battery” will display. You may also see a message “Archive Busy” if another client is busy retrieving archive data. Clicking the “Update” button will clear “Archive Busy”.

D) Real Time Clock

Clock Date and Time: The formats are mm/dd/yyyy and hh:mm:ss. Time is military

time / 24 hour based. The exact formats are required otherwise an Entries Error message will appear in Section C.

E) Alarm Setup

There are two alarms which can be assigned to temperature or barometric pressure. (one alarm to each variable).

Alarm Type: Selections are Temperature (T) or Barometric Pressure (B) and and Above Setpoint (Hi) or Below Setpoint (Lo):

T&T:Hi/Lo T&B:Hi/Lo T&B:Hi/Hi B&B:Hi/Lo T&B:Lo/Hi T&B:Lo/Lo No Alarm

Example: If T&T:Hi/Lo is selected, the temperature will be monitored against these two Hi and Lo values. If temperature goes above Hi value, Relay 1 will be energized, and if temperature goes below Lo value Relay 2 will be energized.

Enabled Alarm: Selections of “Latched ” or “Unlatch” are available. If “Unlatch” is selected, the relay in the iServer will be turned on (closed) when the

temperature and/or barometric pressure values fall outside of Setpoint range. When the temperature and/or barometric pressure values are back within the range, the relay will be turned off (opened).

If “Latched” is selected, the relay in the iServer will be turned on (closed) when the temperature and/or barometric pressure values fall outside of Setpoint range and will remain on until the user turns it off.

SP1

and SP2: Editable box for Setpoint values. The format is nnnn.n, it must be followed exactly otherwise the modification will not take place for any modified item in the Alarm Setup.

All the Alarm Settings will be lost if the unit is power cycled. In order to keep the Alarm Settings permanently you will need to Start the

Recording. You can then Stop the Recording, if data recording is not needed. This will ensure the Alarm Settings will be saved on the Flash Memory Card.

Page 30

4.3.5 Configuration (continued) F) Terminal Server

TCP/UDP*: The iServer supports TCP and UDP protocols (default is TCP).

If UDP is selected, it can be configured either for Broadcast UDP or Directed UDP. In case of Broadcast UDP, the iServer will transmit the data to every node on the

network. This can be accomplished if the Remote IP Address is set to

255.255.255.255. The Broadcast UDP is a practical solution when one iServer needs to communicate with multiple nodes over the network.

In the case of Directed UDP, the iServer will transmit the data to a specific node on the network. This can be accomplished if the Remote IP Address is set to the IP address of that specific node.

Server Type: Continuous mode sends the temperature and barometric pressure to the Ethernet, every two seconds. It is mainly used to send readings to a remote display.

Command mode (default) needs a command to query the iServer to send the reponse back to querying device.

Forward CR: Forward CR can be enabled and disabled. If enabled the iServer will forward a <CR> along with the data to a network host. Number of Connections: The range is from 0 to 5. If 0 is selected, the Terminal

Server feature is disabled. This means that no network connection can be made to the sensor connected to the iServer.

If 1 is selected, only one network connection can be made to the iServer’s. Any number more than 1 would allow that number of network hosts to read from the

iServer simultaneously (default is 5). Port: Port 2000 is the default TCP port for the iServer’s port to which the sensors are

connected. Ports 1000 (used for HTTPget, refer to Section 4.5), 2002, 2003, and 2004 are

reserved for internal use.

Terminal Server usually describes a device that exchanges data between Ethernet/TCPIP networks and RS-232/RS-485 systems.

With this iServer, the data is obtained digitally from the sensor (irrelevant to RS-232 or RS-485 interface) and can be accessed from anywhere on the network.

A computer program, such as the Mail Notifier, OPC Server, iLog, iFlash or HTTPget can send TCP requests and obtain readings using the Terminal Server feature.

Time Stamp

: If checked, the Barometric Pressure/Temperature values will be

stamped with time and date using Port 1000 (HTTPget program must be used, see Section 4.5.1).

Page 31

4.3.5 Configuration (continued)

Cancel

WARNING! New Recording Will Erase Existing Data. Download Data or Replace Flash.

Start Recording?

http://192.168.1.200

Address

http://192.168.1.200

Continue Recording

G) Remote Access

Remote IP Address: iServer can establish a connection to a remote device (e.g. an

iLD Remote Display with an Ethernet iServer embedded board) with this IP. Remote Port: (default 2000) the remote port number for the connection. Ports 1000 (used for HTTPget, refer to Section 4.5), 2002, 2003, and 2004 are

reserved for internal use. Remote Access:** Remote Access can be enabled and disabled. If enabled, the

iServer can send its data to a remote node on the same network (the “Remote IP address” and “Remote Port” must be entered).

*TCP/UDP: when UDP mode is selected, Remote Access should be disabled and Remote IP and Port are the UDP remote listening IP and Port. If the Remote IP is set to 255.255.255.255, the UDP packet becomes a broadcasting packet which will allow any device listening to the Remote port to receive the packet.

**If Remote Access is enabled, Terminal Server is automatically disabled.

H) Update

This button will save and update all changes made on the Configuration page. Clicking on the “Update” button will also refresh the Configuration page and will give you the latest Clock Time.

I) Flash Recording

Click on Flash Recording button to configure the Recording Settings. Once the button is clicked the following Warning Message will appear.

Once a new Recording Starts, any existing data on the Flash Memory Card will be entirely erased.

You may want to download the existing data using iFlash software (see Section

4.3.3) before starting the recording.

Once you click OK (on the above Warning Message) you will be prompted with the following window:

Click on Continue Recording to access the Recording Settings.

Page 32

4.3.5 Configuration (continued)

07/08/2009

11:50:00

12:00:00

15:11:13

07/08/2009

12/12/2009

I) Start Recording - Recording Settings

Figure 4.12 Configuration - Recording Settings

Type: The selections are: “Limited”, “No Recording”, and “Full Flash”. Limited: You must define the Start Date and Time, and End Date and Time in which

you need the recording to be done.

No Recording: Not used. Full Flash: You only need to define the Start Date and Time.

The iServer will record data until the Flash is full, then the iServer will stop recording.

The End Date and Time will be automatically updated, it is calculated according to the recording interval and Flash Card size.

Interval: The recording interval at which the temperature or barometric pressure is being stored into the Flash Card. The selections are “10 seconds“ and “1 minute“.

To avoid any miscommunications when downloading the stored data using the iFlash program or from the “Chart” page, it is strongly recommended to let the recording run for a minimum of 3 minutes if the time interval is 10 seconds (from the “Configuration” page), and 15 minutes if the time interval is 1 minute.

Clock Date and Time: Real Time Clock, carried over from Configuration Page, you may update it here as needed.

Start Date, Time: Starting date and time for recording. Entry is required for Limited and Full Flash types of Recording.

End Date, Time: Ending date and time for recording. Entry is required for Limited type of Recording only.

The Date and Time formats are mm/dd/yyyy and hh:mm:ss. Time is military time / 24 hour based. The exact formats are required otherwise an Entries

Error message will appear in Section C (Figure 4.13).

J) Read Settings: Click this button, followed by clicking the “Update” button, to retrieve

the latest Recording Settings and Status. Hard Reset: Clicking on this button will reset the Ethernet Port, Flash Card Memory,

LCD, and Recording sections to a fresh start. It is suggested to click “Hard Reset” if you experience problems with the “Flash Recording” button.

If the unit is recording, the “Hard Reset” button will not function.

Page 33

4.3.5.1 Configuration - Recording Initializing

http://192.168.1.50

Terminal Server

Alarm Setup

2-MegaBytes Flash Card 0 Kbytes Used Space

Recording Initialized. AC Power On. Check Battery

Remote Access (Tunneling)Remote Access (Tunneling)

Update

Stop Recording

Remote IP Address:

Remote Port:

Remote Access:

TCP/UDP:

Server Type: Forward CR

Number of

Connections

Port:

2000

Command

TCP

2000

Disable

0.0.0.0

Main Menu

Disable

Time Stamp:

Read Settings

Hard Reset

Address

Title:

Data_Record_Test

Sensor Unit:

F:hPa

LCD/PWR:

Recording Settings

Type:

Full Flash

Clock Date:

06/01/2009

Start Date:

06/01/2009

EndDate:

12/12/2009

mm/dd/yyyy

hh:mm:ss

Time:

12:00:34

Time:

12:01:00

Time:

12:01:00

Interval:

10_sec

No Alarm

Alarm Type:

Unlatch

Enabled Alarm:

0095.5

SP1:

nnnn.n 0050.5

SP2:

nnnn.n

DEVICE SETTINGS

After starting a recording, the Configuration page will look slightly different, see Figure 4.13. Section C will have a new message Recording Initialized, and Section I will show the

Recording Settings, along with a “Stop Recording” button. Note that the Clock Time has not yet reached the Start Time.

Stop Recording Button: Click on this button to stop an ongoing recording.

Figure 4.13 Configuration (Recording Initializing)

Page 34

4.3.5.2 Configuration - Recording Active

http://192.168.1.50

Terminal Server

Alarm Setup

2-MegaBytes Flash Card 0 Kbytes Used Space

Flash Card Recording On. AC Power On. Check Battery

Remote Access (Tunneling)Remote Access (Tunneling)

Update

Stop Recording

Remote IP Address:

Remote Port:

Remote Access:

TCP/UDP:

Server Type: Forward CR

Number of

Connections

Port:

2000

Command

TCP

2000

Disable

0.0.0.0

Main Menu

Disable

Time Stamp:

Read Settings

Hard Reset

Address

Title:

Data_Record_Test

Sensor Unit:

F:hPa

LCD/PWR:

Recording Settings

Type:

Full Flash

Clock Date:

06/01/2009

Start Date:

06/01/2009

EndDate:

12/12/2009

mm/dd/yyyy

hh:mm:ss

Time:

12:01:53

Time:

12:01:00

Time:

12:01:00

Interval:

10_sec

No Alarm

Alarm Type:

Unlatch

Enabled Alarm:

0095.5

SP1:

nnnn.n 0050.5

SP2:

nnnn.n

DEVICE SETTINGS

Once the Clock Time has reached or exceeded the Start Time, click on the “Read Settings” button, followed by the “Update” button, to refresh the Configuration page, see

Figure 4.14. Section C will have a new message Flash Recording On, and Section I will still show

the current Recording Settings.

Stop Recording Button: Click on this button to stop an ongoing recording.

Figure 4.14 Configuration (Recording Active)

Page 35

4.3.5.3 Important Recording Notes

• While the recording is in progress, the first letter of the measurement unit (“h”P, “i”Hg

or “m”Hg), located on the LCD screen blinks continuously.

• Downloading data and recording can not be done at the same time.

While downloading data, the writing process to the flash memory will be internally disabled while the data is being read from the memory flash.

For small amounts of data to be retrieved (1 Day or 1 Week), this is not a significant interruption in the recording data. However, for large amounts of data (1 Month or 1 Year) it may take 4 to 8 minutes to download the data.

In “Archives_Enabled “ mode, charting remains static, while data download is taking place.

• The number of barometric pressure/temperature values that can be recorded depends on the memory flash capacity (2 Mbytes, 4 Mbytes or 8 Mbytes) and the recording interval time, e.g. 1 minute interval for 4 Mbytes is 1,081,212 minutes or 750 days.

If the flash is busy sending data to the applet to chart the archive, the iServer will refuse to initiate a call to provide archived data to the second applet until it has finished with the first one.

• In case of a power outage and no battery backup, if the unit is recording, the

recording will stop but the data that was stored will be saved. Please note, the last recorded data (30 minutes to an hour, depending on time

interval) could be lost, due to the fact that the data is initially stored to the buffer before it is transferred to the Flash Memory and loss of power will erase the data in the buffer.

• After you start recording, if you need to make any changes in the Recording Settings

you must either click on “Stop Recording” button or push the RESET button on the side of the iServer and reconfigure the Recording Settings. If you push the RESET button while the Recording is ON, you could lose a small amount of data that was left in the buffer.

• If you stop the recording prematurely, when you download the data, you will lose the

last 256 bytes of the data that was left in the buffer and was not transferred into the flash card. Therefore, we strongly suggest downloading the data while the recording is still ON and then stop the recording if desired.

Page 36

4.3.6 Sensor Parameters

SENSOR PARAMETERS

No. 1

Sensor Name:

Main Menu

http://192.168.1.200

SENSOR PARAMETERS

Update Reset

Temperature

Remote Display Format:

T0000.00

Remote End Char (Hex) 0x:

Offset:

0000.0

Cancel

T75.7F P1014.8mbar T75.6F P1014.7mbar T75.5F P1014.7mbar T75.4F P1014.6mbar T75.2F P1014.6mbar T75.0F P1014.5mbar

Tera Term - 192.168.1.200 VT

File Edit Setup Control Window Help

• In the first column of Configuration page (Figure 4.11), click on No. 1 to view and modify the Sensor Parameters page for Temperature.

characters in the first three boxes, but you must delete the leading spaces.

Below are some definitions of terms used in the Sensor Parameters page. Sensor Name: Text field and can take up to 16 alphanumeric characters, it shows on

the “Configuration” and the “Read Sensor” page. Remote Display Format: Remote display format is used for Terminal Server continuous

mode. P0000.0mbar in barometric pressure setting, displays P and 0000.0mbar is the

barometric pressure value displayed. Example: if the barometric pressure is 1014.4, then P1014.4mbar will be seen in the

remote display. If no format is specified (blank), there is no reading sent out. If temperature is 76.25 and 00.0F is used in temperature setting, the remote site will show

76.2F. This format setup is originally based on iLD Remote Display, which has four or six LEDs.

For six LEDs, T00.00F format, and for four LEDs, 00.0F formats are appropriate.

Remote End Char

that the iServer sends <CR> after each temperature and barometric pressure value. This will be done only in Continuous mode.

This is how the data will appear on the host with OD assigned:

T75.7F P1014.9mbar

If the end character, for instance, is 20 (Hex representation of space), the data will then appear as: T75.7F P1014.9mbar

If nothing is set for the “Remote End Char” field, the iServer will then forward the data to the LAN with no characters followed.

Offset: Since the sensing probe is solid state electronics, there is no need for calibration. If it’s determined that the readings are slightly off, the user can manually assign numerical values (including negative) to adjust the readings for temperature and barometric pressure. For temperature offset, the unit must be in degree C, for barometric pressure the unit must be in hPa. The Offset can be changed while recording is on.

You may type any ASCII

: The default value is 0D (Hex representation of <CR>). This means

Figure 4.15 Sensor Parameters

Figure 4.16

Remote End Char

Page 37

4.4 Telnet Setup

Set the Number of Connections to 1-5 other than 0, using telnet simulation program connect to iServer. In continuous mode, the telnet teminal will receive continuous messages from the iServer. In command mode, the command can be sent to query the iServer and get a response back. Refer to Figure 3.3

Send remote reset: Telnet port 2002 will bring a terminal for admin password. After typing the password and following with the end character, the message Admin. Login Successful will be showed on the terminal. Now type "reset" following with return character to reset the iServer. If no character is received within 20 seconds, the terminal will be closed automatically.

Initiating the archive chart while Telnet is active will halt Telnet until the archive chart is done.

4.5 HTTPget Program

The HTTPget software is used to send a single HTTP or TCP request to an iServer product. In contrast, the telnet or Hyperterminal programs allow a continuous connection with multiple requests to be sent to the iServer product.

Generally HTTPget is used for simply programming an IP address to the iServer or for quickly obtaining a reading of from a device.

The iServer product must be configured from the configuration web page so that the "Server Type" value is set to "Command" (This is positioned under the heading of Terminal Server). Also the Number of Connections may need to be set to "0" to enable Port 1000 (Port 1000 is for access in a non-standard terminal mode).

To use Port 2000 access (where "2000" is the value stored in "Port"), the Number of Connections should be set to "2" for general usage. The value of 2 can later be changed to a value from 1 to 5 depending on needs for secure access or fault tolerance.

Whenever Terminal Server service (using Port 2000 by default) is required, the Number of Connections must be set to a value from 1 to 5. The Terminal Server mode is the recommended mode for the most reliable connection when operating with NEWPORT software or with other programs supporting TCPIP communications.

The Port 1000 access can be used with NEWPORT software and may be needed with some iServer products when you need to view readings from the web page while simultaneously collecting data through TCPIP communications.

Page 38

4.5.1 HTTPGET using Port 1000

You can setup and read the information from the iServer by using the HTTPget program. The following program can be used to read data from the iServer by using TCP port

1000. The command string is sent to this TCP port, then the response can be read back from the same socket.

The Httpget.exe file is used to setup and read information from the iServer. This file will be automatically installed when you install the MailNotifier software or can be downloaded from our website.

Notes on using HTTPget : The HTTPget.exe program is installed to the windows directory (usually c:\winnt or

c:\windows) when installing the Mail Notifier software.

1. Open up a command window (or have a DOS window) a) Click on start menu b) Click on "Run" c) In the dialog box that appears, type "cmd" or "command" and click on "OK"

button. d) A command window should now appear.

2. If you now type "httpget" and press the "enter" key, the program options should be displayed.

3. Next run HTTPget with the options displayed below

httpget -r -S “*SRTC\r” 192.168.1.200:1000

where:

-r –S are parameters needed for the command string

*SRTC is the command as the following:

*SRTC Read the temperature in C *SRTF Read the temperature in F *SRHb Read the pressure in mbar / hPa. *SRHi Read the pressure in inHg (Mercury). *SRHm Read the pressure in mmHg (Mercury).

4.5.2 HTTPGET and ARP to setup Device IP Address

Use the iCONNECT software, which may be downloaded from our website, to do these IP changes whenever possible.

Use ARP first to assign the mac address to a static IP address in computer arp table by this command:

apr –s 192.168.1.200 00-03-34-00-00-06-b6

Then use the following command to assign new IP to the device:

Page 39

4.6 ARP Protocol

C:\>arp - 192.168.1.96 No ARP Entries Found C:\>ping 192.168.1.96 Pinging 192.168.1.96 with 32 bytes of data:  Reply from 192.168.1.96=bytes=32 time=5ms TTL=32 Reply from 192.168.1.96=bytes=32 time=3ms TTL=32 Reply from 192.168.1.96=bytes=32 time=3ms TTL=32 Reply from 192.168.1.96=bytes=32 time=4ms TTL=32  C:\>arp -a 192.168.1.96 Interface: 192.168.1.118 Internet Address Physical Addresss Type

192.168.1.96 00-03-34-00-00-23 dynamic C:\>arp -s 192.168.1.96 00-03-34-00-00-23 C:\>arp -a 192.168.1.96 Interface: 192.168.1.118 Internet Address Physical Addresss Type

192.168.1.96 00-03-34-00-00-23 static C:\>arp -d 192.168.1.96 C:\>arp -a 192.168.1.96 No ARP Entries Found C:\>

ARP is the Internet layer protocol responsible for matching or obtaining the MAC (hardware) address that corresponds to a particular IP address. The ARP command allows the user to view the current contents of the ARP cache of the local computer (residing on the same network). Microsoft includes the ARP.EXE utility for viewing and modifying the ARP cache with its Windows products. The following ARP commands can be used to view cache entries:

• arp –a ➞ Use this command to view all ARP cache entries.

• arp –a plus IP address ➞ Use this command to view ARP cache entries associated with one particular interface on a network with multiple adapters.

• arp –g ➞ Same as arp –a.

• arp –N ➞ Use this command to display ARP entries for specific network interface.

• arp – s plus IP address plus Physical address ➞ Use this command to manually

add a permanent static entry to the ARP cache.

• arp –d ➞ Use this command to manually delete a static entry.

Ping the destination computer using IP address first before using the arp -a command.

The following window shows examples of arp commands and responses.

• Your computer has an IP address of 192.168.1.118

• The destination computer has an IP address of 192.168.1.96

Figure 4.17 ARP Commands and Responses

Page 40

4.7 iLog Software

This is an Excel application software that can log temperature, barometric pressure from the iServer over the local network (Ethernet) or the internet.

a) Download the iLog software from the website listed in this manual. b) Install iLog software on a networked PC. This software is compatible with Windows

95, 98, NT, 2000, and XP. c) For complete information of how to use the iLog software, click on the HELP button. d) There is a list of Error Messages in Appendix E..

Figure 4.18 iLog Software Logging Data

Page 41

iLog Software (continued) Table 4.1 iLog Excel Applications

The iLog application actually consists of several Excel files, though most supported devices can be accessed by the main iLog program. The main program is listed as "iLog", plus a version number, under the Start Menu program links (those links available by clicking the Start button on the Windows taskbar).

In the following table, the iLog File column shows how many sensors are logged by the main iLog file. If more than 3 sensors are available, then the Alternate column shows how many sensors the device can support. Devices with more than 3 sensors will have their own Excel file. For these files, click on the model device found in the Start Menu.

Networked Product iLog File Alternate

iTHX-W 3 column iTHX-M 3 column iTHX-W Dual Probe 1st probe / 3 column 6 column iSE-TC 3 column 5 column iSE-TH 3 column 5 column iBTHX-W 3 column 4 column iBTX 2 column iPTX-W 2 column iTCX 3 column iTH Controller 3 column iVI 3 column 4 column iSeries 1 column iDRX/iDRN 1 column INF-B 1 column

Wireless Devices

The "Auto" column shows number of columns per remote device that are possibly displayed.

The Full column shows number of columns allocated per device for the "Full" spreadsheet, which will be able to display all data for all active devices.

Networked Product Auto Full

zSeries Receiver and Remotes 1 to 4 column / device 4 column / 32 device wiSeries with zED Remotes 1 to 2 column / device 2 column / 32 device UWTC REC-3 and Remotes 1 or 2 column / device 2 column / 32 device wiSeries with UWTC Remotes 1 to 2 column / device 2 column / 32 device

The active wireless devices, when shown in the Excel application, will be shown with the device number and the units returned.

Page 42

4.8 Mail Notifier Software

iServer Mail Notifier

Status Indicators

Data Email Error

ile Monitor Mail View Help

Alerts List

Connected to Email Complete

Dev1 alarm: 74.6 Dev2 alarm: 89 Dev1 alarm: 74.7 Dev1 alarm: 74.7 Dev2 alarm: 89 Dev1 alarm: 74.7 Dev1 alarm: 74.6

The Mail Notifier Software can be used only with NEWPORT Electronics instruments. For complete information of how to use the Mail Notifier software, click on the Help menu

of the main window. The Mail Notifier software generates email notifications for alarm conditions. Users can

be notified automatically of alarm conditions monitored via internet connections throughout the world. By use of the email forwarding of alarm conditions, alarm conditions can be monitored on a network isolated from the internet and forwarded to connections on the Internet.

The Mail Notifier utility operates under Windows 98, NT 4.0, 2000, and XP in conjunction with existing email that supports the MAPI messaging interface. If MS Outlook has been loaded, the MAPI support should be available.

4.8.1 Installation

The Mail Notifier must be loaded on a computer running Microsoft Windows (versions specified earlier) using an email program that provides MAPI access. Network access must be available between this computer and the iServer. Network access must also be available from this computer to the appropriate email server and from the email server to the recipient’s email server.

Figure 4.19 iServer Mail Notifier Main Window

Page 43

4.8.2 Program Options Setup and Configuration

Name/Profile

Password

Email Address MS Outlook Outlook 2002

MAPI

Mail Server

Use Login Box

Email Setup Content Startup GeneralSend To

Help OK Cancel

Options

Complete program setup requires:

• Entering a recipient for the email

• Specifying connection details to MAPI services.

•

Defining alarms for devices, and selecting how and when the email will be active.

Email Address Setup

The email addresses must be entered using individual addresses or alias. Select “Options” from the “View” menu and enter the email addresses on the “Send To” screen. This will be the list of email addresses to which alarm notifications will be sent.

Email Setup

The Mail Notifier is compatible with original MS OutlookTMand OutlookTM2002 to 2005. The Mail Notifier will attempt to automatically identify whether the Outlook is a newer

version. A red bar appears under the Mail Notifier splash window to confirm that the detection of the 2002 or newer version is acceptable. With the newer versions, no additional steps should be taken to enable the connection between the Mail Notifier and the Email server.

MS Outlook tends to require that the users respond to a “login box” in order for email access to be activated for Mail Notifier. Some other email clients may allow for Mail Notifier to gain access without user login, as may be desired for a system recovering from a power outage. See the Help files for more information.

Figure 4.20 iServer Mail Notifier Profile Setup

Page 44

4.8.3 Device Setting and Configuration

Alarm Editor

Cancel

Help

Add

Del

Bus Address/Device ID

Socket Number

Description

Src ID

Reading Cmd

Server IP Address

2000

Dev1

zRdgA

192.168.1.200

Device Info (1 of 2)

Alarm Type

Alarm High

Alarm Low

Alarm High

Info Message

Email Interval

Monitor Interval

0.05

Alarm Hold Time 0.0

0.5

hrs.

min.

Alarm Configuration

Only Monitor Access to iServer device

Device setup requires:

• Server IP Address: for iSE device (for example 192.168.1.200).

• Socket Number: (1000 or 2000 depending on iServer settings).

• Bus Address/Device ID: interface address (1 to 199). Enter "0" for RS232 interface

or for iServer.

• Reading Cmd: normally set to SRFT to obtain reading from the devices. If you want to

change this setting, refer to list of commands in Section 4.5.

• Alarm Type: (High/Low, High value, or Low value).

• Info Message: text can be entered to describe the alarm condition.

• Email Interval: the time interval in which the email is sent.

• Monitor Interval: the interval or time resolution in which readings will be obtained from

the device.

• Alarm Hold Time: the time delay of each subsequential alarm notification to be sent.

1000

Dev 2

SRTF

Figure 4.21 iServer Mail Notifier Device Setting

Page 45

PART 5 SPECIFICATIONS

SENSOR SPECIFICATIONS

BAROMETRIC PRESSURE (B)

Accuracy/Range: ±2.0 mbar / 0 to 1100 mbar (0 to 110 KPa) Resolution: 0.1 mbar

TEMPERATURE (T)

Range*: 0°C to 70°C (32°F to 158°F) Accuracy*: ± 0.8°C @ 20°C (± 1.5°F @ 68°F)

± 2°C for -40 to 125°C (± 3.6°F for -40 to 257°F) *Note: extended temperature range is for Industrial

Probe only, the iServer’s operating temperature is 0 to 70°C.

Response Time: 5 seconds (63% slowly moving air) Repeatability: ±0.1°C Resolution: 0.01°C, 14bit

PROBE SPECIFICATIONS

Wand Probe: 159 mm lg x 19 mm dia (6.25” x 0.75")

Cable with DB9 connector: 152 mm long (6") Cable operating temperature: 0 to 80°C (32 to 176°F)

Industrial Probe: 137mm lg x 16mm dia (5” x 0.63")

Cable with DB9 or stripped leads: 6.1m long (20’) Cable operating temperature: 0 to 105°C (32 to 221°F)

iSERVER SPECIFICATIONS

Interfaces

Ethernet: 10Base-T (RJ45) Sensor: Digital 4-wire (DB-9) Supported Protocols: TCP/IP, UDP/IP, ARP, ICMP, DHCP, DNS, HTTP, and

Telnet

LED Indicators: Network Activity, Network Link, and Diagnostics LCD Display: 16 digits, 6mm (0.23”) Processor: Enhanced 8051, 22 MHz Memory: 512 Kbytes Flash, 16 Kbytes SRAM Memory Data Flash Card: 2 Mbytes or 2 months of data storage at 10 second

logging intervals, or 1 year at 1 minute logging intervals. Atmel# AT45DCB002

Optional Flash Cards: 4 Mbyte (2 years at 1 minute intervals);

8 Mbyte (4 years at 1 minute intervals)

Relay Outputs: Two relays 1.5A @ 30Vdc Management: Device configuration and monitoring through embedded

WEB server

Embedded WEB Server: Serves WEB pages containing real-time data and live

updated charts within definable time intervals.

Page 46

POWER

Power Input: 9 to 12 Vdc Consumption: 2.5 W max. Safety Qualified ac Power Adapter (included) Nominal Output: 9 Vdc @ 0.5 A

Input: 100 to 240 Vac, 50/60Hz Adapter Operating Temp: 0 to 40°C (32 to 104°F)

Battery: 9 Vdc, alkaline approximately 650 mA hours

ENVIRONMENTAL

Operating Temperature: 0 to 70°C (32 to 158°F) Storage Temperature: -40 to 80°C (-40 to 176°F) Material: Metal case with wall mount bracket iServer Housing Dimensions: 36.6H x 62W x 90D mm (1.44 x 2.93 x 3.56 in) Weight: 298 g (0.8 lbs.)

GENERAL

Agency Approvals: FCC-B,CE Software: The software packages available are iConnect

(configuration software for the Ethernet interface), iLog (Excel-based software for automatic data logging), iFLash (memory card retrieval software) and Mail Notifier (email alarm notification software).

Page 47

PART 6

FACTORY PRESET VALUES

PRESET PARAMETERS FACTORY DEFAULTS

Network Interface:

IP Address 192.168.1.200 Gateway Address 0.0.0.0 Subnet Mask 255.255.255.0 Device Host Name eis and Last 4 digits from the MAC address Login Password 12345678 Admin Password 00000000 DHCP Disabled Flow Control None End Character 0D (Hex) (Carridge Return)

Terminal Server:

Server Type Command Number of Connections 5 Port # 2000 Server Mode Disable

Remote Access (Tunneling):

Remote Access Disable Remote Port 2000 Remote IP Address 0.0.0.0

LCD Backlight On

Page 48

APPENDIX A GLOSSARY

User of this manual should be familiar with following definitions: ARP (Address Resolution Protocol) is a protocol for mapping an Internet Protocol

address (IP address) to a physical machine address that is recognized in the local network. For example, the IP address in use today is an address that is 32-bits long. In an Ethernet local area network, however, addresses for attached devices are 48-bits long. (The physical machine address is also known as a Media Access Control or MAC address.) A table, usually called the ARP cache, is used to maintain a correlation between each MAC address and its corresponding IP address. ARP provides the protocol rules for making this correlation and providing address conversion in both directions.

Ethernet is a network protocol defined by the IEEE 802.3 standard. Ethernet-based networks use MAC Address rather then IP Address to exchange data between computers. By using ARP and adding TCP/IP support, Ethernet devices may be connected as part of the Internet. An Ethernet LAN typically uses coaxial cable or special grades of twisted pair wires. The most commonly installed Ethernet systems are called 10BASE-T and provide transmission speeds up to 10 Mbps. Devices are connected to the cable and compete for access using a Carrier Sense Multiple Access with Collision Detection (CSMA/CD) protocol.

IP (Internet Protocol) is the method or protocol by which data is sent from one computer to another on the Internet.

IP address (Internet Protocol address) is a 32-bit number that identifies each sender or receiver of information that is sent in packets across the Internet.

IP Netmask is a 32-bit pattern of bits used to determine which part of the IP address is the network portion and which part is the host portion.

MAC (Media Access Control) Address is your computer's unique hardware number. When you're connected to the Internet from your computer, a correspondence table relates your IP address to your computer's physical (MAC) address on the LAN.

Ping is a utility that tests the network connectivity. It is used to determine if the host is capable of exchanging information with another host.

Port number/Socket number is a way to identify a specific process to which an Internet or other network message is to be forwarded when it arrives at a server. It is a predefined address that serves as a route from the application to the Transport layer or from the Transport layer to the application of the TCP/IP system.

Sockets are a method for communication between a client program and a server program in a network and defined as "the endpoint in a connection." Information transferred across the Internet primarily occurs between sockets.

TCP/IP (Transmission Control Protocol/Internet Protocol) is the basic communication language or protocol of the Internet. When you are set up with direct access to the Internet, your computer is provided with a copy of the TCP/IP program just as every other computer that you may send messages to or get information from also has a copy of TCP/IP. TCP/IP often is used as a general term to indicate generic access to the Internet.

UDP/IP (User Datagram Protocol/Internet Protocol) is the TCP/IP standard protocol that allows an application program on one machine to send a datagram to an application program on another. The UDP can be either in Broadcast or Directed form. The Broadcast UDP transmits data to every node on the same network. The Directed UDP transmits data to one node only.

Page 49

Appendix B IP Address

An IP address is a unique 32-bit address assigned to a computer and includes:

• A network ID number identifying a network.

• A host ID number identifying a computer on the network.

All IP addresses have been divided into three smaller groups (classes) A, B and C

• Class A addresses have 8-bits of network ID and 24-bits of host ID. They can support

a large number of hosts, approximately 2 = 16,777,216 computers per network.

The IP addresses range in binary from 00000001.xxxxxxxx.xxxxxxxx.xxxxxxxx

to 01111111.xxxxxxxx.xxxxxxxx.xxxxxxxx

The IP addresses range in decimal from 1.x.x.x to 127.x.x.x

Class A network ID’s support a very large number of hosts.

• Class B addresses have 16-bits of network ID and 16-bits of host ID. They can

support approximately 216= 65,536 computers per network.

The IP addresses range in binary from 10000000 00000000.xxxxxxxx.xxxxxxxx

to 10111111 11111111.xxxxxxxx.xxxxxxxx

The IP addresses range in decimal from 128.0.x.x TO 191.255.xxx.xxx

Class B network ID’s support a medium number of hosts.

• Class C addresses have 24-bits of network ID and 8-bits of host ID. They can support

approximately 28= 256 computers per network.

The IP addresses range in binary from 11000000.00000000.00000000.xxxxxxxx

to 11011111.11111111.11111111.xxxxxxxx

The IP addresses range in decimal from 192.0.0.xxx to 223.255.255.xxx

Class C network ID’s support a small number of hosts.

The rest of the addresses are divided into two classes, D and E. Class D networks are not assigned to the host. They are used for multicasting. The address range from 224.x.x.x to 239.x.x.x

Class E networks are experimental or reserved addresses. The address range from 240.x.x.x to 247.x.x.x

Page 50

Appendix C IP Netmask

IP Netmask or Subnet Mask is a 32-bit pattern of ones and zeros used to determine network portion of an IP address from the host portion of the IP address. Subnet mask is a network ID that is created by borrowing bits from host portion of IP address and using them as part of a network ID. The table below shows a default subnet mask for address Classes A, B, and C. Each bit that is set to "1" in the subnet mask corresponds to the bit in the IP address that is to be used as the network ID. Each bit that is set to "0" in the subnet mask corresponds to a bit in the IP address that is to be used as the host ID.

Address Class Mask Binary Value Mask Decimal Value

or Dotted Notation

Class A 255.0.0.0 Class B 255.255.0.0 Class C 255.255.255.0

11111111 11111111 11111111

00000000 11111111 11111111

00000000 00000000 11111111

00000000 00000000 00000000

If your network requires more network ID’s, you can extend the default subnet mask to include additional bits from the host ID. This allows for additional network ID’s within the network. The table below shows some examples of subnet masks and bits moved from the hosts ID to create a new subnet.

Mask Dotted Notation Mask Binary Mask Bits

Class A

255.0.0.0 (Default) 0

255.192.0.0 2

255.224.0.0 3

255.240.0.0 4

255.248.0.0 5

255.252.0.0 6

255.254.0.0 7

255.255.0.0 8

255.255.128.0 9

255.255.192.0.0 10

……………......... .

255.255.255.252 22

11111111 11111111 11111111 11111111 11111111 11111111 11111111 11111111 11111111 11111111

. . . . . . . .

11111111

00000000 11000000 11100000 11110000 11111000 11111100 11111110 11111111 11111111 11111111

. . . . . . . .

11111111

00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 10000000 11000000

. . . . . . . .

11111111

00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000

. . . . . . . .

11111100

Class B

255.255.0.0 (Default) 0

255.255.192.0 2

……………......... .

255.255.255.252 14

11111111 11111111

. . . . . . . .

11111111

11111111 11111111

. . . . . . . .

11111111

00000000 11000000

. . . . . . . .

11111111

00000000 00000000

. . . . . . . .

11111100

Class C

255.255.255.0 (Default) 0

255.255.255.192 2 …………………. .

255.255.255.254 6

11111111 11111111

. . . . . . . .

11111111

11111111 11111111

. . . . . . . .

11111111

11111111 11111111

. . . . . . . .

11111111

00000000 11000000

. . . . . . . .

11111100

To determine the number of valid hosts ID’s remaining after subnetting, use the following equation: 2n– 2, where n is the number of octet digits left after the subnet mask.

Page 51

Appendix D ASCII Chart

ASCII Dec Hex Binary ASCII Dec Hex Binary

Char No Parity Char No parity

NUL 00 00 00000000 @ 64 40 01000000 SOH 01 01 00000001 A 65 41 01000000

STX 02 02 00000010 B 66 42 01000010

ETX 03 03 00000011 C 67 43 01000011 EOT 04 04 00000100 D 68 44 01000100 ENQ 05 05 00000101 E 69 45 01000101 ACK 06 06 00000110 F 70 46 01000110

BEL 07 07 00000111 G 71 47 01000111

BS 08 08 00001000 H 72 48 01001000 HT 09 09 00001001 I 73 49 01001001

LF 10 0A 00001010 J 74 4A 01001010

VT 11 0B 00001011 K 75 4B 01001011

FF 12 0C 00001100 L 76 4C 01001100 CR 13 0D 00001101 M 77 4D 01001101 SO 14 0E 00001110 N 78 4E 01001110

SI 15 0F 00001111 O 79 4F 01001111

DLE 16 10 00010000 P 80 50 01010000 DC1 17 11 00010001 Q 81 51 01010001 DC2 18 12 00010010 R 82 52 01010010 DC3 19 13 00010011 S 83 53 01010011 DC4 20 14 00010100 T 84 54 01010100 NAK 21 15 00010101 U 85 55 01010101 SYN 22 16 00010110 V 86 56 01010110

ETB 23 17 00010111 W 87 57 01010111 CAN 24 18 00011000 X 88 58 01011000

EM 25 19 00011001 Y 89 59 01011001 SUB 26 1A 00011010 Z 90 5A 01011010 ESC 27 1B 00011011 [ 91 5B 01011011

FS 28 1C 00011100 \ 92 5C 01011100 GS 29 1D 00011101 ] 93 5D 01011101 RS 30 1E 00011110 ^ 94 5E 01011110 US 31 1F 00011111 SP 32 20 00100000

95 5F 01011111

96 60 01100000 ! 33 21 00100001 a 97 61 01100001 " 34 22 00100010 b 98 62 01100010

# 35 23 00100011 c 99 63 01100011 $ 36 24 00100100 d 100 64 01100100

% 37 25 00100101 e 101 65 01100101

& 38 26 00100110 f 102 66 01100110

‘ 39 27 00100111 g 103 67 01100111 ( 40 28 00101000 h 104 68 01101000 ) 41 29 00101001 I 105 69 01101001 * 42 2A 00101010 j 106 6A 01101010

+ 43 2B 00101011 k 107 6B 01101011

, 44 2C 00101100 l 108 6C 01101100

- 45 2D 00101101 m 109 6D 01101101 . 46 2E 00101110 n 110 6E 01101110

Page 52

Appendix D ASCII Chart Continuation

/ 47 2F 00101111 o 111 6F 01101111 0 48 30 00110000 1 49 31 00110001

p q

112 70 01110000

113 71 01110001 2 50 32 00110010 r 114 72 01110010 3 51 33 00110011 s 115 73 01110011 4 52 34 00110100 t 116 74 01110100 5 53 35 00110101 u 117 75 01110101 6 54 36 00110110 v 118 76 01110110 7 55 37 00110111 w 119 77 01110111 8 56 38 00111000 x 120 78 01111000 9 57 39 00111001

121 79 01111001 : 58 3A 00111010 z 122 7A 01111010 ; 59 3B 00111011

< 60 3C 00111100 = 61 3D 00111101

{ | }

123 7B 01111011

124 7C 01111100

125 7D 01111101

> 62 3E 00111110 ~ 126 7E 01111110 ? 63 3F 00111111 DEL 127 7F 01111111

ASCII Control Codes

ASCII Dec Hex Ctrl Key Definition ASCII Dec Hex Ctrl Key Definition

Char Equiv. Char Equiv.

NUL 00 00 Crtl @ Null Character DC1 17 11 Crtl Q Data Control 1

- XON

SOH 01 01 Crtl A Start of DC2 18 12 Crtl R Data Control 2

Header

STX 02 02 Crtl B Start of Text DC3 19 13 Crtl S Data Control 3

- XOFF ETX 03 03 Crtl C End of Text DC4 20 14 Crtl T Data Control 4 EOT 04 04 Crtl D End of NAK 21 15 Crtl U Negative

Transmission Acknowledge

ENQ 05 05 Crtl E Inquiry SYN 22 16 Crtl V Synchronous

Idle

ACK 06 06 Crtl F Acknowledge ETB 23 17 Crtl W End of Trans

Block

BEL 07 07 Crtl G Bell CAN 24 18 Crtl X Cancel

BS 08 08 Crtl H Back Space EM 25 19 Crtl Y End of Medium HT 09 09 Crtl I Horizontal SUB 26 1A Crtl Z Substitute

Tabulation

LF 10 0A Crtl J Line Feed ESC 27 1B Crtl [ Escape

VT 11 0B Crtl K Vertical FS 28 1C Crtl \ File Separator

Tabulation

FF 12 0C Crtl L Form Feed GS 29 1D Crtl ] Group

Separator

CR 13 0D Crtl M Carriage RS 30 1E Crtl | Record

Return Separator

SO 14 0E Crtl N Shift Out US 31 1F Crtl

Unit Separator

SI 15 0F Crtl O Shift In SP 32 20 Space

DLE 16 10 Crtl P Data Link

Escape

Page 53

Appendix EiLog Error Messages

Error # Description Note

-8003 User stopped logging readings.

-10005 Failed to find the iServer. Ethernet cable is disconnected, iServer is powered off, connections across the firewall require longer “connection to socket time out” setting.

-10006 Windows socket was closed.

-10007 Windows socket error. Wrong IP or wrong Port number was used.

-10008 The iServer failed to respond to a request. Wrong IP or wrong Port number was used.

-10011 Response came empty. No data was sent.

-10012 Device responded with Possibly the iLog is configured for

"Serial Time Out" string. wrong product model.

-10014 Terminal Server Mode when the Port is 1000. Try Port 2000 in iLog configuration.

-15100 Error on obtaining the temperature reading. Possibly the iLog is configured for wrong product model.

Page 54

PART 7

APPROVALS INFORMATION

7.1 CE APPROVAL

This product conforms to the EMC directive 89/336/EEC amended by 93/68/EEC, and with the European Low Voltage Directive 72/23/EEC.

Electrical Safety EN61010-1:2001

Safety requirements for electrical equipment for measurement, control and laboratory.

Basic Insulation Pollution Degree 2 Dielectric withstand Test per 1 min

• Input Power to Sensor Metal Body: none

• Input Power to Ethernet Output: 1500Vac

• Input Power to Relays: 1500Vac

• Ethernet Output to Relays: 1500Vac

Measurement Category I

Category I are measurements performed on circuits not directly connected to the Mains Supply (power). Unit measures Air Temperature and Barometric Pressure.

Transients Overvoltage Surge (1.2/50uS Pulse)

• Input Power: 500V Transients Overvoltage

• Ethernet: 1500V Transients Overvoltage

Note: The ac/dc power adaptor must have Safety Qualified Agency Approvals

EMC EN61000-6-1:2001 (Immunity) and EN61000-6-3:2001 (Emmissions)

Immunity requirements for residential, commercial and light-industrial environments

EMC EN61326:1997 + and A1:1998 + A2:2001

Immunity and Emissions requirements for electrical equipment for measurement, control and laboratory.

Note: I/O lines / sensor cables require shielded cables and these cables must be located

7.2 FCC

for CE with Double Insulation rating. The ac/dc power adaptor is 9Vdc. The minimum output current rating is 500mA.

• EMC Emissions Table 1, Class B

• EMC Immunity Table 1: Enclosure

Table 2: Signal Lines Ports Table 3: Dc input/Dc output Ports

• EMC Emissions Table 4, Class B of EN61326

• EMC Immunity Table 1 of EN61326

on conductive cable trays or in conduits.

Refer to the EMC and Safety installation considerations (Guidelines) of this manual for additional information.

This device complies with Part 15, Subpart B, Class B of the FCC rules.

Page 55

WARRANTY/ DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will extend the warranty period for one (1) additional year if the warranty card enclosed with each instrument is returned to OMEGA.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTAT IONS OF ANY KIND WHATS OEVER, EXPRESS OR IM PLIED, EXCEPT THAT O F TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

© Copyright 20 09 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocop ied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

TRADEMARK NOTICE:

PATENT NOTICE: This product is covered by one or more of the following patents: U.S. Pat. No. Des. 336,895; 5,274,577/

CANADA 2052599; 2052600 / ITALY 1249456; 1250938 / FRANCE BREVET No. 91 12756 / SPAIN 2039150; 2048066 / UK PATENT No. GB2 249 837; GB2 248 954 / GERMANY DE 41 34398 C2. Other US and International Patents pending or applied for.

, omega.com

, , and®are Trademarks of OMEGA ENGINEERING, INC.

FOR NON-WARRANTY REPAIRS, repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,

2. Model and serial number of product, and

3. Repair instructions and/or specific problems relative to the product.

consult OMEGA for current

Page 56

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop on line at omega.com

TEMPERATURE

ocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

Therm



Wire: Th



Calib



Rec



Infr



PRESSURE, STRAIN AND FORCE

Tra



Loa



Disp



Ins



FLOW/LEVEL

Rota



Air



Tur



Tota



pH/CONDUCTIVITY



Ben



Con



Ind



ermocouple, RTD & Thermistor

rators & Ice Point References orders, Controllers & Process Monitors ared Pyrometers

nsducers & Strain Gauges

d Cells & Pressure Gauges

lacement Transducers

trumentation & Accessories

meters, Gas Mass Flowmeters & Flow Computers Velocity Indicators bine/Paddlewheel Systems

lizers & Batch Controllers

Electrodes, Testers & Accessories

chtop/Laboratory Meters

trollers, Calibrators, Simulators & Pumps

ustrial pH & Conductivity Equipment

M4223/0709

DATA ACQUISITION

    

munications-Based Acquisition Systems

Com

g-in Cards for Apple, IBM & Compatibles

Plu

logging Systems

Data

orders, Printers & Plotters

Rec

Acquisition & Engineering Software

Data

HEATERS

Hea

    

ting Cable

idge & Strip Heaters

Cartr

ersion & Band Heaters

Imm

ible Heaters

Flex

tory Heaters

Labora

ENVIRONMENTAL MONITORING AND CONTROL

Mete

     

ring & Control Instrumentation

Ref

ractometers

Pum

ps & Tubing

Soil & Water Monitors

Air,

ustrial Water & Wastewater Treatment

Ind

, Conductivity & Dissolved Oxygen Instruments

Omega Products iBTX-M Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
