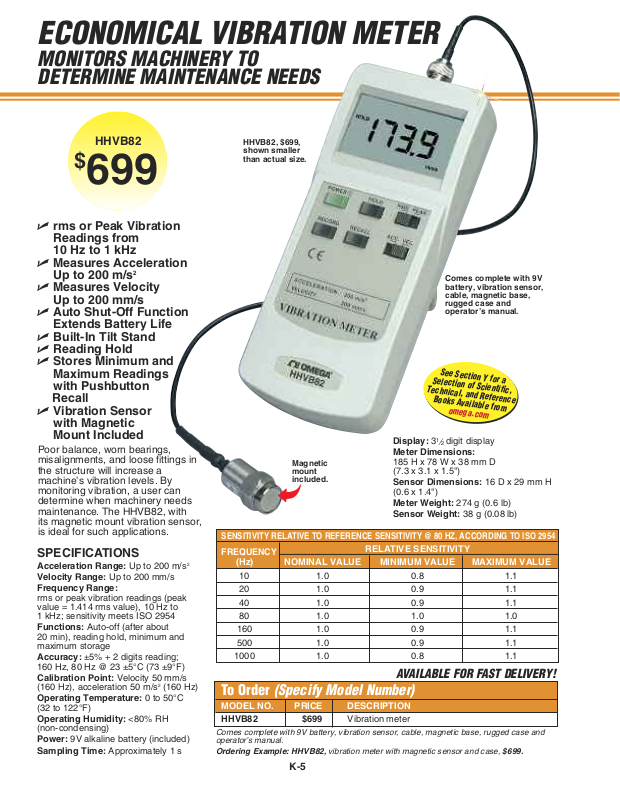

ECONOMICAL VIBRATION METER
MONITORS MACHINERY TO
DETERMINE MAINTENANCE NEEDS
HHVB82
$
699
rms or Peak Vibration
Readings from
10 Hz to 1 kHz
Measures Acceleration
Up to 200 m/s
Measures Velocity
Up to 200 mm/s
Auto Shut-Off Function
Extends Battery Life
Built-In Tilt Stand
Reading Hold
Stores Minimum and
Maximum Readings
with Pushbutton
Recall
Vibration Sensor
with Magnetic
Mount Included
Poor balance, worn bearings,
misalignments, and loose fittings in
the structure will increase a
machine’s vibration levels. By
monitoring vibration, a user can
determine when machinery needs
maintenance. The HHVB82, with
its magnetic mount vibration sensor,
is ideal for such applications.
SPECIFICATIONS
Acceleration Range: Up to 200 m/s
Velocity Range: Up to 200 mm/s
Frequency Range:
rms or peak vibration readings (peak
value = 1.414 rms value), 10 Hz to
1 kHz; sensitivity meets ISO 2954
Functions: Auto-off (after about
20 min), reading hold, minimum and
maximum storage
Accuracy: ±5% + 2 digits reading;
160 Hz, 80 Hz @ 23 ±5°C (73 ±9°F)
Calibration Point: Velocity 50 mm/s
(160 Hz), acceleration 50 m/s
Operating Temperature: 0 to 50°C
(32 to 122°F)
Operating Humidity: <80% RH
(non-condensing)
Power: 9V alkaline battery (included)
Sampling Time: Approximately 1 s
2
2
2
(160 Hz)
HHVB82, $699,
shown smaller
than actual size.
Comes complete with 9V
battery, vibration sensor,
cable, magnetic base,
rugged case and
operator’s manual.
See
Sect
i
on Y
f
or
Sel
ect
i
on of
Techn
ica
l,
and R
B
oo
ks
A
vail
o
me
ga.
Display: 3
Meter Dimensions:
Magnetic
mount
included.
SENSITIVITY RELATIVE TO REFERENCE SENSITIVITY @ 80 HZ, ACCORDING TO ISO 2954
FREQUENCY
(Hz) NOMINAL VALUE MINIMUM VALUE MAXIMUM VALUE
10 1.0 0.8 1.1
20 1.0 0.9 1.1
40 1.0 0.9 1.1
80 1.0 1.0 1.0
160 1.0 0.9 1.1
500 1.0 0.9 1.1
1000 1.0 0.8 1.1
185 H x 78 W x 38 mm D
(7.3 x 3.1 x 1.5")
Sensor Dimensions: 16 D x 29 mm H
(0.6 x 1.4")
Meter Weight: 274 g (0.6 lb)
Sensor Weight: 38 g (0.08 lb)
RELATIVE SENSITIVITY
1
digit display
⁄
2
Sci
ef
able f
co
m
ent
ere
r
i
om
a
fi
c,
nce
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
MODEL NO. PRICE DESCRIPTION
HHVB82 $699 Vibration meter
Comes complete with 9V battery, vibration sensor, cable, magnetic base, rugged case and
operator’s manual.
Ordering Example: HHVB82, vibration meter with magnetic sensor and case, $699.
