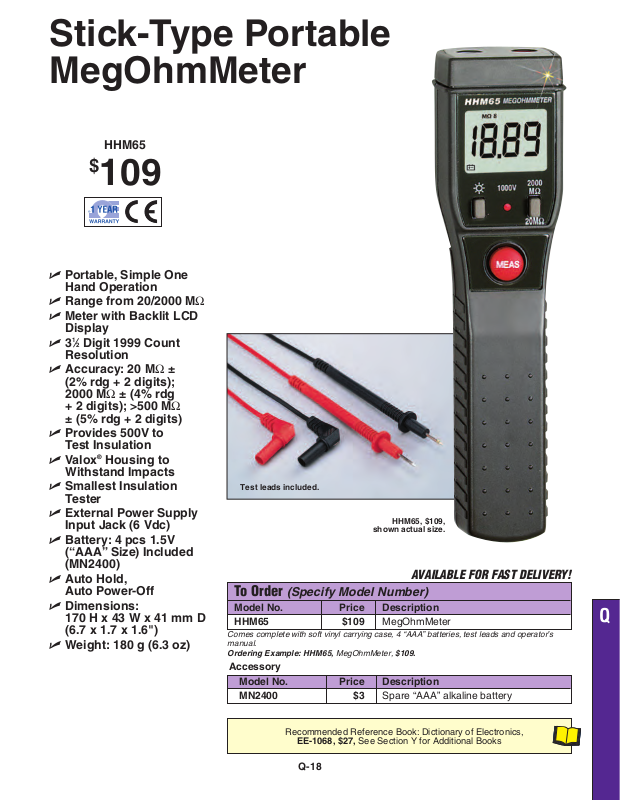

Omega Products HHM65 User Manual
Stick-Type Portable
MegOhmMeter
HHM65
$
109
⻬ Portable, Simple One
Hand Operation
⻬ Range from 20/2000 MΩ
⻬ Meter with Backlit LCD
Display
1
⁄2 Digit 1999 Count
⻬ 3
Resolution
⻬ Accuracy: 20 MΩ ±
(2% rdg + 2 digits);
2000 MΩ ± (4% rdg
+ 2 digits); >500 MΩ
± (5% rdg + 2 digits)
⻬ Provides 500V to
Test Insulation
⻬ Valox
Withstand Impacts
⻬ Smallest Insulation
Tester
⻬ External Power Supply
Input Jack (6 Vdc)
⻬ Battery: 4 pcs 1.5V
(“AAA” Size) Included
(MN2400)
⻬ Auto Hold,
Auto Power-Off
⻬ Dimensions:
170 H x 43 W x 41 mm D
(6.7 x 1.7 x 1.6")
⻬ Weight: 180 g (6.3 oz)
®
Housing to
Test leads included.
shown actual size.
To Order (Specify Model Number)
Model No. Price Description
HHM65 $109 MegOhmMeter
Comes complete with soft vinyl carrying case, 4 “AAA” batteries, test leads and operator’s
manual.
Ordering Example: HHM65, MegOhmMeter, $109.
Accessory
Model No. Price Description
MN2400 $3 Spare “AAA” alkaline battery
HHM65, $109,
AVAILABLE FOR FAST DELIVERY!
Q
Recommended Reference Book: Dictionary of Electronics,
EE-1068, $27, See Section Y for Additional Books
Q-18
