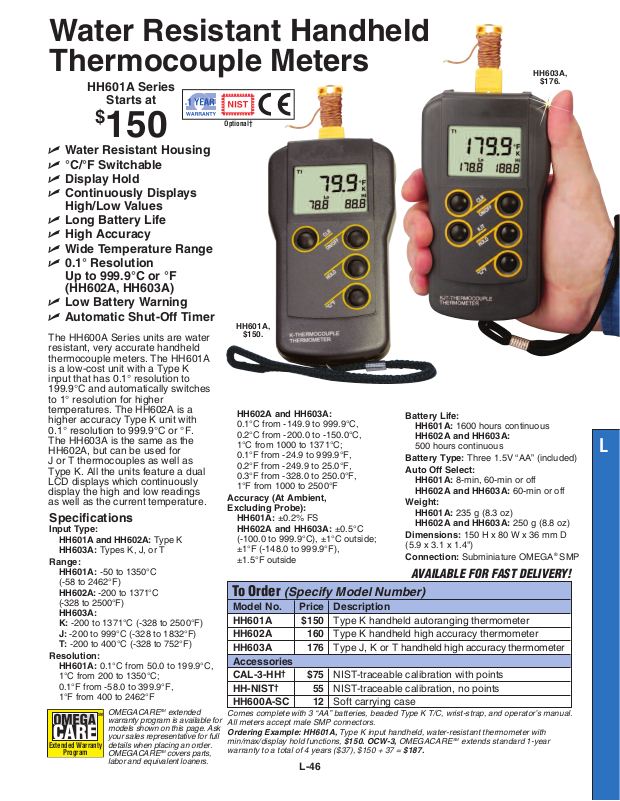

Omega Products HH601A User Manual
Water Resistant Handheld
Extended Warranty
Program
SM
Thermocouple Meters
HH601A Series
Starts at
$
ptional†
O
150
⻬ Water Resistant Housing
⻬ °C/°F Switchable
⻬ Display Hold
⻬ Continuously Displays
High/Low Values
⻬ Long Battery Life
⻬ High Accuracy
⻬ Wide Temperature Range
⻬ 0.1° Resolution
Up to 999.9°C or °F
(HH602A, HH603A)
⻬ Low Battery Warning
⻬ Automatic Shut-Off Timer
The HH600A Series units are water
resistant, very accurate handheld
thermocouple meters. The HH601A
is a low-cost unit with a Type K
input that has 0.1° resolution to
199.9°C and automatically switches
to 1° resolution for higher
temperatures. The HH602A is a
higher accuracy Type K unit with
0.1° resolution to 999.9°C or °F.
The HH603A is the same as the
HH602A, but can be used for
J or T thermocouples as well as
Type K. All the units feature a dual
LCD displays which continuously
display the high and low readings
as well as the current temperature.
Specifications
Input Type:
HH601A and HH602A: Type K
HH603A: Types K, J, or T
Range:
HH601A: -50 to 1350°C
(-58 to 2462°F)
HH602A: -200 to 1371°C
(-328 to 2500°F)
HH603A:
K: -200 to 1371°C (-328 to 2500°F)
J: -200 to 999°C (-328 to 1832°F)
T: -200 to 400°C (-328 to 752°F)
Resolution:
HH601A: 0.1°C from 50.0 to 199.9°C,
1°C from 200 to 1350°C;
0.1°F from -58.0 to 399.9°F,
1°F from 400 to 2462°F
SM
OMEGACARE
warranty program is available for
models shown on this page. Ask
your sales representative for full
details when placing an order.
OMEGACARE
labor and equivalent loaners.
extended
SM
covers parts,
HH601A,
$150.
HH602A and HH603A:
0.1°C from -149.9 to 999.9°C,
0.2°C from -200.0 to -150.0°C,
1°C from 1000 to 1371°C;
0.1°F from -24.9 to 999.9°F,
0.2°F from -249.9 to 25.0°F,
0.3°F from -328.0 to 250.0°F,
1°F from 1000 to 2500°F
Accuracy (At Ambient,
Excluding Probe):
HH601A: ±0.2% FS
HH602A and HH603A: ±0.5°C
(-100.0 to 999.9°C), ±1°C outside;
±1°F (-148.0 to 999.9°F),
±1.5°F outside
To Order (Specify Model Number)
Model No. Price Description
HH601A $150 Type K handheld autoranging thermometer
HH602A 160 Type K handheld high accuracy thermometer
HH603A 176 Type J, K or T handheld high accuracy thermometer
Accessories
CAL-3-HH
HH-NIST
HH600A-SC 12 Soft carrying case
Comes complete with 3 “AA” batteries, beaded Type K T/C, wrist-strap, and operator’s manual.
All meters accept male SMP connectors.
Ordering Example: HH601A, Type K input handheld, water-resistant thermometer with
min/max/display hold functions, $150. OCW-3, OMEGACARESMextends standard 1-year
warranty to a total of 4 years ($37), $150 + 37 = $187.
†
$75 NIST-traceable calibration with points
†
55 NIST-traceable calibration, no points
L-46
HH603A,
$176.
Battery Life:
HH601A: 1600 hours continuous
HH602A and HH603A:
500 hours continuous
Battery Type: Three 1.5V “AA” (included)
Auto Off Select:
HH601A: 8-min, 60-min or off
HH602A and HH603A: 60-min or off
Weight:
HH601A: 235 g (8.3 oz)
HH602A and HH603A: 250 g (8.8 oz)
Dimensions: 150 H x 80 W x 36 mm D
(5.9 x 3.1 x 1.4")
Connection: Subminiature OMEGA
®
SMP
AVAILABLE FOR FAST DELIVERY!
