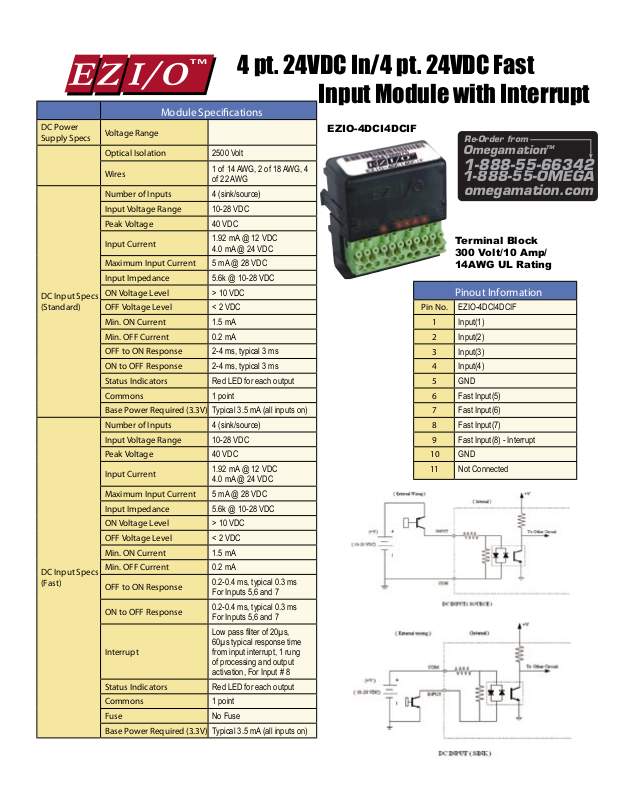

Omega Products EZIO-4DCI4DCIF User Manual
E Z
Re-Order from
omegamation.com
Omegamation
TM
1-888-55-OMEGA
1-888-55-66342
1-888-55-66342
DC Power
Supply Specs
DC Input Specs
(Standard)
DC Input Specs
(Fast)
I/O
Voltage Range
Optical Isolation 2500 Volt
Wires
Number of Inputs 4 (sink/source)
Input Voltage Range 10-28 VDC
Peak Voltage
Input Current
Maximum Input Current 5 mA @ 28 VDC
Input Impedance 5.6k @ 10-28 VDC
ON Voltage Level
OFF Voltage Level < 2 VDC
Min. ON Current 1.5 mA
Min. OFF Current 0.2 mA
OFF to ON Response 2-4 ms, typical 3 ms
ON to OFF Response 2-4 ms, typical 3 ms
Status Indicators Red LED for each output
Commons 1 point
Base Power Required (3.3V) Typical 3.5 mA (all inputs on)
Number of Inputs 4 (sink/source)
Input Voltage Range 10-28 VDC
Peak Voltage 40 VDC
Input Current
Maximum Input Current 5 mA @ 28 VDC
Input Impedance 5.6k @ 10-28 VDC
ON Voltage Level > 10 VDC
OFF Voltage Level < 2 VDC
Min. ON Current 1.5 mA
Min. OFF Current 0.2 mA
OFF to ON Response
ON to OFF Response
Interrupt
Status Indicators Red LED for each output
Commons 1 point
Fuse No Fuse
Base Power Required (3.3V) Typical 3.5 mA (all inputs on)
TM
4 pt. 24VDC In/4 pt. 24VDC Fast
Input Module with Interrupt
Module Specications
EZIO-4DCI4DCIF
1 of 14 AWG, 2 of 18 AWG, 4
of 22 AWG
40 VDC
1.92 mA @ 12 VDC
4.0 mA @ 24 VDC
> 10 VDC
Pin No. EZIO-4DCI4DCIF
1.92 mA @ 12 VDC
4.0 mA @ 24 VDC
0.2-0.4 ms, typical 0.3 ms
For Inputs 5,6 and 7
0.2-0.4 ms, typical 0.3 ms
For Inputs 5,6 and 7
Low pass filter of 20µs,
60µs typical response time
from input interrupt, 1 rung
of processing and output
activation, For Input # 8
Terminal Block
300 Volt/10 Amp/
14AWG UL Rating
Pinout Information
1 Input(1)
2 Input(2)
3 Input(3)
4 Input(4)
5 GND
6 Fast Input(5)
7 Fast Input(6)
8 Fast Input(7)
9 Fast Input(8) - Interrupt
10 GND
11 Not Connected
