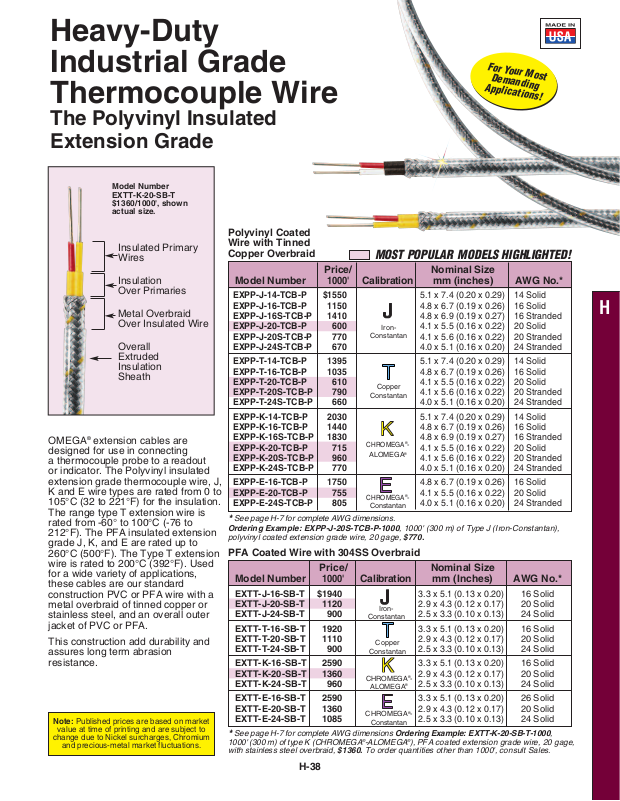

Heavy-Duty
Industrial Grade
Thermocouple Wire
The Polyvinyl Insulated
Extension Grade
Model Number
EXTT-K-20-SB-T
$1360/1000', shown
actual size.
Polyvinyl Coated
Insulated Primary
Wires
Insulation
Over Primaries
Metal Overbraid
Over Insulated Wire
Overall
Extruded
Insulation
Sheath
OMEGA®extension cables are
designed for use in connecting
a thermocouple probe to a readout
or indicator. The Polyvinyl insulated
extension grade thermocouple wire, J,
K and E wire types are rated from 0 to
105°C (32 to 221°F) for the insulation.
The range type T extension wire is
rated from -60° to 100°C (-76 to
212°F). The PFA insulated extension
grade J, K, and E are rated up to
260°C (500°F). The Type T extension
wire is rated to 200°C (392°F). Used
for a wide variety of applications,
these cables are our standard
construction PVC or PFA wire with a
metal overbraid of tinned copper or
stainless steel, and an overall outer
jacket of PVC or PFA.
This construction add durability and
assures long term abrasion
resistance.
Note: Published prices are based on market
value at time of printing and are subject to
change due to Nickel surcharges, Chromium
and precious-metal market fluctuations.
Wire with Tinned
Copper Overbraid
Price/ Nominal Size
Model Number
EXPP-J-14-TCB-P $1550 5.1 x 7.4 (0.20 x 0.29) 14 Solid
EXPP-J-16-TCB-P 1150 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-J-16S-TCB-P 1410 4.8 x 6.9 (0.19 x 0.27) 16 Stranded
EXPP-J-20-TCB-P 600 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-J-20S-TCB-P 770 4.1 x 5.6 (0.16 x 0.22) 20 Stranded
EXPP-J-24S-TCB-P 670 4.0 x 5.1 (0.16 x 0.20) 24 Stranded
EXPP-T-14-TCB-P 1395 5.1 x 7.4 (0.20 x 0.29) 14 Solid
EXPP-T-16-TCB-P 1035 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-T-20-TCB-P 610 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-T-20S-TCB-P 790 4.1 x 5.6 (0.16 x 0.22) 20 Stranded
EXPP-T-24S-TCB-P 660 4.0 x 5.1 (0.16 x 0.20) 24 Stranded
EXPP-K-14-TCB-P 2030 5.1 x 7.4 (0.20 x 0.29) 14 Solid
EXPP-K-16-TCB-P 1440 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-K-16S-TCB-P 1830 4.8 x 6.9 (0.19 x 0.27) 16 Stranded
EXPP-K-20-TCB-P 715 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-K-20S-TCB-P 960 4.1 x 5.6 (0.16 x 0.22) 20 Stranded
EXPP-K-24S-TCB-P 770 4.0 x 5.1 (0.16 x 0.20) 24 Stranded
EXPP-E-16-TCB-P 1750 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-E-20-TCB-P 755 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-E-24S-TCB-P 805 4.0 x 5.1 (0.16 x 0.20) 24 Stranded
See page H-7 for complete AWG dimensions.
*
Ordering Example: EXPP-J-20S-TCB-P-1000, 1000' (300 m) of Type J (Iron-Constantan),
polyvinyl coated extension grade wire, 20 gage, $770.
PFA Coated Wire with 304SS Overbraid
Price/ Nominal Size
Model Number
EXTT-J-16-SB-T $1940
EXTT-J-20-SB-T 1120
EXTT-J-24-SB-T 900
EXTT-T-16-SB-T 1920
EXTT-T-20-SB-T 1110
EXTT-T-24-SB-T 900
EXTT-K-16-SB-T 2590
EXTT-K-20-SB-T 1360
EXTT-K-24-SB-T 960
EXTT-E-16-SB-T 2590
EXTT-E-20-SB-T 1360
EXTT-E-24-SB-T 1085
See page H-7 for complete AWG dimensions Ordering Example: EXTT-K-20-SB-T-1000,
*
1000' (300 m) of type K (CHROMEGA®-ALOMEGA®), PFA coated extension grade wire, 20 gage,
with stainless steel overbraid, $1360. To order quantities other than 1000', consult Sales.
1000'
H-38
1000'
For
Y
our
M
i
cati
andi
ost
ng
ons!
Dem
Appl
MOST POPULAR MODELS HIGHLIGHTED!
Calibration mm (inches) AWG No.*
Iron -
onstantan
C
Copper
Constantan
CHROMEGA®-
ALOMEGA
CHROMEGA® -
Constantan
Calibration mm (Inches) AWG No.*
Constantan
Constantan
CHROMEGA
ALOMEGA
CHROMEGA® -
Constantan
Iron -
Copper
®
3.3 x 5.1 (0.13 x 0.20)
2.9 x 4.3 (0.12 x 0.17)
2.5 x 3.3 (0.10 x 0.13)
3.3 x 5.1 (0.13 x 0.20)
2.9 x 4.3 (0.12 x 0.17)
2.5 x 3.3 (0.10 x 0.13)
3.3 x 5.1 (0.13 x 0.20)
2.9 x 4.3 (0.12 x 0.17)
®
-
®
2.5 x 3.3 (0.10 x 0.13)
3.3 x 5.1 (0.13 x 0.20)
2.9 x 4.3 (0.12 x 0.17)
2.5 x 3.3 (0.10 x 0.13)
16 Solid
20 Solid
24 Solid
16 Solid
20 Solid
24 Solid
16 Solid
20 Solid
24 Solid
26 Solid
20 Solid
24 Solid
H
