Omega Products CL26 User Manual

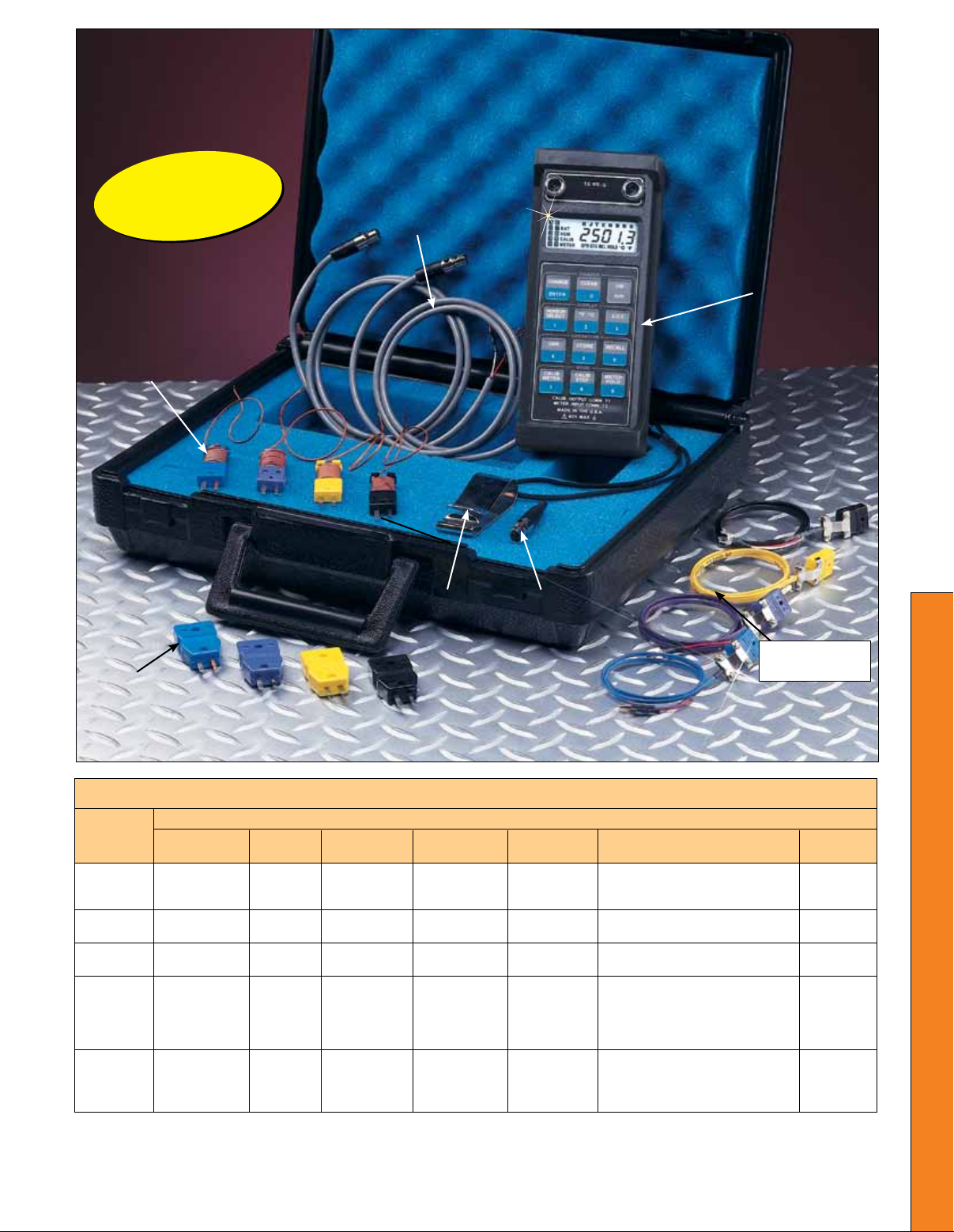

High-Precision Handheld
Calibrator/Thermometer Kit

CL20 Series

Standard

No Points

U 0.3°C (0.5°F) Accuracy

from 18 to 28°C
(64 to 82°F)

U NIST-Traceable

Certificate of Calibration
(No Points)

U Simulates and Measures

Thermocouples, RTDs,
Thermistors, and Ω

U 0.1°C/°F Resolution
U 10 Memory Locations

for Saving Meter
Readings or
Calibrator Outputs

U Step Calibrator, Meter

Hold, Thermometer
Functions

U Ramp Function

(Models CL25 and CL27)

K

The OMEGA® CL20 handheld
calibrators/thermometers simulate,
measure, and record RTD, Ω,
thermocouple, and thermistor
signals—all in one. Featuring an
accuracy of 0.3ºC (0.5ºF) at ambient
temperatures from
18 to 28ºC (64 to 82ºF) and a
host of powerful keypad functions,
these low-cost meters outperform
the competition.

The 5-digit LCD indicates all
active functions and has 0.1ºC/
ºF resolution. Operating mode and
sensor type are also displayed.

Programming is a snap. The user
can enter setpoints directly on the
keypad or from an outside source.
Ten memory locations allow for
instant recall of any programmed
value, and the step function lets the
user navigate the test points
with the push of a button.

Simulates, Measures,

and Records Thermocouple,

RTD, Thermistor, and Resistance

Signals—All in One Meter!

The ramp function of the
CL25 and CL27 makes calibration
easy. When the user enters the
upper limit, lower limit, and step
size, the meter automatically ramps
between the limits. Ramping can
also be performed manually.

No matter what the input type, one
of these meters can handle it. The
possibilities include 100 and 1000 W
RTDs and 2252 W transistors.

K-56

Extended Warranty

Program

CL25

SM

OMEGACARESM extended warranty program
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARE
covers parts, labor and equivalent loaners.

Need to comply with ISO-9000 reporting
specifications? These meters can help!

All conform to the temperature/voltage
tables of the National Institute of Standards
and Technology (NIST). OMEGA
a free NIST-traceable certificate of
calibration for your records. Since
ISO-9000 requires that calibration be done
at the equipment site, these meters are a
perfect choice. With 0.3°C (0.5°F) accuracy
in an ambient temperature range of 18 to
28°C (64 to 82°F), you’re not confined to the
lab. Take it everywhere. The ABS plastic
case protects it from dust and dirt.

®

provides

SM

CL23A

All models

shown smaller

than actual size.

CL25

CL24

CL26

88000 Series probe, sold separately, visit
omega.com/88000_hightemp

CL20 Series Temperature Measurement
and Calibration Range

Input

Type Range Resolution

-200 to 1371°C -328 to 2502°F 0.1°

-210 to 760°C -346 to 1400°F 0.1°

-200 to 399°C -328 to 752°F 0.1°

-230 to 999°C -382 to 1832°F 0.1°

-200 to 1299°C -328 to 2372°F 0.1°

499 to 1815°C 932 to 3308°F 0.1°

0 to 1768°C 32 to 3214°F 0.1°

0 to 1768°C 32 to 3214°F 0.1°

299 to 2315°C 572 to 4201°F 0.1°

0 to 2315°C 32 to 4201°F 0.1°

0 to 2315°C 32 to 4201°F 0.1°

-200 to 849°C -328 to 1562°F 0.1°

Series 400
Thermistor -40 to 150°C -40 to 302°F 0.1°
2252 Ω

Specifications

Display: 5-digit LCD; custom indicators for calibration type;

units hold, recall, store, operating mode, bal, loaded memory
locations (up to 10)

Keypad: Momentary switches with tactile feedback, select
power, thermocouple type, units, resolution, hold, store/recall
(up to 10), stop/clear, operating mode

Configuration Retention: Selected operating mode,
thermocouple type, units, resolution and memory contents
retained on power-off

PR-16 RTD handle probe, sold separately, visit omega.com/pr-16

CL26 and CL27 Resistance Measurement
and Calibration Outputs

Ohms Range Resolution Models

0 to 100 Ω 0.01 Ω CL26 and CL27
0 to 1000 Ω 0.1 Ω CL27
0 to 100,000 Ω 1.0 Ω CL26

CL20 Series Accessories

Model No. Description
HH22-AC NiMH battery and adaptor, 115V
CL-300-CABLE-(

CL-300-CABLE-(

CL-300-RSC-(**)-2 Calibration cable 0.6 m (2'),

Insert Type J, K, T, E, R/S, N or mV (uncompensated SMP connector).

*

Insert Type J, K, T, or E.

**

Diagnostics: Low battery, open input, invalid keypad entry,
out of range, internal hardware fault

Accuracy: See “To Order” chart on next page for details
Ambient Temperature: 0 to 50°C (32 to 122°F), 0 to 90% RH
Reading Rate: 1/s
Input Current: 50 nA typical (meter mode)
Output Load: 100 Ω, min (calibrator mode)
Max Common-Mode Voltage: 42V peak to earth ground
Power: 9V alkaline battery (included)
Battery Life: 16 hr on alkaline battery
Dimensions: 178 H x 74 W x 28 mm D (7.0 x 2.9 x 1.1")
Weight: 340 g (12 oz)

*)-2 Calibration cable, 0.6 m (2'), 24

AWG, SMP to spade lug

*)-10

Calibration cable, 3 m (10'),
24 AWG, SMP to spade lug

retractable, expands to 3 m (10'),
SMP to spade lug

K-57
