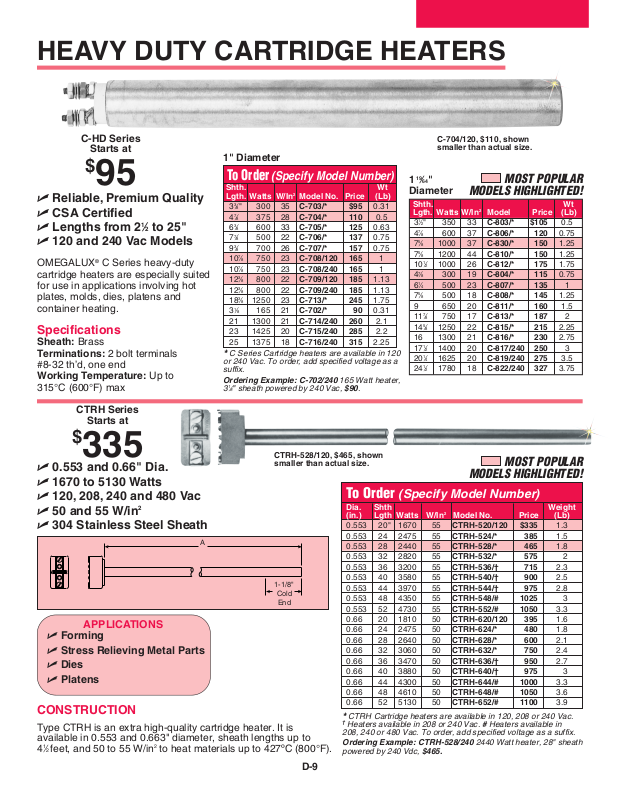

HEAVY DUTY CARTRIDGE HEATERS
A
1-1/8"
Cold
End
C-HD Series
Starts at
$
95
⻬ Reliable, Premium Quality
⻬ CSA Certified
⻬ Lengths from 2
⻬ 120 and 240 Vac Models
OMEGALUX®C Series heavy-duty
cartridge heaters are especially suited
for use in applications involving hot
plates, molds, dies, platens and
container heating.
Specifications
Sheath: Brass
Terminations: 2 bolt terminals
#8-32 th’d, one end
Working Temperature: Up to
315°C (600°F) max
CTRH Series
Starts at
1
⁄2 to 25"
1" Diameter
To Order (Specify Model Number)
Shth. Wt
Lgth. Watts W/In2Model No. Price (Lb)
33⁄8" 300 35 C-703/* $95 0.31
47⁄8 375 28 C-704/* 110 0.5
63⁄8 600 33 C-705/* 125 0.63
77⁄8 500 22 C-706/* 137 0.75
93⁄8 700 26 C-707/* 157 0.75
107⁄8 750 23 C-708/120 165 1
107⁄8 750 23 C-708/240 165 1
123⁄8 800 22 C-709/120 185 1.13
123⁄8 800 22 C-709/240 185 1.13
183⁄8 1250 23 C-713/* 245 1.75
31⁄8 165 21 C-702/* 90 0.31
21 1300 21 C-714/240 260 2.1
23 1425 20 C-715/240 285 2.2
25 1375 18 C-716/240 315 2.25
C Series Cartridge heaters are available in 120
*
or 240 Vac. To order, add specified voltage as a
suffix.
Ordering Example: C-702/240 165 Watt heater,
31⁄8" sheath powered by 240 Vac, $90.
C-704/120, $110, shown
smaller than actual size.
19
1
⁄64"
Diameter
Shth. Wt
Lgth. Watts W/In
31⁄2" 350 33 C-803/* $105 0.5
47⁄8 600 37 C-806/* 120 0.75
75⁄8 1000 37 C-830/* 150 1.25
75⁄8 1200 44 C-810/* 150 1.25
101⁄2 1000 26 C-812/* 175 1.75
47⁄8 300 19 C-804/* 115 0.75
61⁄4 500 23 C-807/* 135 1
75⁄8 500 18 C-808/* 145 1.25
9 650 20 C-811/* 160 1.5
117⁄8 750 17 C-813/* 187 2
145⁄8 1250 22 C-815/* 215 2.25
16 1300 21 C-816/* 230 2.75
171⁄2 1400 20 C-817/240 250 3
201⁄4 1625 20 C-819/240 275 3.5
1
⁄2 1780 18 C-822/240 327 3.75
24
MODELS HIGHLIGHTED!
MOST POPULAR
2
Model Price (Lb)
$
335
⻬ 0.553 and 0.66" Dia.
⻬ 1670 to 5130 Watts
⻬ 120, 208, 240 and 480 Vac
⻬ 50 and 55 W/in
⻬ 304 Stainless Steel Sheath
APPLICATIONS
⻬ Forming
⻬ Stress Relieving Metal Parts
⻬ Dies
⻬ Platens
CONSTRUCTION
Type CTRH is an extra high-quality cartridge heater. It is
available in 0.553 and 0.663" diameter, sheath lengths up to
41⁄2 feet, and 50 to 55 W/in2to heat materials up to 427ºC (800°F).
2
CTRH-528/120, $465, shown
smaller than actual size.
D-9
MOST POPULAR
MODELS HIGHLIGHTED!
To Order (Specify Model Number)
Dia. Shth Weight
(in.) Lgth Watts W/In2Model No. Price (Lb)
0.553 20" 1670 55 CTRH-520/120 $335 1.3
0.553 24 2475 55 CTRH-524/* 385 1.5
0.553 28 2440 55 CTRH-528/* 465 1.8
0.553 32 2820 55 CTRH-532/* 575 2
0.553 36 3200 55 CTRH-536/† 715 2.3
0.553 40 3580 55 CTRH-540/† 900 2.5
0.553 44 3970 55 CTRH-544/† 975 2.8
0.553 48 4350 55 CTRH-548/# 1025 3
0.553 52 4730 55 CTRH-552/# 1050 3.3
0.66 20 1810 50 CTRH-620/120 395 1.6
0.66 24 2475 50 CTRH-624/* 480 1.8
0.66 28 2640 50 CTRH-628/* 600 2.1
0.66 32 3060 50 CTRH-632/* 750 2.4
0.66 36 3470 50 CTRH-636/† 950 2.7
0.66 40 3880 50 CTRH-640/† 975 3
0.66 44 4300 50 CTRH-644/# 1000 3.3
0.66 48 4610 50 CTRH-648/# 1050 3.6
0.66 52 5130 50 CTRH-652/# 1100 3.9
CTRH Cartridge heaters are available in 120, 208 or 240 Vac.
*
†
Heaters available in 208 or 240 Vac. # Heaters available in
208, 240 or 480 Vac. To order, add specified voltage as a suffix.
Ordering Example: CTRH-528/240 2440 Watt heater, 28" sheath
powered by 240 Vdc, $465.
