Omega Products ADAM-5013 User Manual

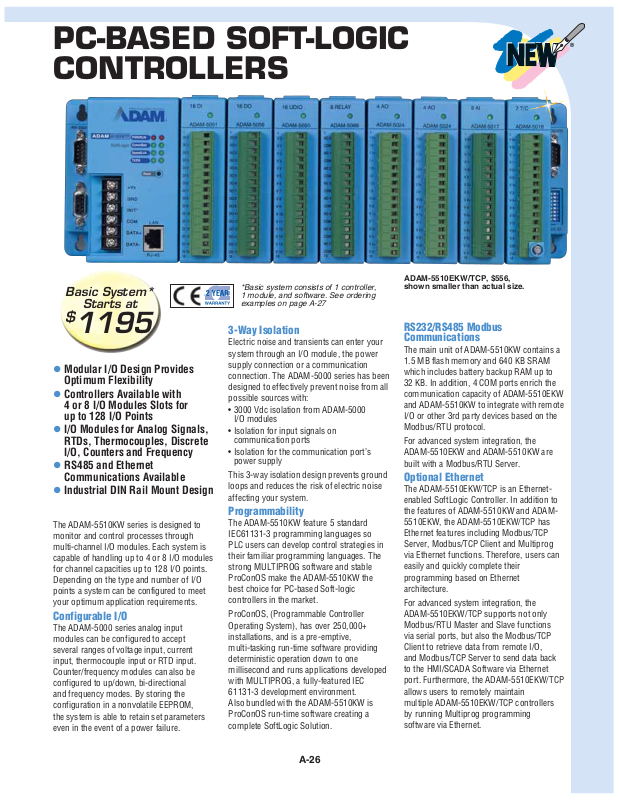

A-26

The ADAM-5510KW series is designed to
monitor and control processes through
multi-channel I/O modules. Each system is
capable of handling up to 4 or 8 I/O modules
for channel capacities up to 128 I/O points.
Depending on the type and number of I/O
points a system can be configured to meet
your optimum application requirements.

Configurable I/O

The ADAM-5000 series analog input
modules can be configured to accept
several ranges of voltage input, current
input, thermocouple input or RTD input.
Counter/frequency modules can also be
configured to up/down, bi-directional
and frequency modes. By storing the
configuration in a nonvolatile EEPROM,
the system is able to retain set parameters
even in the event of a power failure.

3-Way Isolation

Electric noise and transients can enter your
system through an I/O module, the power
supply connection or a communication
connection. The ADAM-5000 series has been
designed to effectively prevent noise from all
possible sources with:

• 3000 Vdc isolation from ADAM-5000
I/O modules

• Isolation for input signals on
communication ports

• Isolation for the communication port’s
power supply

This 3-way isolation design prevents ground
loops and reduces the risk of electric noise
affecting your system.

Programmability

The ADAM-5510KW feature 5 standard
IEC61131-3 programming languages so
PLC users can develop control strategies in
their familiar programming languages. The
strong MULTIPROG software and stable
ProConOS make the ADAM-5510KW the
best choice for PC-based Soft-logic
controllers in the market.

ProConOS, (Programmable Controller
Operating System), has over 250,000+
installations, and is a pre-emptive,
multi-tasking run-time software providing
deterministic operation down to one
millisecond and runs applications developed
with MULTIPROG, a fully-featured IEC
61131-3 development environment.
Also bundled with the ADAM-5510KW is
ProConOS run-time software creating a
complete SoftLogic Solution.

RS232/RS485 Modbus
Communications

The main unit of ADAM-5510KW contains a

1.5 MB flash memory and 640 KB SRAM
which includes battery backup RAM up to
32 KB. In addition, 4 COM ports enrich the
communication capacity of ADAM-5510EKW
and ADAM-5510KW to integrate with remote
I/O or other 3rd party devices based on the
Modbus/RTU protocol.

For advanced system integration, the
ADAM-5510EKW and ADAM-5510KW are
built with a Modbus/RTU Server.

Optional Ethernet

The ADAM-5510EKW/TCP is an Ethernet­enabled SoftLogic Controller. In addition to
the features of ADAM-5510KW and ADAM­5510EKW, the ADAM-5510EKW/TCP has
Ethernet features including Modbus/TCP
Server, Modbus/TCP Client and Multiprog
via Ethernet functions. Therefore, users can
easily and quickly complete their
programming based on Ethernet
architecture.

For advanced system integration, the
ADAM-5510EKW/TCP supports not only
Modbus/RTU Master and Slave functions
via serial ports, but also the Modbus/TCP
Client to retrieve data from remote I/O,
and Modbus/TCP Server to send data back
to the HMI/SCADA Software via Ethernet
port. Furthermore, the ADAM-5510EKW/TCP
allows users to remotely maintain
multiple ADAM-5510EKW/TCP controllers
by running Multiprog programming
software via Ethernet.

 Modular I/O Design Provides

Optimum Flexibility

 Controllers Available with

4 or 8 I/O Modules Slots for
up to 128 I/O Points

 I/O Modules for Analog Signals,

RTDs, Thermocouples, Discrete
I/O, Counters and Frequency

 RS485 and Ethernet

Communications Available

 Industrial DIN Rail Mount Design

Basic System*

Starts at

$

1195

ADAM-5510EKW/TCP, $556,
shown smaller than actual size.

PC-BASED SOFT-LOGIC
CONTROLLERS

*Basic system consists of 1 controller,
1 module, and software. See ordering
examples on page A-27

A-27

MODEL NO. PRICE DESCRIPTION

ADAM-5510KW $445 4-slot SoftLogic controller
ADAM-5510EKW 525 8-slot PC-based SoftLogic controller
ADAM-5510EKW/TCP 558 8-slot Ethernet-based SoftLogic controller

To Order

(Specify Model Number)

AVAILABLE FOR FAST DELIVERY

Comes with complete user manual on CD

CONTROLLER SPECIFICATIONS

CONTROL SYSTEM

CPU: 16-bit microprocessor

I/O Capacity: 8 slots (5510EKW-A and
5510EKW/TCP); 4 slots (5510KW)

LED Indicators: Power, CPU,
communication

MEMORY
Flash Disk: 512 KB
Flash Memory: 768 KB
Flash ROM: 256 KB
RAM: 640 KB SRAM
Operating System: ROM-DOS
Real-Time Clock: Yes
Watchdog Timer: Yes

COMMUNICATIONS
(Ethernet, ADAM-5510EKW/TCP only)
Medium: Cat. 5 cable with RJ-45

connectors
Transmission Speed: 100 Mbps

(10/100Base-T)

COMMUNICATIONS
(Serial, All Models)
Max. Nodes: 32

(in RS485 daisy-chain network)

Medium: RS485 (2-wire)
Protocols: Modbus/RTU, Modbus/TCP
Transmission Speed: 9600, 19200

and 38400 bps

PROTECTION
Power Input: 3000 Vdc
Communication Line: 2500 Vdc

(COM2 only)

ISOLATION
Power Reversal: Yes

PROTECTION
Power Input: 3000 Vdc
Power Consumption: 4 W @ 24 Vdc

(not including I/O modules)
Unregulated 10 to 30 V

Power Input: Unregulated 10 to 30 Vdc

GENERAL
Certifications: CE, FCC class A

(ADAM-5510 and ADAM-5510EKW-A only)

Connectors:

1 x DB9-M for RS232/485 (COM1)
1 x Screw terminal for RS485 (COM2)
1 x DB9-F for RS232/Programming (COM3)
1 x DB9-M for RS232/485 (COM4)
1 x Screw-terminal for power input
1 x RJ-45 for LAN

(ADAM-5510EKW/TCP only)

Dimensions:

4-Slot: 231 x 110 x 75 mm

8-Slot: 355 x 110 x 75 mm
Enclosure: ABS + PC
Mounting: DIN 35 rail, stack, wall

Environment

Humidity: 5 to 95%, non-condensing
Operating Temperature:

-10 to 70° C (14 to 158° F)

Storage Temperature:

-25 to 85° C (-13 to 185° F)

System Ordering Examples
Example 1

Quantity 1 ADAM-5510KW 4-slot softlogic contoller $445
Quantity 1 ADAM-5051S 16-channel isolated digital input module 99
Quantity 1 ADAM-5080 4-channel counter/frequency module 280
Quantity 1 ADAM-5069 8-channel power relay output module 120
Quantity 1 MPROG-BAS33 KW Multiprog basic development software 555
Quantity 1 PWR-242 Power supply 160
Quantity 1 1703093000 Serial cable 10

Total

$1669

Example 2

Quantity 1 ADAM-5510EKW/TCP 8-slot ethernet based softlogic controller $555
Quantity 2 ADAM-5018 7-channel thermocouple input module 220 (x2)
Quantity 2 ADAM-5017H 8-channel hi speed analog input module 285 (x2)
Quantity 1 ADAM- 5013 3-channel RTD module 250
Quantity 1 ADAM-5024 4-channel analog output module 285
Quantity 1 ADAM-5050 16-channel universal digital I/O module 100
Quantity 1 MPROG-ADV33 KW Multiprog advanced development software 1,110
Quantity 1 1997000220 Blank I/O module 1
Quantity 1 PWR-242 Power supply 160
Quantity 1 1703093000 Serial cable 10

Total

$3481

MODEL NO. PRICE DESCRIPTION

PWR-242 $160 DIN rail mount power supply, 24vdc, 2.1A
1997000220 1 ADAM-5000 blank I/O module
1703093000 10 RS232 communication cable

Accessories

ADAM-5510KW, $445,
shown smaller than
actual size.

A-28

ADAM-5018

7-CHANNEL THERMOCOUPLE
INPUT MODULE

Certifications: CE, FM
Connectors: 1 x plug-in screw

terminal (# 14 to 22 AWG)

Power Consumption: 0.63 W (max)
Thermocouple Input:

Accuracy: ±0.1% or better
Bandwidth: 13.1 Hz @ 50 Hz

15.72 Hz @ 60 Hz

Channels: 7 differential
Input Impedance: 2 MΩ
lnput Range: ±15 mV, ±50 mV,

±100 mV, ±500 mV, ±1 V, ±2.5 V,
±20 mA

lnput Type: mV, V, mA, thermocouple
Resolution: 16-bit
Sampling Rate: 10 samples/sec (total)
T/C Type and Temperature Range:

J: 0 to 760° C
K: 0 to 1370° C
T: -100 to 400° C
E: 0 to 1000° C
R: 500 to 1750° C
S: 500 to 1750° C

B: 500 to 1800° C
Protection: Up to ±35 V
Isolation Voltage: 3000 Vdc

INPUT/OUTPUT MODULES SPECIFICATIONS

ADAM-5013

3-CHANNEL RTD
INPUT MODULE

Certifications: CE

Connectors: 1 x plug-in

screw terminal (# 14 to 22 AWG)

Power Consumption: 1.1 W (max)
RTD Input:

Accuracy: ±0.1% or better
Bandwidth: 13.1 Hz @ 50 Hz

15.72 Hz @ 60 Hz

Channels: 3
Input Connections: 2, 3 or 4 wire
Input Impedance: 2 MΩ
lnput Type: PT100 or Ni RTD
Resolution: 16-bit
RTD Types and Temperature Ranges:
IEC RTD 100: Ω

Pt -100 to 100°C

␣= 0.00385

Pt 0 to 100°C ␣= 0.00385
Pt 0 to 200°C ␣= 0.00385
Pt 0 to 600°C ␣= 0.00385

JIS RTD 100:Ω

Pt -100 to 100°C ␣= 0.00392
Pt 0 to 100°C ␣= 0.00392
Pt 0 to 200°C ␣= 0.00392
Pt 0 to 600°C ␣= 0.00392

Ni RTD:

Ni -80 to 100°C
Ni 0 to 100°C

Sampling Rate: 10 samples/sec (total)
Isolation Voltage: 3000 Vdc

ADAM-5017

8-CHANNEL ANALOG INPUT MODULE
Channels: 8 differential
Effective Resolution: 16-bit
lnput Type: mV, V, mA
lnput Range: ±150 mV, ±500 mV, V,

±5 V, ±10 V; ±20

Sampling Rate: 10 samples/sec (total)
Input Impedance: 2 MΩ

Bandwidth:

13.1 Hz @ 50 Hz,

15.72 Hz @ 60 Hz

Accuracy: ±0.1% or better
Power Consumption: 1 W (typical);

1.25 W (max)

Analog Signal Range: ±15 V max

Note: The voltage difference between

any two pins must not exceed ±15 V
Isolation Voltage: 3000 Vdc
Protection: Up to ±35 V

ADAM-5017H

8-CHANNEL HI SPEED ANALOG
INPUT MODULE

Channels: 8 differential
Effective Resolution: 12-bit plus

sign bit

Input Type: mV, V, mA
Input Range: ±250 mV, ±500 mV,

±1 V, ±5 V, ±10 V, 0 to +500 mV,
0 to +1 V, 0 to +5 V, 0 to +10 V,
0 to 20 mA, 4 to 20 mA

Isolation Voltage: 3000 Vdc
Sampling Rate Depends on base unit
ADAM-5510KW: Up to 100 samples/sec
Input Impedance: 20 MΩ (voltage inputs)

125Ω (current inputs)

Bandwidth: 1 kHz
Signal Input Bandwidth: 1 kHz for both

voltage and current inputs
Accuracy: ±0.1% or better; CMR @ 50/60

Hz 92 dB min
Power Consumption: 1.75 W (typical);

2.2 W (max)
Distinct Range: Settings allowed on each

channel

Note: The voltage difference between any
2 pins must not exceed ±15 V

MODEL NO. PRICE DESCRIPTION

ADAM-5018 $220 7-channel thermocouple input module
ADAM-5013 250 3-channel RTD input module
ADAM-5017 205 8-channel analog input module
ADAM-5017H 285 8-channel hi speed analog input module

To Order

(Specify Model Number)

AVAILABLE FOR FAST DELIVERY!

ADAM-5018,
7-channel
thermocouple input
$220, shown smaller
than actual size.

ADAM-5013,
3-channel RTD input,
$250, shown smaller
than actual size.

ADAM-5017,
8-channel analog
input, $205, shown
smaller than
actual size.

ADAM-5017H,
8-channel high speed
analog input, $285,
shown smaller than
actual size.
