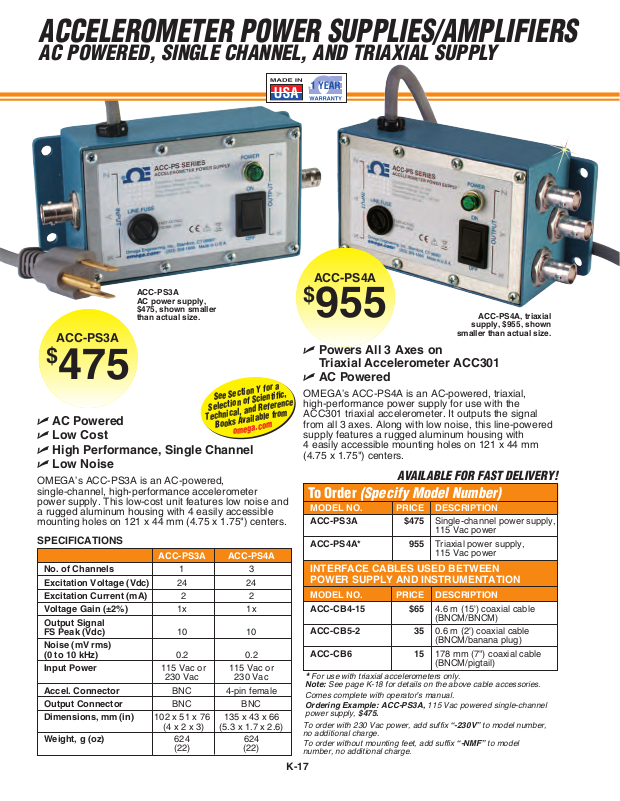

Omega Products ACC-CB4-15 User Manual
ACCELEROMETER POWER SUPPLIES/AMPLIFIERS
AC POWERED, SINGLE CHANNEL, AND TRIAXIAL SUPPLY
ACC-PS4A
ACC-PS3A
AC power supply,
$475, shown smaller
than actual size.
ACC-PS3A
$
475
See Section Y for a
Selection of Scientific,
⻬ AC Powered
⻬ Low Cost
⻬ High Performance, Single Channel
⻬ Low Noise
OMEGA’s ACC-PS3A is an AC-powered,
single-channel, high-performance accelerometer
power supply. This low-cost unit features low noise and
a rugged aluminum housing with 4 easily accessible
mounting holes on 121 x 44 mm (4.75 x 1.75") centers.
SPECIFICATIONS
ACC-PS3A ACC-PS4A
No. of Channels 13
Excitation Voltage (Vdc) 24 24
Excitation Current (mA) 22
Voltage Gain (±2%) 1x 1x
Output Signal
FS Peak (Vdc) 10 10
Noise (mV rms)
(0 to 10 kHz) 0.2 0.2
Input Power 115 Vac or 115 Vac or
230 Vac 230 Vac
Accel. Connector BNC 4-pin female
Output Connector BNC BNC
Dimensions, mm (in) 102 x 51 x 76 135 x 43 x 66
(4 x 2 x 3) (5.3 x 1.7 x 2.6)
Weight, g (oz) 624 624
(22) (22)
Technical, and Reference
Books Available from
omega.com
$
955
⻬ Powers All 3 Axes on
Triaxial Accelerometer ACC301
⻬ AC Powered
OMEGA’s ACC-PS4A is an AC-powered, triaxial,
high-performance power supply for use with the
ACC301 triaxial accelerometer. It outputs the signal
from all 3 axes. Along with low noise, this line-powered
supply features a rugged aluminum housing with
4 easily accessible mounting holes on 121 x 44 mm
(4.75 x 1.75") centers.
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
MODEL NO. PRICE DESCRIPTION
ACC-PS3A $475 Single-channel power supply,
ACC-PS4A* 955 Triaxial power supply,
INTERFACE CABLES USED BETWEEN
POWER SUPPLY AND INSTRUMENTATION
MODEL NO. PRICE DESCRIPTION
ACC-CB4-15 $65 4.6 m (15') coaxial cable
ACC-CB5-2 35 0.6 m (2') coaxial cable
ACC-CB6 15 178 mm (7") coaxial cable
For use with triaxial accelerometers only.
*
Note: See page K-18 for details on the above cable accessories.
Comes complete with operator’s manual.
Ordering Example: ACC-PS3A, 115 Vac powered single-channel
power supply, $475.
To order with 230 Vac power, add suffix “-230V” to model number,
no additional charge.
To order without mounting feet, add suffix “-NMF” to model
number, no additional charge.
K-17
115 Vac power
115 Vac power
(BNCM/BNCM)
(BNCM/banana plug)
(BNCM/pigtail)
ACC-PS4A, triaxial
supply, $955, shown
smaller than actual size.
