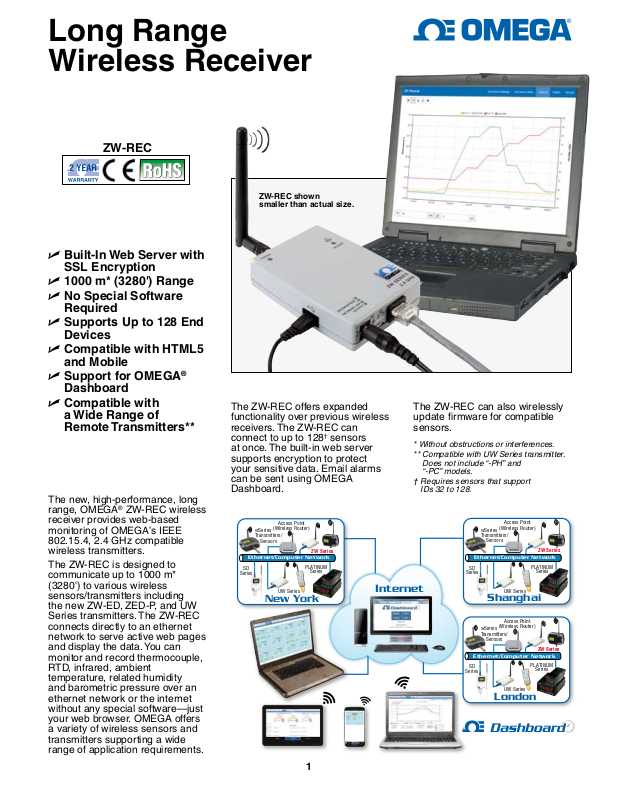

Long Range

Wireless Receiver

ZW-REC

ZW-REC shown smaller than actual size.

U Built-In Web Server with

SSL Encryption

U 1000 m* (3280') Range U No Special Software

Required

U Supports Up to 128 End

Devices

U Compatible with HTML5

and Mobile

U Support for OMEGA

Dashboard

U Compatible with

a Wide Range of Remote Transmitters**

The new, high-performance, long range, OMEGA® ZW-REC wireless receiver provides web-based monitoring of OMEGA’s IEEE

802.15.4, 2.4 GHz compatible wireless transmitters.

The ZW-REC is designed to communicate up to 1000 m* (3280') to various wireless sensors/transmitters including the new ZW-ED, ZED-P, and UW Series transmitters. The ZW-REC connects directly to an ethernet network to serve active web pages and display the data. You can monitor and record thermocouple, RTD, infrared, ambient temperature, related humidity and barometric pressure over an ethernet network or the internet without any special software—just your web browser. OMEGA offers a variety of wireless sensors and transmitters supporting a wide range of application requirements.

The ZW-REC offers expanded functionality over previous wireless receivers. The ZW-REC can connect to up to 128† sensors at once. The built-in web server supports encryption to protect your sensitive data. Email alarms can be sent using OMEGA Dashboard.

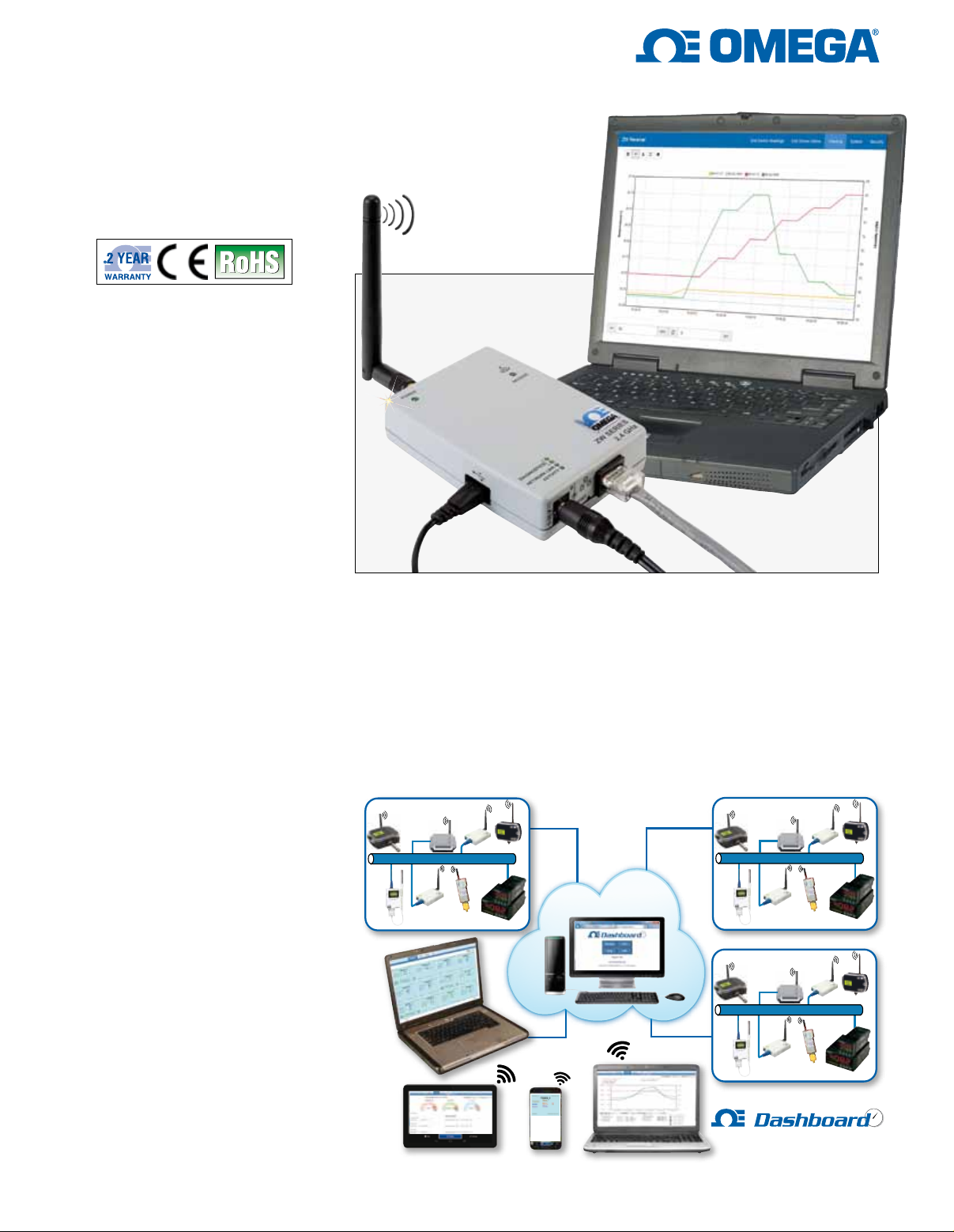

Access Point

(Wireless Router)

wSeries Transmitters/ Sensors

Ethernet/Computer Network

Series

UW Series

New York

ZW Series

PLATINUM

Series

The ZW-REC can also wirelessly update ﬁrmware for compatible sensors.

* Without obstructions or interferences. ** Compatible with UW Series transmitter.

† Requires sensors that support

Internet

Does not include “-PH” and “-PC” models.

IDs 32 to 128.

Access Point

(Wireless Router)

wSeries Transmitters/ Sensors

Ethernet/Computer Network

Series

UW Series

Shanghai

Access Point

(Wireless Router)

wSeries Transmitters/ Sensors

Ethernet/Computer Network

Series

UW Series

London

ZW Series

PLATINUM

Series

ZW Series

PLATINUM

Series

Page 2

Speciﬁcations

WIRELESS COMMUNICATION

Standard: IEEE 802.15.4, DSSS Frequency: 2.4 GHz (2400 to

2483.5 MHz), 16 channels

Network Topology: Star topology Transmit Power: 9.5dBm Receiver Sensitivity: -96dBm Range: Up to 1000 m (3280')

(Without obstructions or interference)

PORTS AND FEATURES

Ethernet: RJ45, 10/100 Base-T USB: Micro-USB 2.0 Type B LEDs: Power; diagnostics;

network/link/activity

Encryption: Up to 2048 bit Users: Client and Administrator IP Address: Static or DHCP

COMPATIBLE WIRELESS TRANSMITTERS

ZW Series: Up to 128 end devices zSeries: Up to 32 end devices UW Series: Up to 127 end devices

POWER

Input Voltage: 5 to 30 Vdc Input Power: 0.8 W maximum Safety Qualiﬁed AC Power Adaptor

(Included): Nominal Output: 9 Vdc @ 0.5 A Input: 100 to 240 Vdc, 50/60 Hz Operating Temperature: 0 to 40°C

(32 to 104°F)

ZW-REC

ZW-ED shown

smaller than

actual size.

All models shown smaller than actual size.

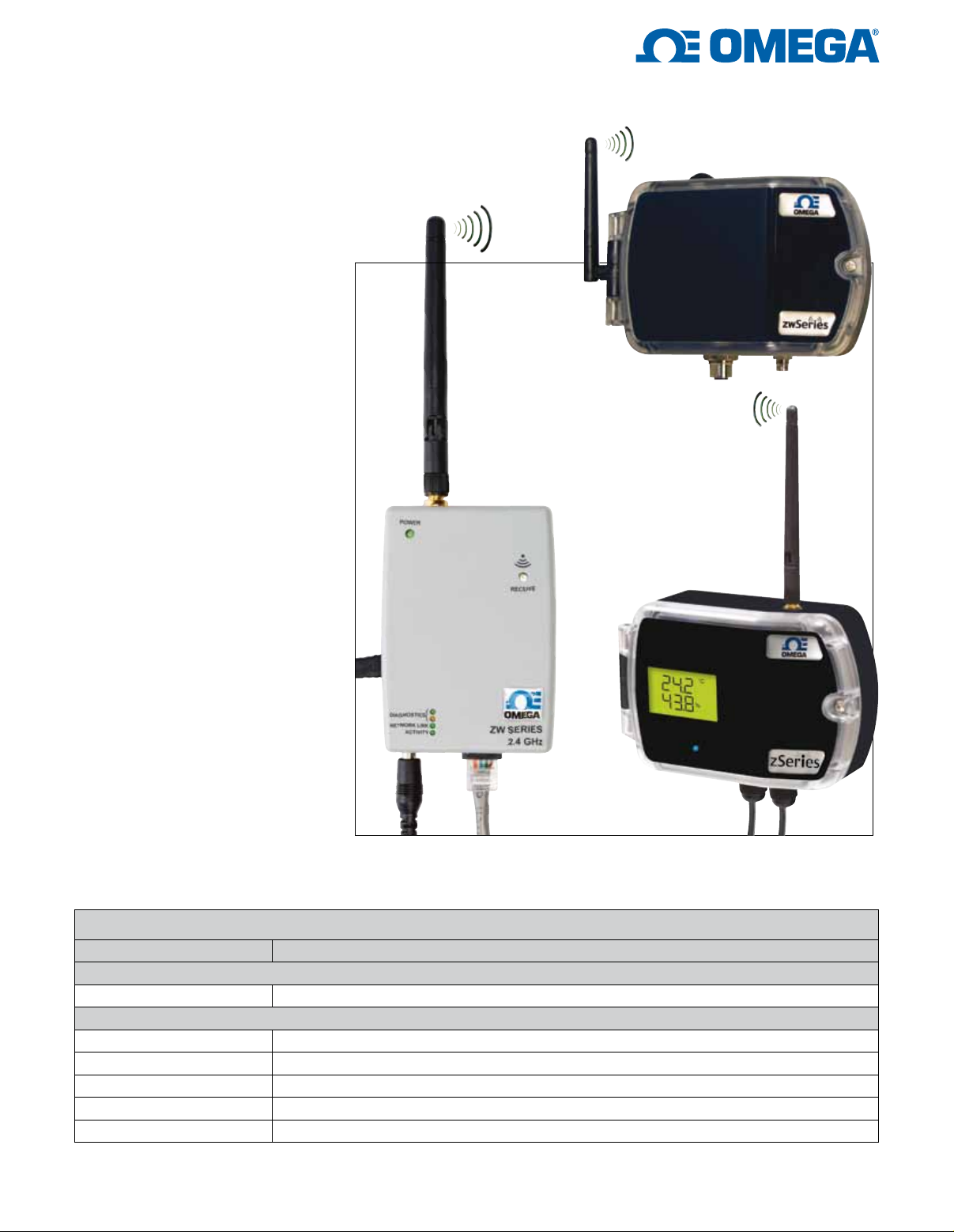

zED-TP2-LCD-H2

ENVIRONMENTAL

0 to 70°C (32 to 158°F), 90% RH non-condensing

GENERAL

Agency Approval: ECCN 5A992,

EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU

Software: Compatible with the OMEGA

Dashboard

To Order

Model No. Description Wireless Coordinator (Receiver) ZW-REC Wireless End Devices (Transmitters) ZW-ED zED-TP2-LCD-H2 zED-TC-LCD-H2 UWTC-2-NEMA UWRTD-2-NEMA

A complete list of OMEGA wireless end devices are available online.

Long range wireless receiver

Long range wireless transmitter Compact and long range wireless transmitter (zSeries) Dual thermocouple input, AC powered, LCD display Weather resistant thermocouple-to-wireless transmitter Weather resistant RTD-to-wireless transmitter

ZW-ED, ZED-P, and UW Series transmitters.

Compatible with OMEGA
