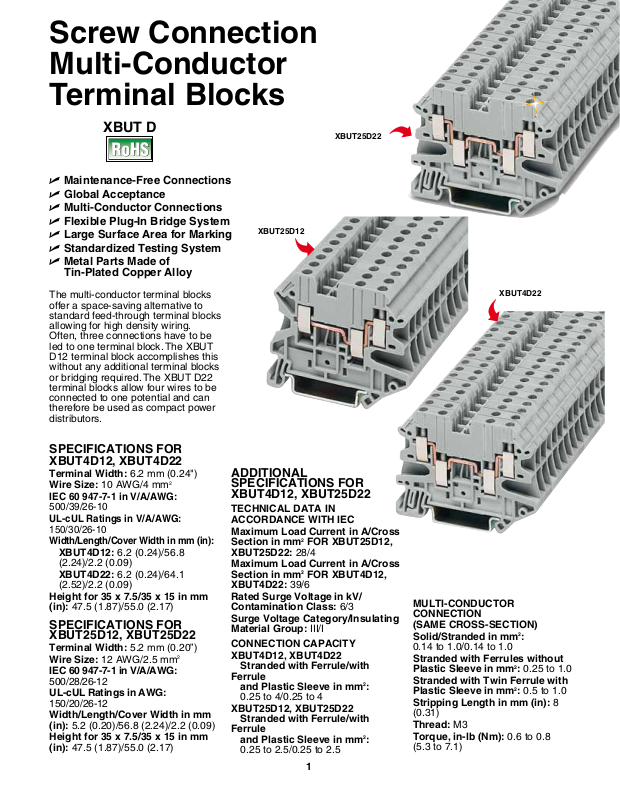

Screw Connection
Multi-Conductor
Terminal Blocks
XBUT D
U Maintenance-Free Connections
U Global Acceptance
U Multi-Conductor Connections
U Flexible Plug-In Bridge System
U Large Surface Area for Marking
U Standardized Testing System
U Metal Parts Made of
Tin-Plated Copper Alloy
The multi-conductor terminal blocks
offer a space-saving alternative to
standard feed-through terminal blocks
allowing for high density wiring.
Often, three connections have to be
led to one terminal block. The XBUT
D12 terminal block accomplishes this
without any additional terminal blocks
or bridging required. The XBUT D22
terminal blocks allow four wires to be
connected to one potential and can
therefore be used as compact power
distributors.

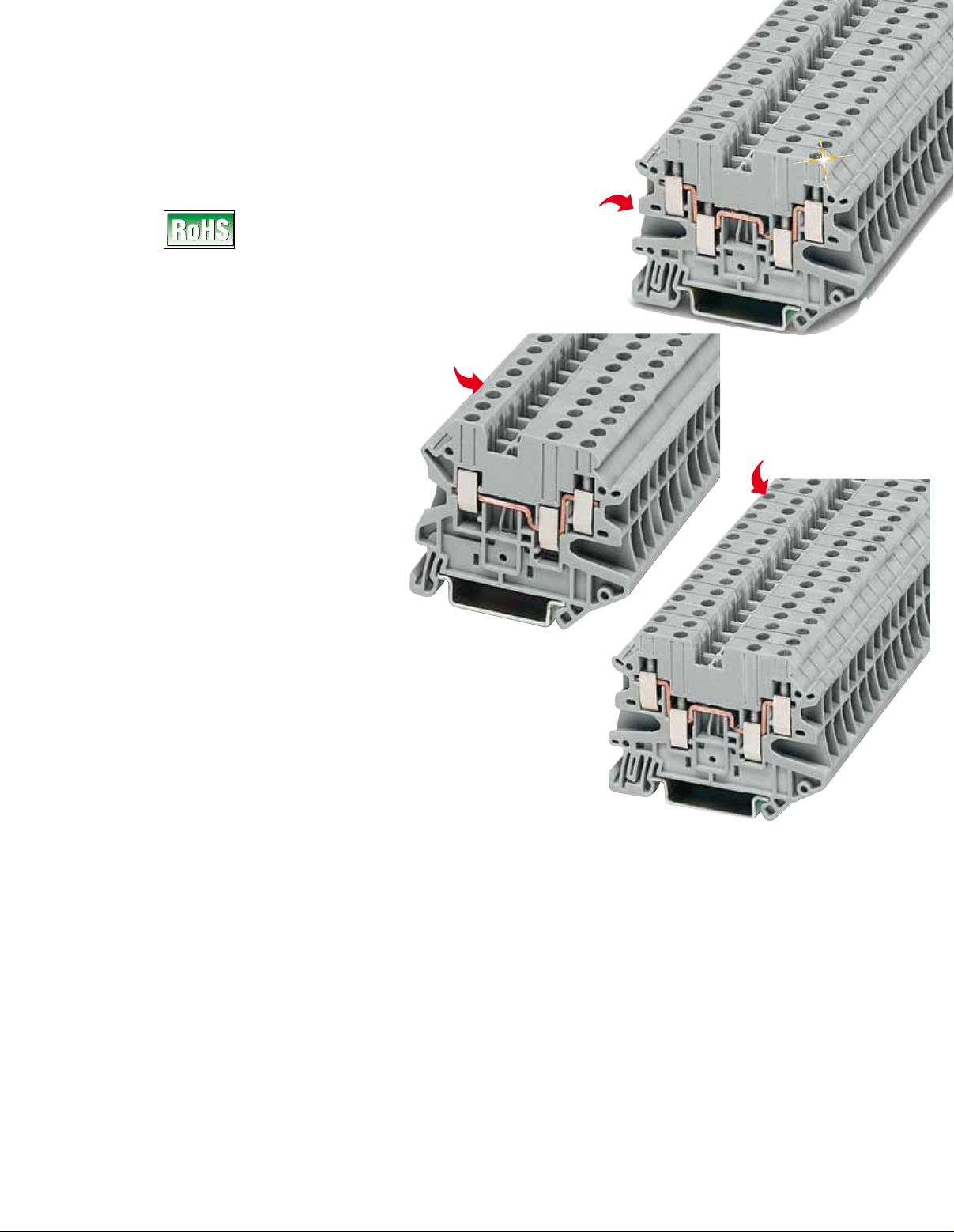

XBUT25D22
XBUT25D12
XBUT4D22
SPECIFICATIONS FOR
XBUT4D12, XBUT4D22
Terminal Width: 6.2 mm (0.24")
Wire Size: 10 AWG/4 mm
IEC 60 947-7-1 in V/A/AWG:
500/39/26-10
UL-cUL Ratings in V/A/AWG:
150/30/26-10
Width/Length/Cover Width in mm (in):
XBUT4D12: 6.2 (0.24)/56.8
(2.24)/2.2 (0.09)
XBUT4D22: 6.2 (0.24)/64.1
(2.52)/2.2 (0.09)
Height for 35 x 7.5/35 x 15 in mm
(in): 47.5 (1.87)/55.0 (2.17)
2
SPECIFICATIONS FOR
XBUT25D12, XBUT25D22
Terminal Width: 5.2 mm (0.20”)
Wire Size: 12 AWG/2.5 mm
IEC 60 947-7-1 in V/A/AWG:
500/28/26-12
UL-cUL Ratings in AWG:
150/20/26-12
Width/Length/Cover Width in mm
(in): 5.2 (0.20)/56.8 (2.24)/2.2 (0.09)
Height for 35 x 7.5/35 x 15 in mm
(in): 47.5 (1.87)/55.0 (2.17)
2
ADDITIONAL
SPECIFICATIONS FOR
XBUT4D12, XBUT25D22
TECHNICAL DATA IN
ACCORDANCE WITH IEC
Maximum Load Current in A/Cross
Section in mm2 FOR XBUT25D12,
XBUT25D22: 28/4
Maximum Load Current in A/Cross
Section in mm2 FOR XBUT4D12,
XBUT4D22: 39/6
Rated Surge Voltage in kV/
Contamination Class: 6/3
Surge Voltage Category/Insulating
Material Group: III/I
CONNECTION CAPACITY
XBUT4D12, XBUT4D22
Stranded with Ferrule/with
Ferrule
and Plastic Sleeve in mm2:
0.25 to 4/0.25 to 4
XBUT25D12, XBUT25D22
Stranded with Ferrule/with
Ferrule
and Plastic Sleeve in mm2:
0.25 to 2.5/0.25 to 2.5
1
MULTI-CONDUCTOR
CONNECTION
(SAME CROSS-SECTION)
Solid/Stranded in mm
0.14 to 1.0/0.14 to 1.0
Stranded with Ferrules without
Plastic Sleeve in mm2: 0.25 to 1.0
Stranded with Twin Ferrule with
Plastic Sleeve in mm2: 0.5 to 1.0
Stripping Length in mm (in): 8
(0.31)
Thread: M3
Torque, in-lb (Nm): 0.6 to 0.8
(5.3 to 7.1)
2
:
Page 2

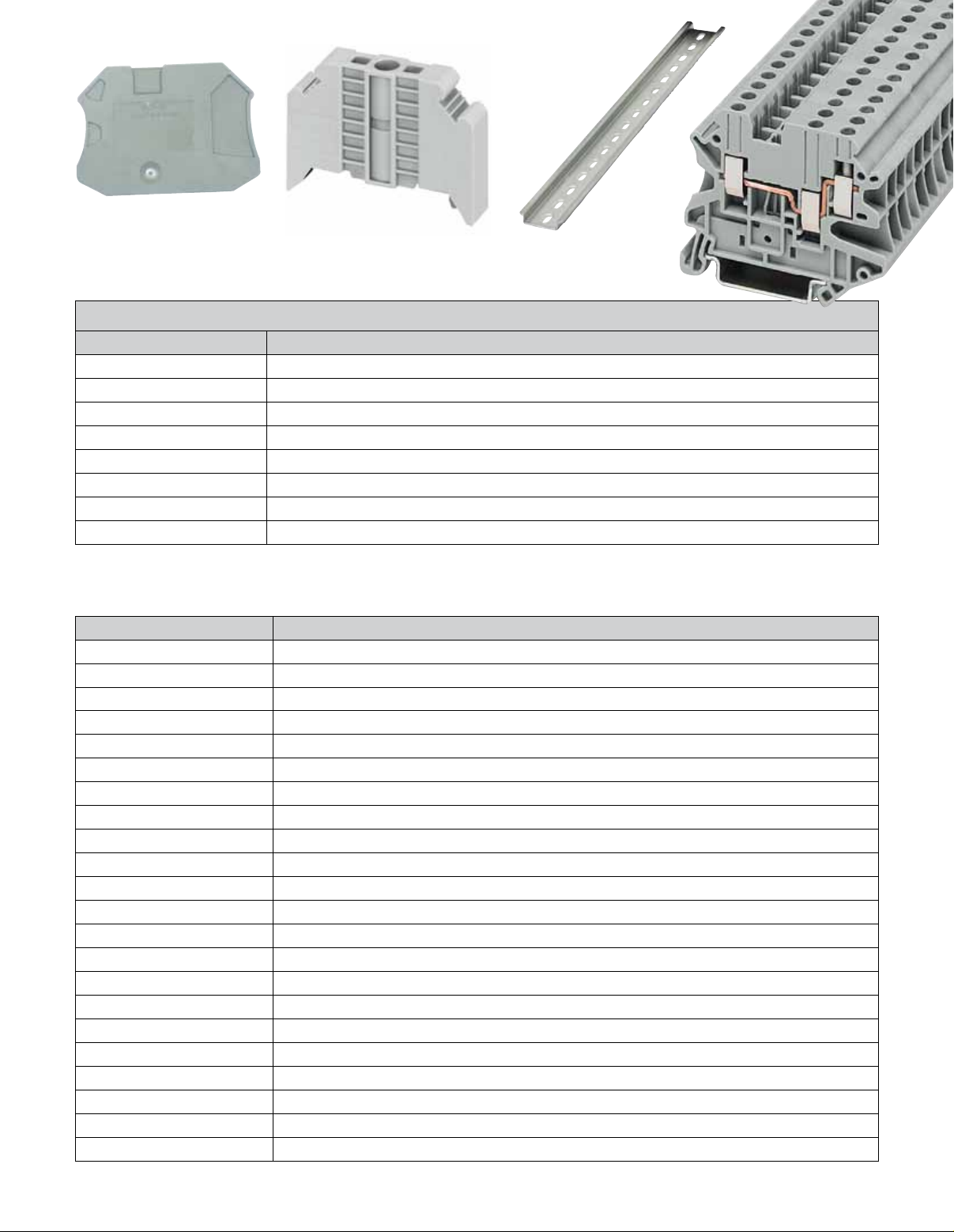

XBANS3575P
XBACUT4D12
XBAES35C
XBUT4D12
To Order
Model No. Description
XBUT25D12
XBUT25D12BU
XBUT4D12
XBUT4D12BU
XBUT25D22
XBUT25D22BU
XBUT4D22
XBUT4D22BU
Ordering Examples: XBUT25D12BU, blue multi conductor terminal block, XBACUT4D12, end cover, XBANS3575P, DIN rail.
XBUT4D12, multi-conductor terminal block, XBACUT4D12, end cover, XBMZB6, blank marker strip, XBANS3575P, DIN rail.
ACCESSORIES
Model No. Description
XBACUT4D12
XBACUT4D22
XBAFBS25
XBAFBS35
XBAFBS55
XBAFBS105
XBAFBS505
XBAFBS26
XBAFBS36
XBAFBS56
XBAFBS106
XBAFBS506
XBATSPAI4
XBMZB5
XBMZB6
XBANS3575P
XBANS3575U
XBANS3515P
XBANS3515U
XBAES35C
XBAES35T
XBAES35N
Gray, 5.2 mm (0.20") wide 3-wire multi-conductor TB 26 to 8 AWG
Blue, 5.2 mm (0.20") wide 3-wire multi-conductor TB 26 to 8 AWG
Gray, 6.2 mm (0.24") wide 3-wire multi-conductor TB 26 to 10 AWG
Blue, 6.2 mm (0.24") wide 3-wire multi-conductor TB 26 to 10 AWG
Gray, 5.2 mm (0.20") wide 4-wire multi-conductor TB 26 to 8 AWG
Blue, 5.2 mm (0.20") wide 4-wire multi-conductor TB 26 to 8 AWG
Gray, 6.2 mm (0.24") wide 4-wire multi-conductor TB 26 to 10 AWG
Blue, 6.2 mm (0.24") wide 4-wire multi-conductor TB 26 to 10 AWG
Gray end cover for XBUT4D12 and XBUT25D12 series
Gray end cover for XBUT4D22 and XBUT25D22 series
Red 2-position plug-in bridge for XBUT25D12 and XBUT25D22 series
Red 3-position plug-in bridge for XBUT25D12 and XBUT25D22 series
Red 5-position plug-in bridge for XBUT25D12 and XBUT25D22 series
Red 10-position plug-in bridge for XBUT25D12 and XBUT25D22 series
Red 50-position plug-in bridge for XBUT25D12 and XBUT25D22 series
Red 2-position plug-in bridge for XBUT4D12 and XBUT4D22 series
Red 3-position plug-in bridge for XBUT4D12 and XBUT4D22 series
Red 5-position plug-in bridge for XBUT4D12 and XBUT4D22 series
Red 10-position plug-in bridge for XBUT4D12 and XBUT4D22 series
Red 50-position plug-in bridge for XBUT4D12 and XBUT4D22 series
Test adaptor
White blank marker strip for XBUT25D12 and XBUT25D22 series
White blank marker strip for XBUT4D12 and XBUT4D22 series
DIN rail 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6') slotted
DIN rail 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6') solid
DIN rail 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6') slotted
DIN rail 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6') solid
1-screw mounted end stop
3-screw mounted end stop
Snap-on end stop
