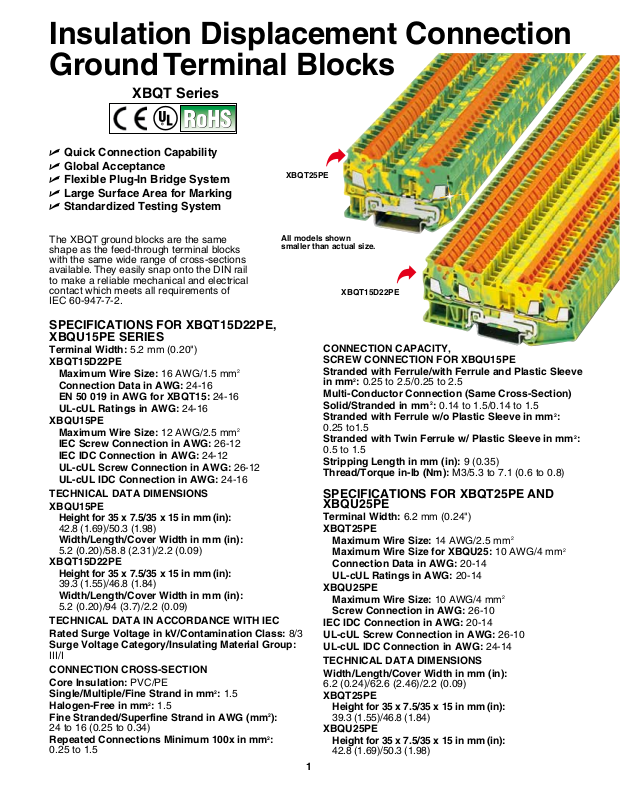

Insulation Displacement Connection
Ground Terminal Blocks
XBQT Series
U Quick Connection Capability
U Global Acceptance
U Flexible Plug-In Bridge System
U Large Surface Area for Marking
U Standardized Testing System

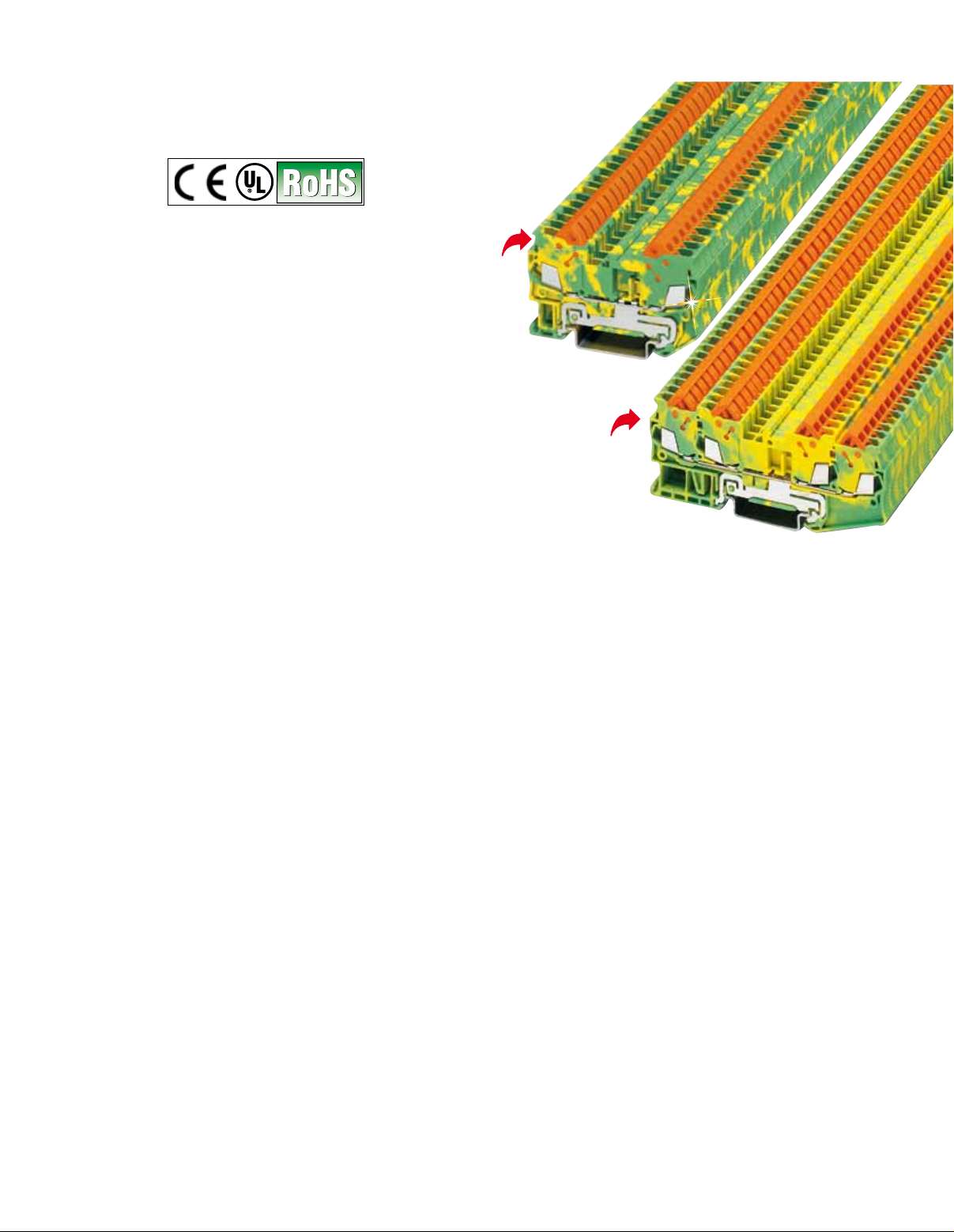

XBQT25PE
The XBQT ground blocks are the same
shape as the feed-through terminal blocks
with the same wide range of cross-sections
available. They easily snap onto the DIN rail
to make a reliable mechanical and electrical
contact which meets all requirements of
IEC 60-947-7-2.
All models shown
smaller than actual size.
SPECIFICATIONS FOR XBQT15D22PE,
XBQU15PE SERIES
Terminal Width: 5.2 mm (0.20")
XBQT15D22PE
Maximum Wire Size: 16 AWG/1.5 mm
Connection Data in AWG: 24-16
EN 50 019 in AWG for XBQT15: 24-16
UL-cUL Ratings in AWG: 24-16
XBQU15PE
Maximum Wire Size: 12 AWG/2.5 mm
IEC Screw Connection in AWG: 26-12
IEC IDC Connection in AWG: 24-12
UL-cUL Screw Connection in AWG: 26-12
UL-cUL IDC Connection in AWG: 24-16
TECHNICAL DATA DIMENSIONS
XBQU15PE
Height for 35 x 7.5/35 x 15 in mm (in):
42.8 (1.69)/50.3 (1.98)
Width/Length/Cover Width in mm (in):
5.2 (0.20)/58.8 (2.31)/2.2 (0.09)
XBQT15D22PE
Height for 35 x 7.5/35 x 15 in mm (in):
39.3 (1.55)/46.8 (1.84)
Width/Length/Cover Width in mm (in):
5.2 (0.20)/94 (3.7)/2.2 (0.09)
TECHNICAL DATA IN ACCORDANCE WITH IEC
Rated Surge Voltage in kV/Contamination Class: 8/3
Surge Voltage Category/Insulating Material Group:
III/I
CONNECTION CROSS-SECTION
Core Insulation: PVC/PE
Single/Multiple/Fine Strand in mm2: 1.5
Halogen-Free in mm2: 1.5
Fine Stranded/Superfine Strand in AWG (mm2):
24 to 16 (0.25 to 0.34)
Repeated Connections Minimum 100x in mm2:
0.25 to 1.5
2
2
XBQT15D22PE
CONNECTION CAPACITY,
SCREW CONNECTION FOR XBQU15PE
Stranded with Ferrule/with Ferrule and Plastic Sleeve
2
in mm
Multi-Conductor Connection (Same Cross-Section)
Solid/Stranded in mm2: 0.14 to 1.5/0.14 to 1.5
Stranded with Ferrule w/o Plastic Sleeve in mm2:
0.25 to1.5
Stranded with Twin Ferrule w/ Plastic Sleeve in mm2:
0.5 to 1.5
Stripping Length in mm (in): 9 (0.35)
Thread/Torque in-lb (Nm): M3/5.3 to 7.1 (0.6 to 0.8)
: 0.25 to 2.5/0.25 to 2.5
SPECIFICATIONS FOR XBQT25PE AND
XBQU25PE
Terminal Width: 6.2 mm (0.24")
XBQT25PE
Maximum Wire Size: 14 AWG/2.5 mm
Maximum Wire Size for XBQU25: 10 AWG/4 mm
Connection Data in AWG: 20-14
UL-cUL Ratings in AWG: 20-14
XBQU25PE
Maximum Wire Size: 10 AWG/4 mm
Screw Connection in AWG: 26-10
IEC IDC Connection in AWG: 20-14
UL-cUL Screw Connection in AWG: 26-10
UL-cUL IDC Connection in AWG: 24-14
TECHNICAL DATA DIMENSIONS
Width/Length/Cover Width in mm (in):
6.2 (0.24)/62.6 (2.46)/2.2 (0.09)
XBQT25PE
Height for 35 x 7.5/35 x 15 in mm (in):
39.3 (1.55)/46.8 (1.84)
XBQU25PE
Height for 35 x 7.5/35 x 15 in mm (in):
42.8 (1.69)/50.3 (1.98)
1
2
2
2
Page 2

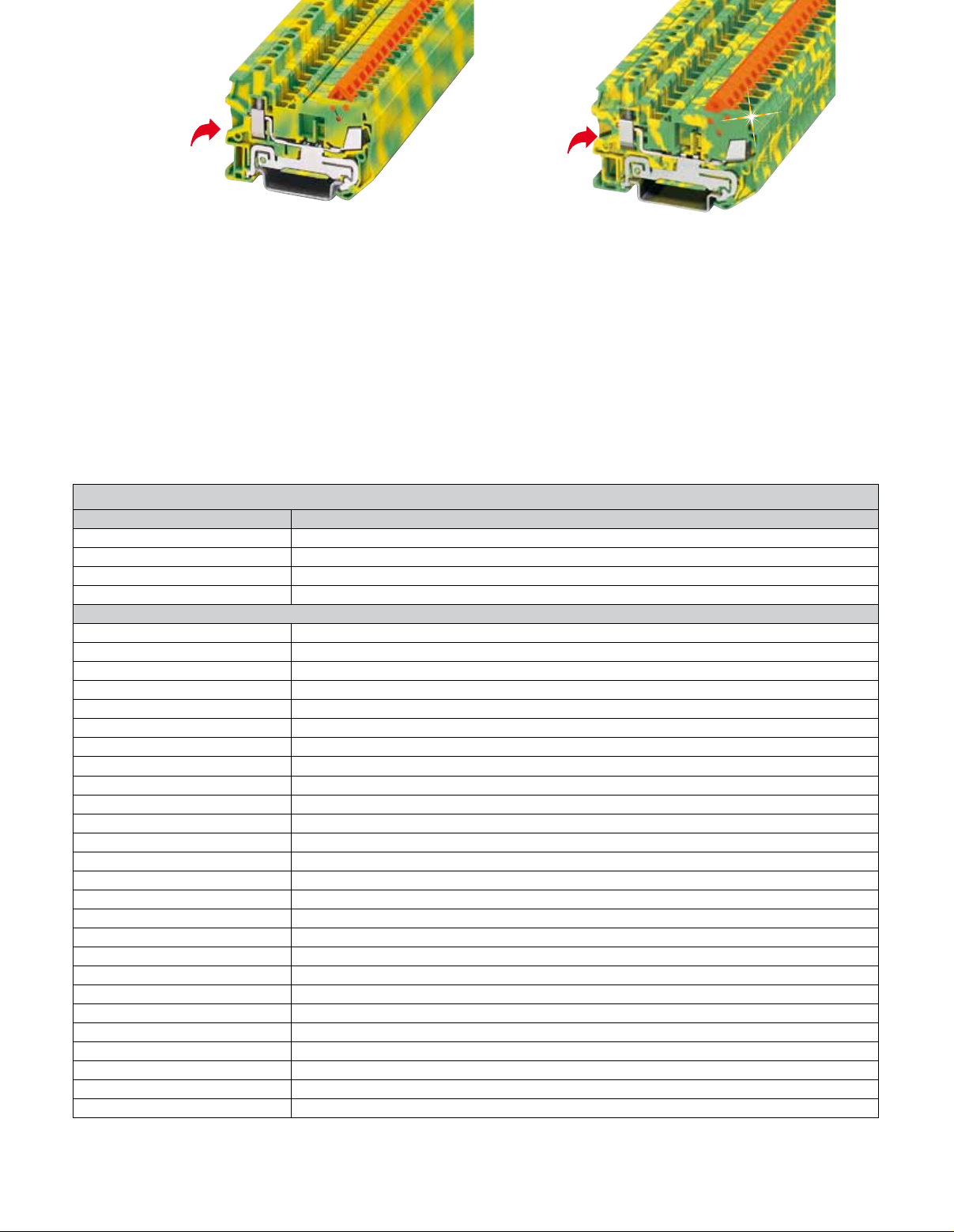

XBQU15PE
XBQU25PE
TECHNICAL DATA IN ACCORDANCE WITH IEC
Rated Surge Voltage in kV/Contamination Class: 8/3
Surge Voltage Category/Insulating Material Group: III/I
CONNECTION CROSS-SECTION
Core Insulation: PVC/PE
Single/Multiple/Fine Strand in mm
2
: 2.5
Halogen-Free in mm2: 2.5
Fine Stranded/Superfine Strand in AWG: 20 to 14
Repeated Connections Minimum 100x in mm2: 0.5 to 2.5
Connection Capacity, Screw Connection for
XBQU25PE
Stranded with Ferrule/with Ferrule and
Plastic Sleeve in mm
2
: 0.25 to 4/ 0.25 to 4
Multi-Conductor Connection (same cross-section)
Solid/Stranded in mm2: 0.14 to 1.5/0.14 to 1.5
Stranded with Ferrule w/o Plastic Sleeve in mm2:
0.25 to 1.5
Stranded with Twin Ferrule w/ Plastic Sleeve in mm2:
0.5 to 2.5
Stripping Length in mm (in): 9 (0.35)
Thread/Torque in-lb (Nm): M3/5.3 to 7.1 (0.6 to 0.8)
To Order
MODEL NO. DESCRIPTION
XBQT25PE
XBQT15D22PE
XBQU15PE
XBQU25PE
ACCESSORIES
XBACQT15D22
XBACQT25
XBACQU15
XBACQU25
XBAFBS25
XBAFBS35
XBAFBS55
XBAFBS105
XBAFBS505
XBAFBS26
XBAFBS36
XBAFBS56
XBAFBS106
XBAFBS506
XBATSPAI4
XBMZBF5
XBMZB5
XBMZBF6
XBMZB6
XBANS3575P
XBANS3575U
XBANS3515P
XBANS3515U
XBAES35C
XBAES35T
XBAES35N
Ordering Examples: XBQT25PE, IDC ground terminal block, XBACQT25, end cover, XBANS3575P, DIN rail.
XBQU25PE, IDC ground hybrid terminal block, XBACQU25, end cover, XBMZB6, blank marker strip, XBANS3575P, DIN rail.
Gray, 6.2 mm (0.24") IDC ground TB, 20-14 AWG
Gray, 5.2 mm (0.20") 4 wire multi-conductor IDC ground TB, 24-16 AWG
Gray, 5.2 mm (0.20") IDC ground hybrid TB, 24-16 AWG
Gray, 6.2 mm (0.24") IDC ground hybrid TB, 20-14 AWG
Gray end cover for XBQT15D22PE
Gray end cover for XBQT25PE
Gray end cover for XBQU15PE
Gray end cover for XBQU25PE
Red 2 position plug-in bridge for XBQT15D22PE, XBQU15PE
Red 3 position plug-in bridge for XBQT15D22PE, XBQU15PE
Red 5 position plug-in bridge for XBQT15D22PE, XBQU15PE
Red 10 position plug-in bridge for XBQT15D22PE, XBQU15PE
Red 50 position plug-in bridge for XBQT15D22PE, XBQU15PE
Red 2 position plug-in bridge for XBQT25PE, XBQU25PE
Red 3 position plug-in bridge for XBQT25PE, XBQU25PE
Red 5 position plug-in bridge for XBQT25PE, XBQU25PE
Red 10 position plug-in bridge for XBQT25PE, XBQU25PE
Red 50 position plug-in bridge for XBQT25PE, XBQU25PE
Test adaptor
White blank marker strip external labeling for XBQT15D22PE, XBQU15PE
White blank marker strip external labeling for XBQT15D22PE, XBQU15PE
White blank marker strip external labeling for XBQT25PE, XBQU25PE
White blank marker strip external labeling for XBQT25PE, XBQU25PE
DIN rail 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6') slotted
DIN rail 35 x 7.5 mm x 2 m (1.4 x 0.30" x 6.6') solid
DIN rail 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6') slotted
DIN rail 35 x 15 mm x 2 m (1.4 x 0.60" x 6.6') solid
1-screw mounted end stop
3-screw mounted end stop
Snap-on end stop
